Initialization

INITIALIZATION

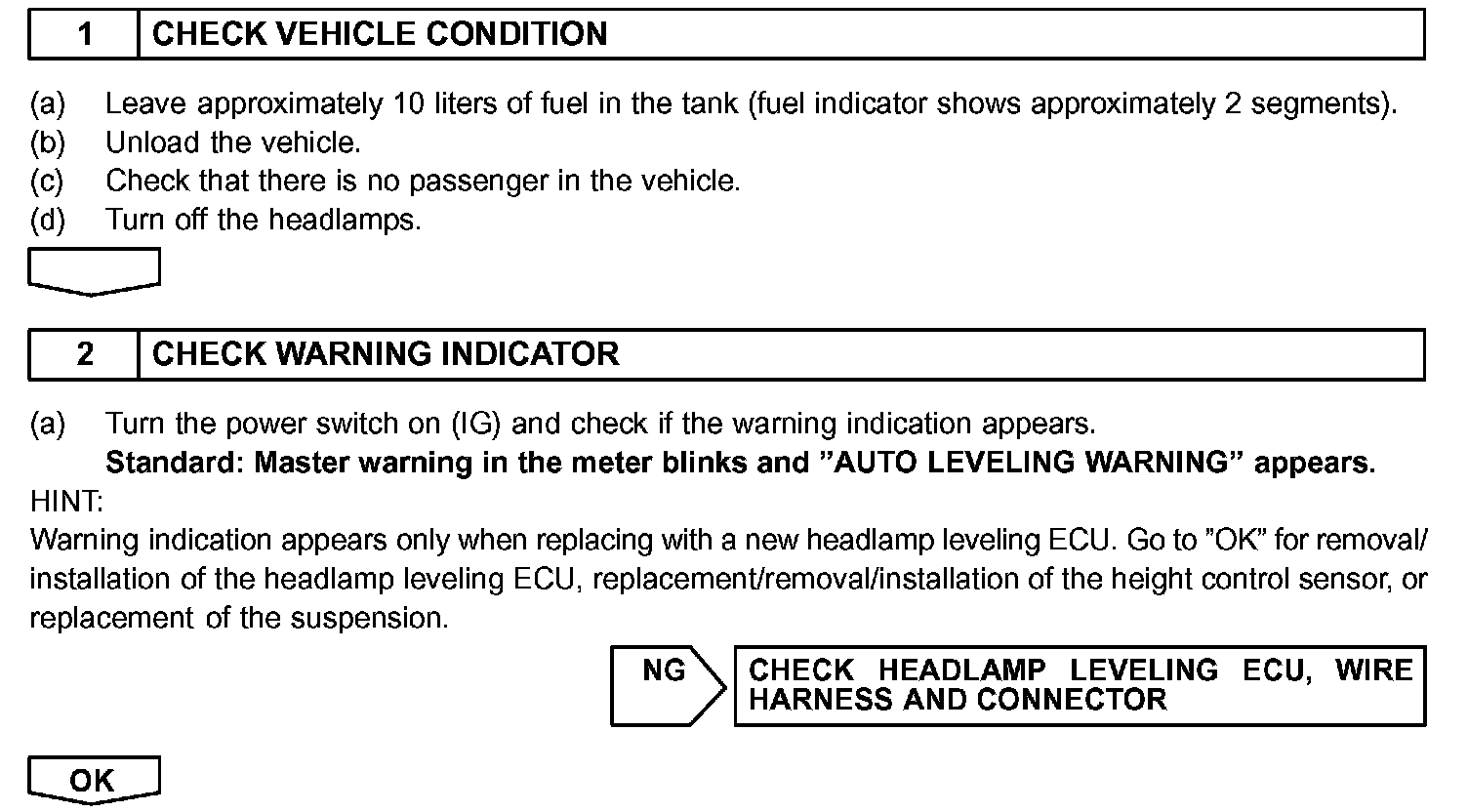

Step 1 - 2:

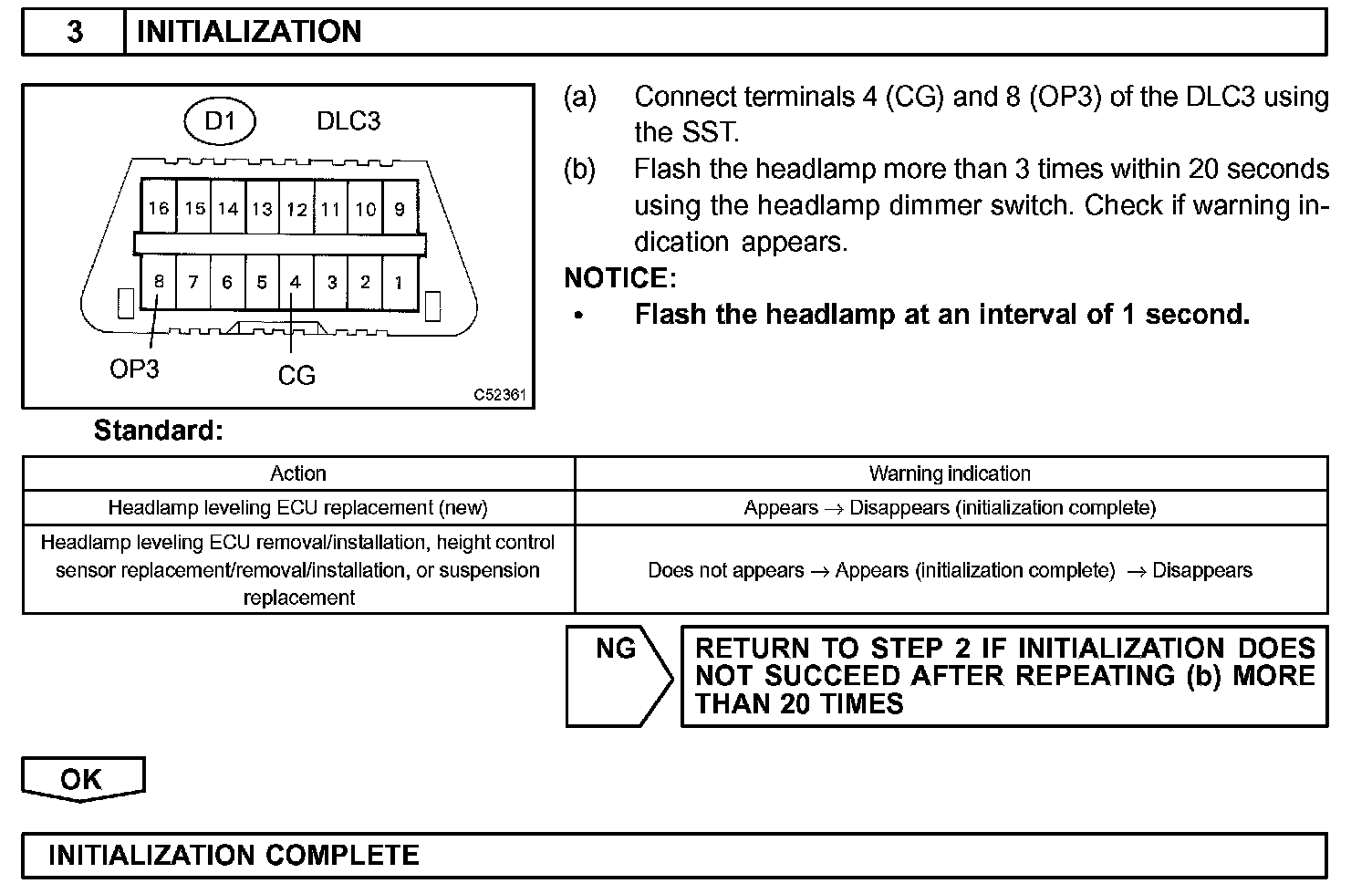

Step 3:

HEADLAMP LEVELING ECU INITIALIZATION

NOTE:
- Initialize the headlamp leveling ECU when: vehicle height changes by such means as removal, installation, and replacement of the height control sensor, replacement of the suspension, or replacement of the headlamp leveling ECU assy.
- Adjust the headlamp aim after initializing the headlamp leveling ECU
