Data List

DATA LIST

HINT: Values of the switch, sensor or actuator can be read by using the DATA LIST displayed on the hand-held tester without removing any parts. Reading the DATA LIST as the first step of troubleshooting is one of the methods to shorten labor time.

a. Connect the hand-held tester to the DLC3.
b. Turn the power switch on (IG).
c. Read the DATA LIST according to the display on the tester.

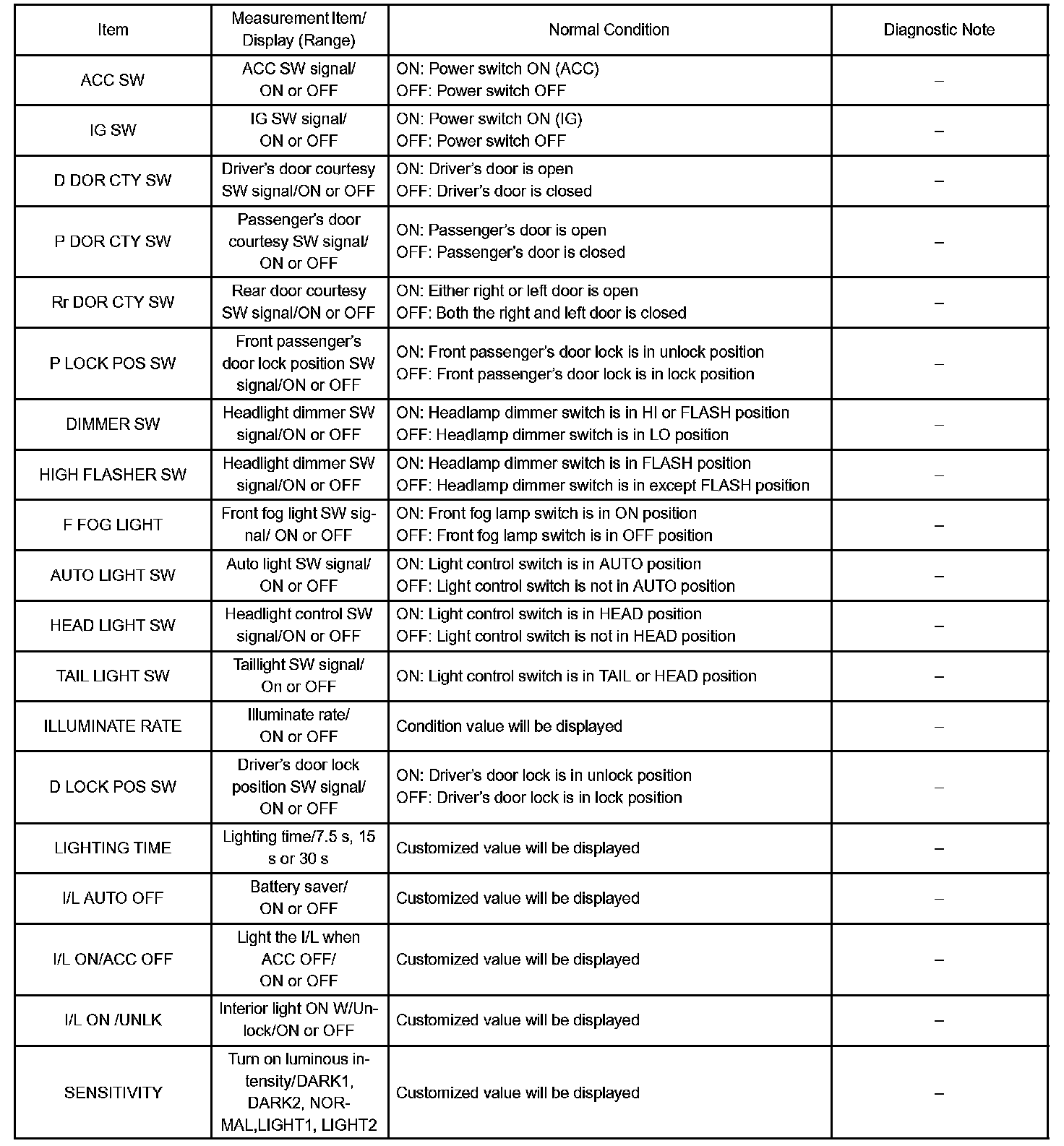

Part 1:

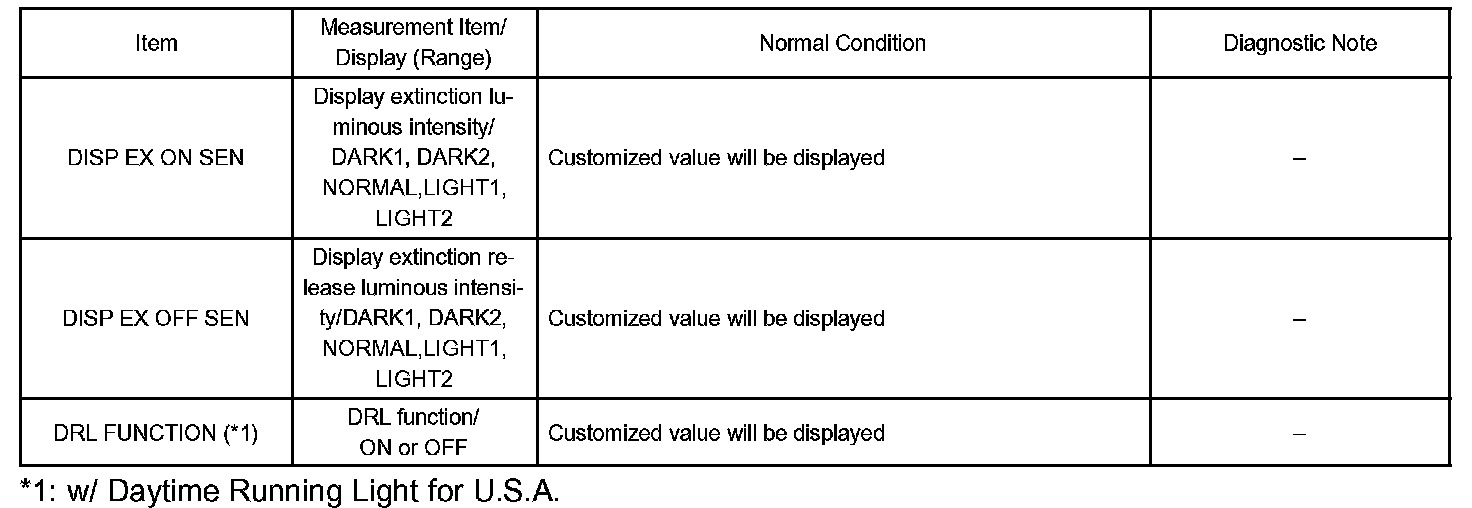

Part 2:




B No.1/GW
