Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

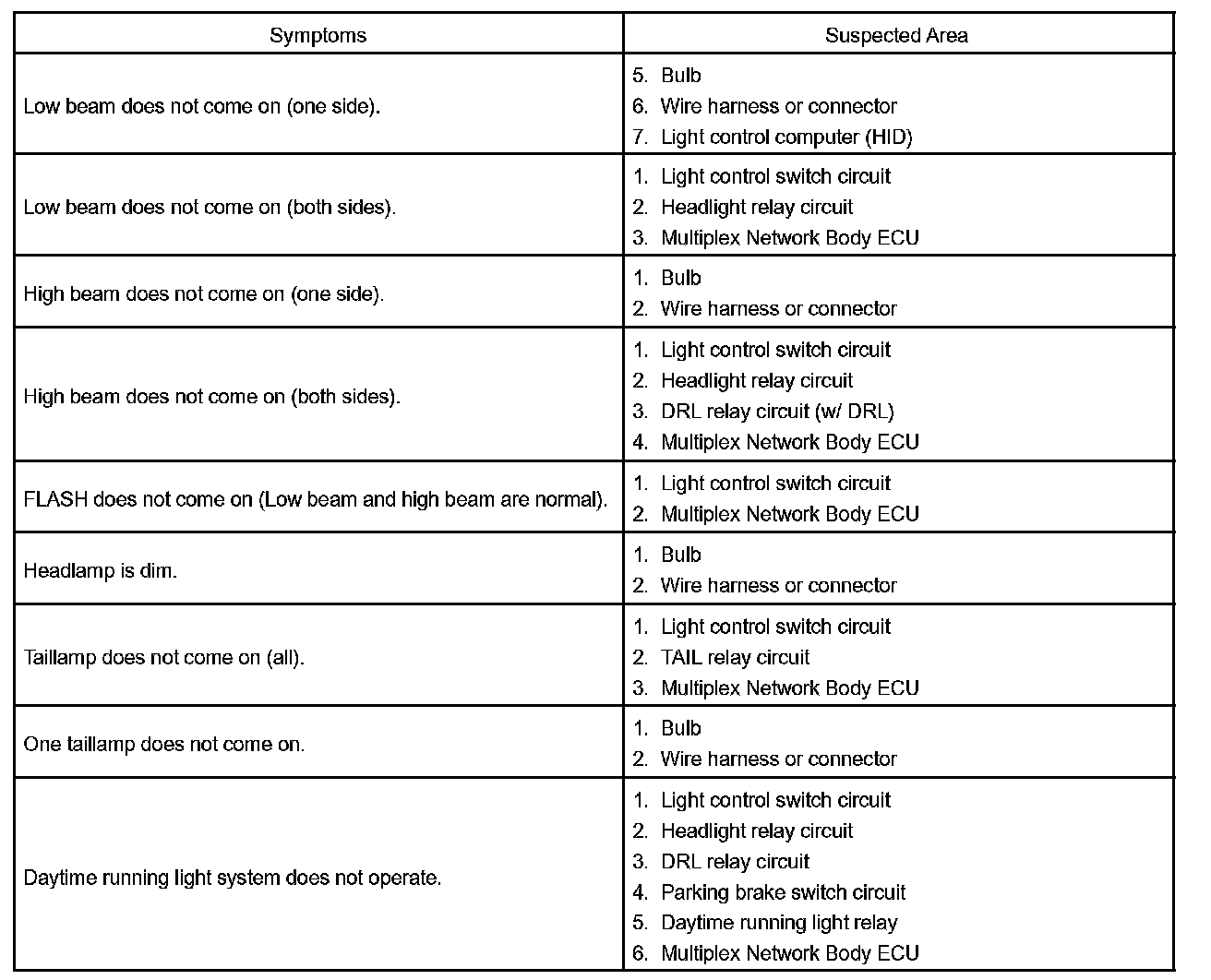

Problem Symptoms Table - Head Lamp And Tail Lamp System:

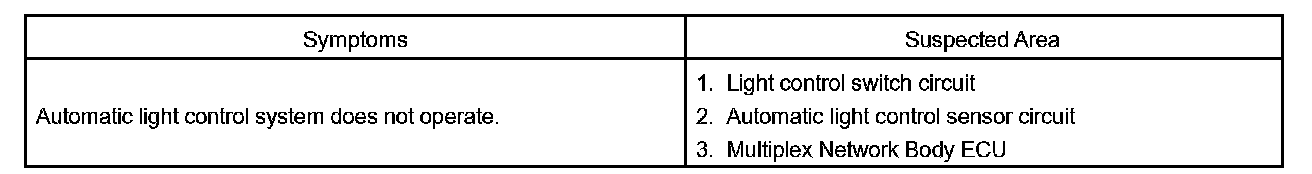

Problem Symptoms Table - Automatic Light Control System:

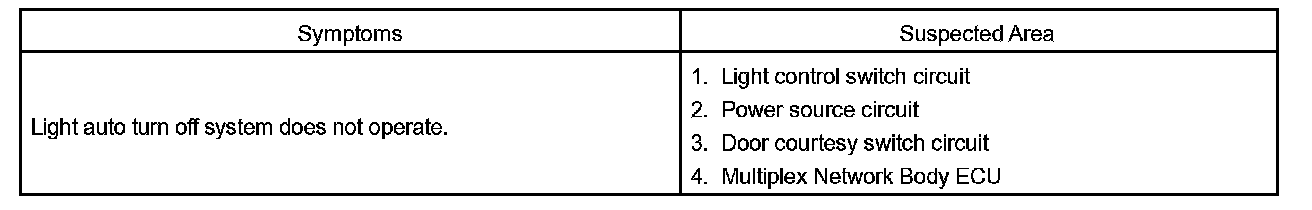

Problem Symptoms Table - Light Auto Turn Off System:

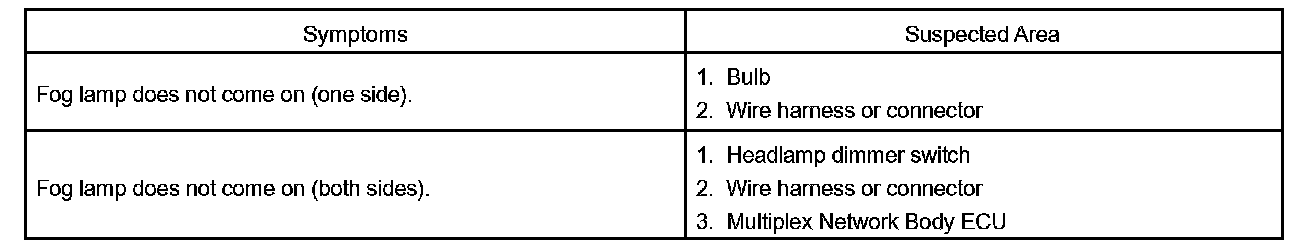

Problem Symptoms Table - Fog Lamp System:

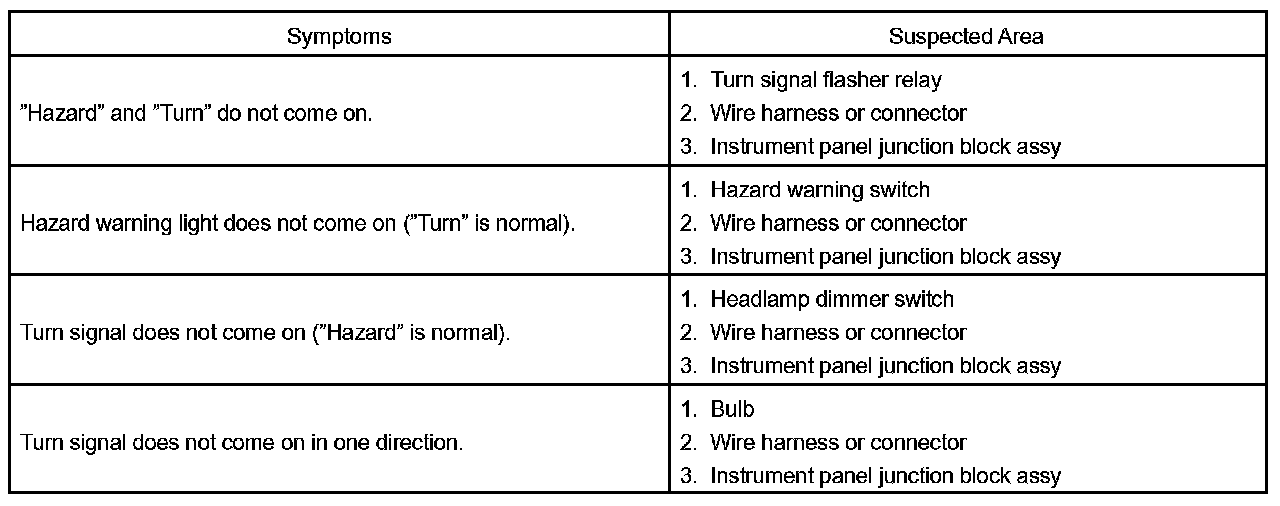

Problem Symptoms Table - Turn Signal Lamp And Hazard Warning System:

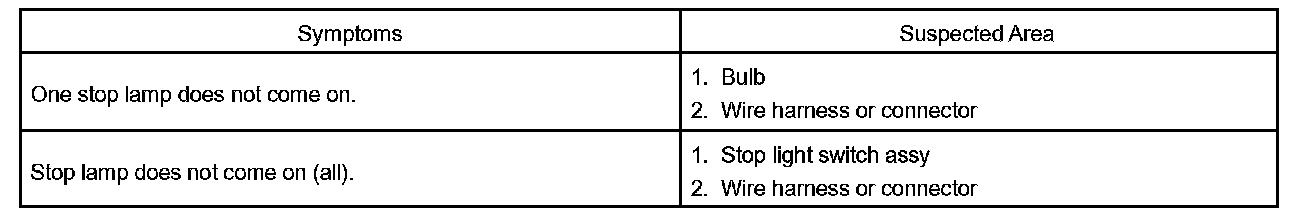

Problem Symptoms Table - Stop Light System:

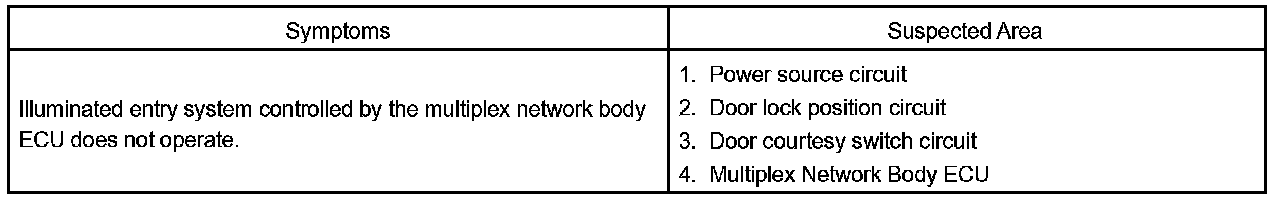

Problem Symptoms Table - Illuminated Data System:

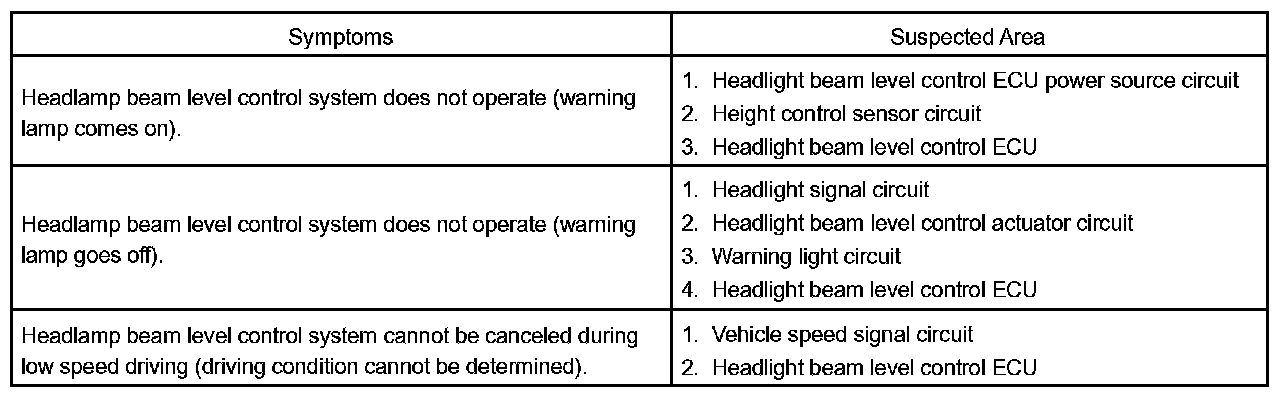

Problem Symptoms Table - Headlight Beam Level Control System:

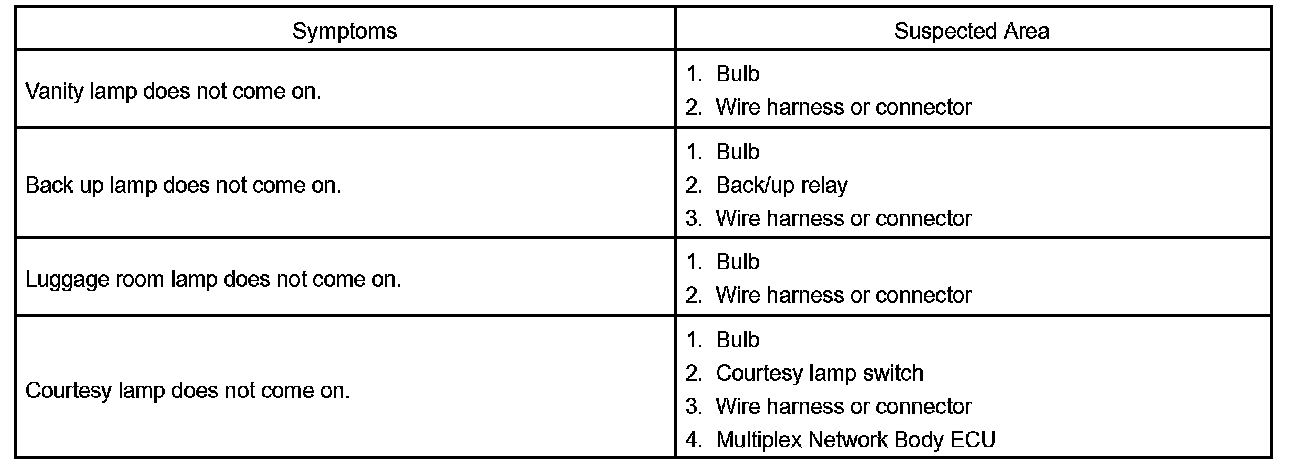

Problem Symptoms Table - Others:

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

HINT: Inspect the fuse and relay before confirming the suspected area as shown in the charts. Inspect each malfunction circuit in numerical order for the corresponding symptom. If the malfunction still exist even after checking and confirming that all the circuit are normal, replace the ECU.
