Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
Engine Control System
Engine Control System
SYSTEM DIAGRAM

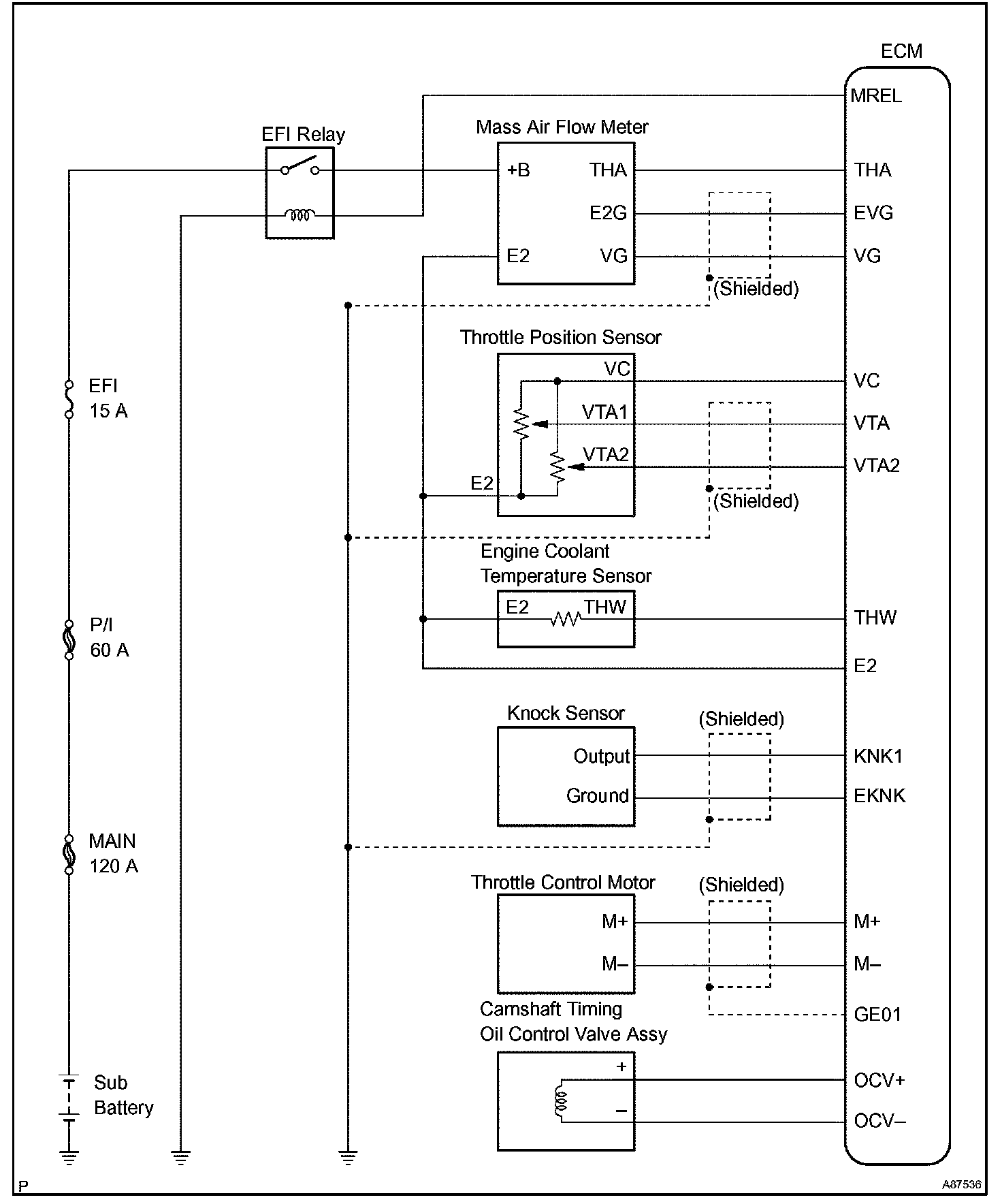

System Diagram:
The engine control system is determined by the ECM based on signals from various sensors.
