SFI System

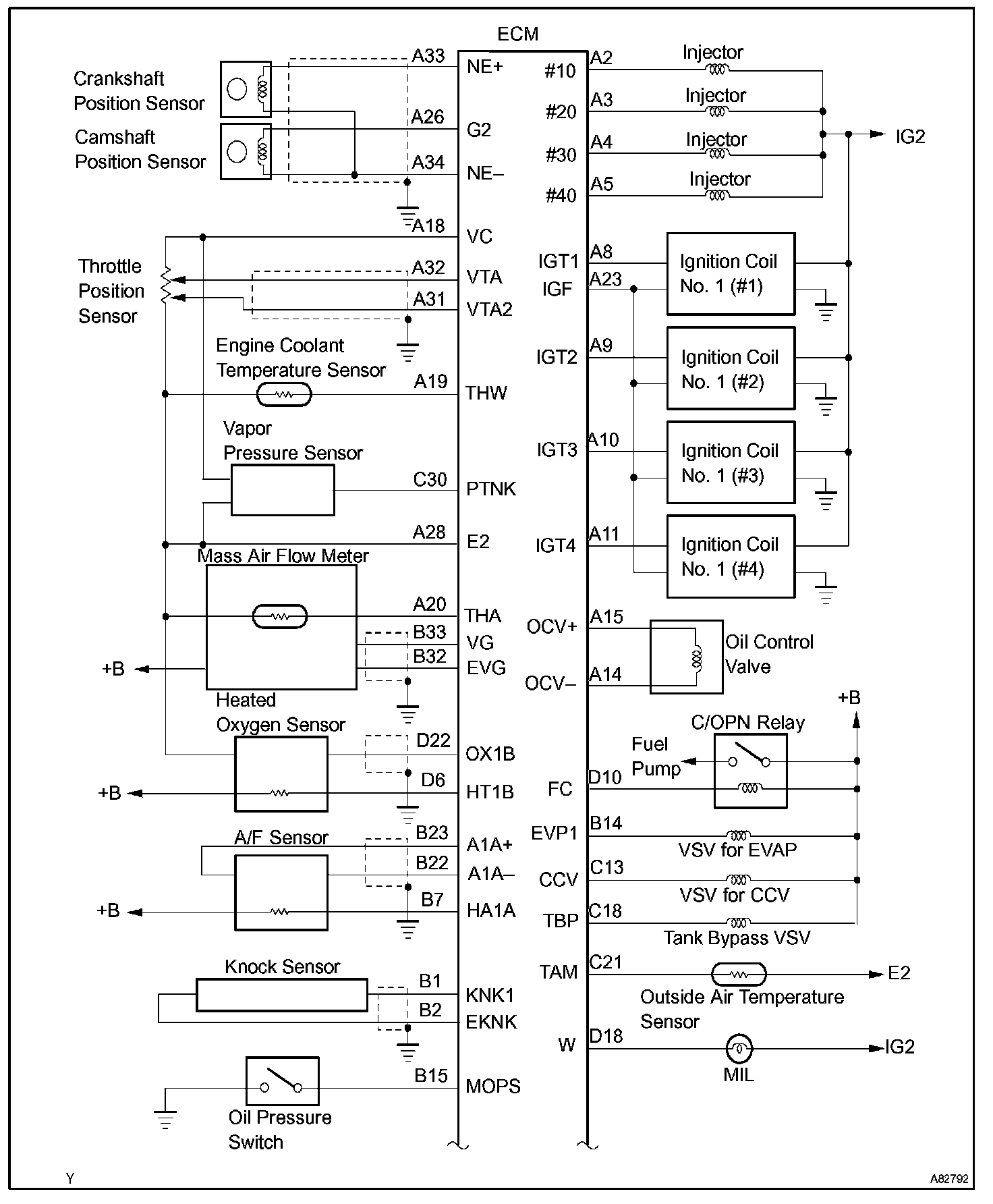

System Diagram Part 1:

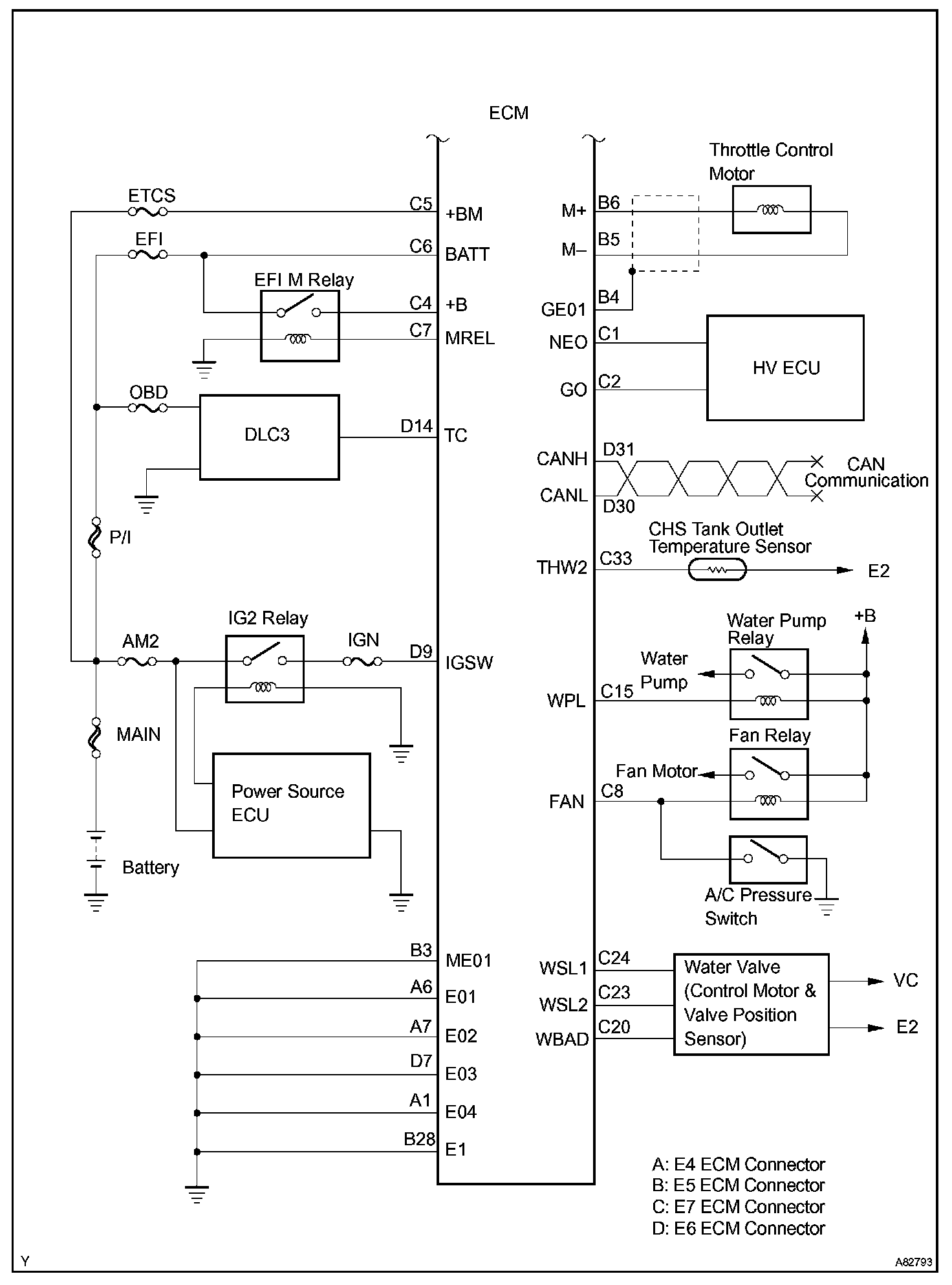

System Diagram Part 2:

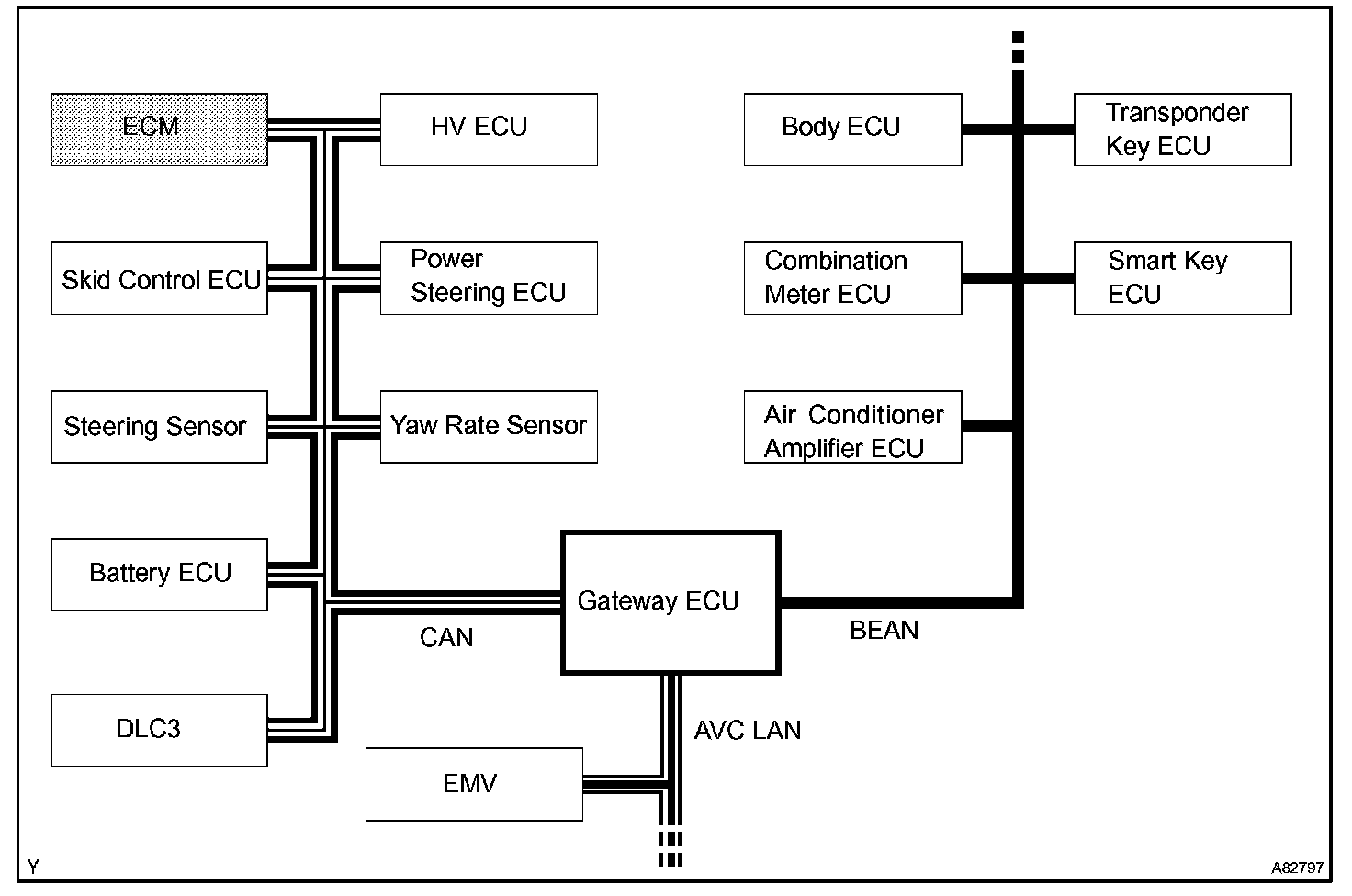

Communication With Other Computer:
SYSTEM DIAGRAM
COMMUNICATIONS
Communication:

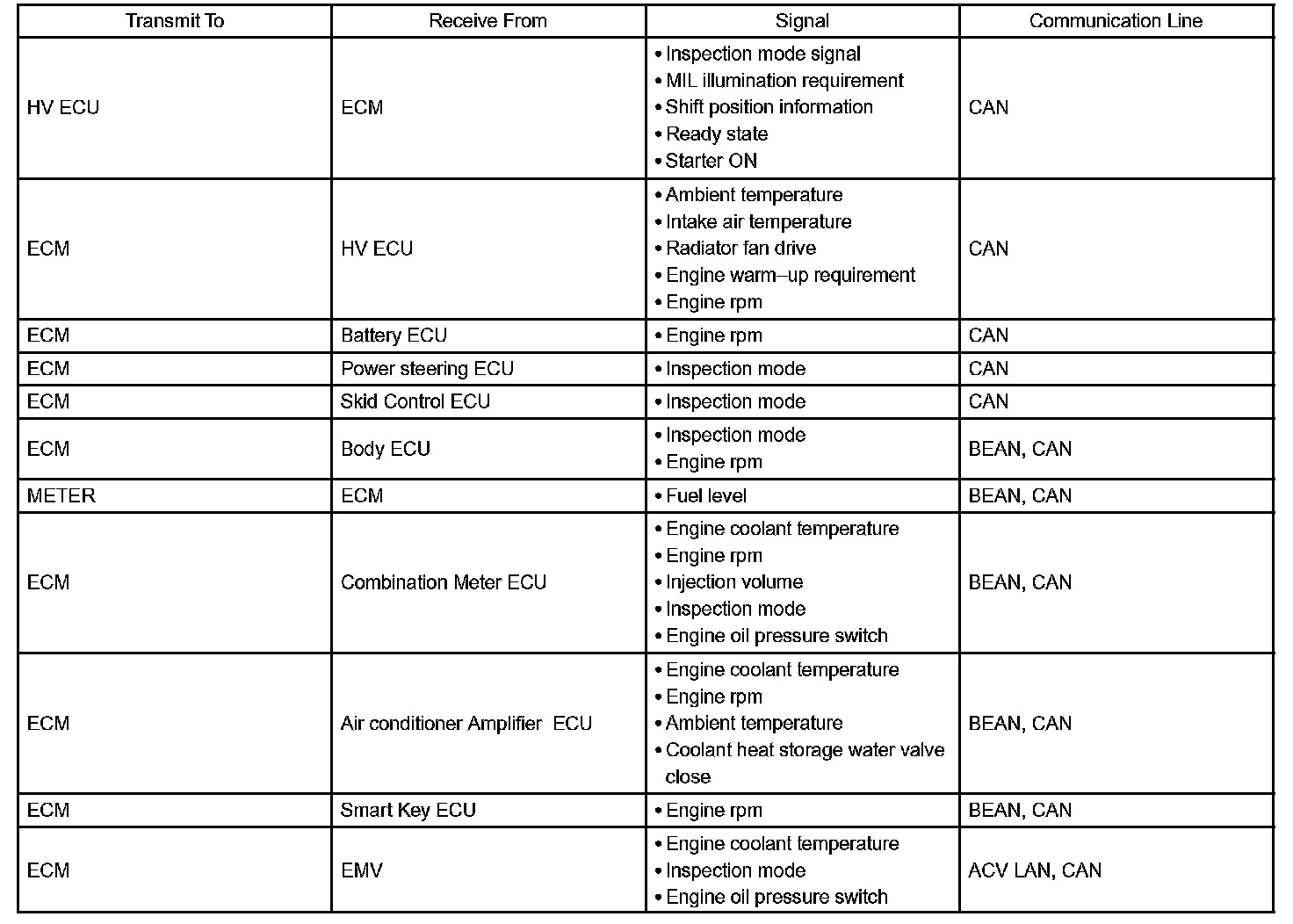

The ECM communicates with the following ECM and ECUs using the signals listed. The table explains receiving and sending signals by ECM or ECU.
