Battery ECU Communication Stop Mode
Battery ECU Communication Stop Mode
BATTERY ECU COMMUNICATION STOP MODE

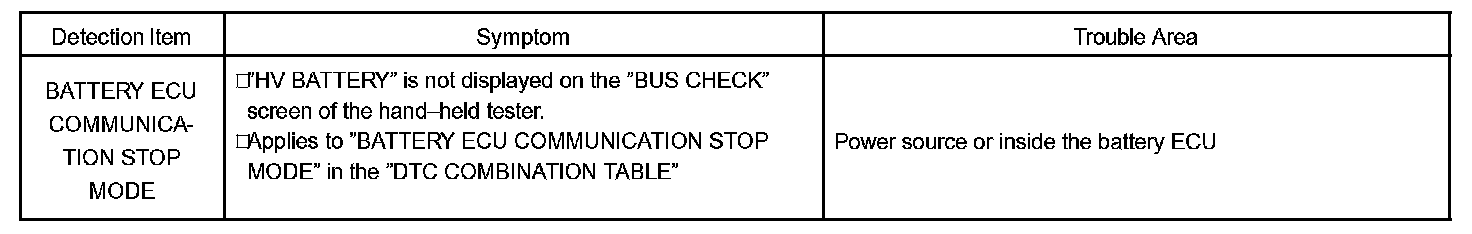

Detection Item:
MODE DESCRIPTION

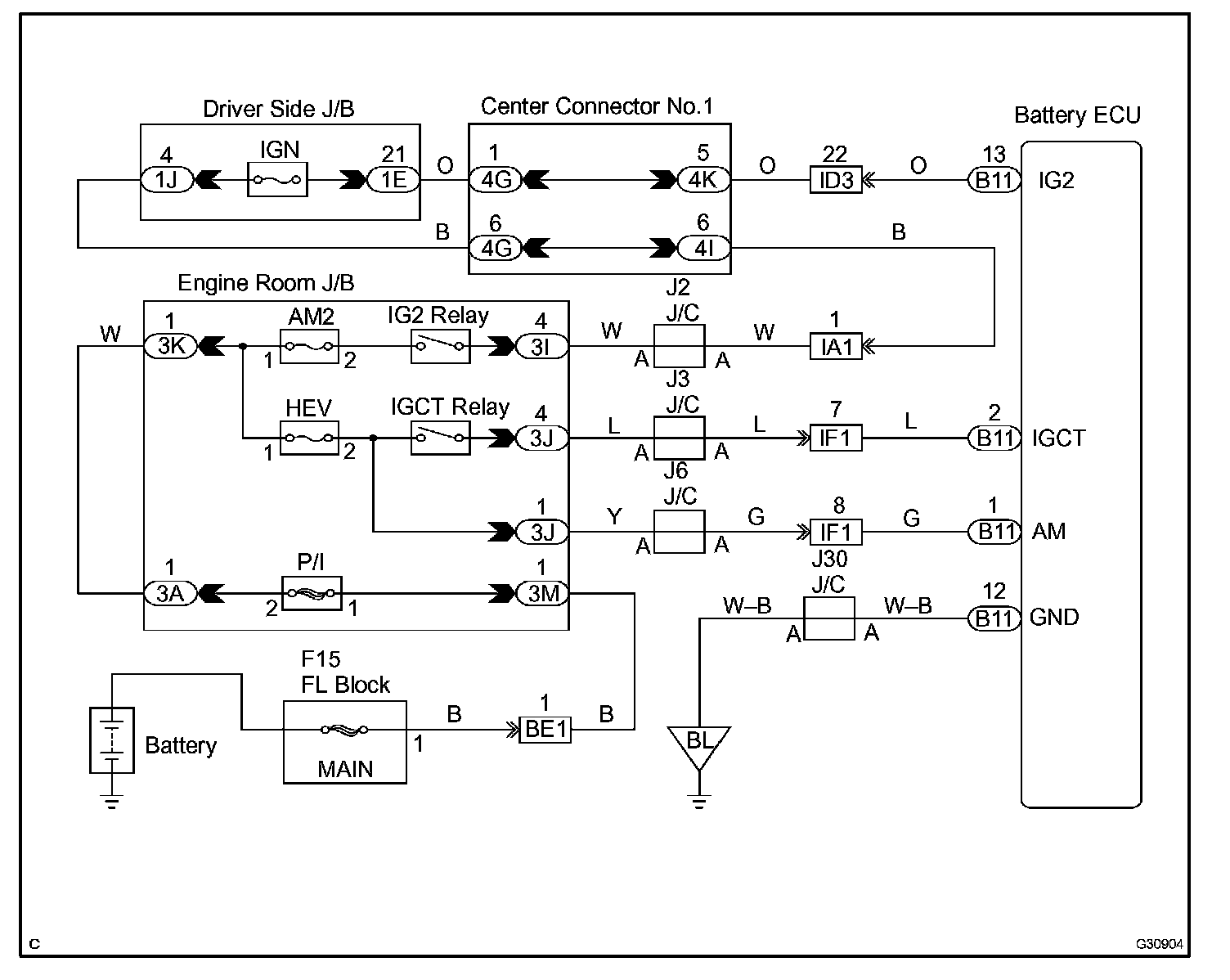

Wiring Diagram:

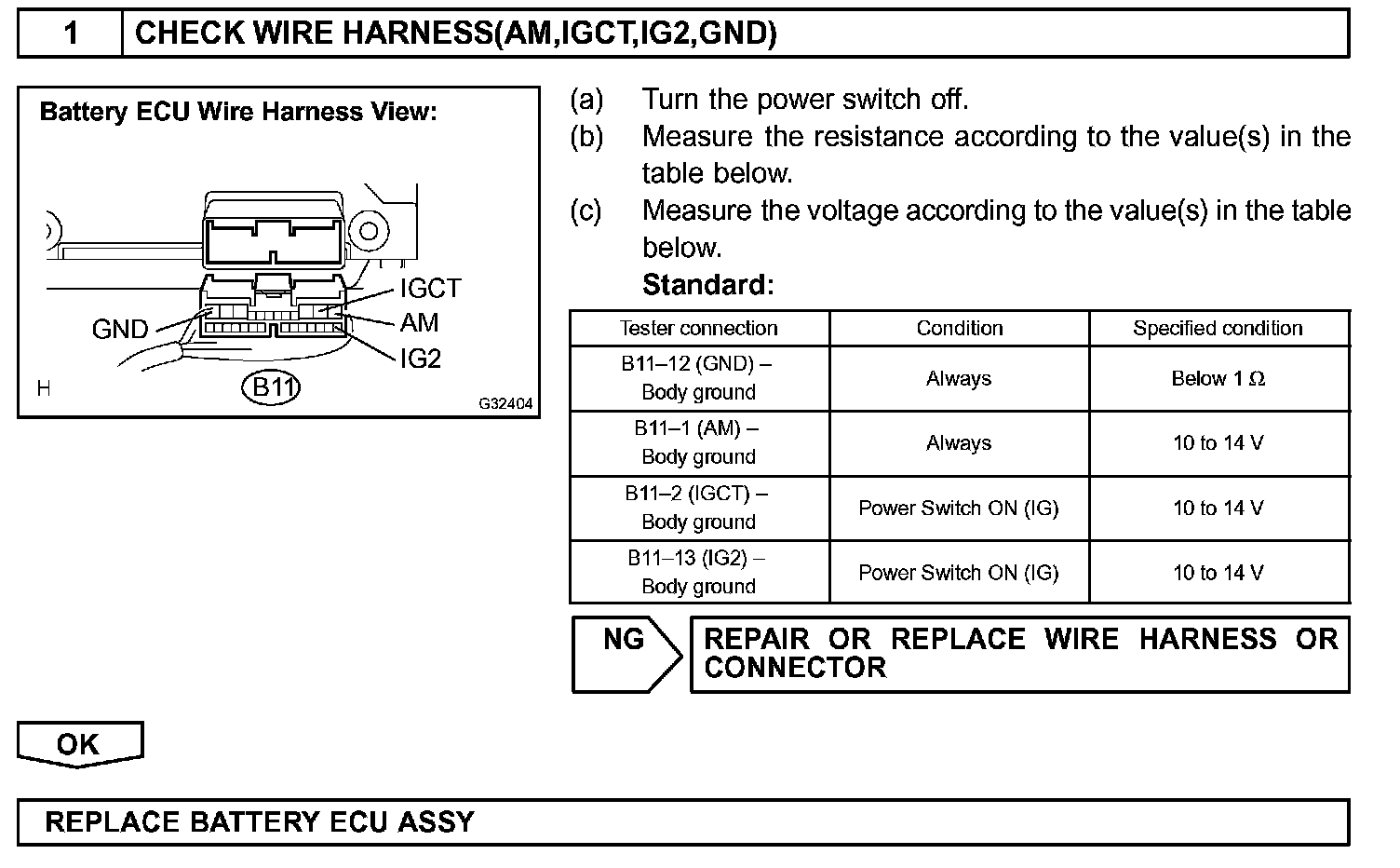

Step 1:
INSPECTION PROCEDURE
