Check CAN Bus Line For Short to +B

CHECK CAN BUS LINE FOR SHORT TO +B

CIRCUIT DESCRIPTION

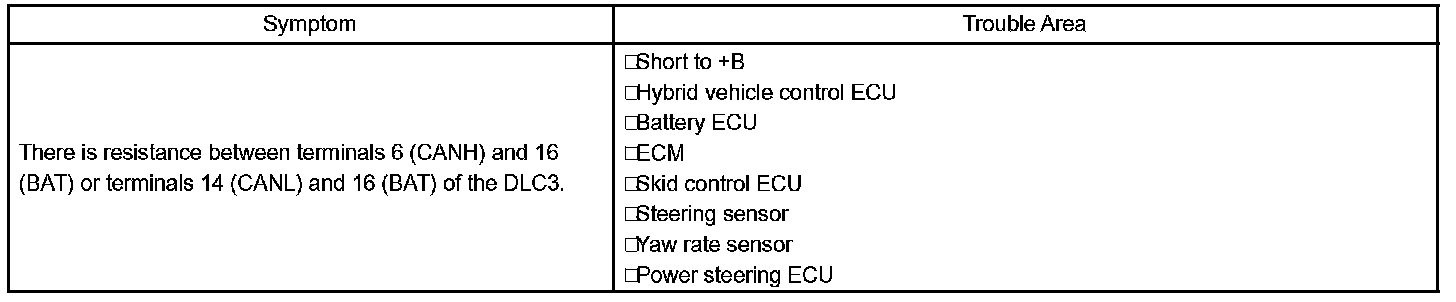

There may be a short circuit between the CAN bus line and +B when there is resistance between terminals 6 (CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

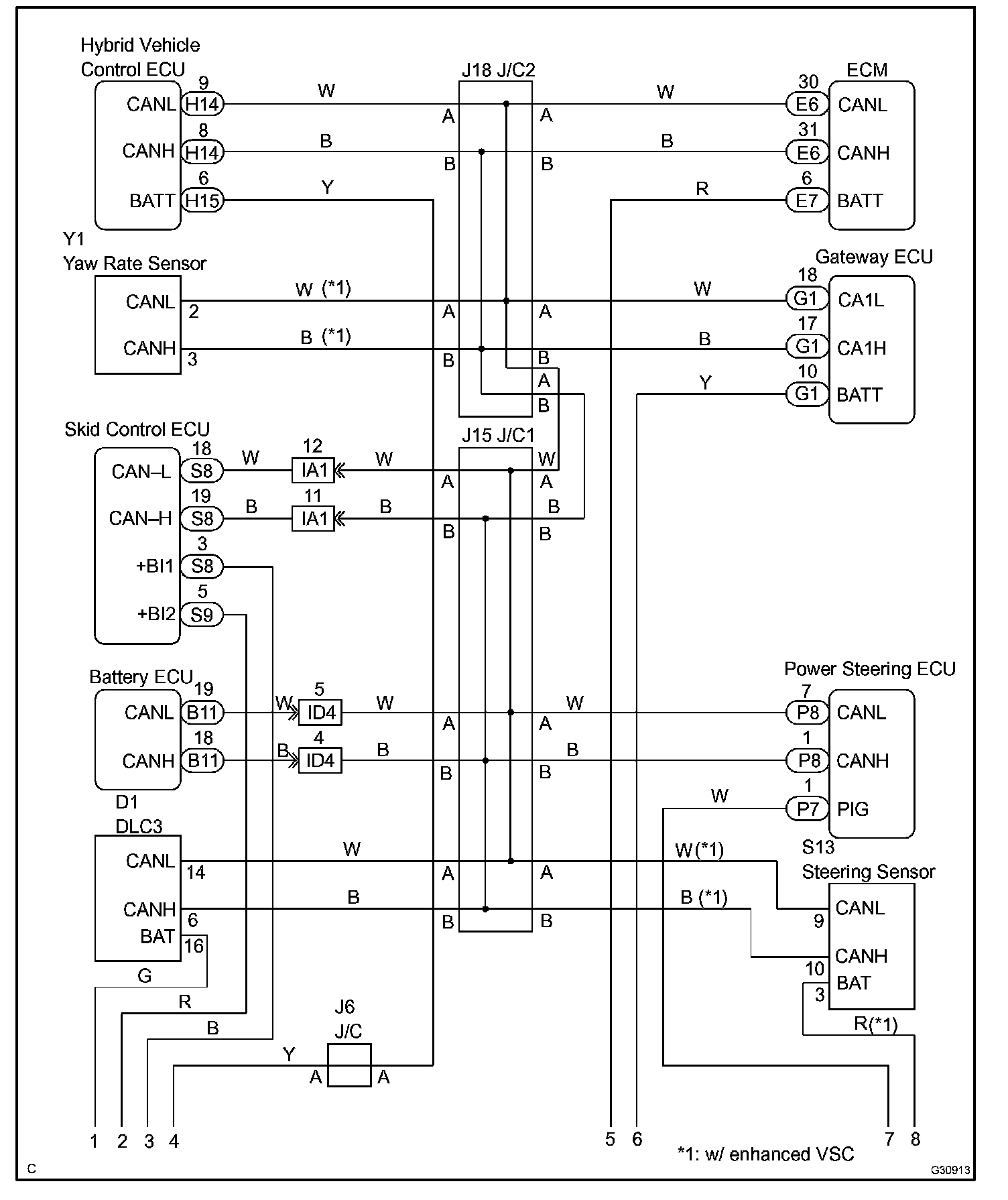

Wiring Diagram:

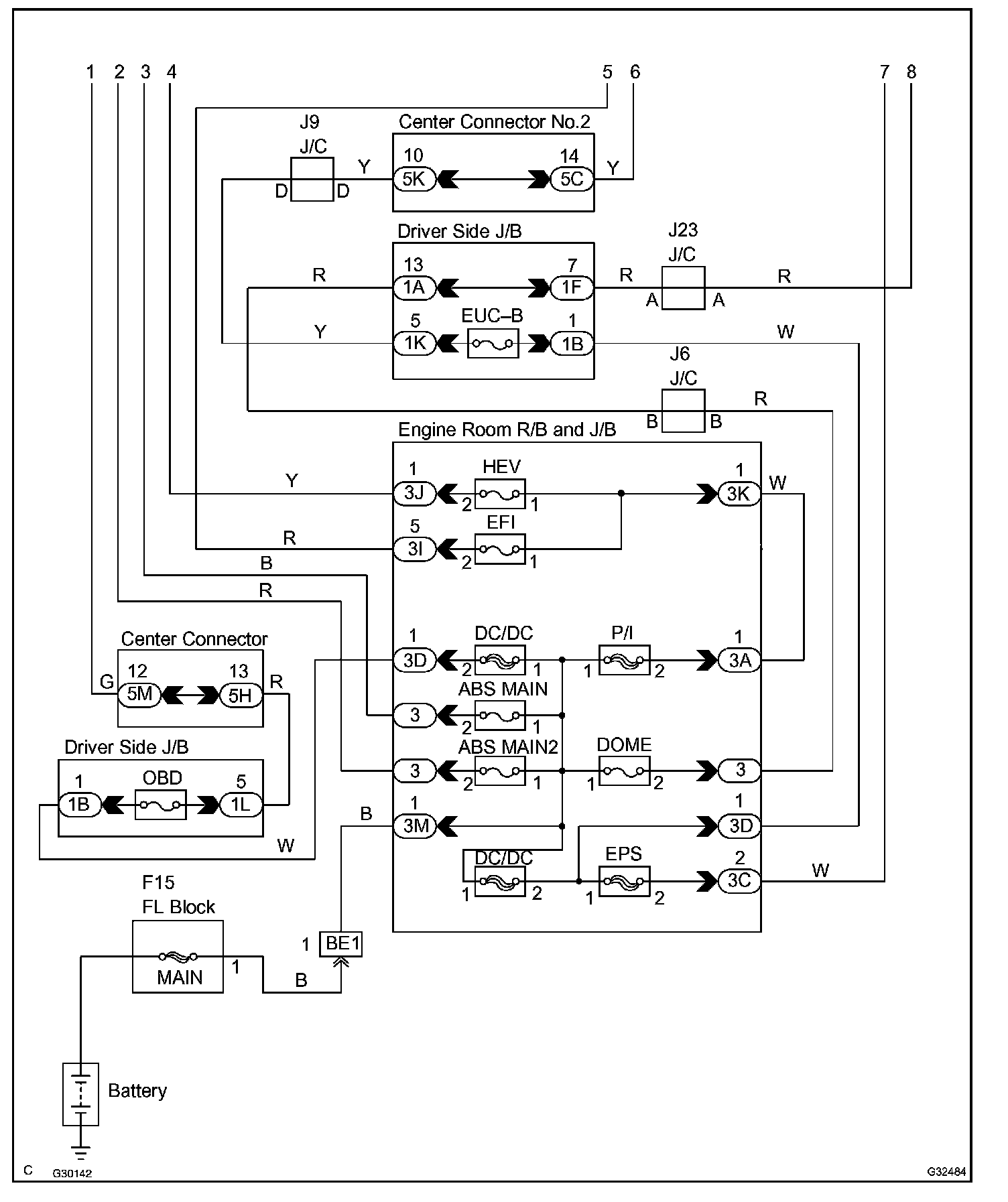

Wiring Diagram:

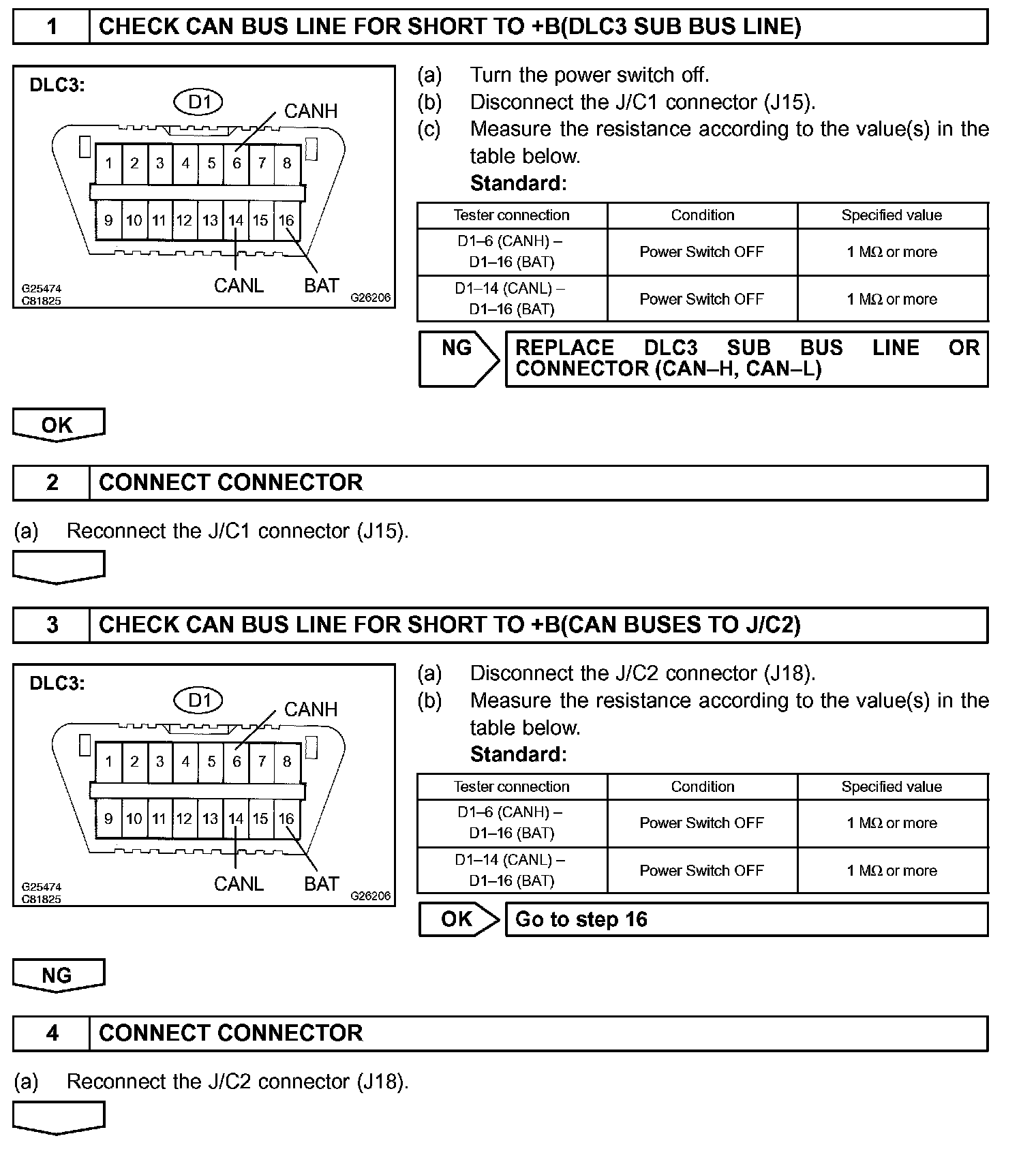

Step 1 - 4:

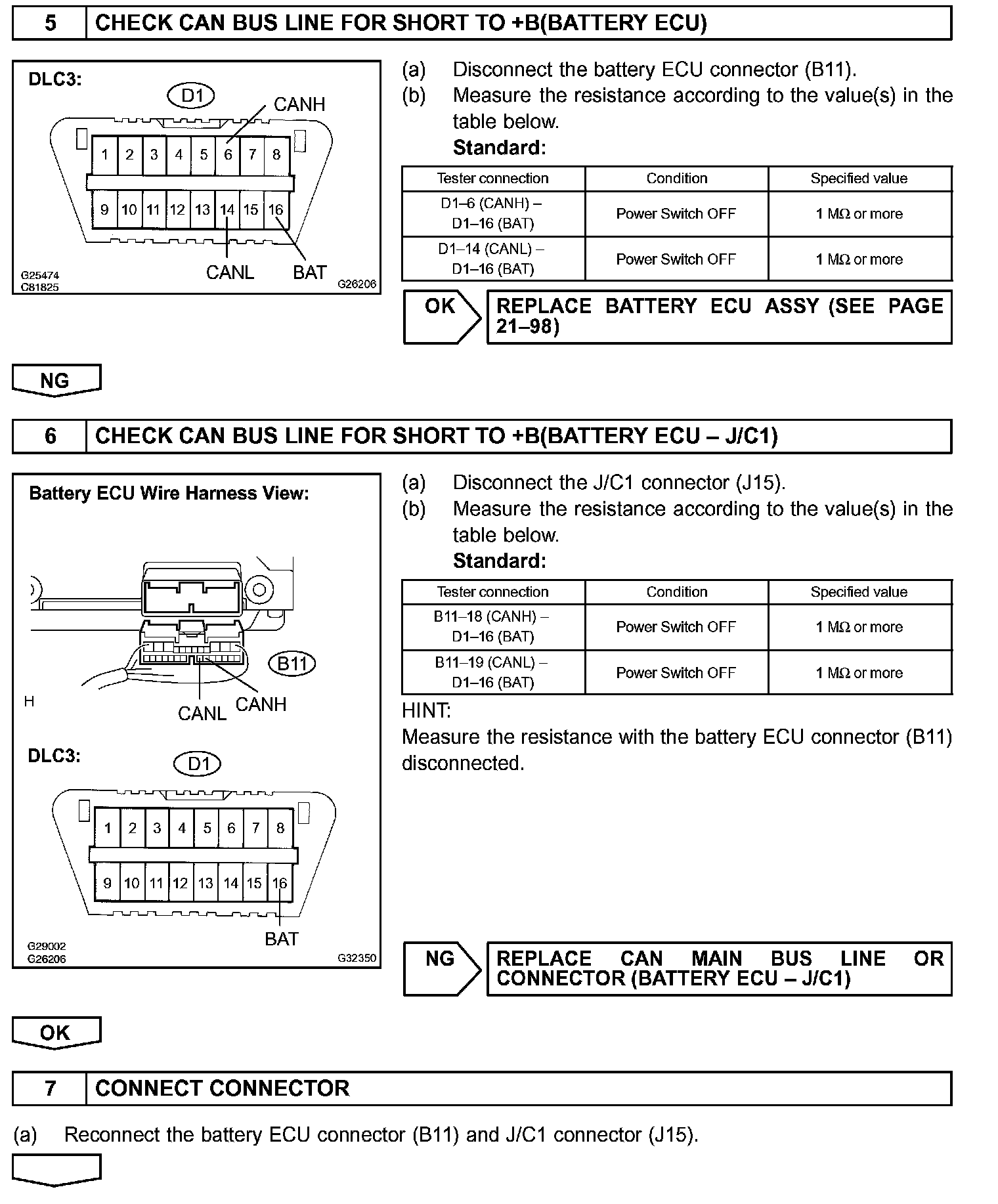

Step 5 - 7:

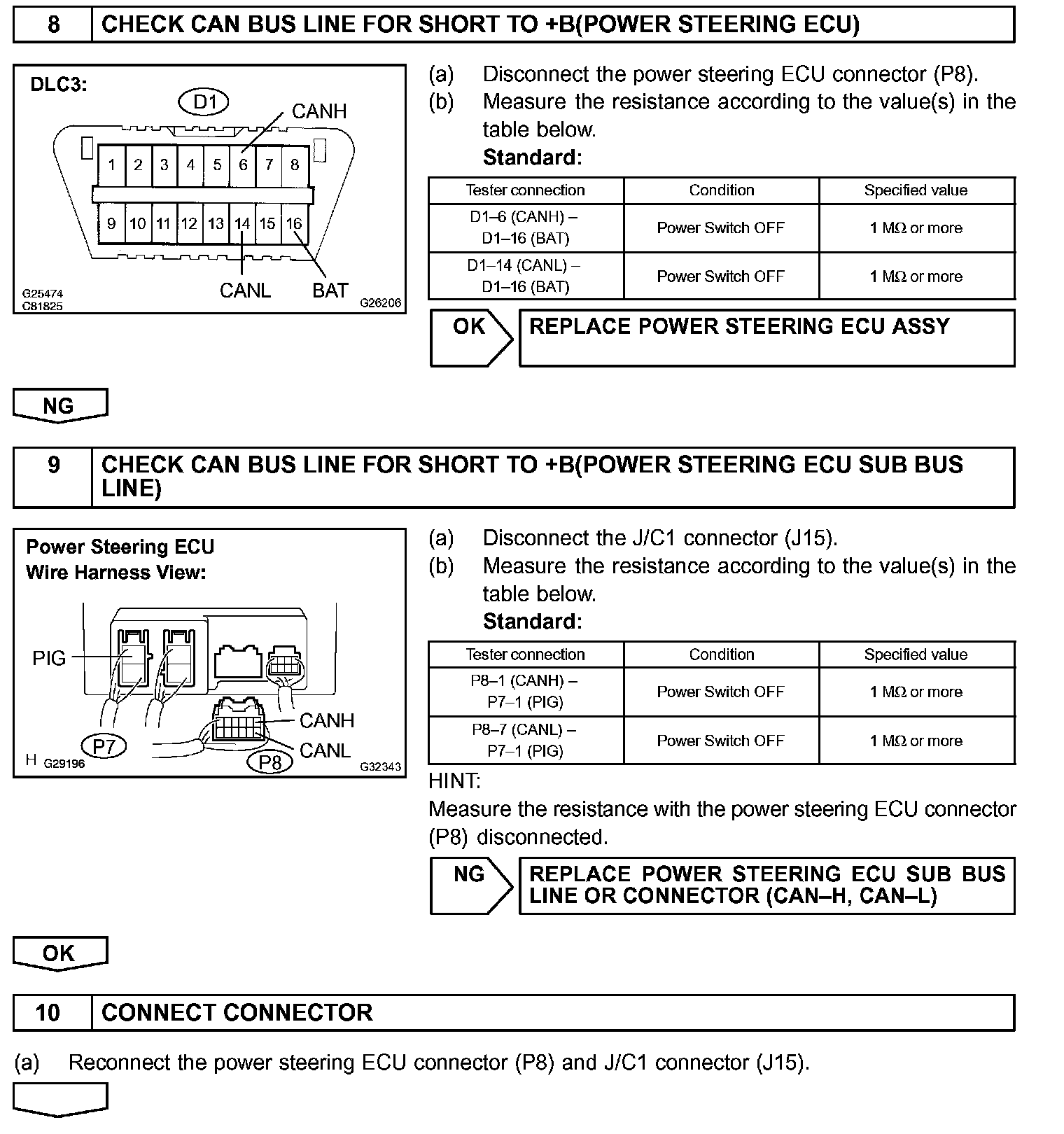

Step 8 - 10:

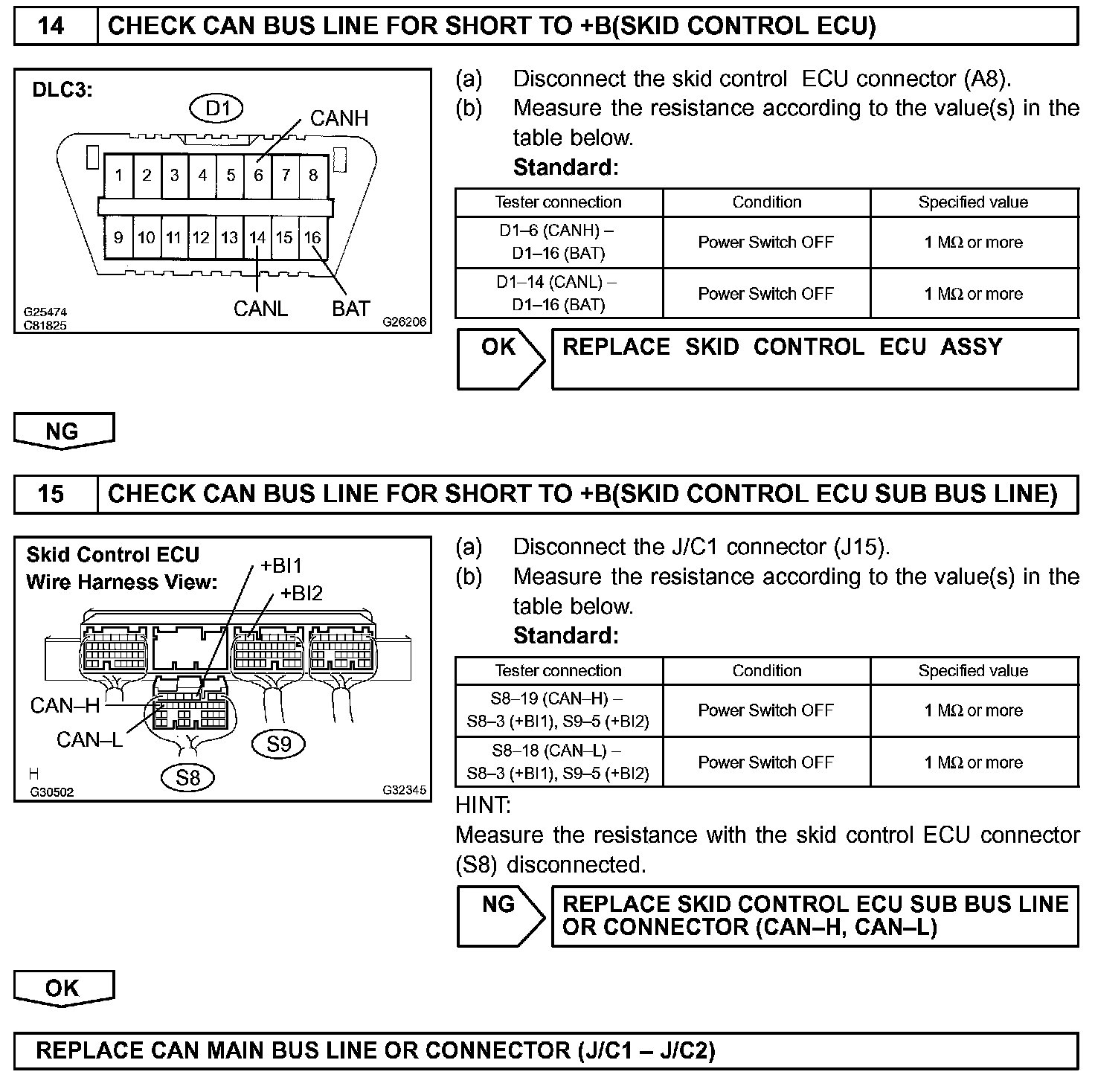

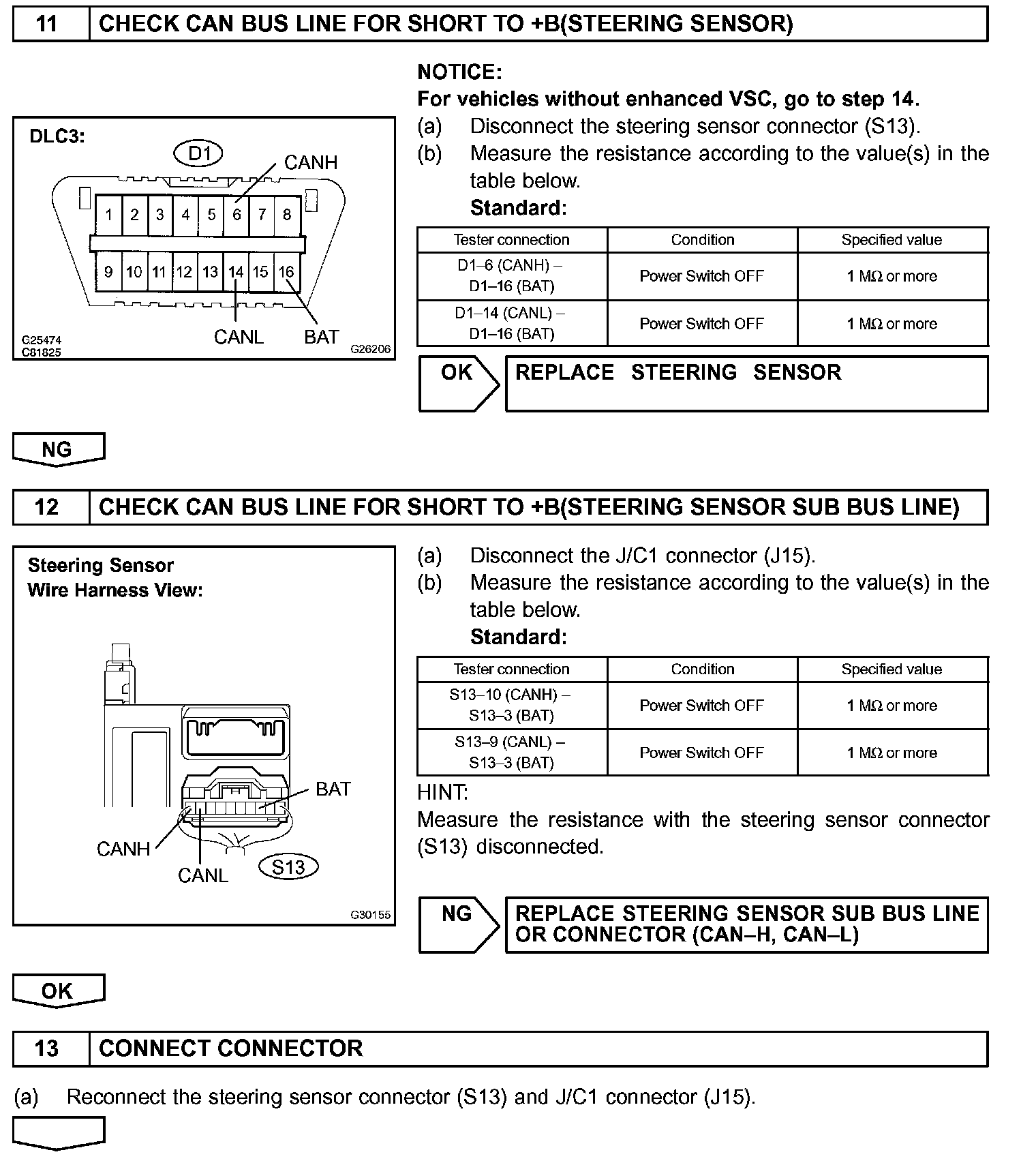

Step 11 - 13:




Step 14 - 15:

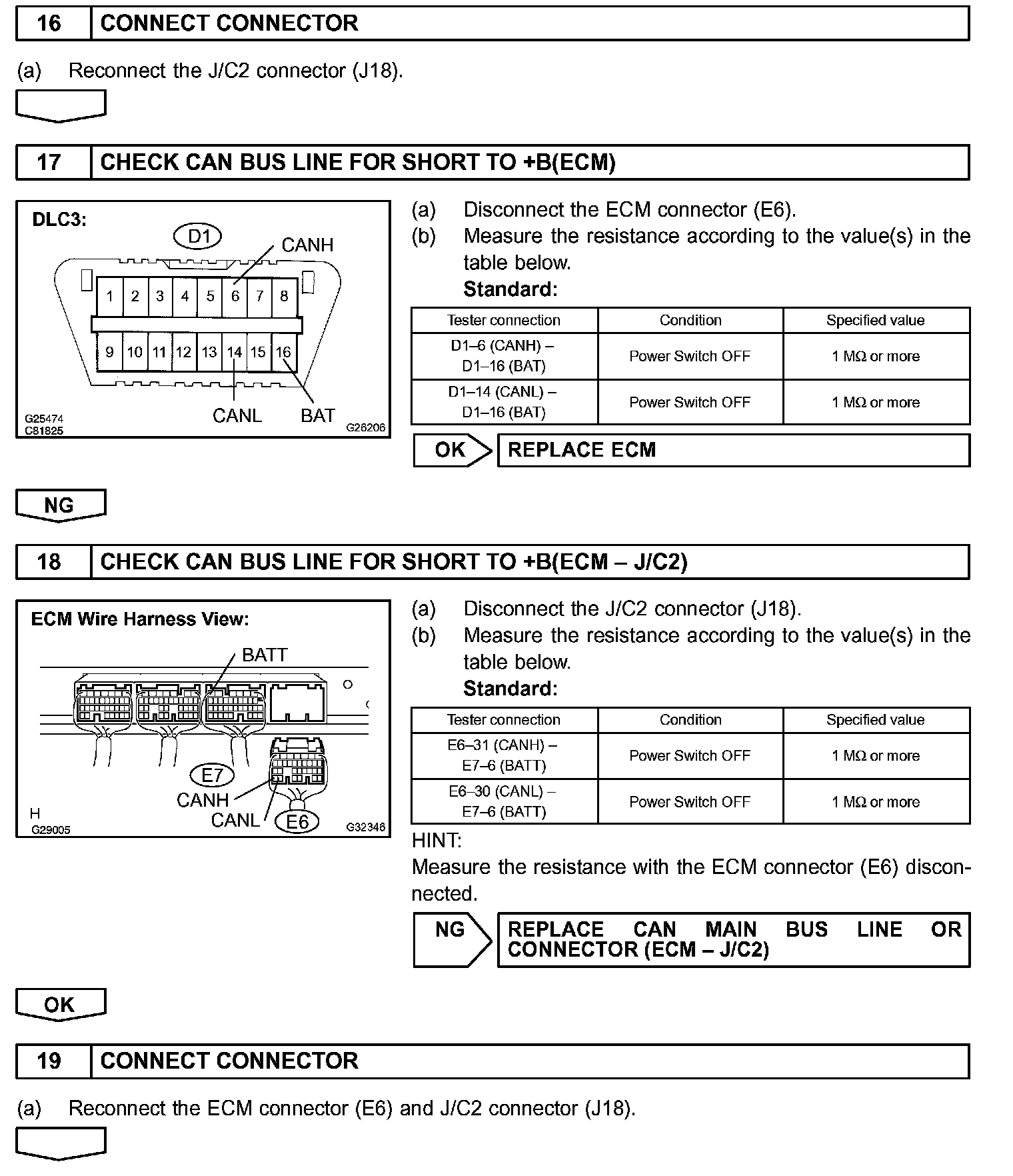

Step 16 - 19:

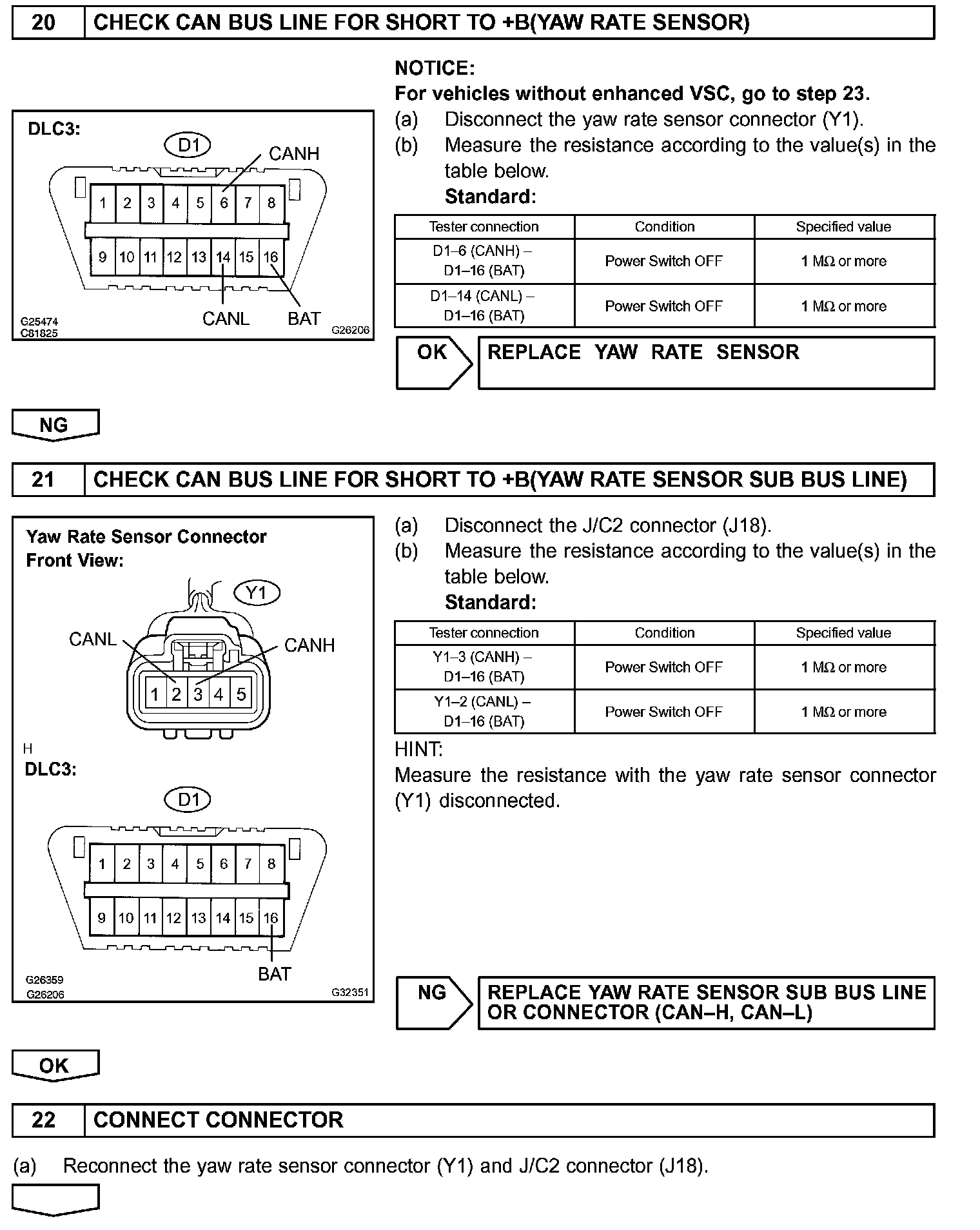

Step 20 - 22:

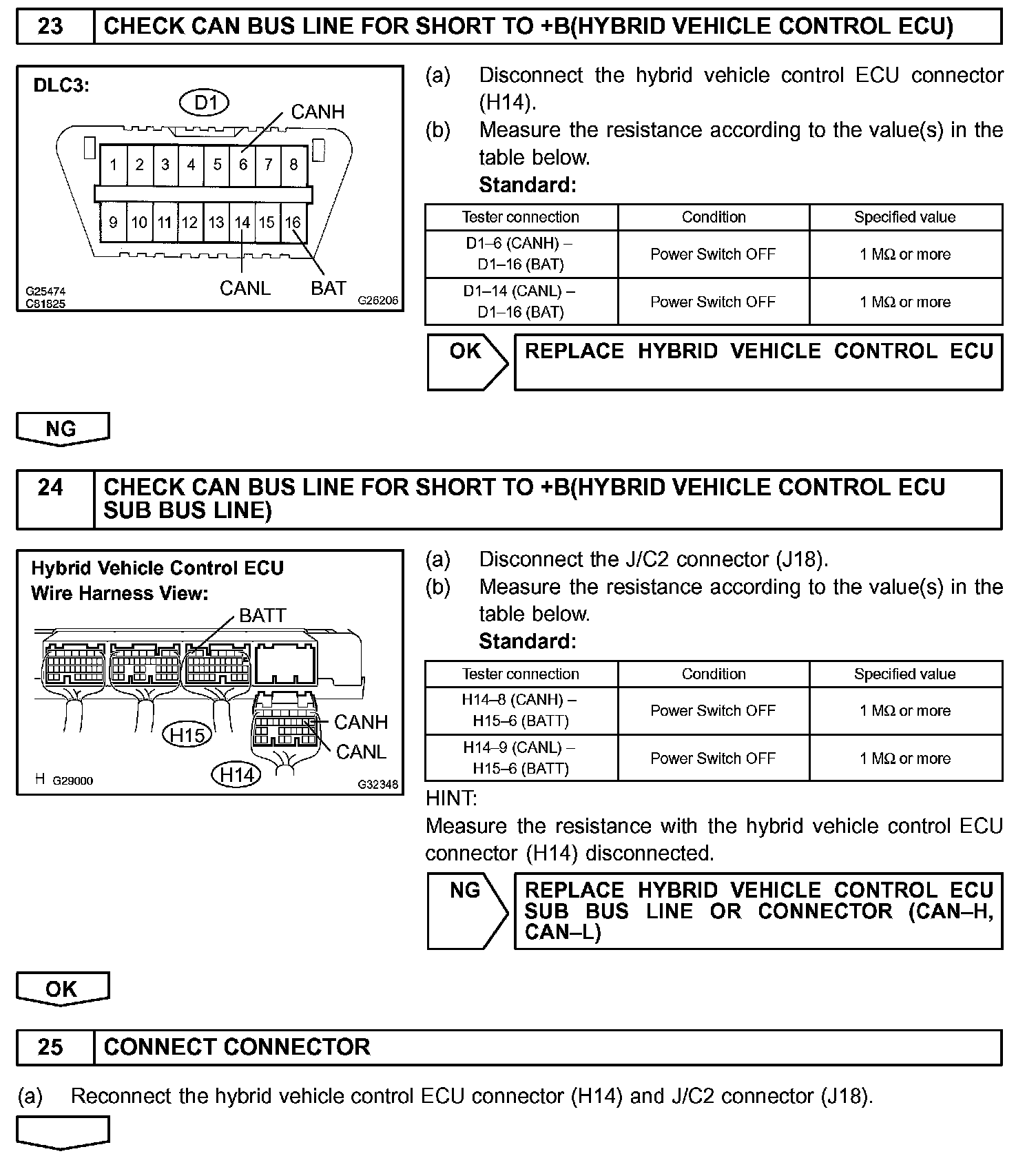

Step 23 - 25:




Step 26:




INSPECTION PROCEDURE
