Check CAN Bus Line For Short to GND

CHECK CAN BUS LINE FOR SHORT TO GND

CIRCUIT DESCRIPTION

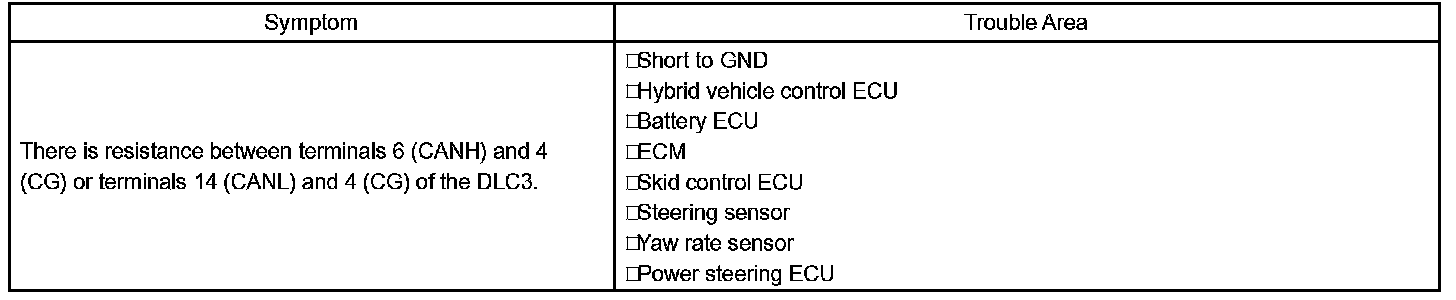

There may be a short circuit between the CAN bus line and GND when there is resistance between terminals 6 (CANH) and 4 (CG) or terminals 14 (CANL) and 4 (CG) of the DLC3.

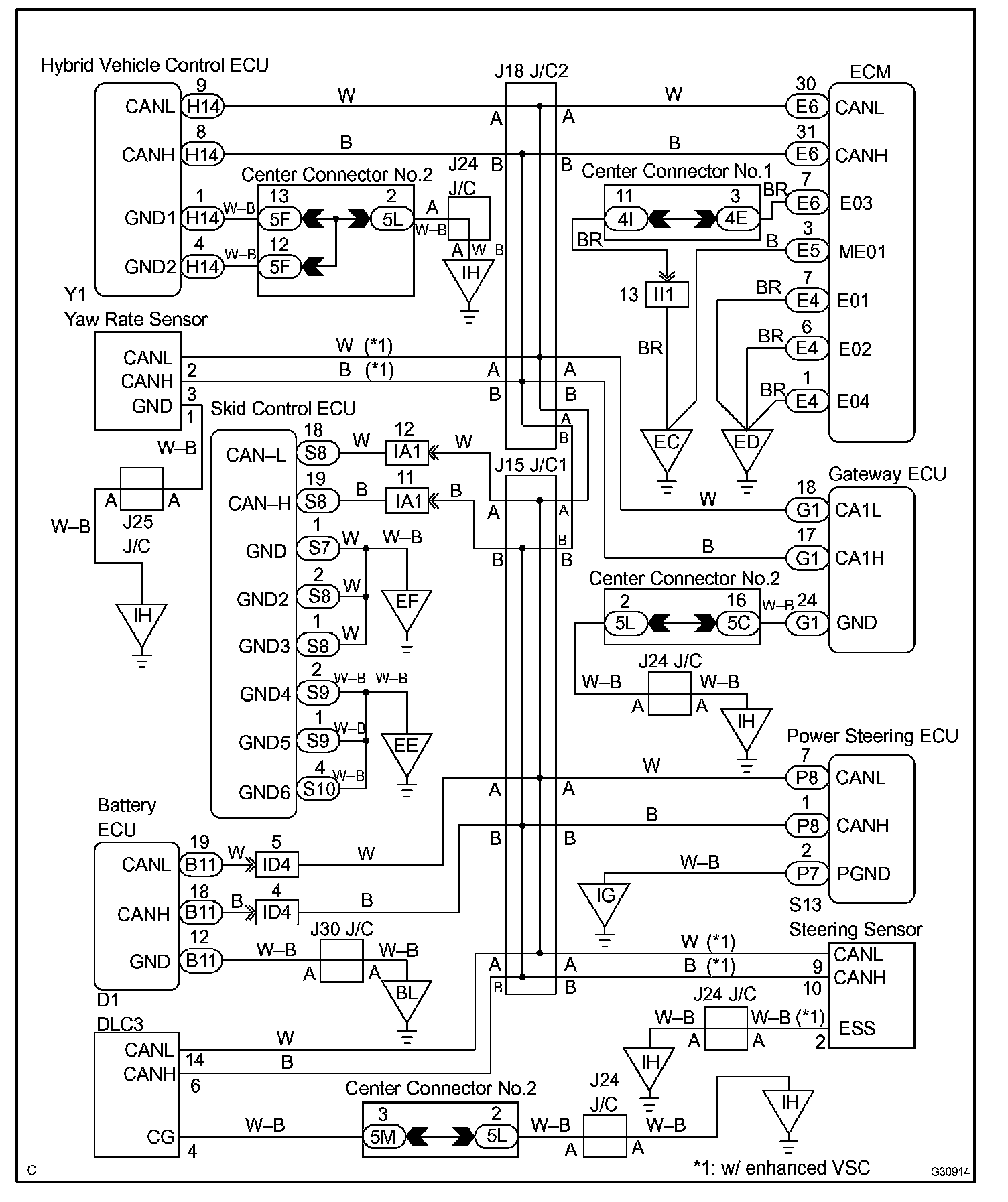

Wiring Diagram:

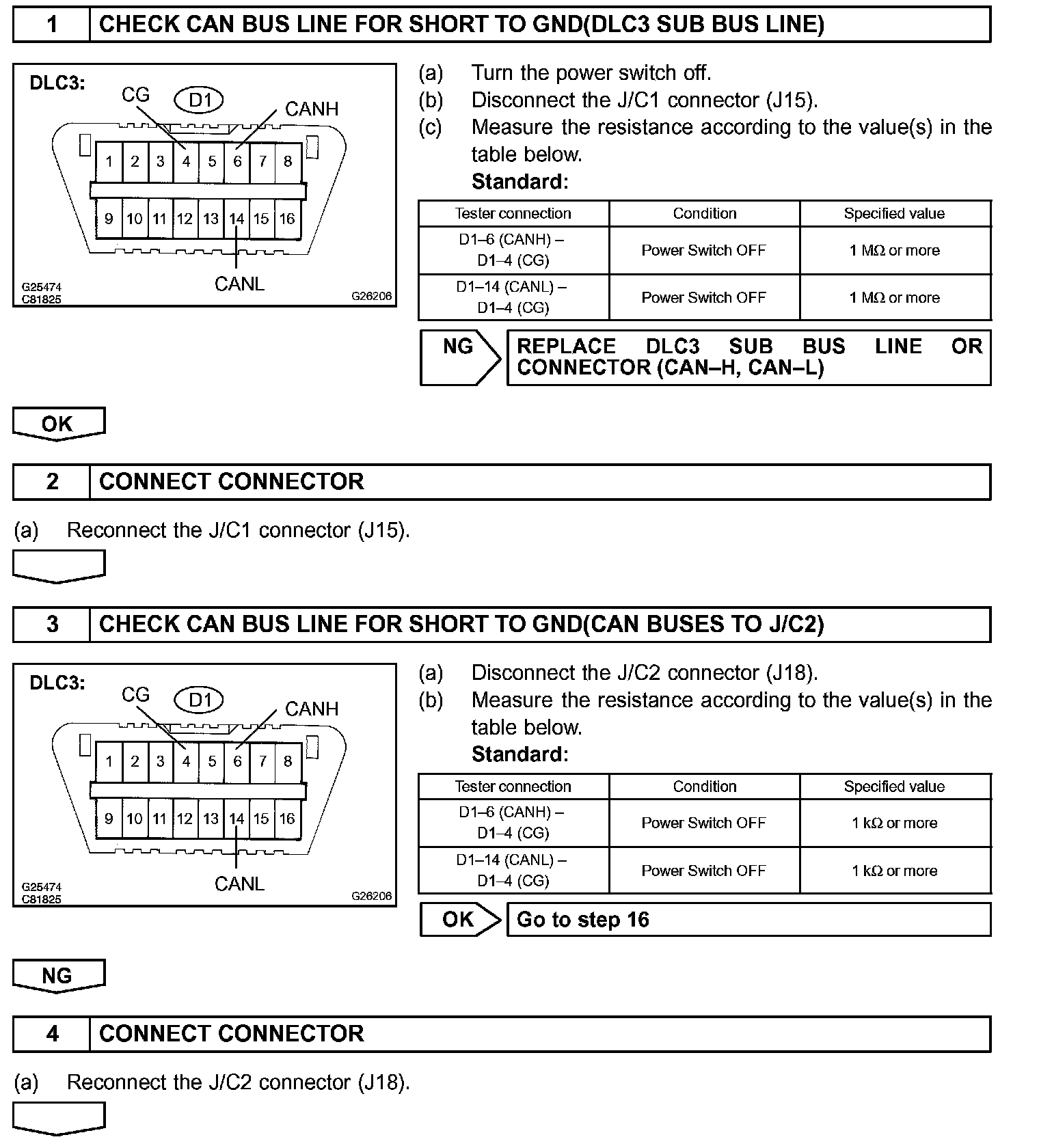

Step 1 - 4:

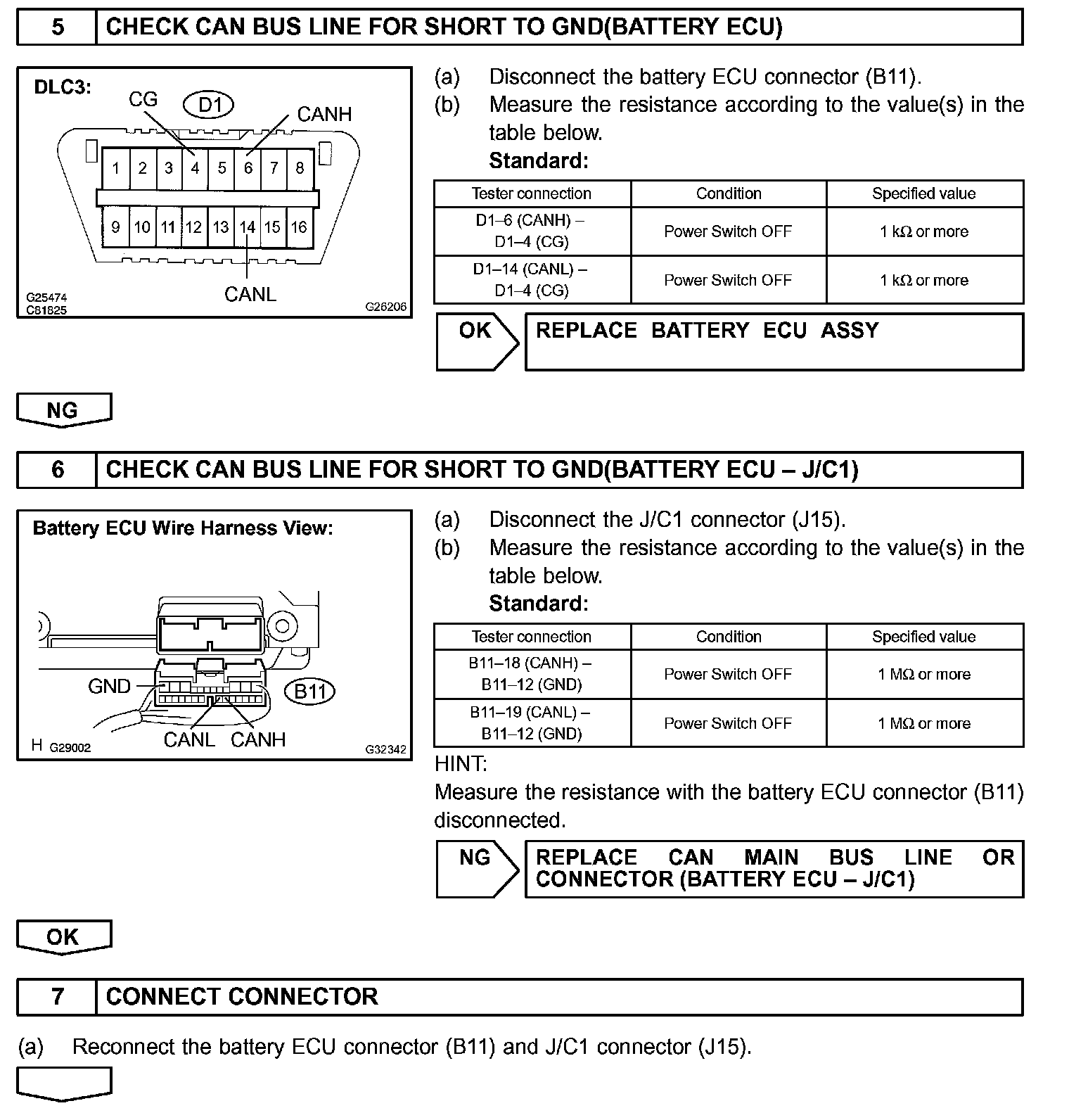

Step 5 - 7:

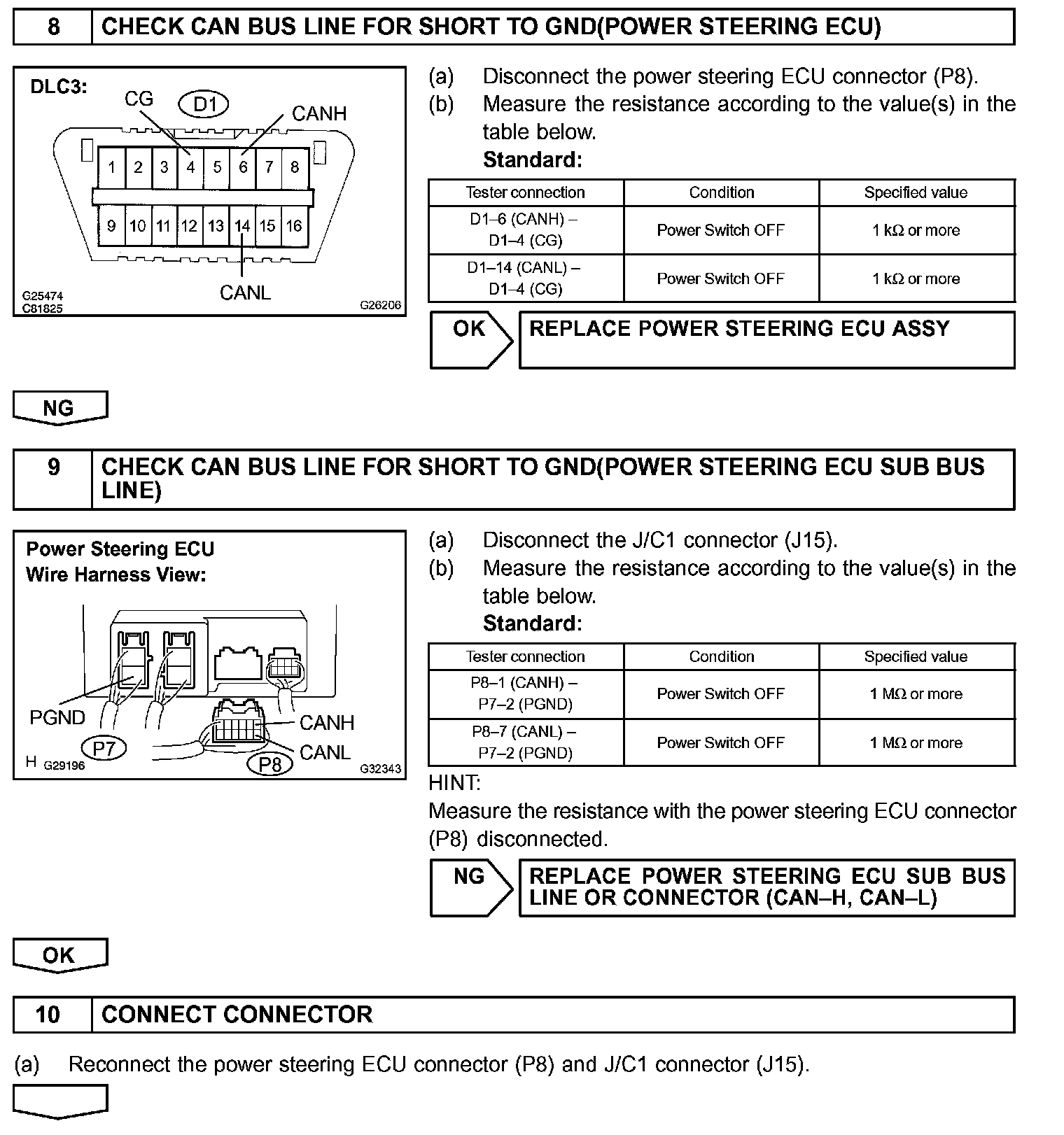

Step 8 - 10:

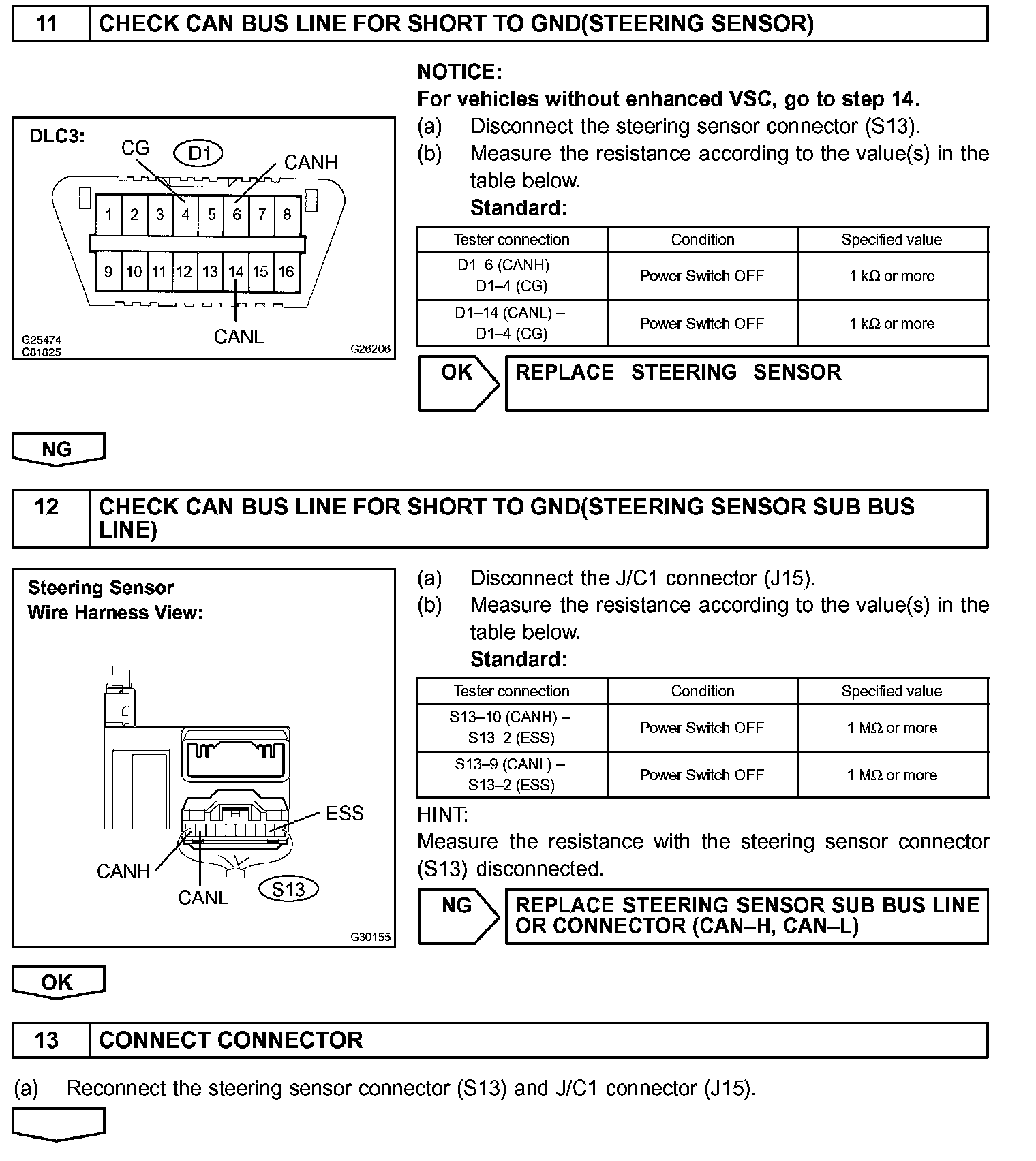

Step 11 - 13:

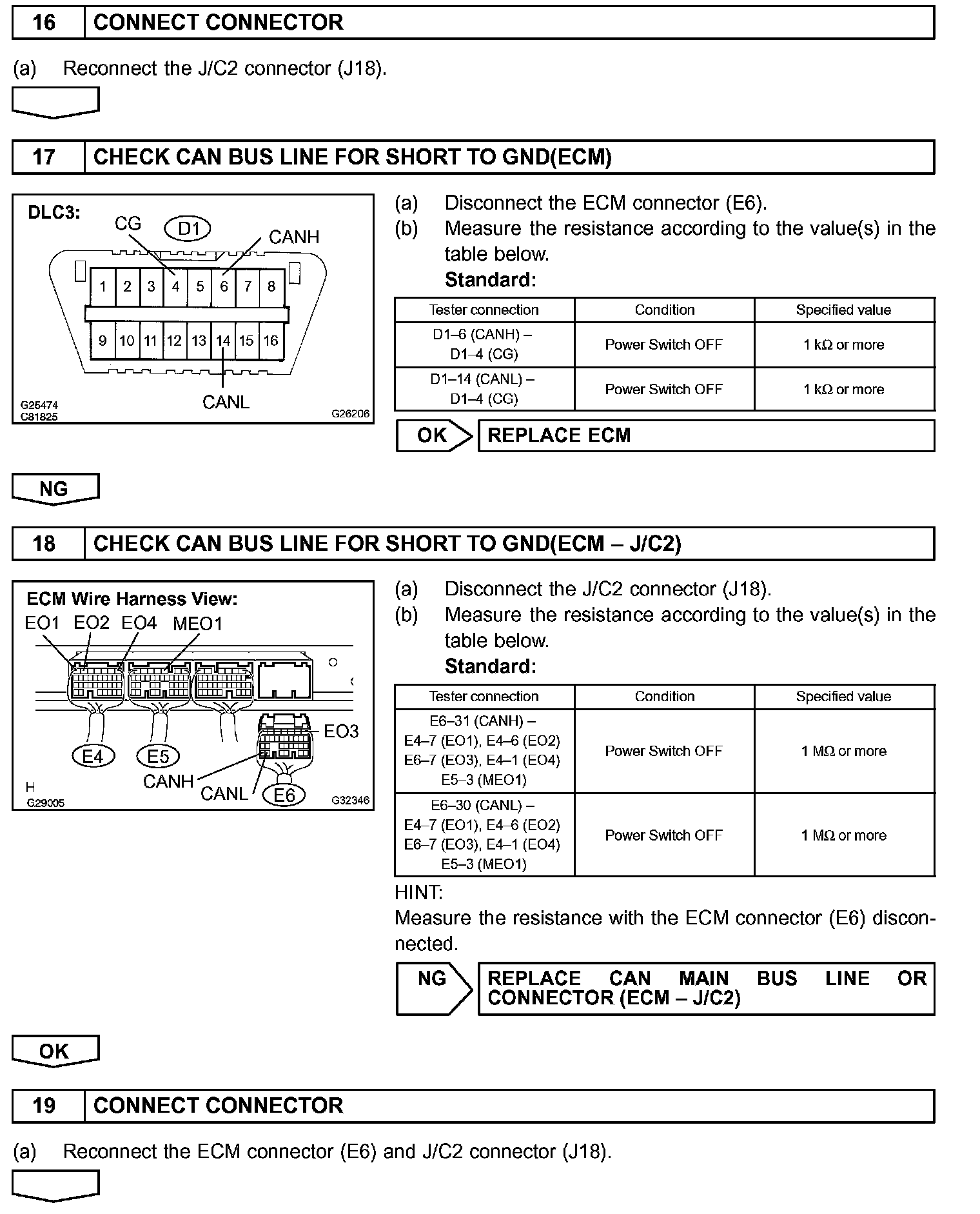

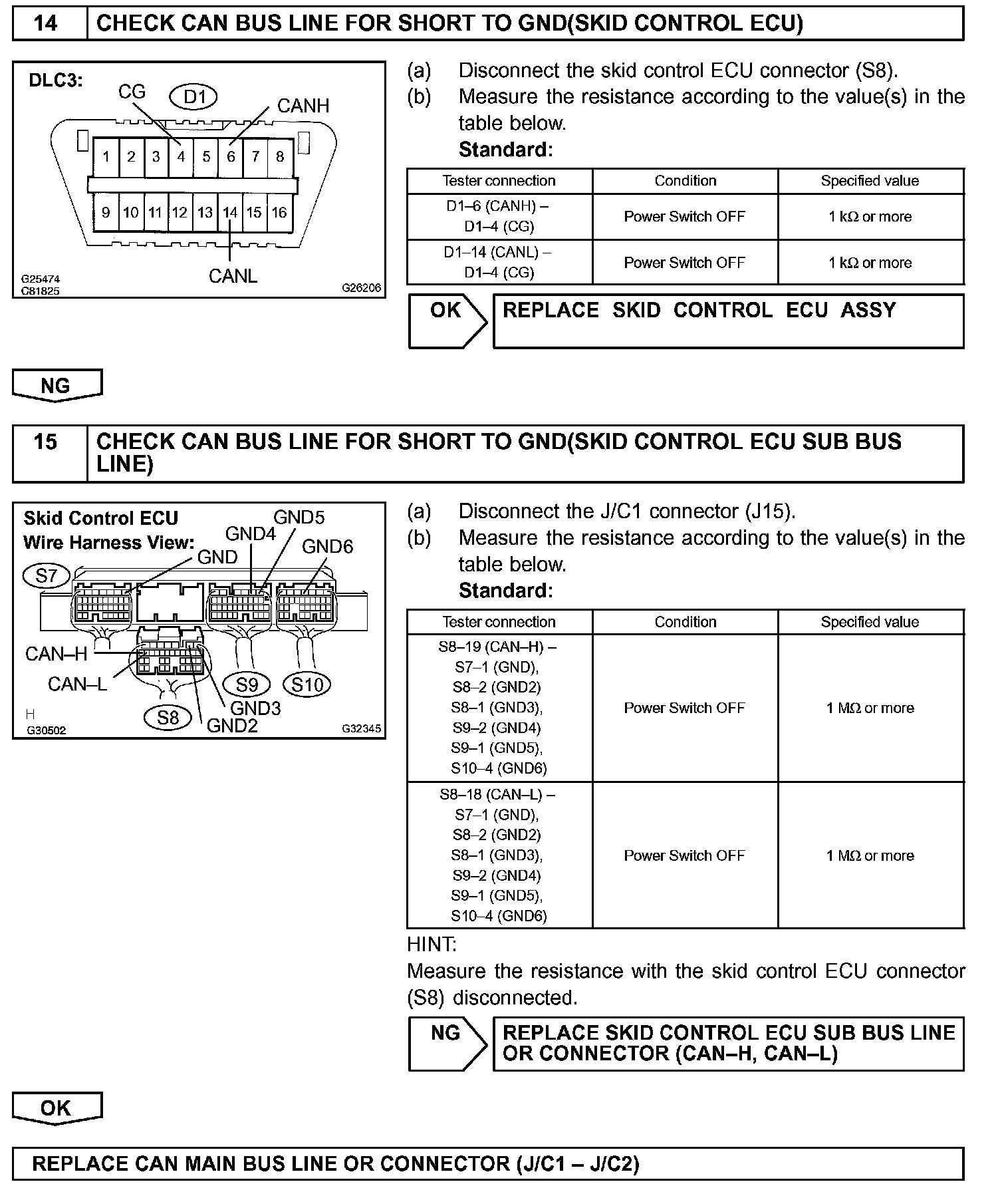

Step 14 - 15:




Step 16 - 19:

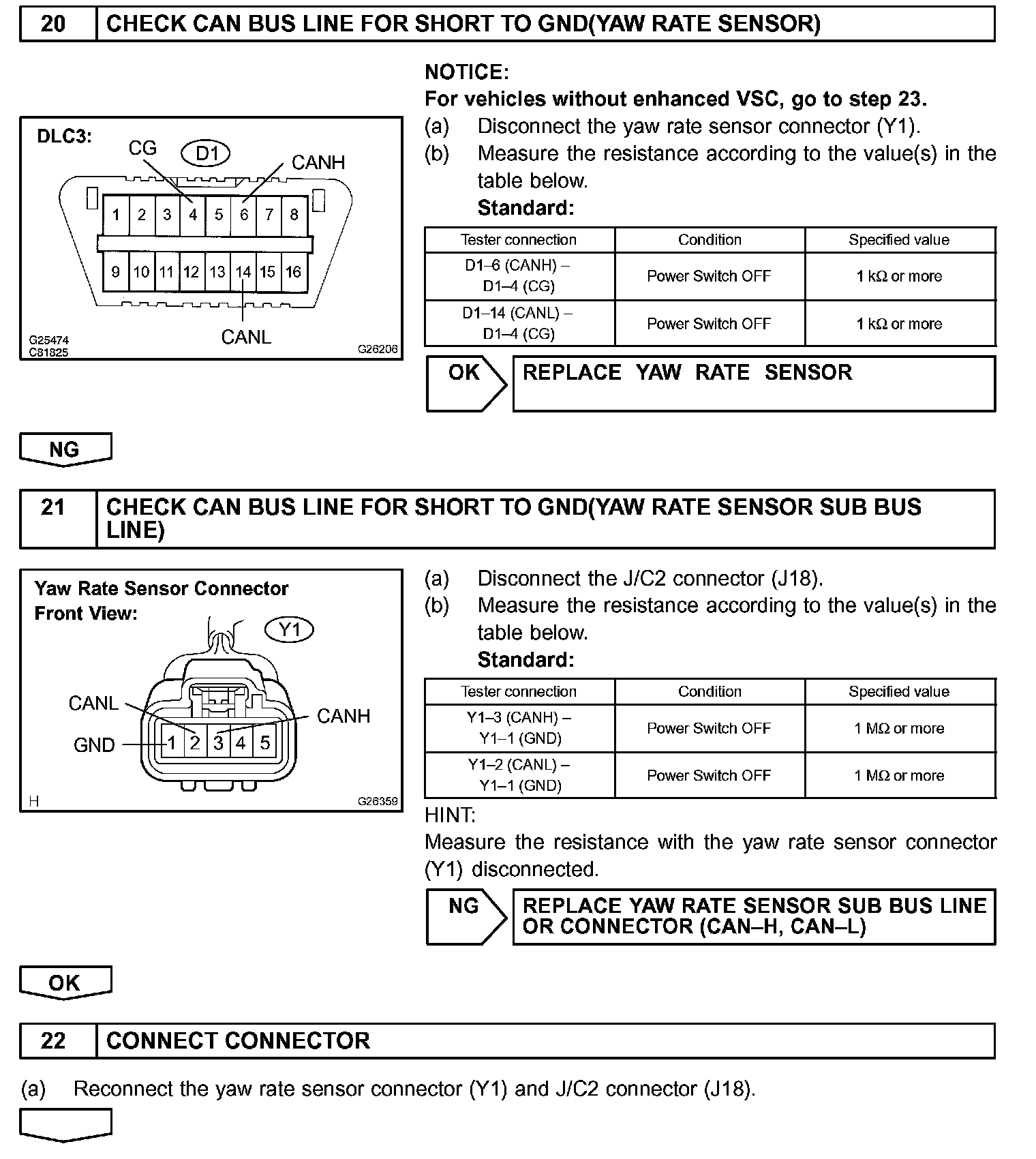

Step 20 - 22:

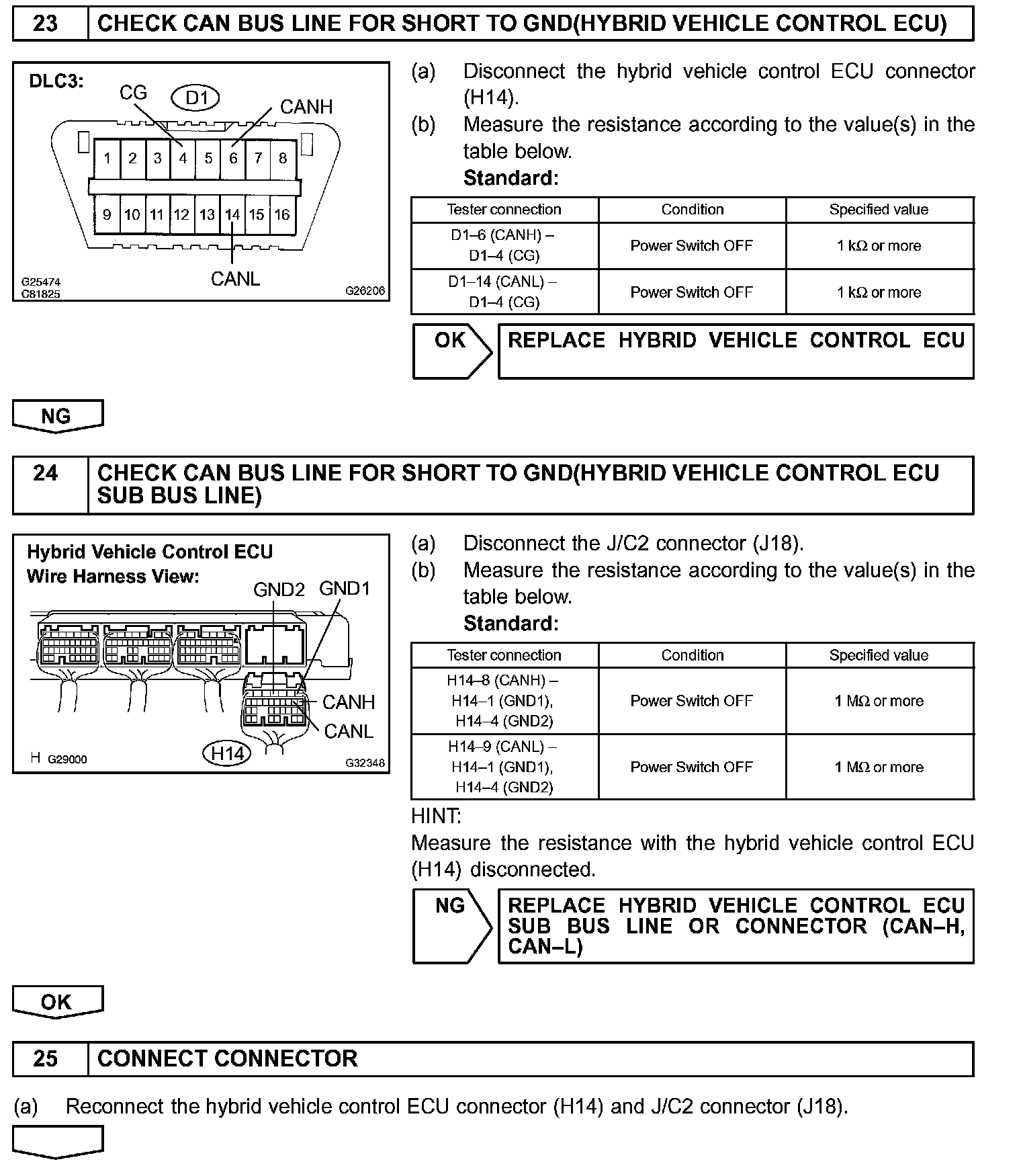

Step 23 - 25:

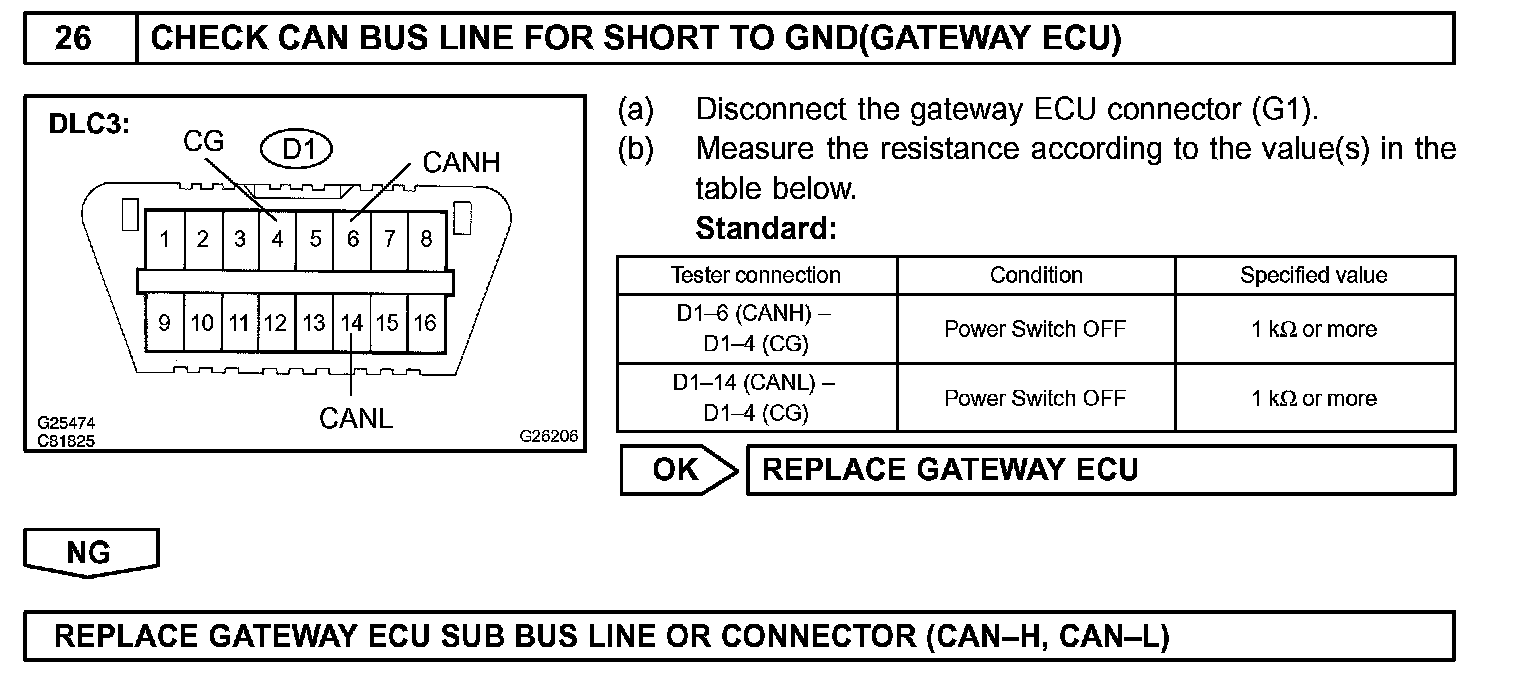

Step 26:




INSPECTION PROCEDURE
