Check CAN Bus Lines For Short Circuit

CHECK CAN BUS LINES FOR SHORT CIRCUIT

CIRCUIT DESCRIPTION

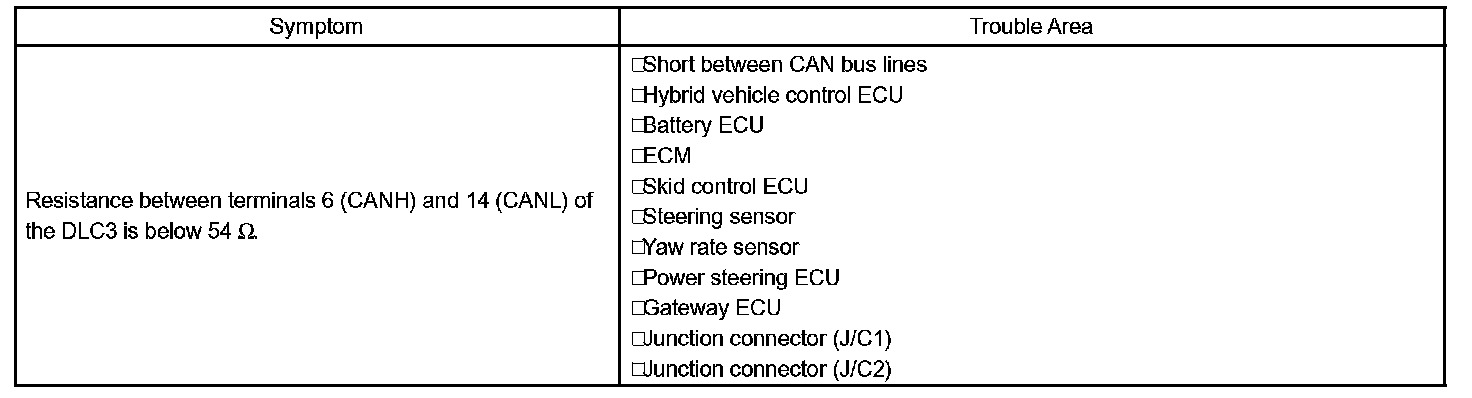

There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ohms.

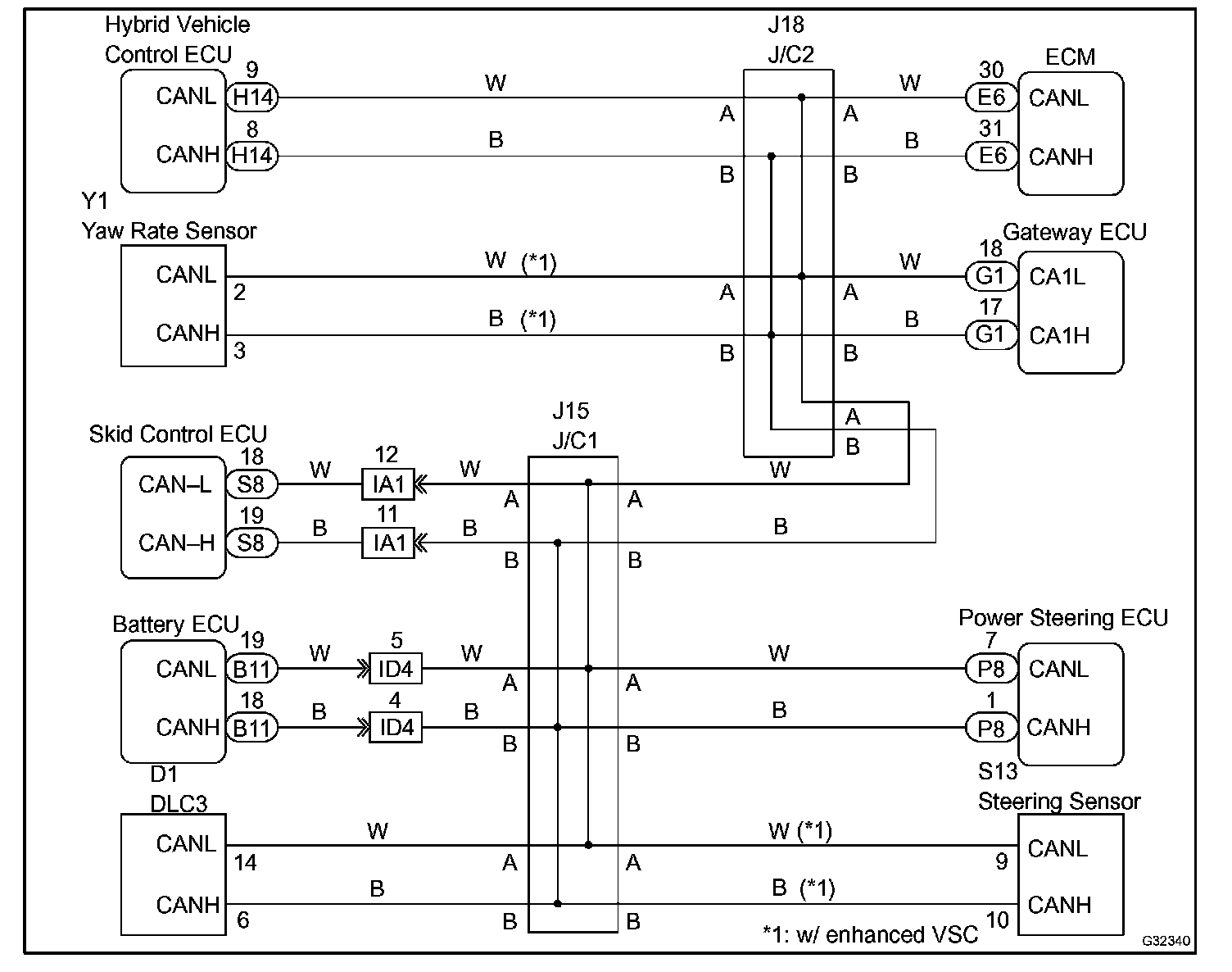

Wiring Diagram:

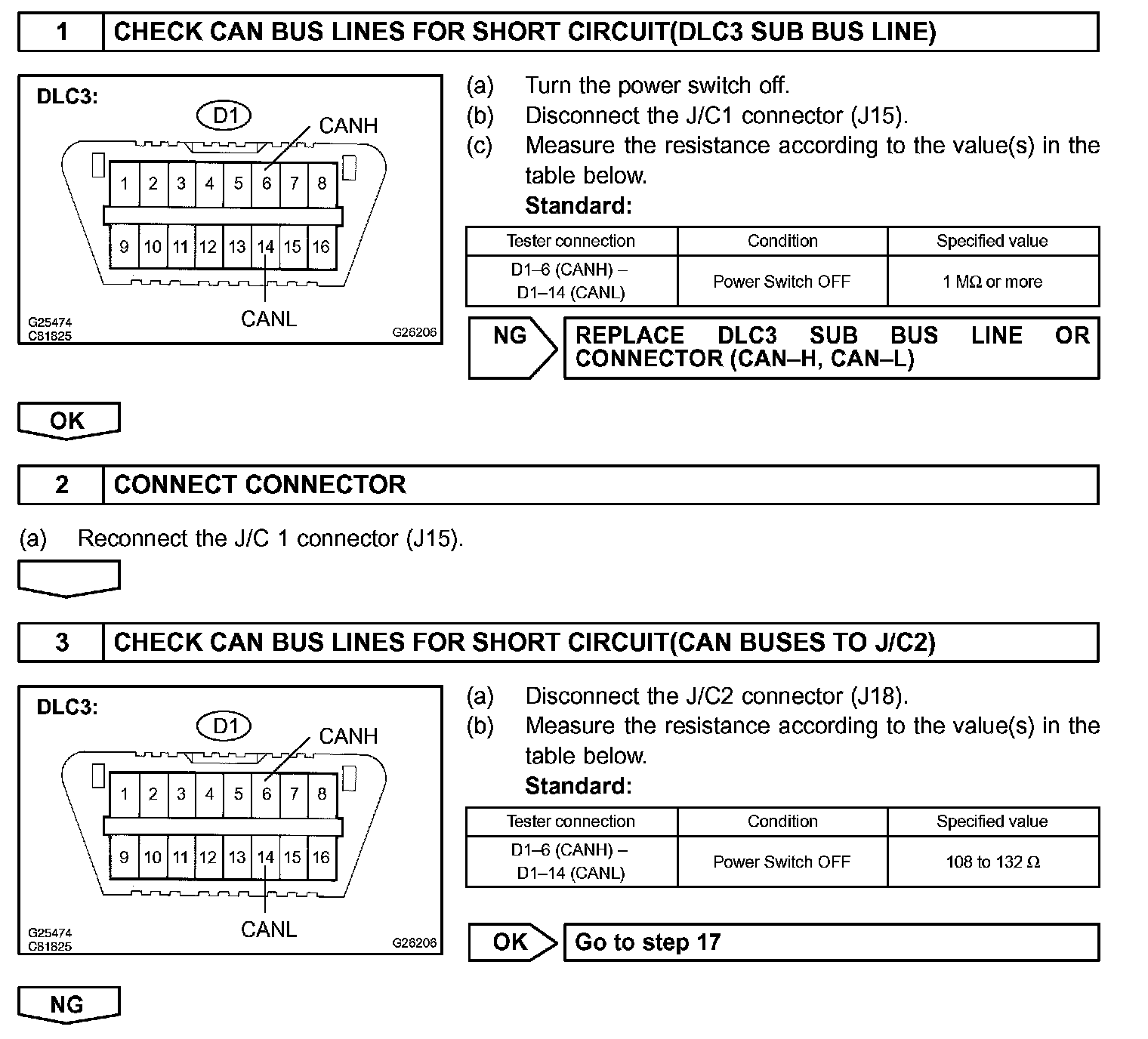

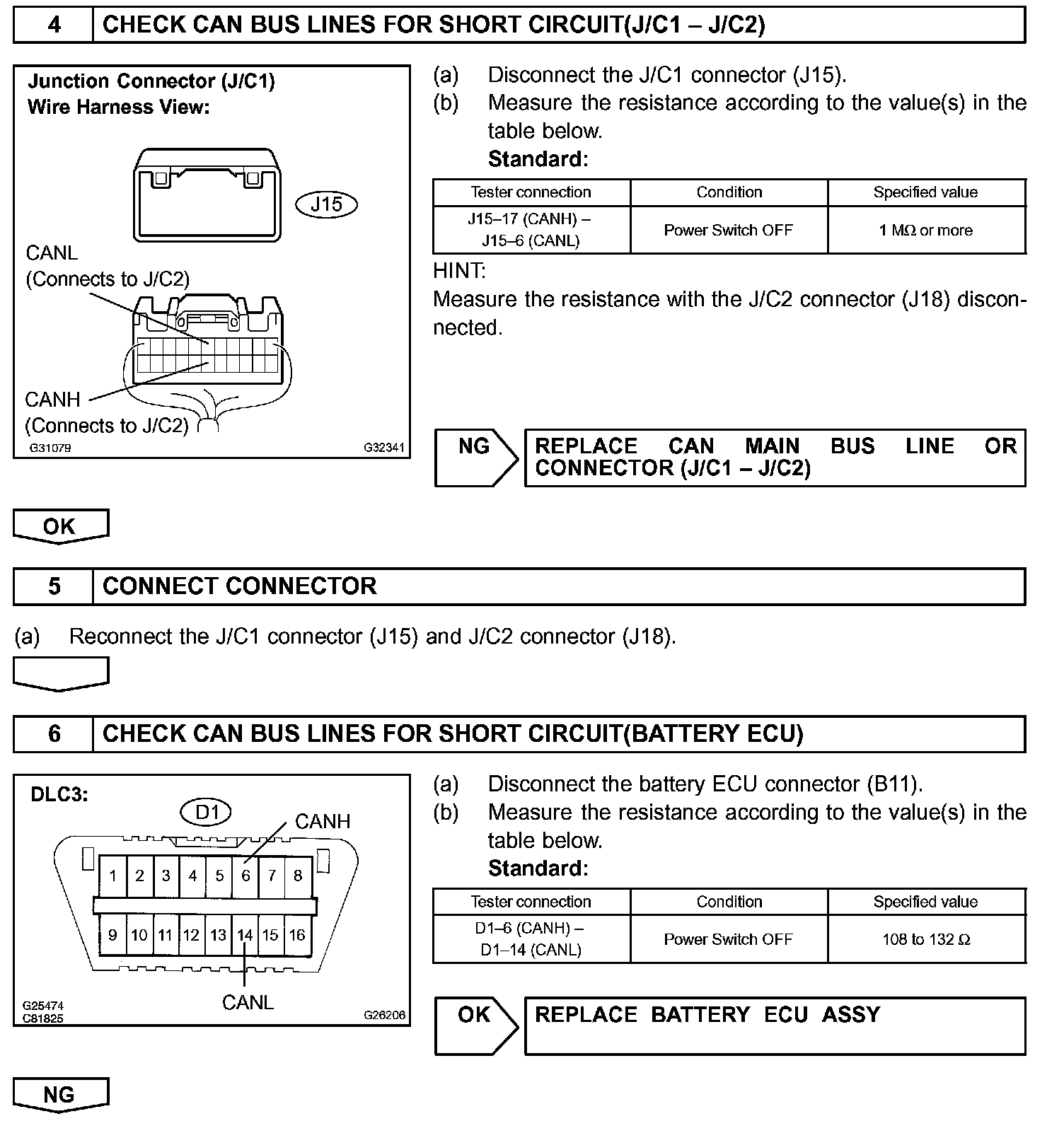

Step 1 - 3:

Step 4 - 6:

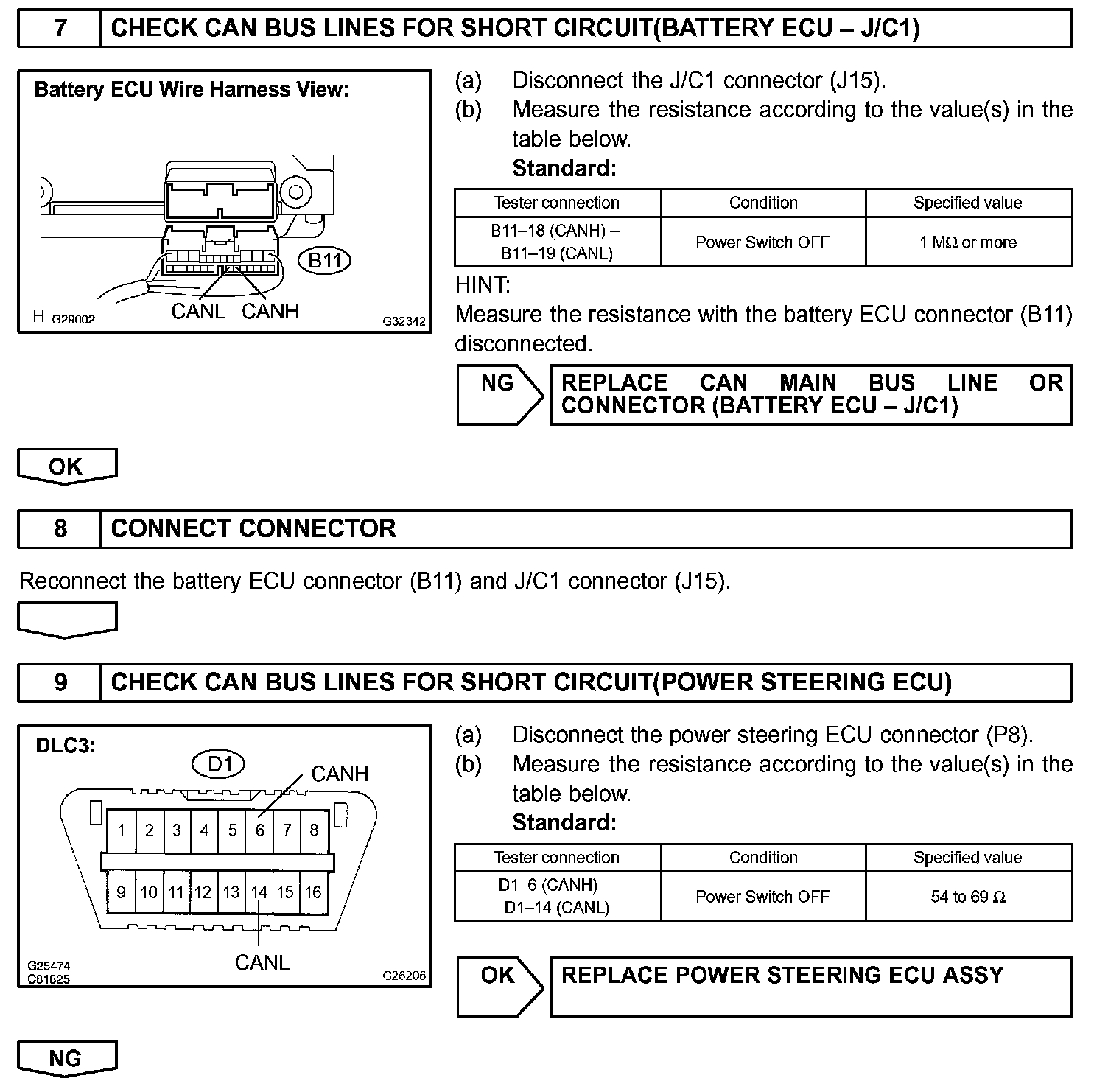

Step 7 - 9:

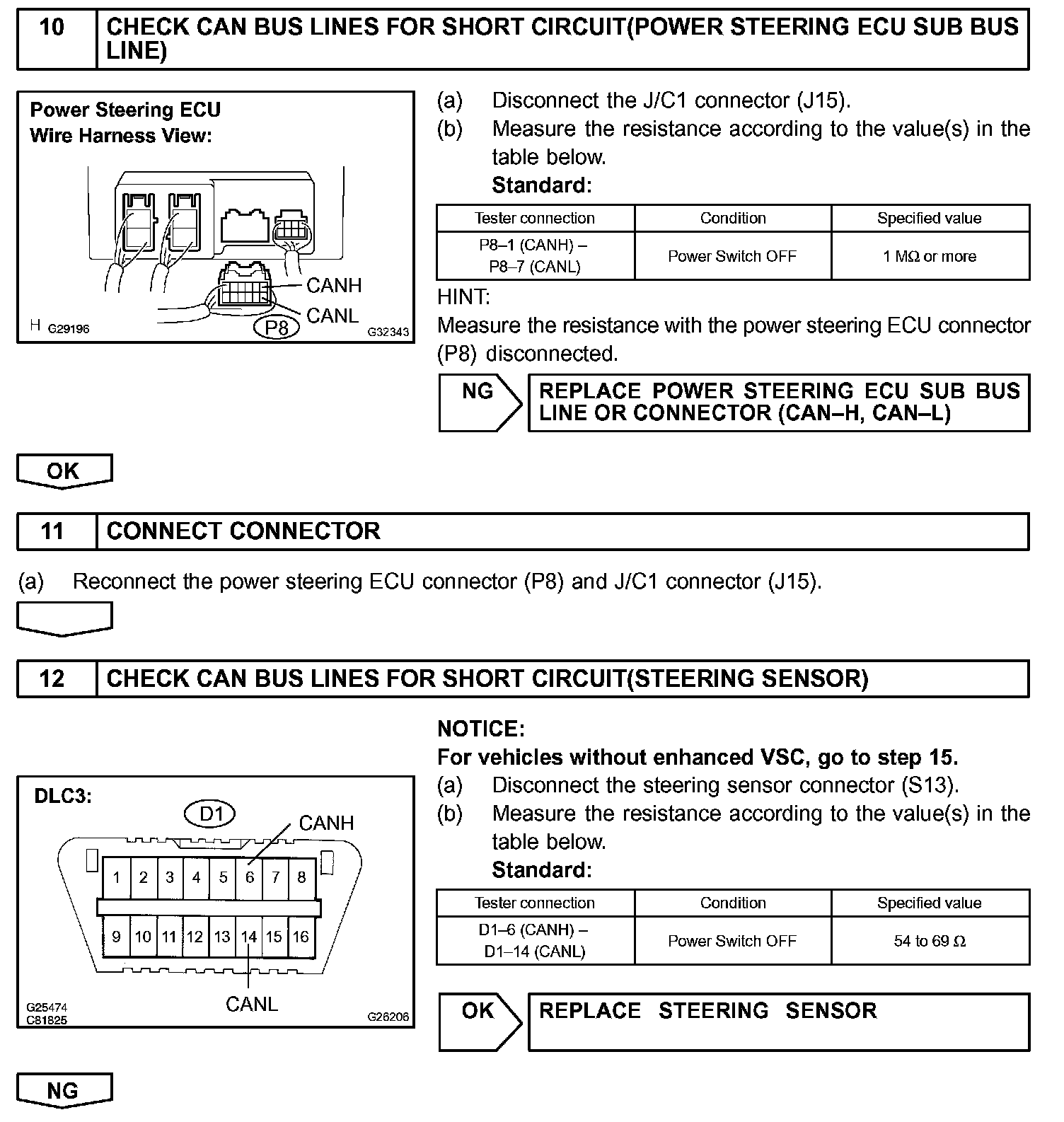

Step 10 - 12:

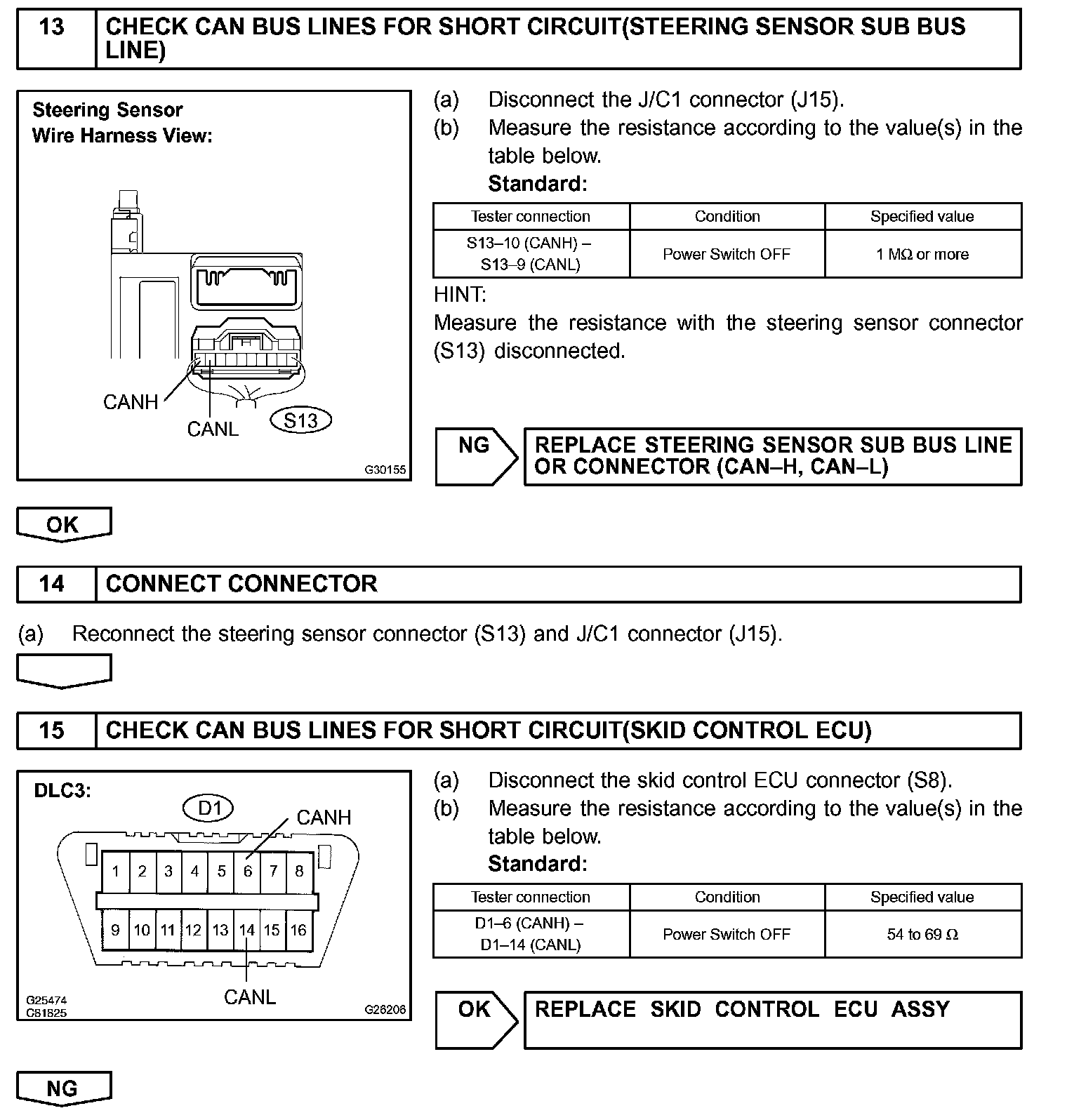

Step 13 - 15:

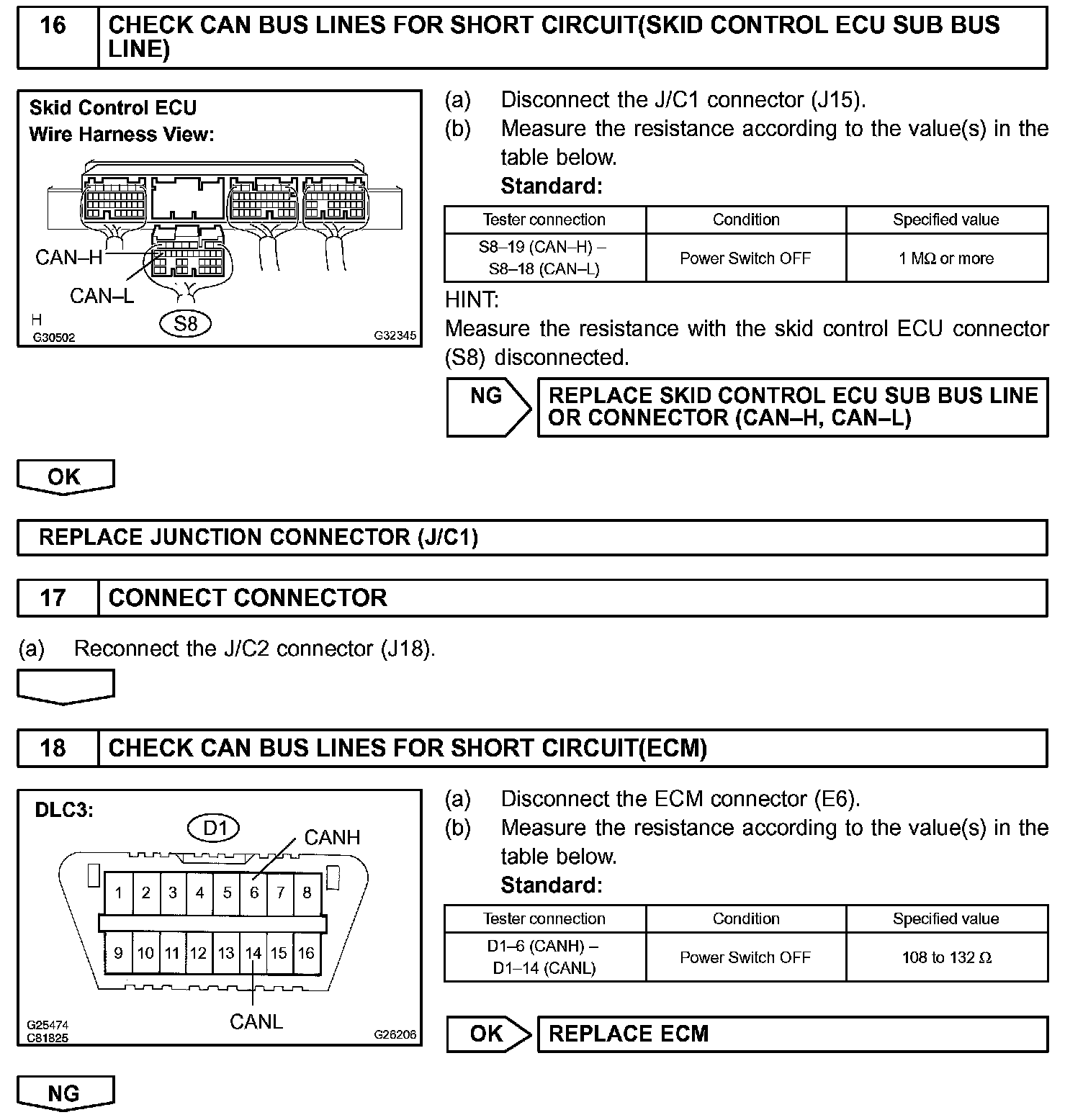

Step 16 - 18:

Step 19 - 21:

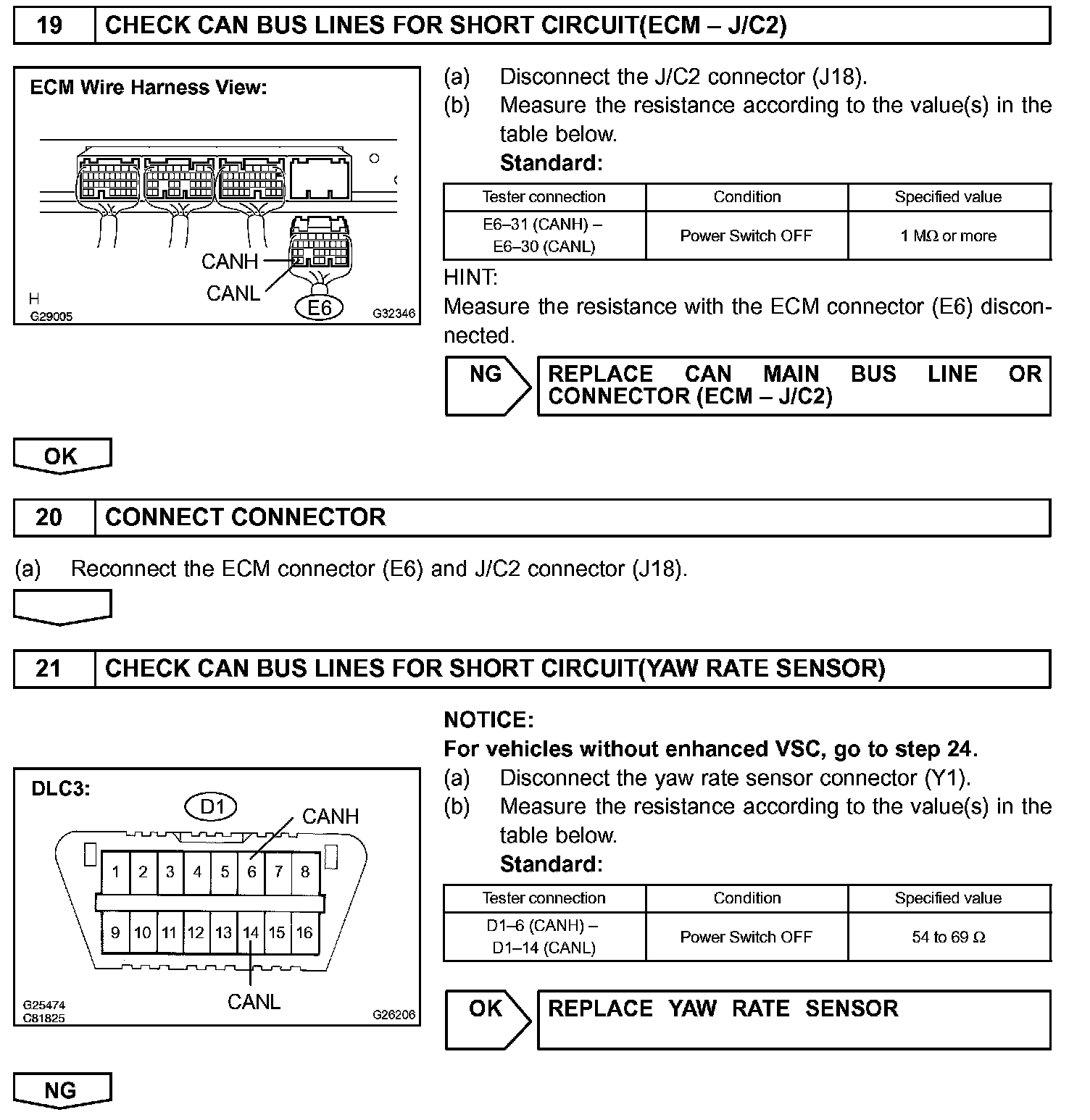

Step 22 - 24:

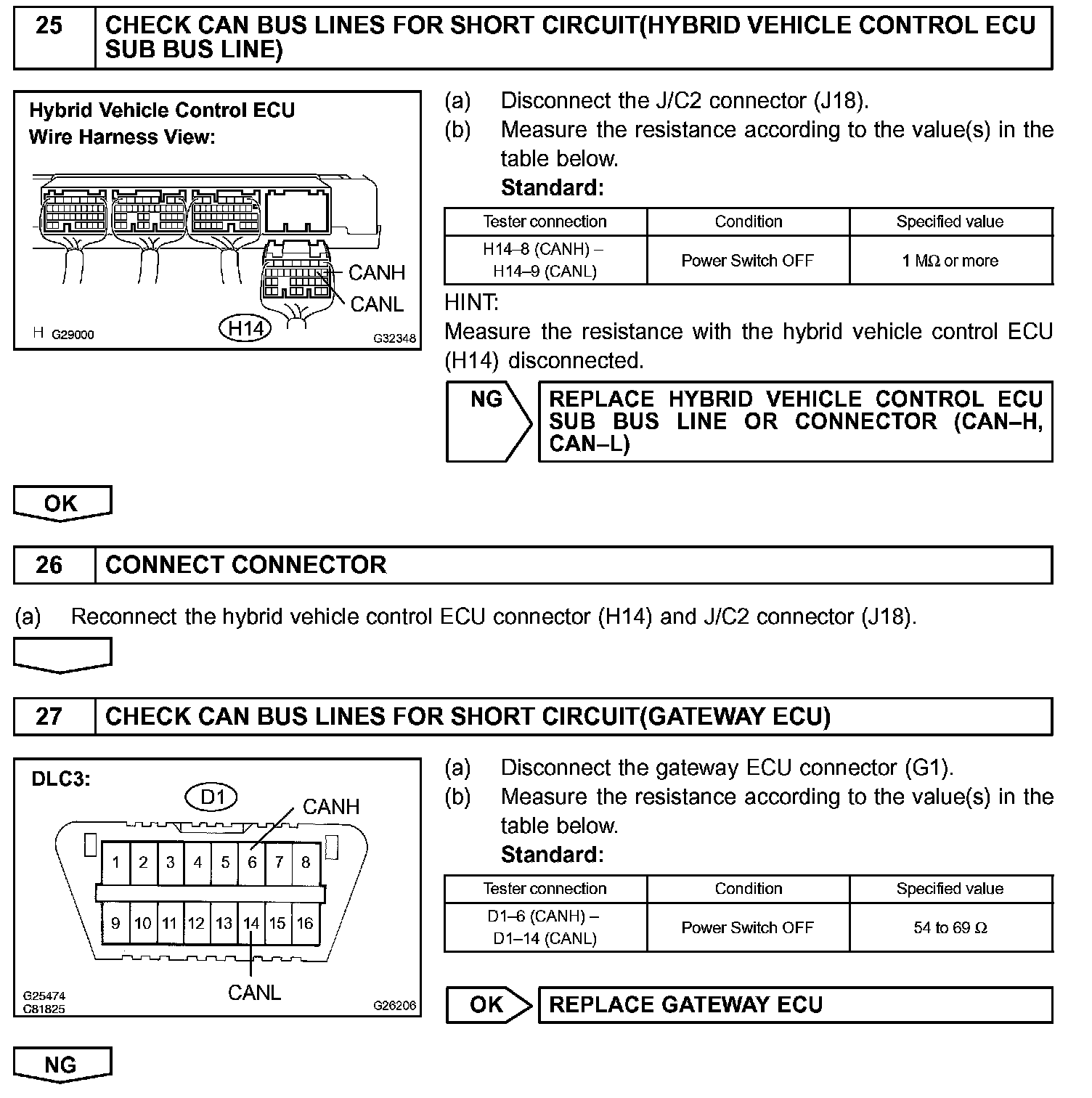

Step 25 - 27:

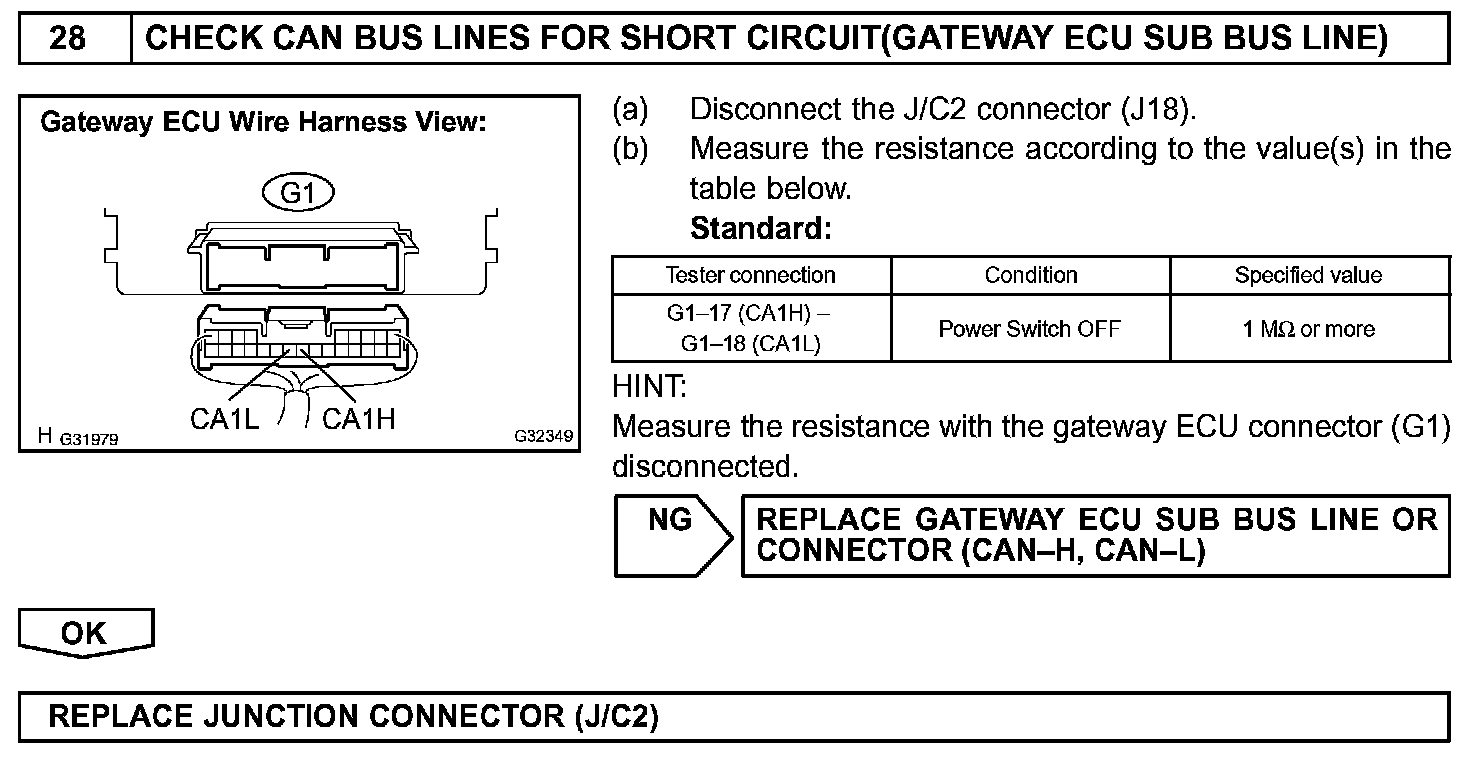

Step 28:

INSPECTION PROCEDURE
