Check CAN Main Bus Line For Disconnection

CHECK CAN MAIN BUS LINE FOR DISCONNECTION

CIRCUIT DESCRIPTION

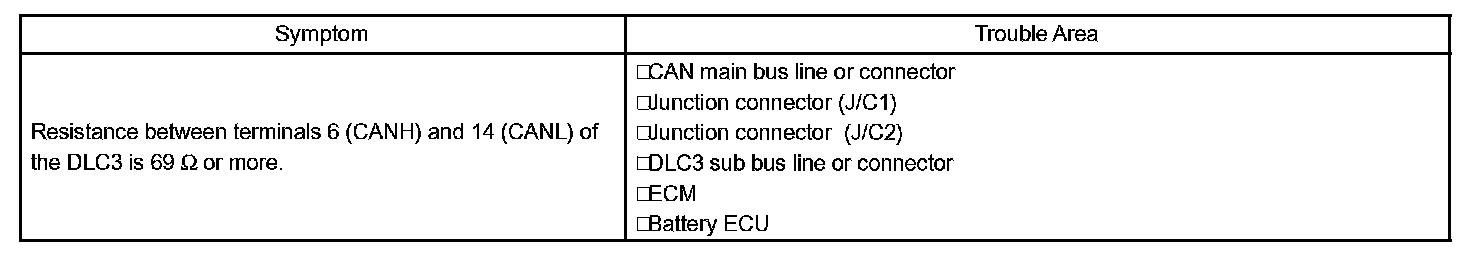

There may be an open circuit in the CAN bus main line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 Ohms or more.

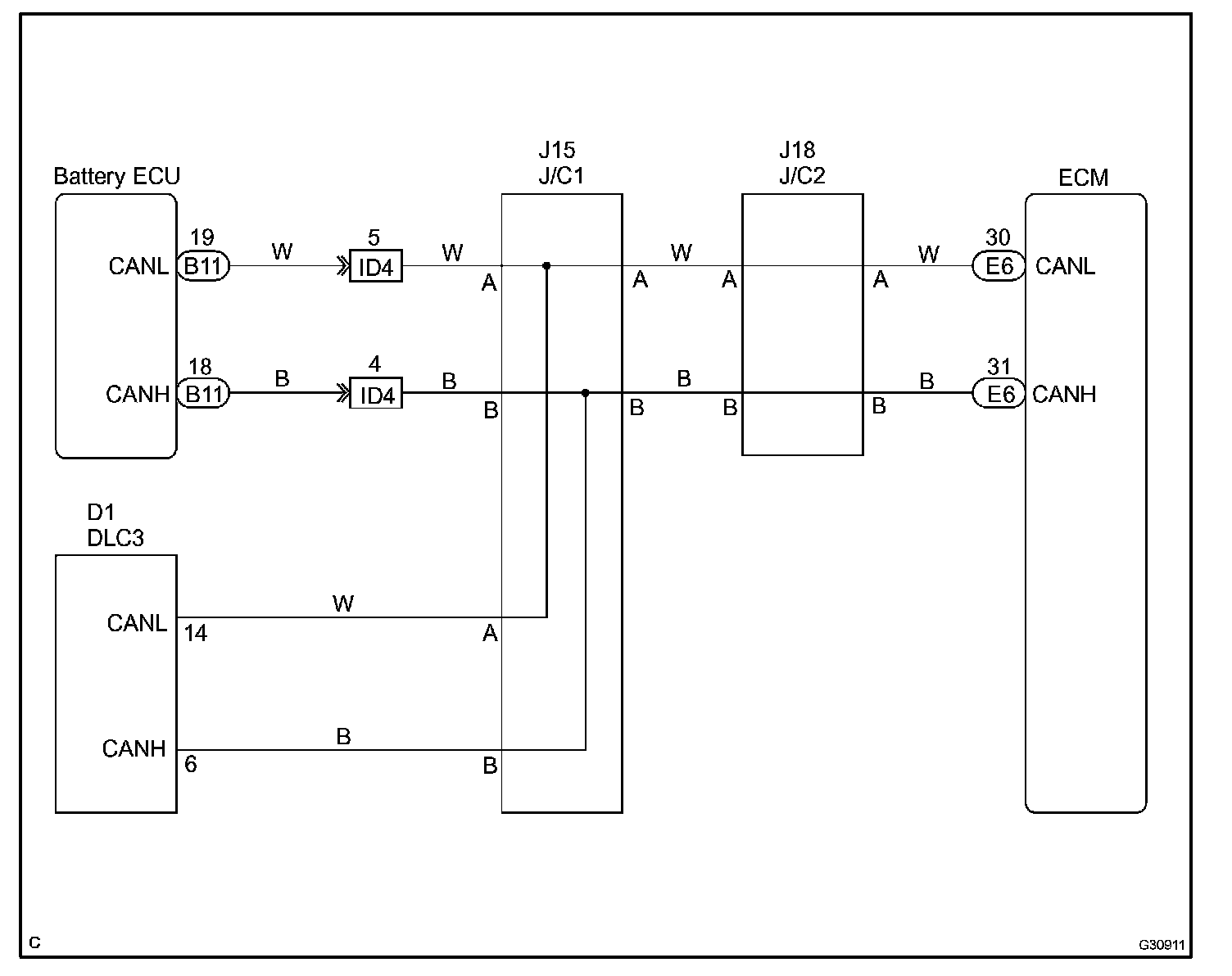

Wiring Diagram:

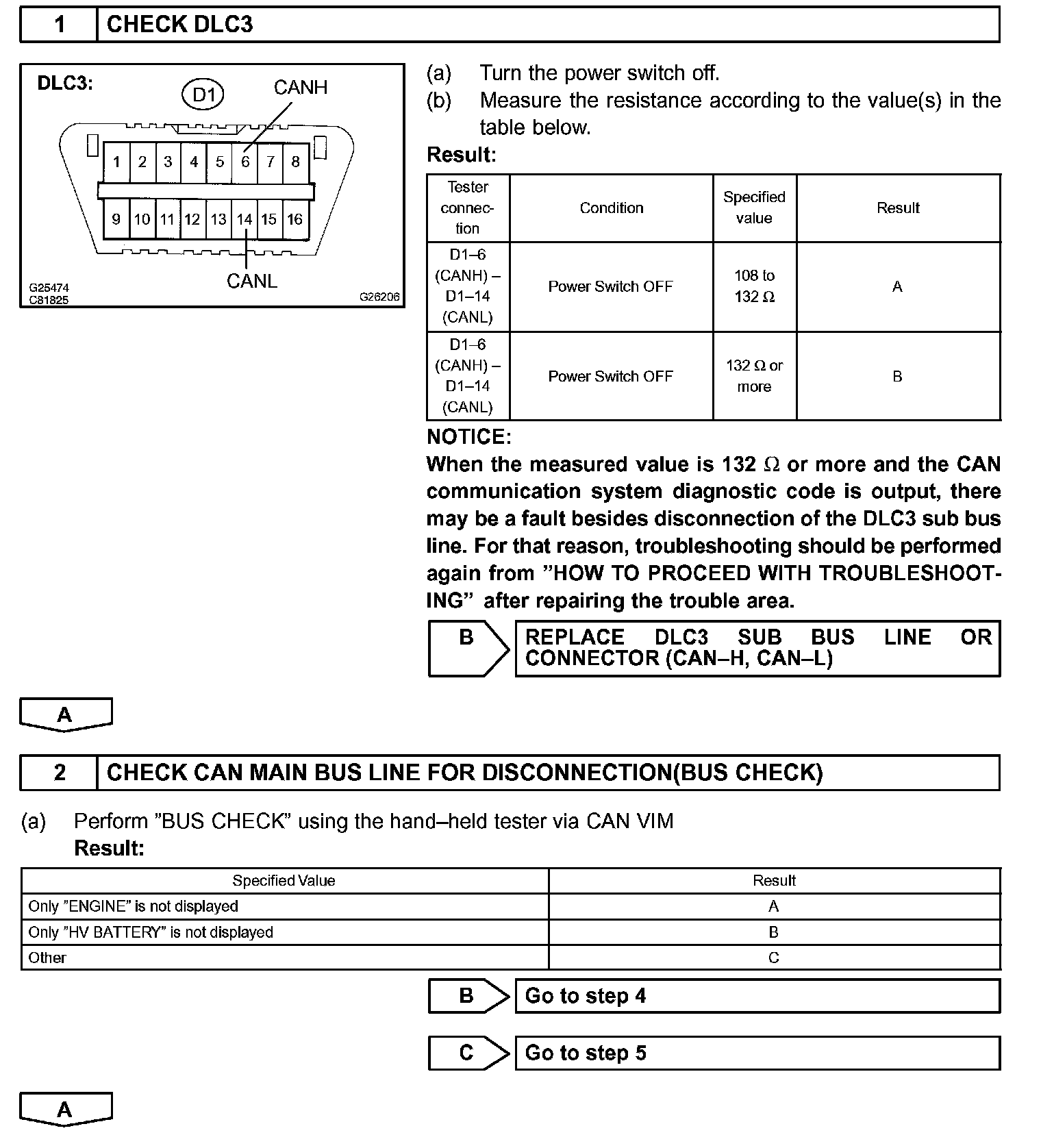

Step 1 - 2:

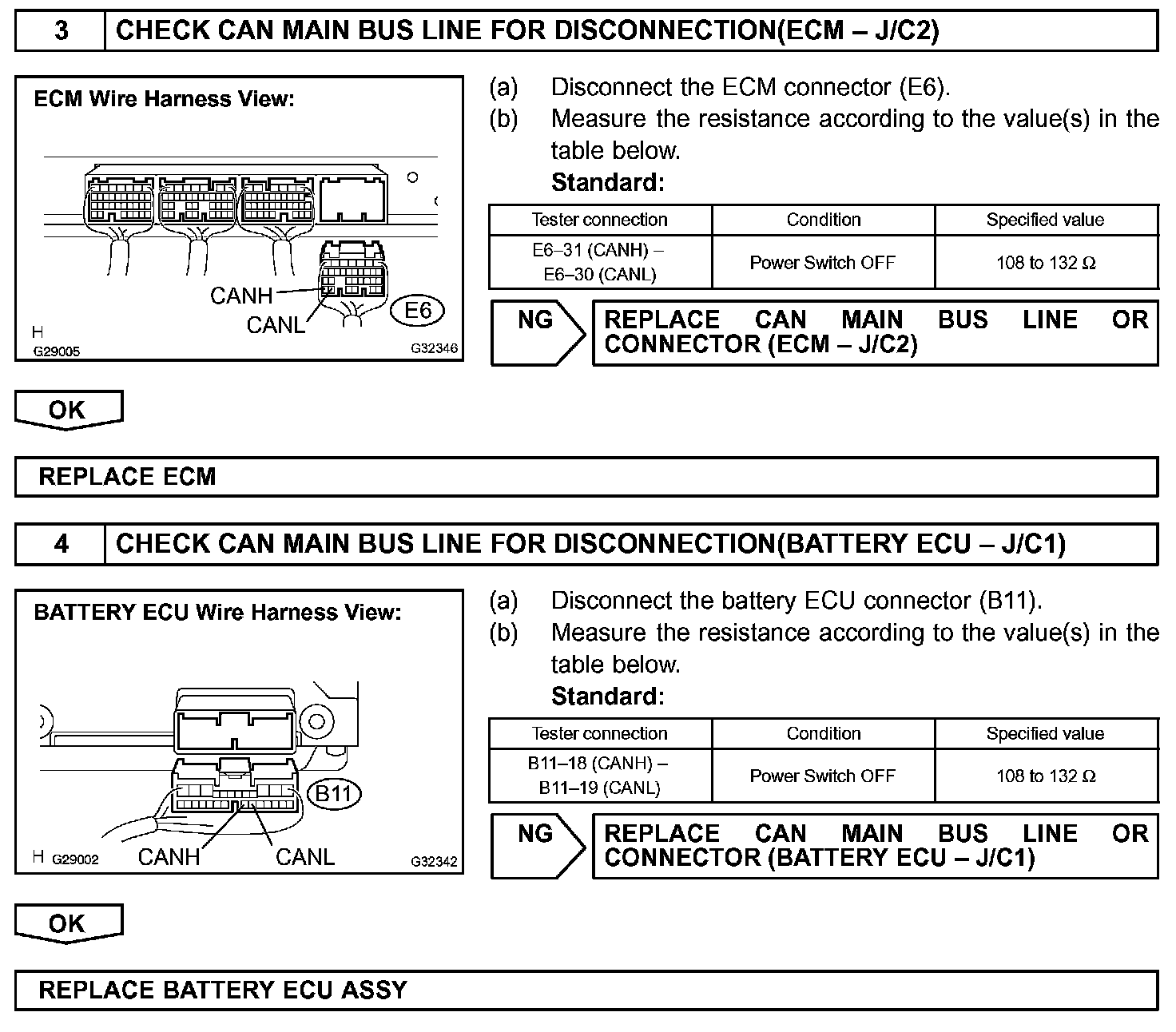

Step 3 - 4:

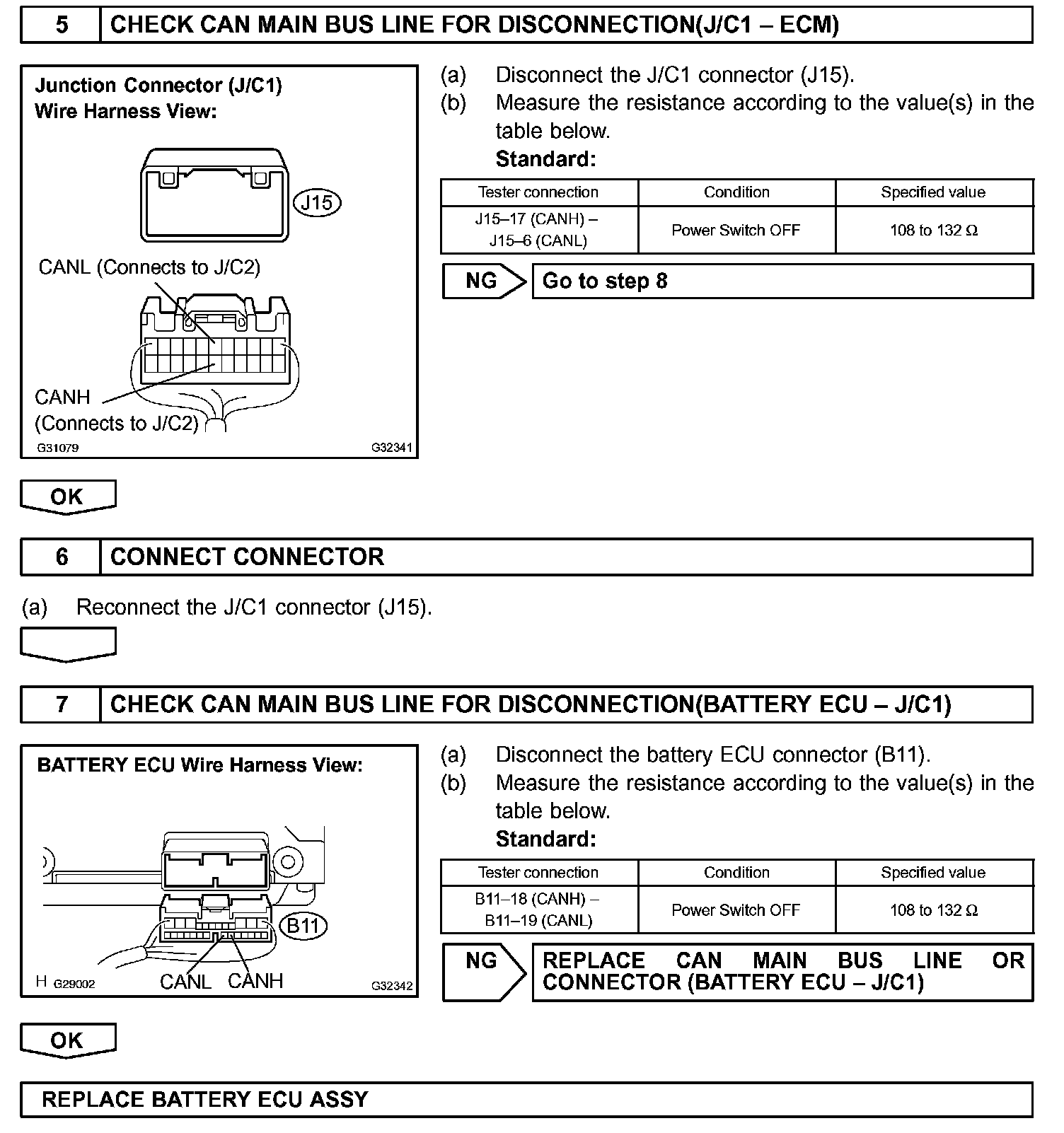

Step 5 - 7:

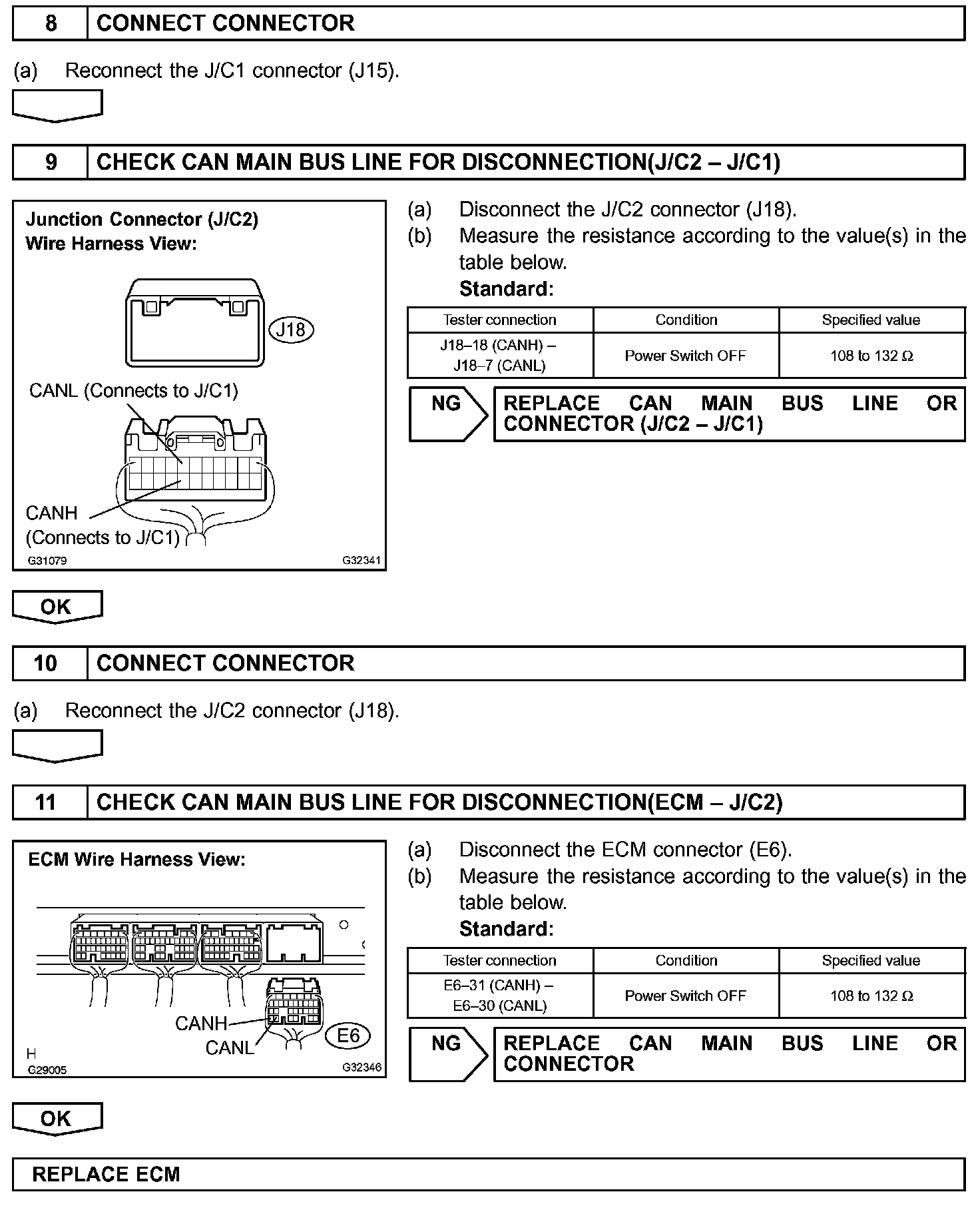

Step 8 - 11:

INSPECTION PROCEDURE
