ECM Communication Stop Mode
ECM Communication Stop Mode
ECM COMMUNICATION STOP MODE

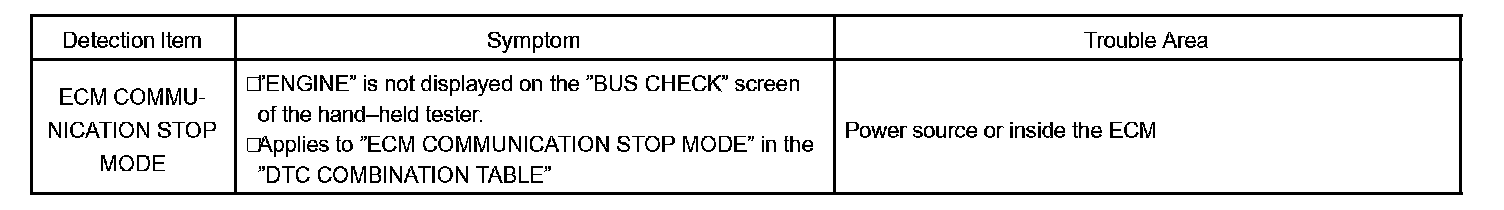

Detection Item:
MODE DESCRIPTION

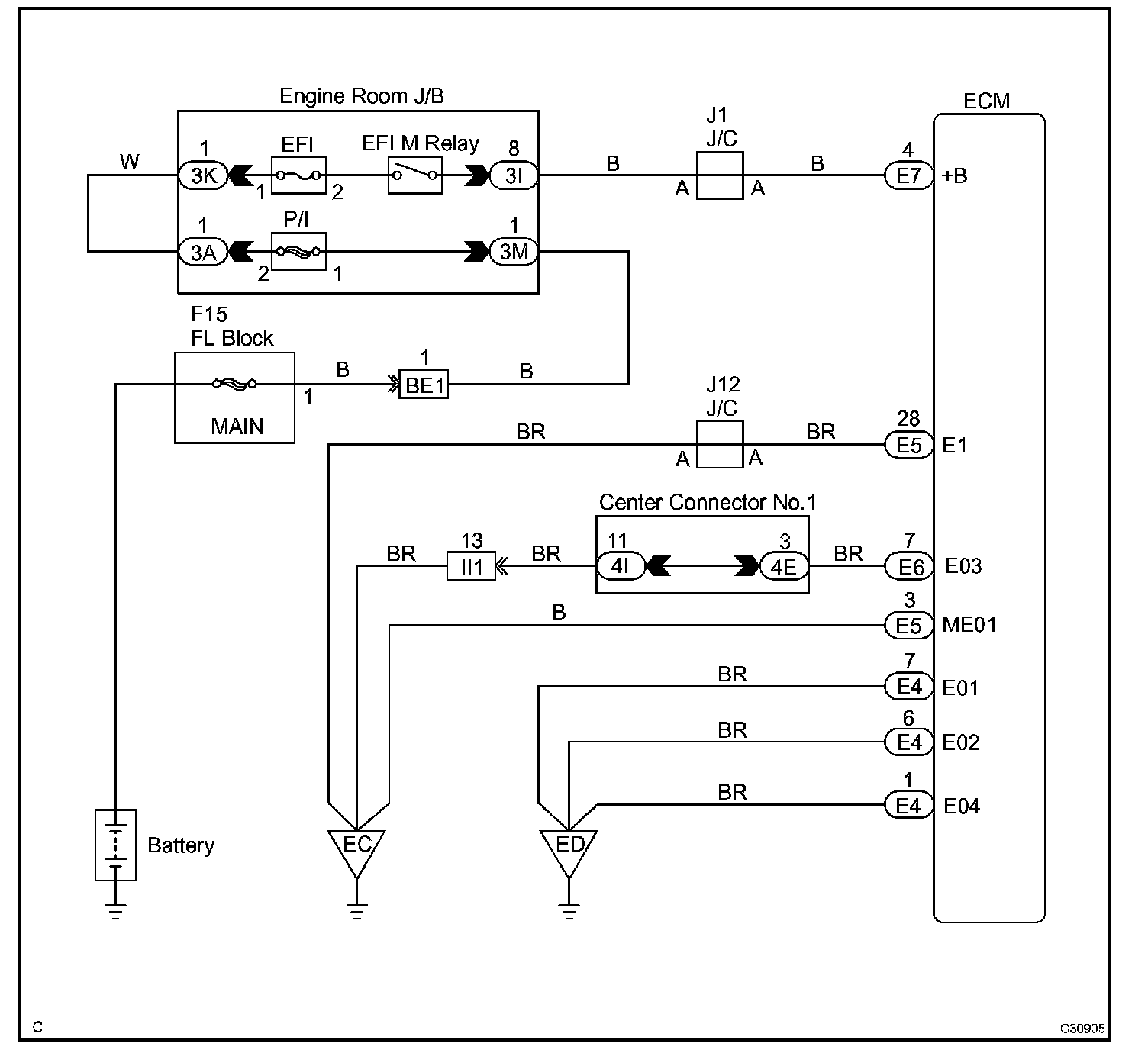

Wiring Diagram:

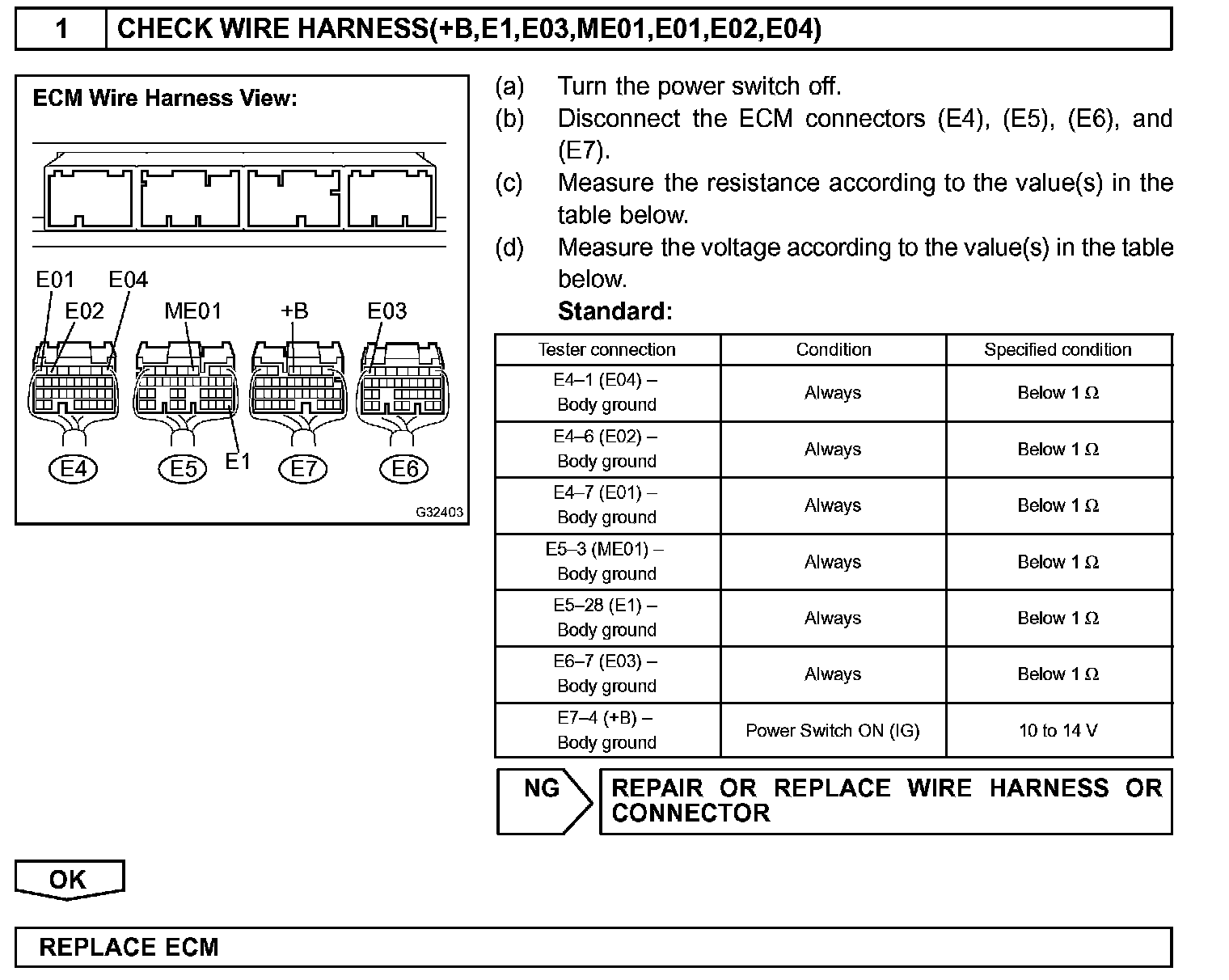

Step 1:
INSPECTION PROCEDURE
