Hybrid Vehicle Control ECU Communication Stop Mode
Hybrid Vehicle Control ECU Communication Stop Mode
HYBRID VEHICLE CONTROL ECU COMMUNICATION STOP MODE

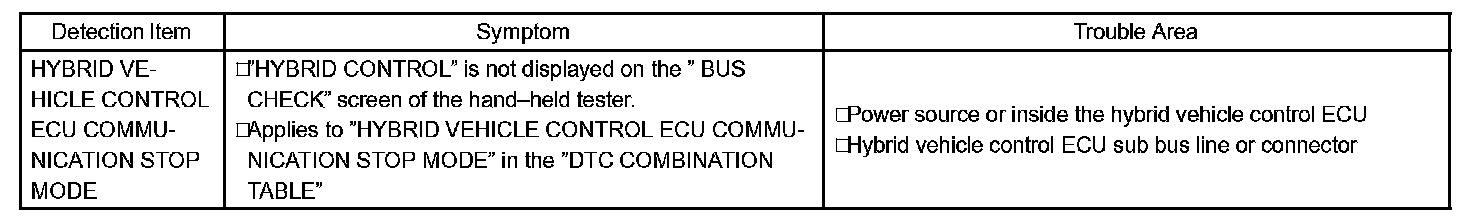

Detection Item:
MODE DESCRIPTION

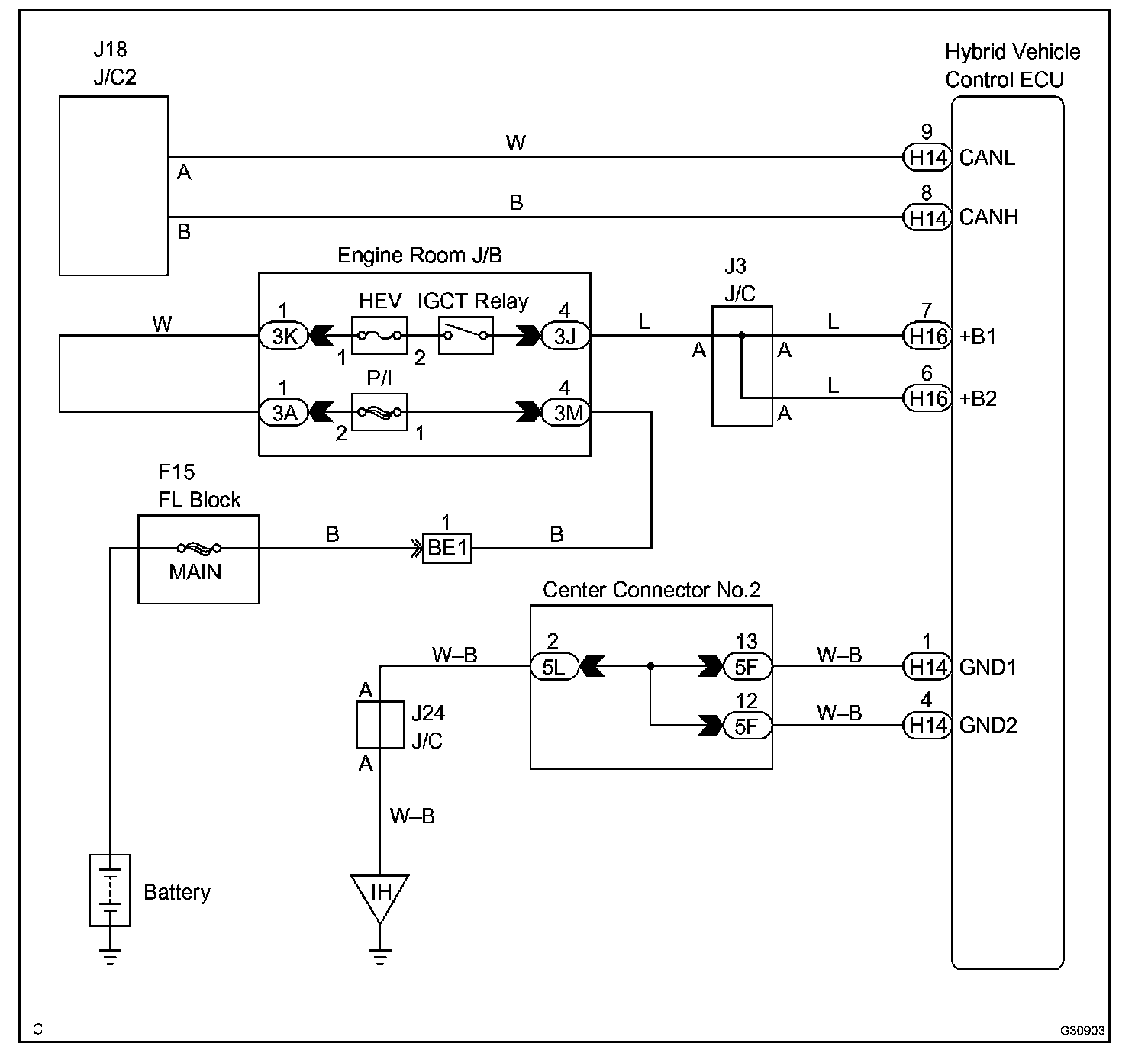

Wiring Diagram:

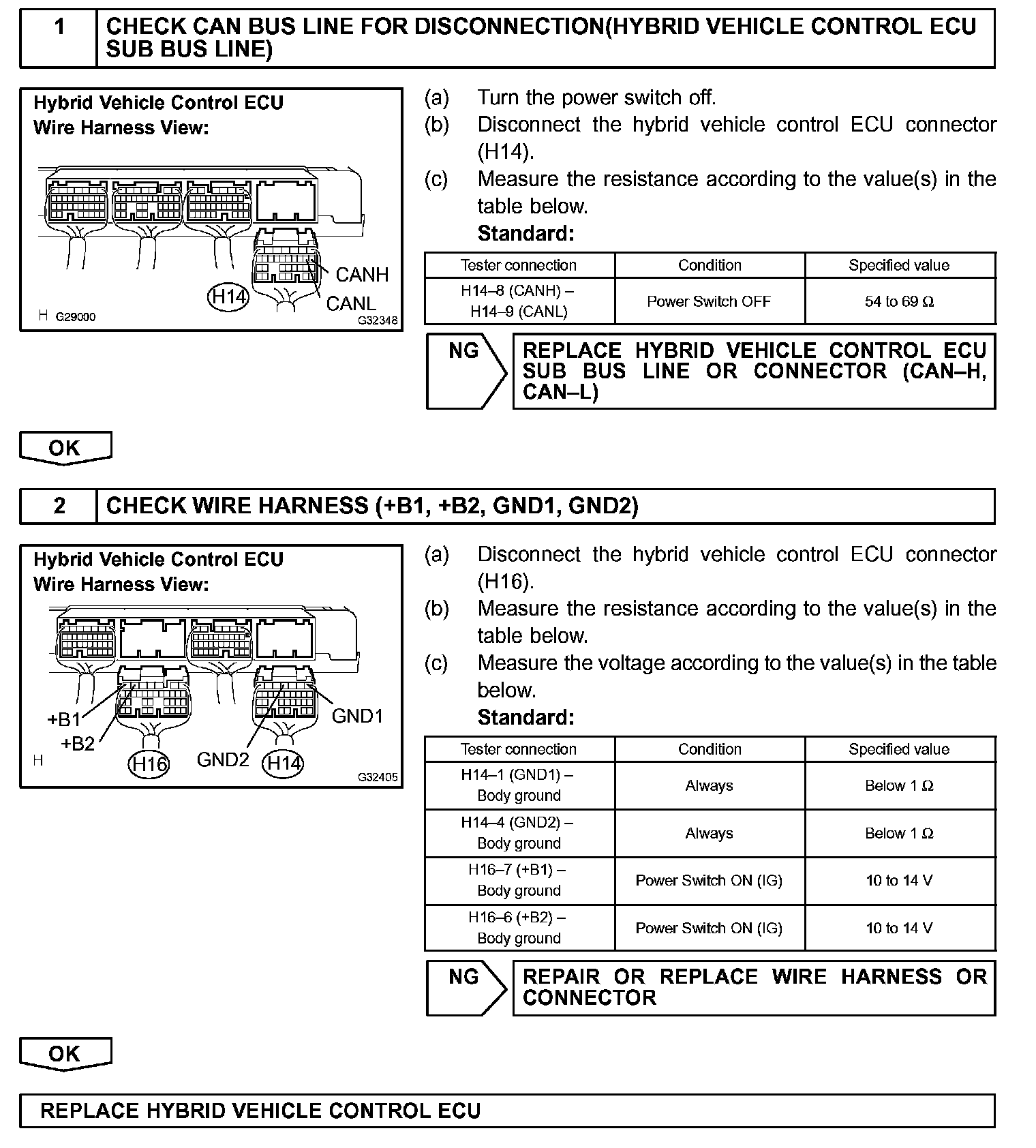

Step 1 - 2:
INSPECTION PROCEDURE
