Power Steering ECU Communication Stop Mode
Power Steering ECU Communication Stop Mode
POWER STEERING ECU COMMUNICATION STOP MODE

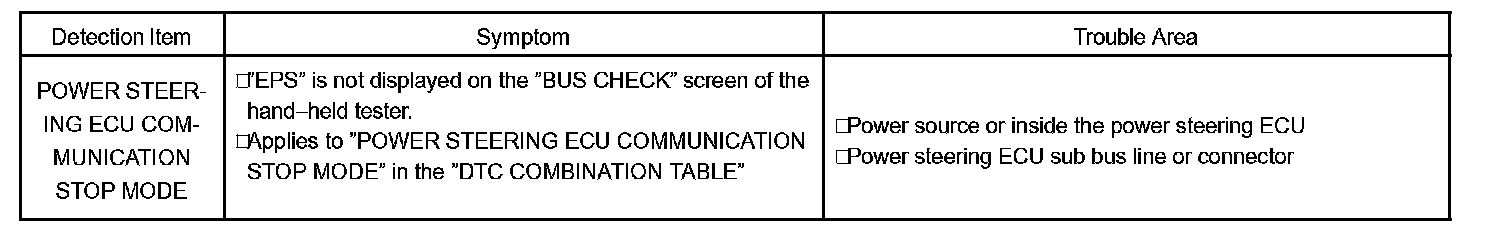

Detection Item:
MODE DESCRIPTION

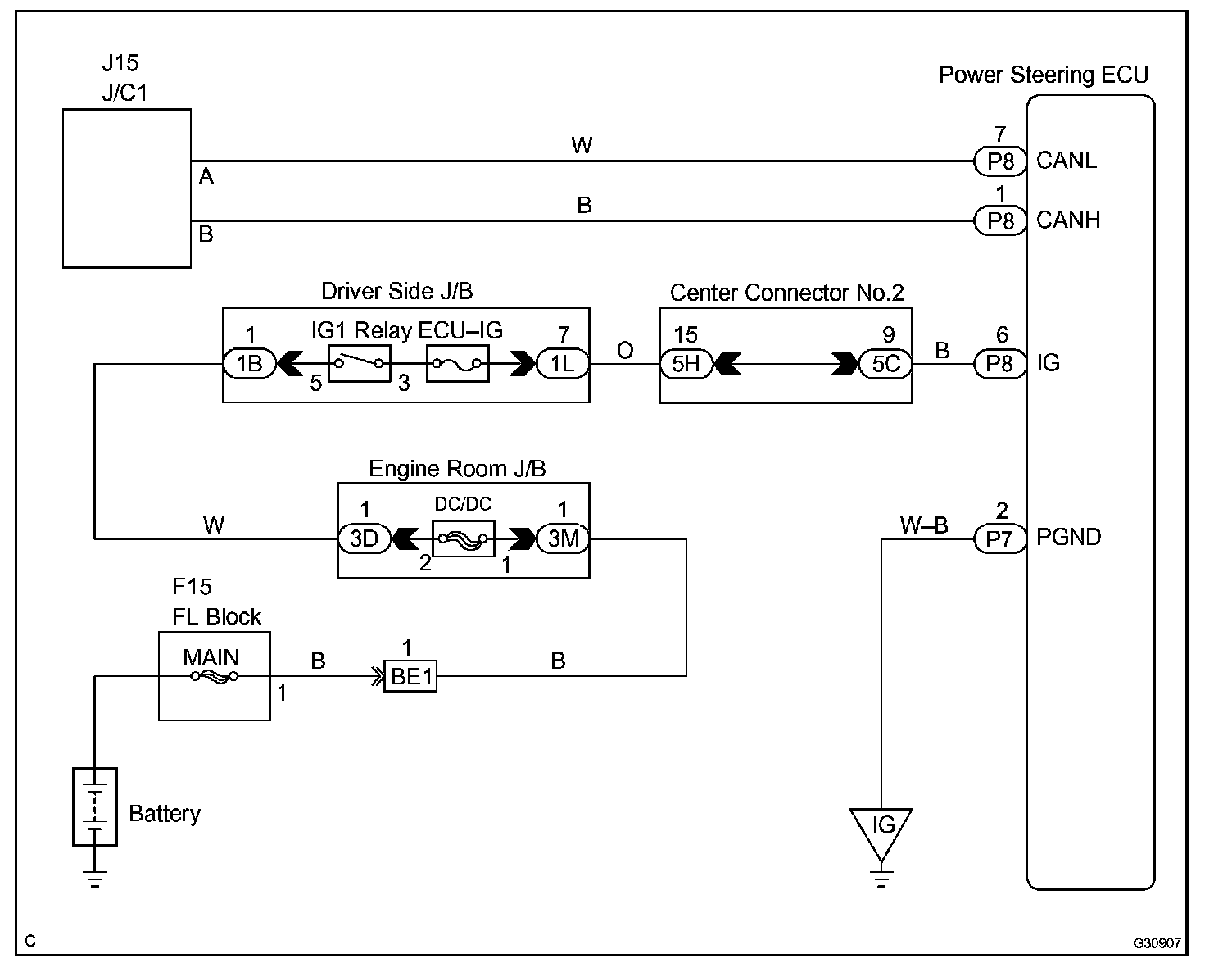

Wiring Diagram:

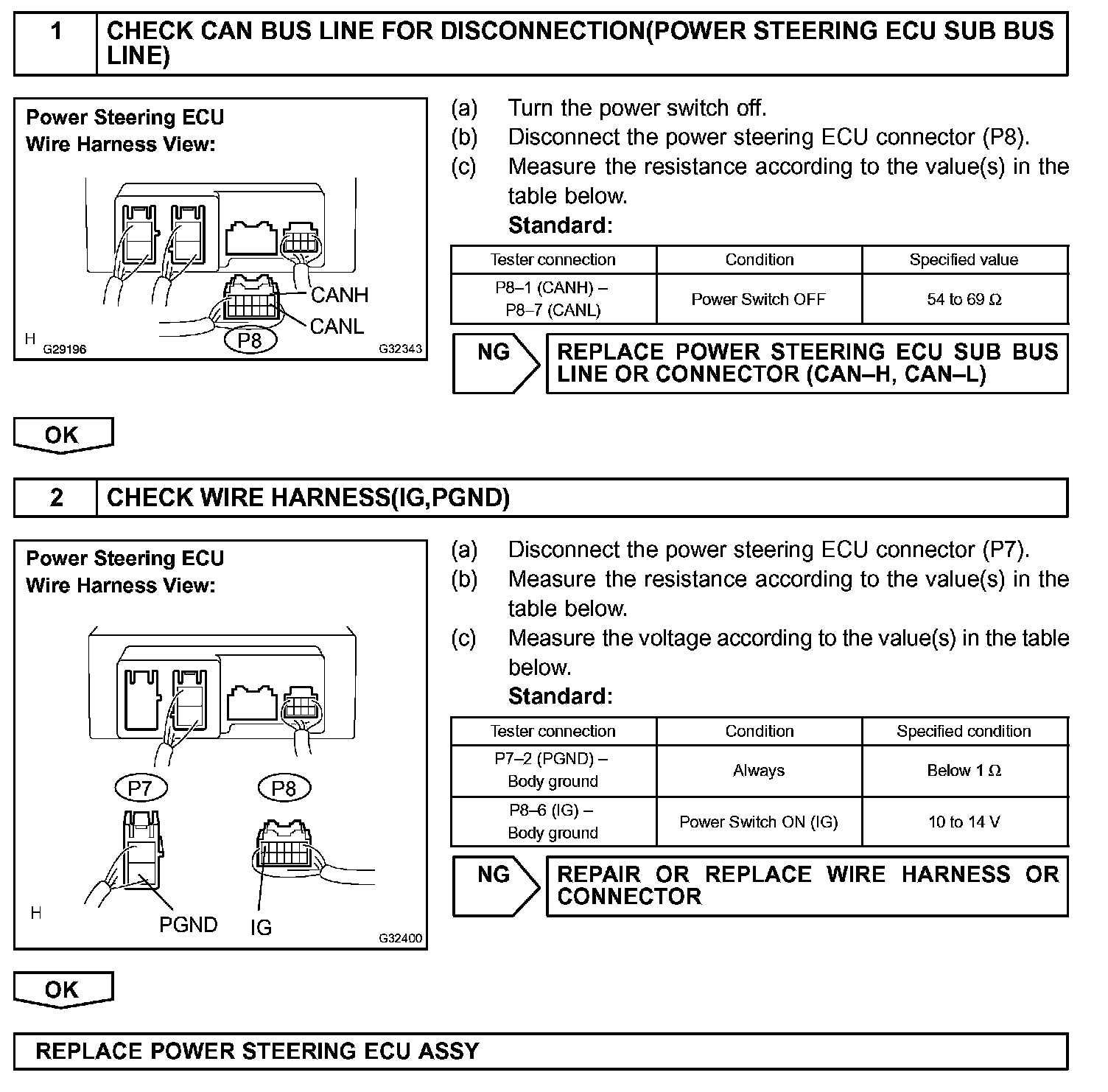

Step 1 - 2:
INSPECTION PROCEDURE
