Steering Sensor Communication Stop Mode
Steering Sensor Communication Stop Mode
STEERING SENSOR COMMUNICATION STOP MODE

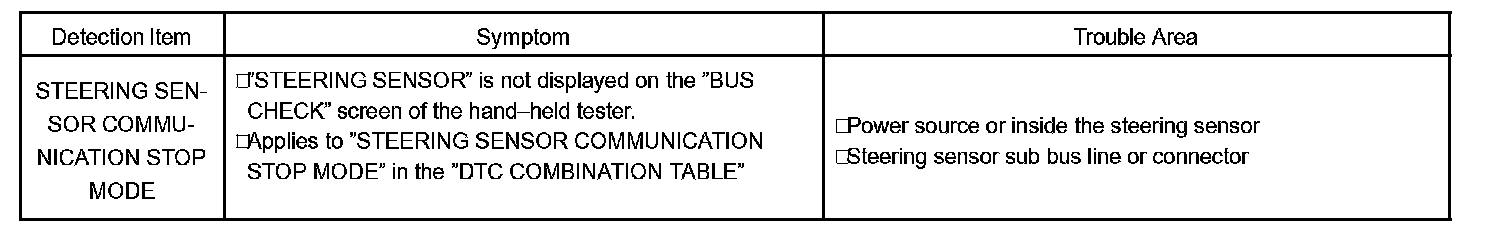

Detection Item:
MODE DESCRIPTION

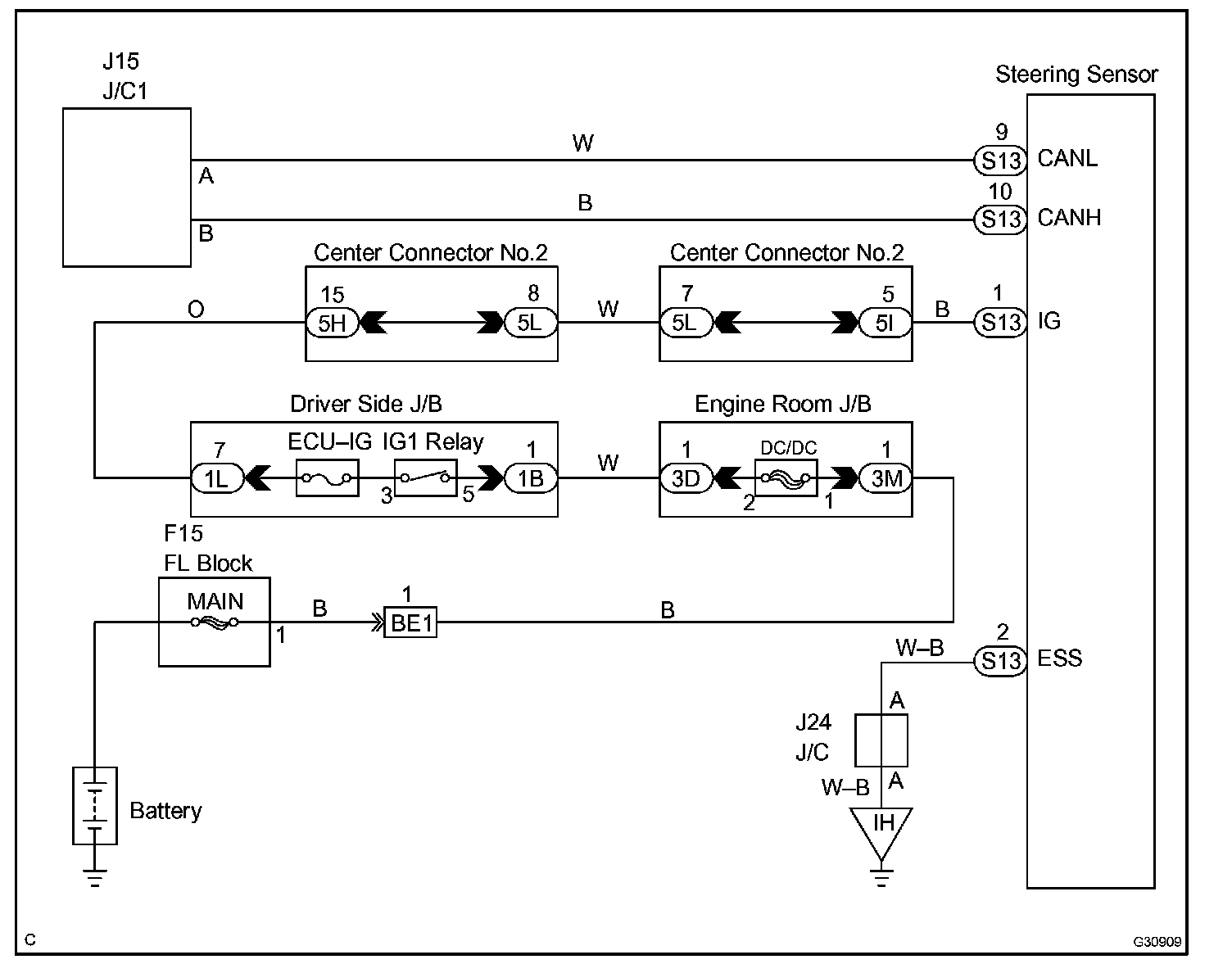

Wiring Diagram:

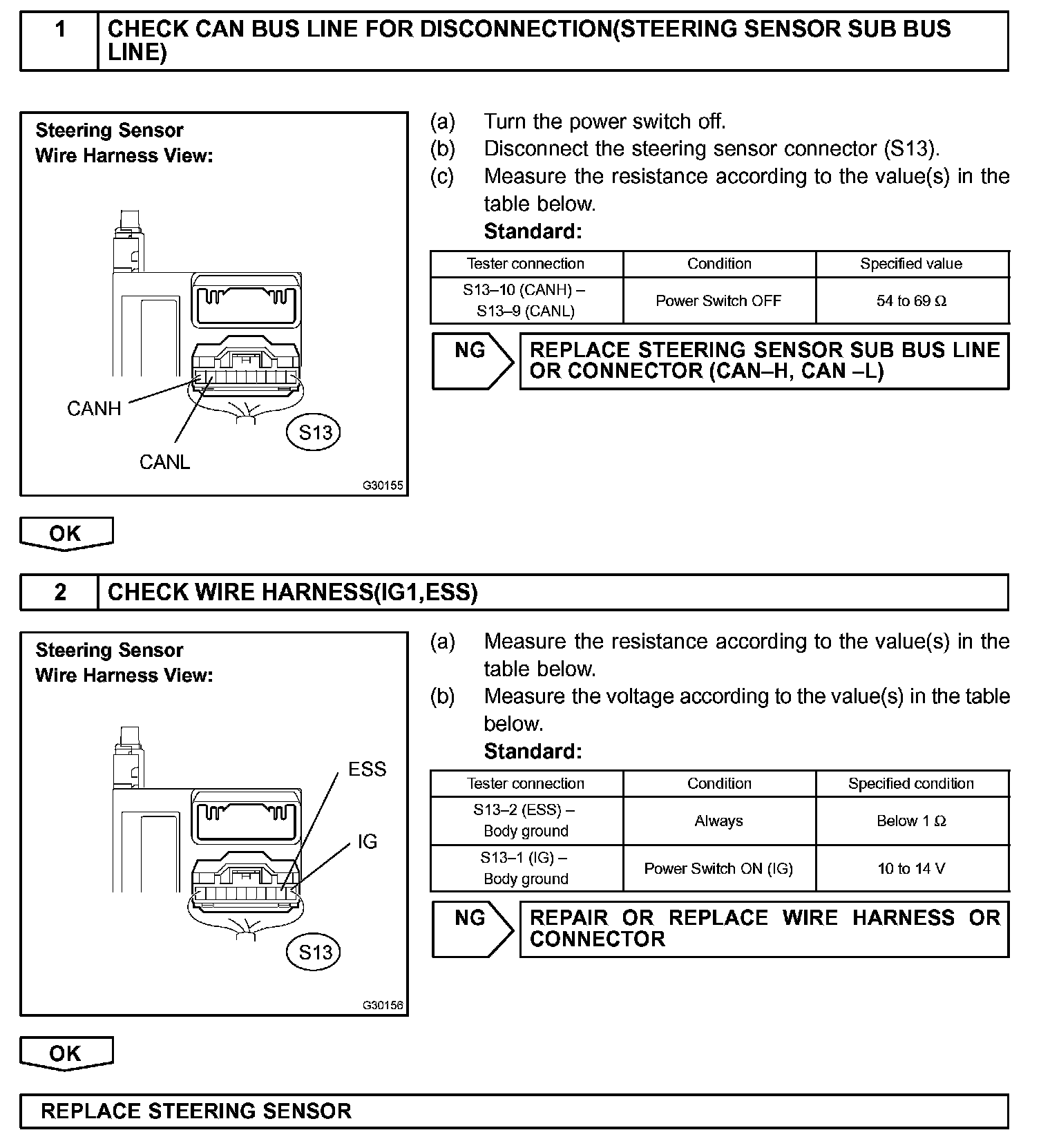

Step 1 - 2:
INSPECTION PROCEDURE
