CAN Communication System

TERMINALS OF ECU

HINT: This section describes the standard CAN values for all CAN related components.

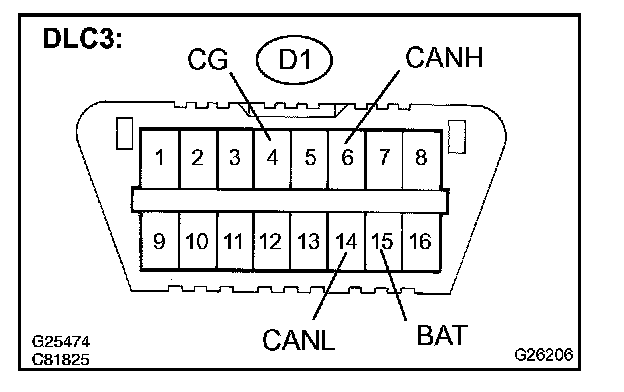

1. DLC3
a. Measure the resistance according to the value(s) in the table.

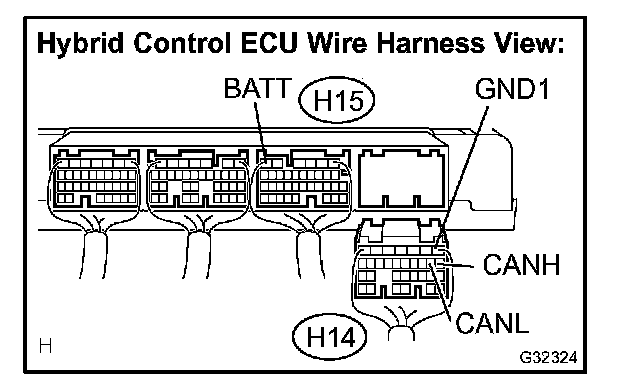

2. HYBRID VEHICLE CONTROL ECU

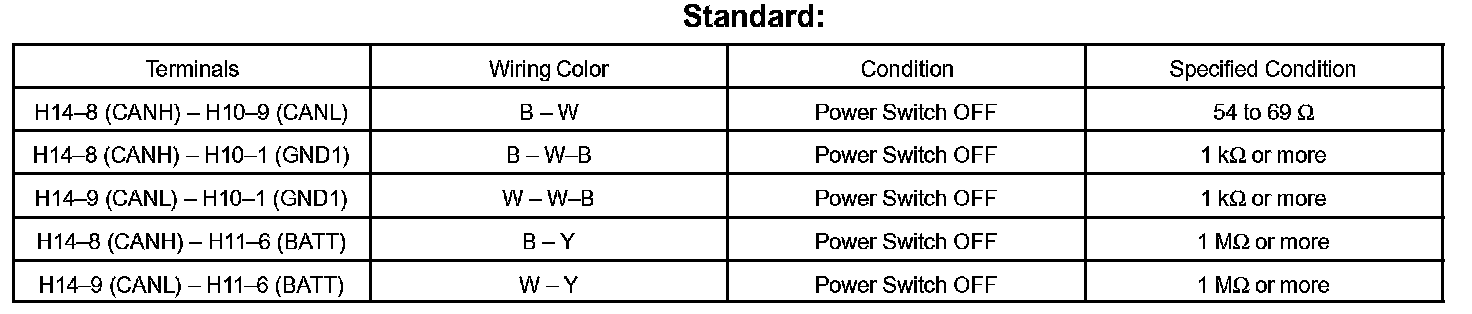

a. Measure the resistance according to the value(s) in the table.

Terminals Of ECU/Pinouts:

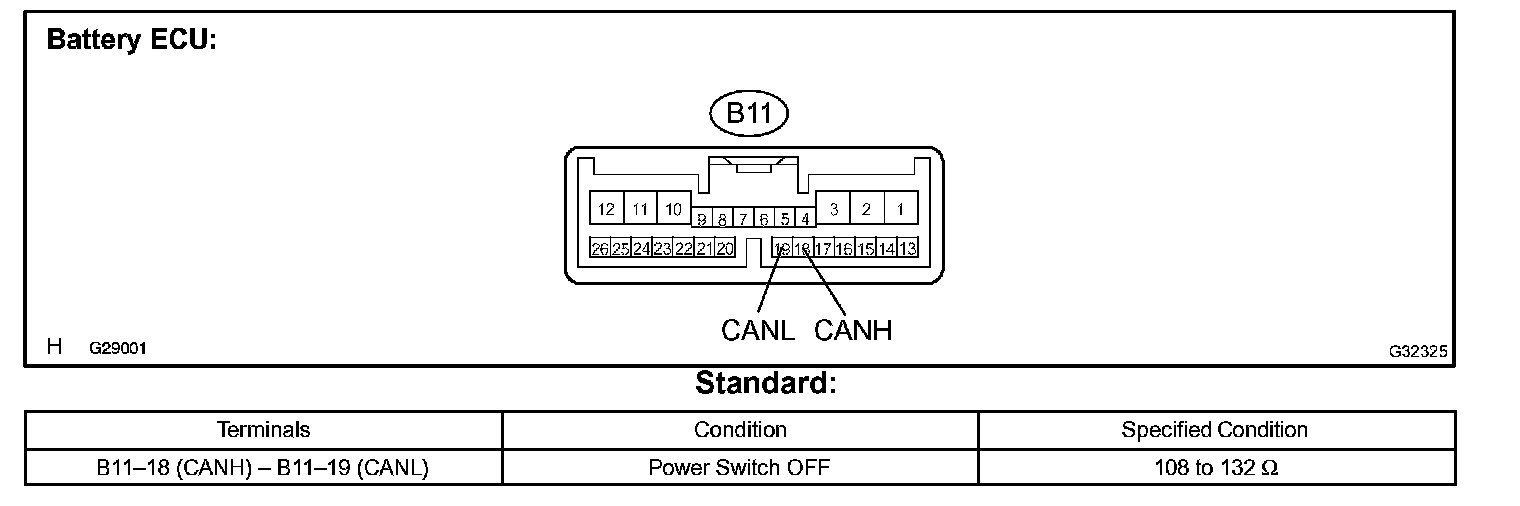

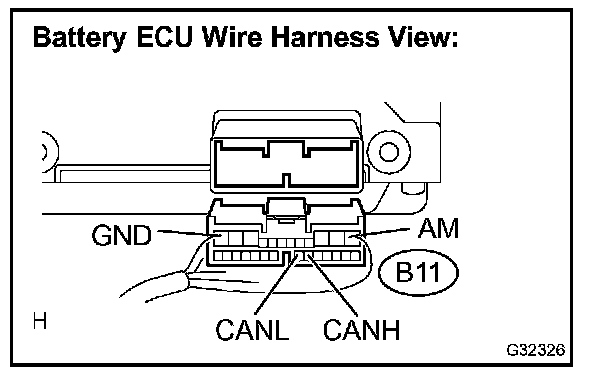

3. BATTERY ECU

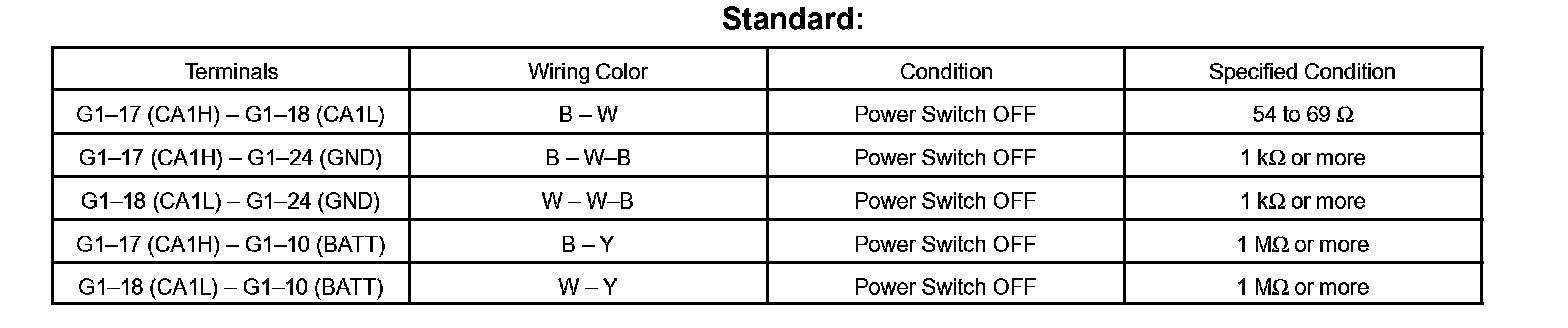

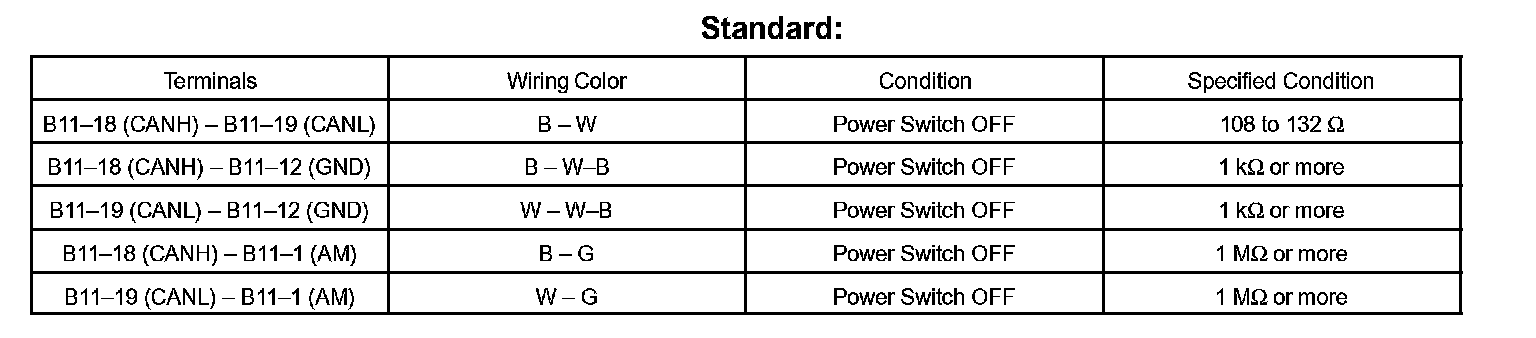

a. Measure the resistance according to the value(s) in the table.







b. Measure the resistance according to the value(s) in the table.

Terminals Of ECU/Pinouts:

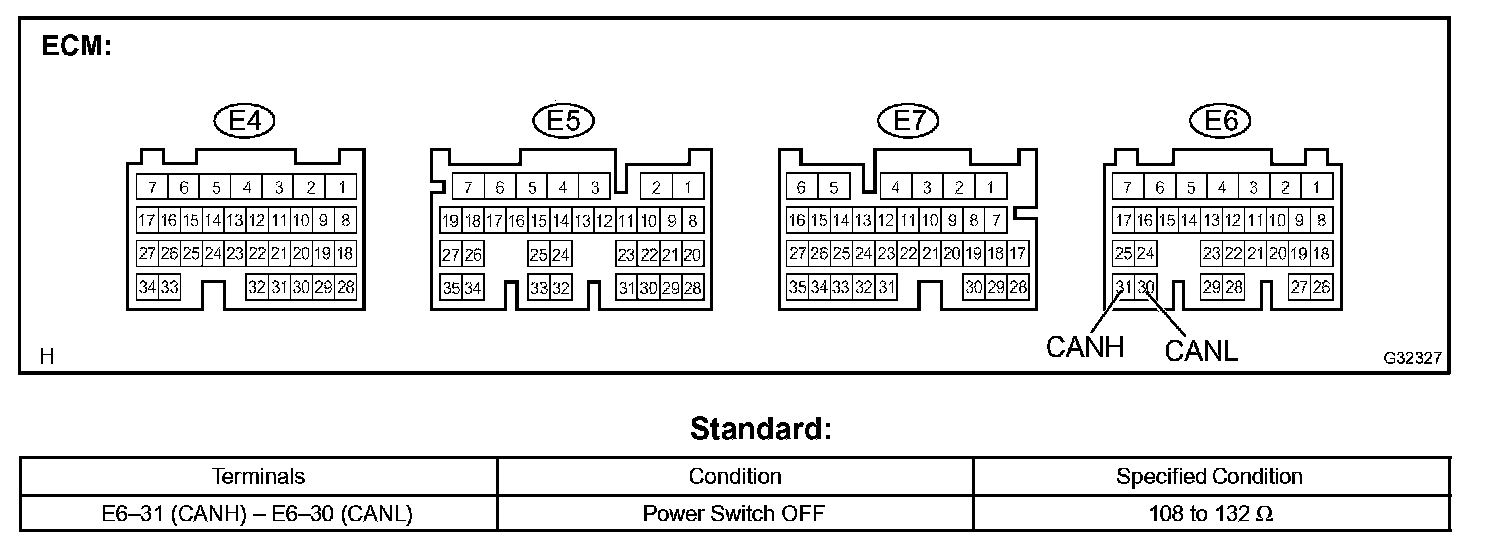

4. ECM

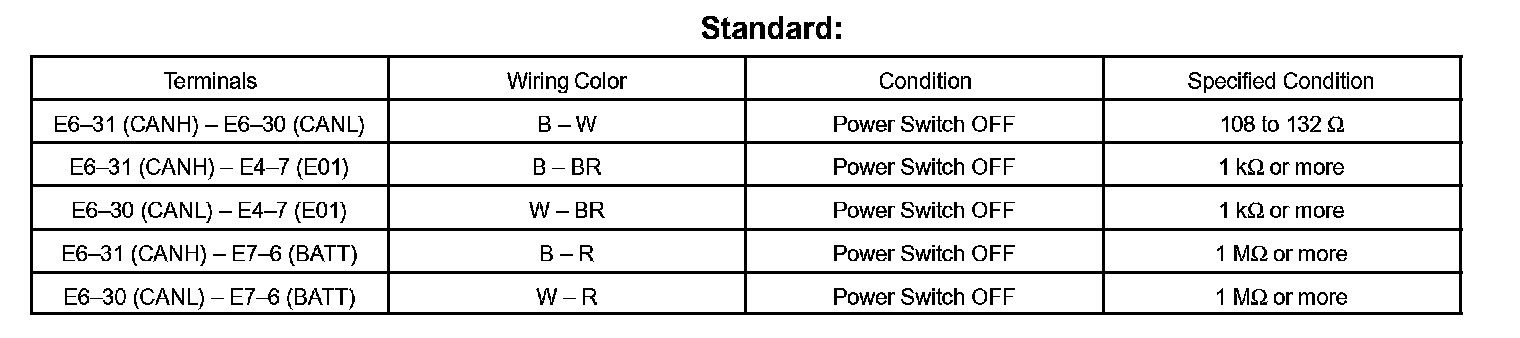

a. Measure the resistance according to the value(s) in the table.







b. Measure the resistance according to the value(s) in the table.

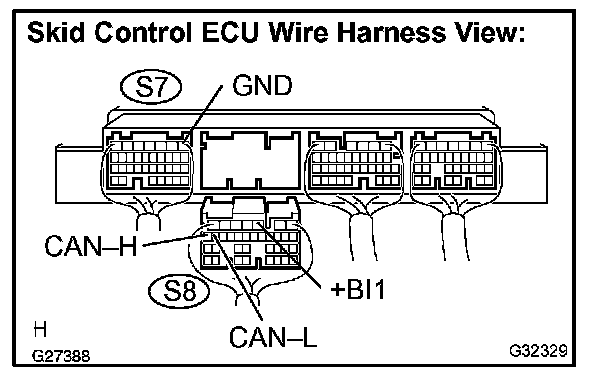

5. SKID CONTROL ECU

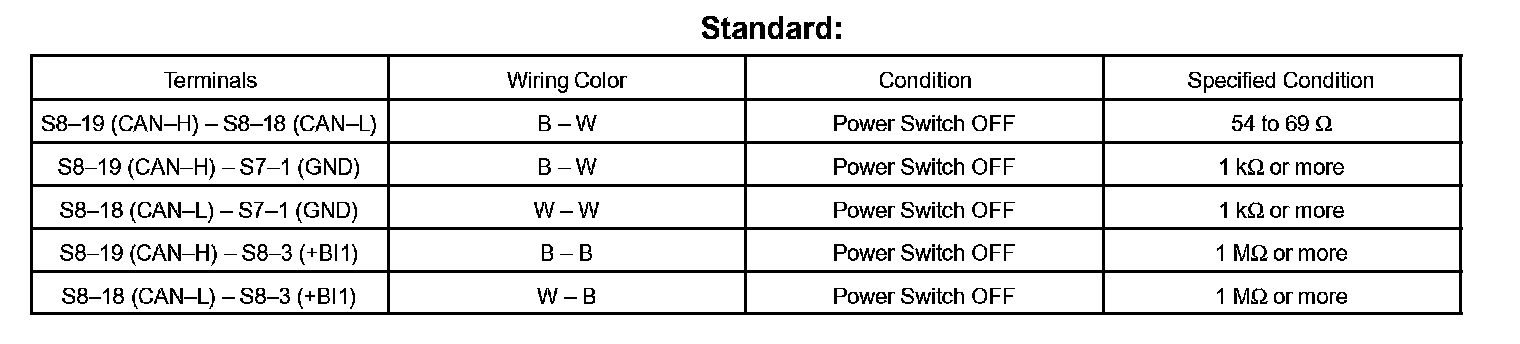

a. Measure the resistance according to the value(s) in the table.

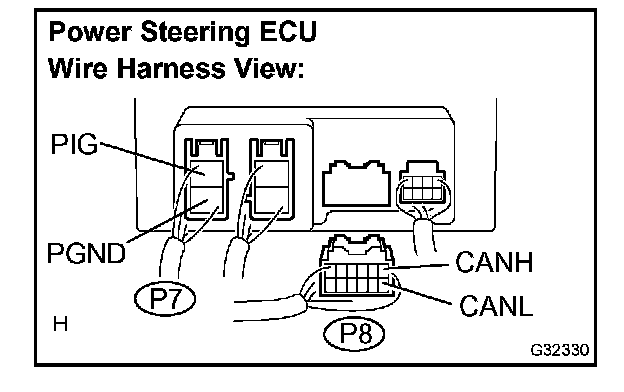

6. POWER STEERING ECU

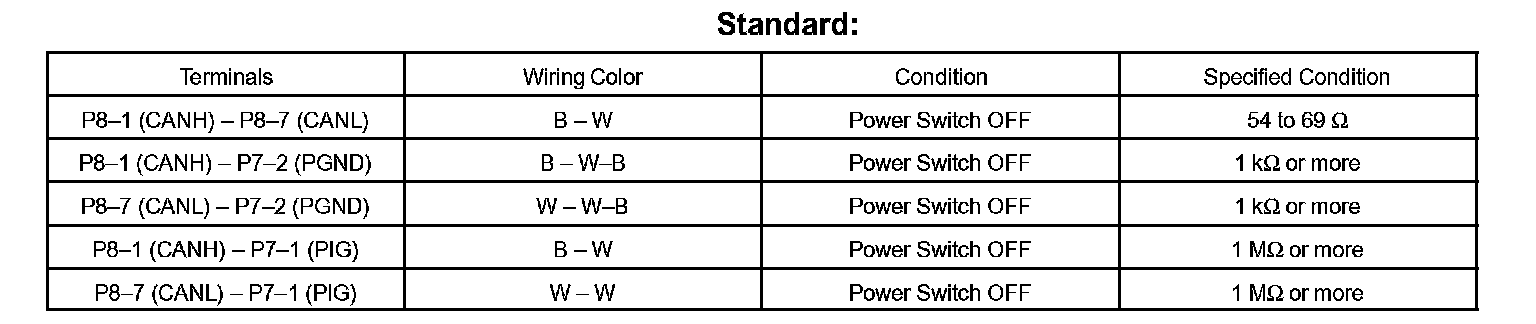

a. Measure the resistance according to the value(s) in the table.

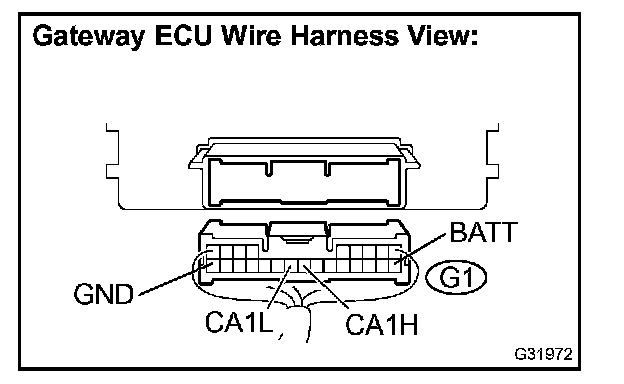

7. GATEWAY ECU
a. Measure the resistance according to the value(s) in the table.

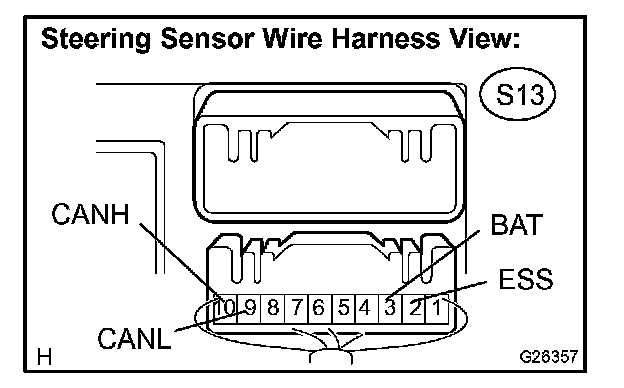

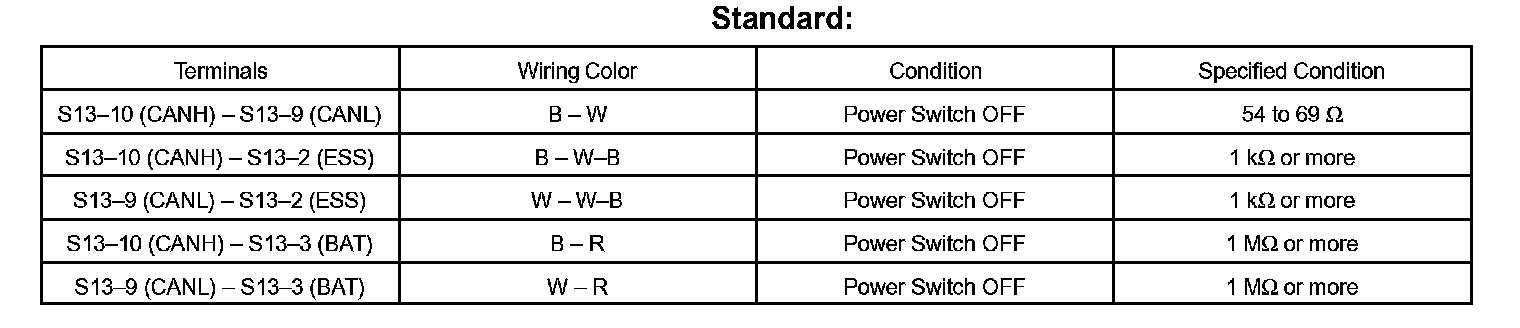

8. STEERING SENSOR
a. Measure the resistance according to the value(s) in the table.

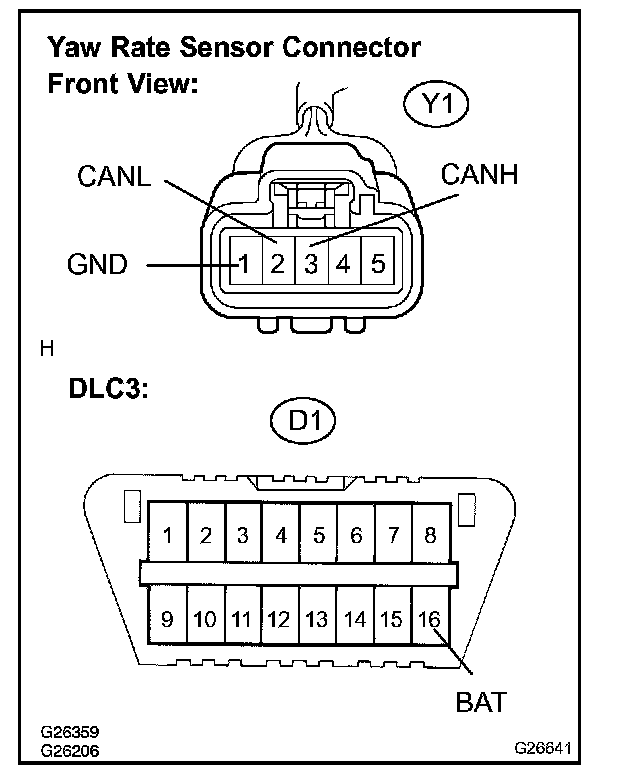

9. YAW RATE SENSOR

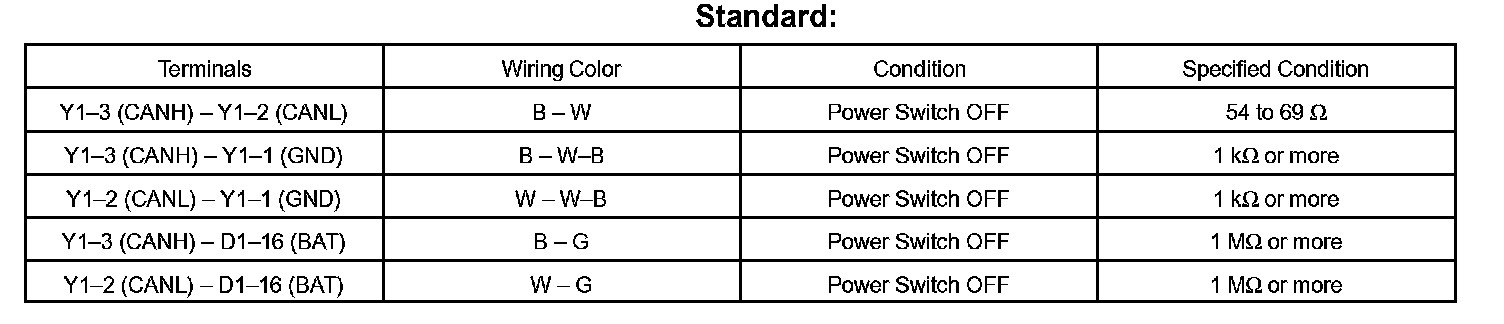

a. Measure the resistance according to the value(s) in the table.

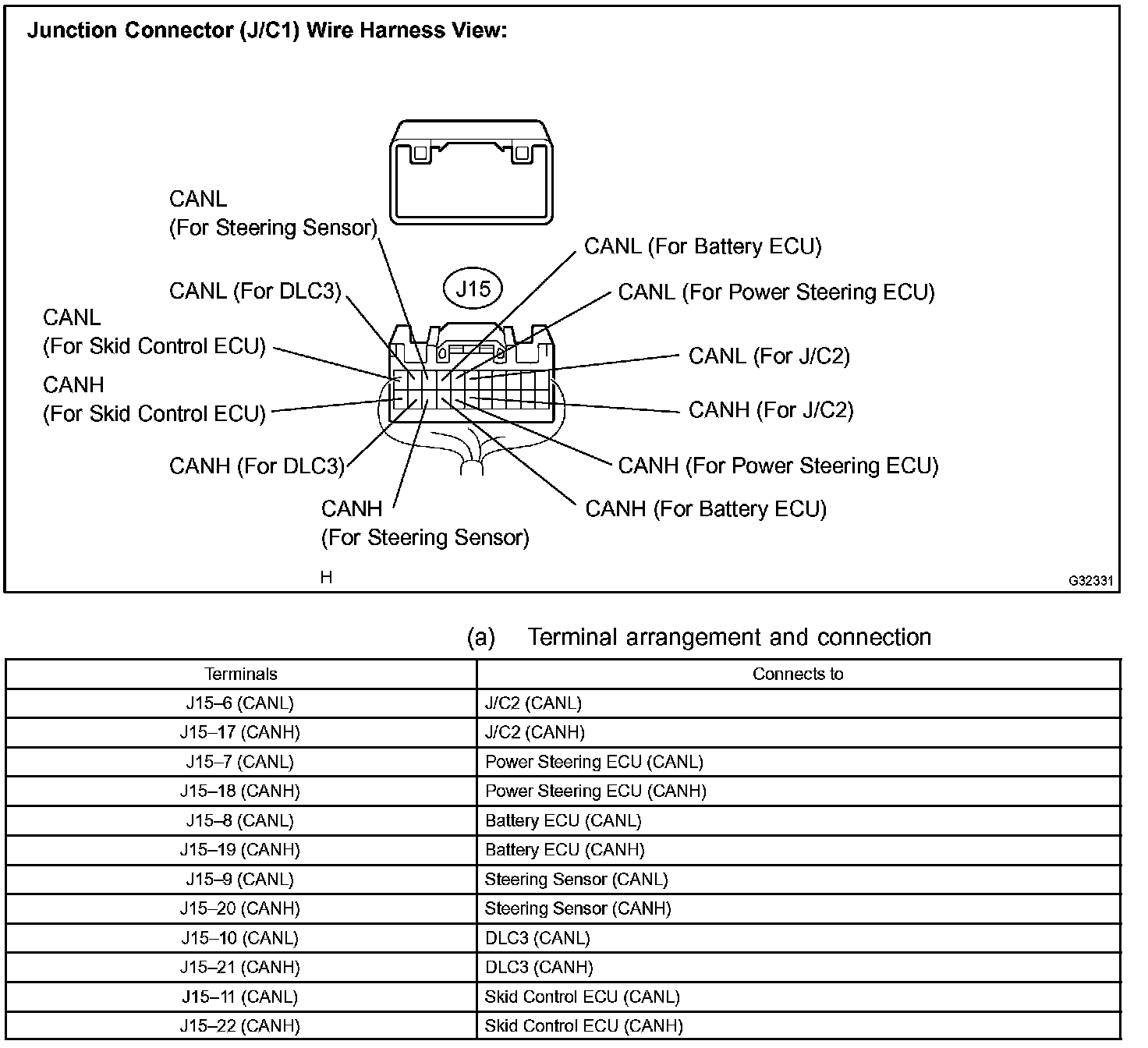

10. JUNCTION CONNECTOR (J/C1)

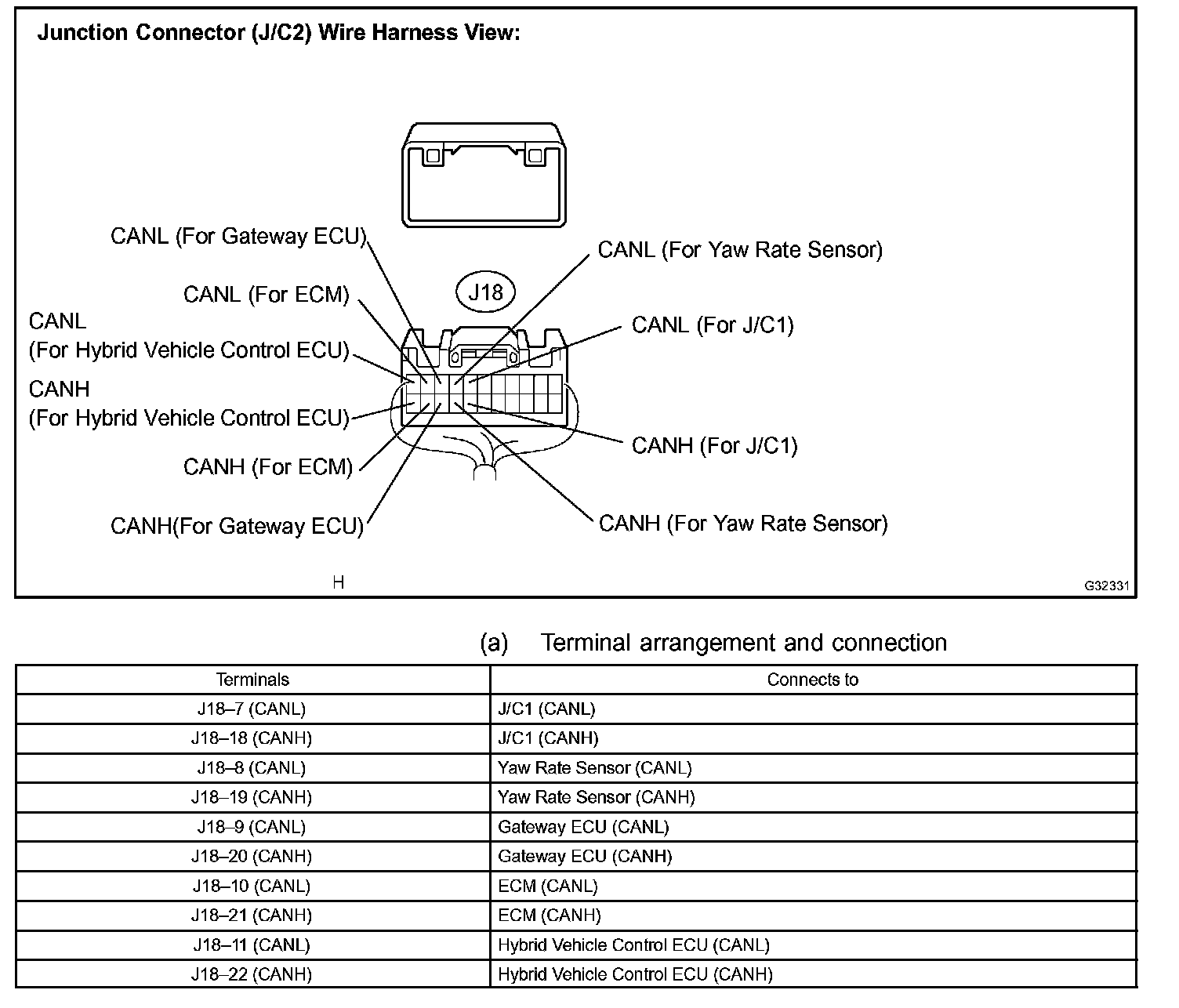

11. Junction Connector (J/C2)
