Fail-Safe Chart
Fail-Safe Chart

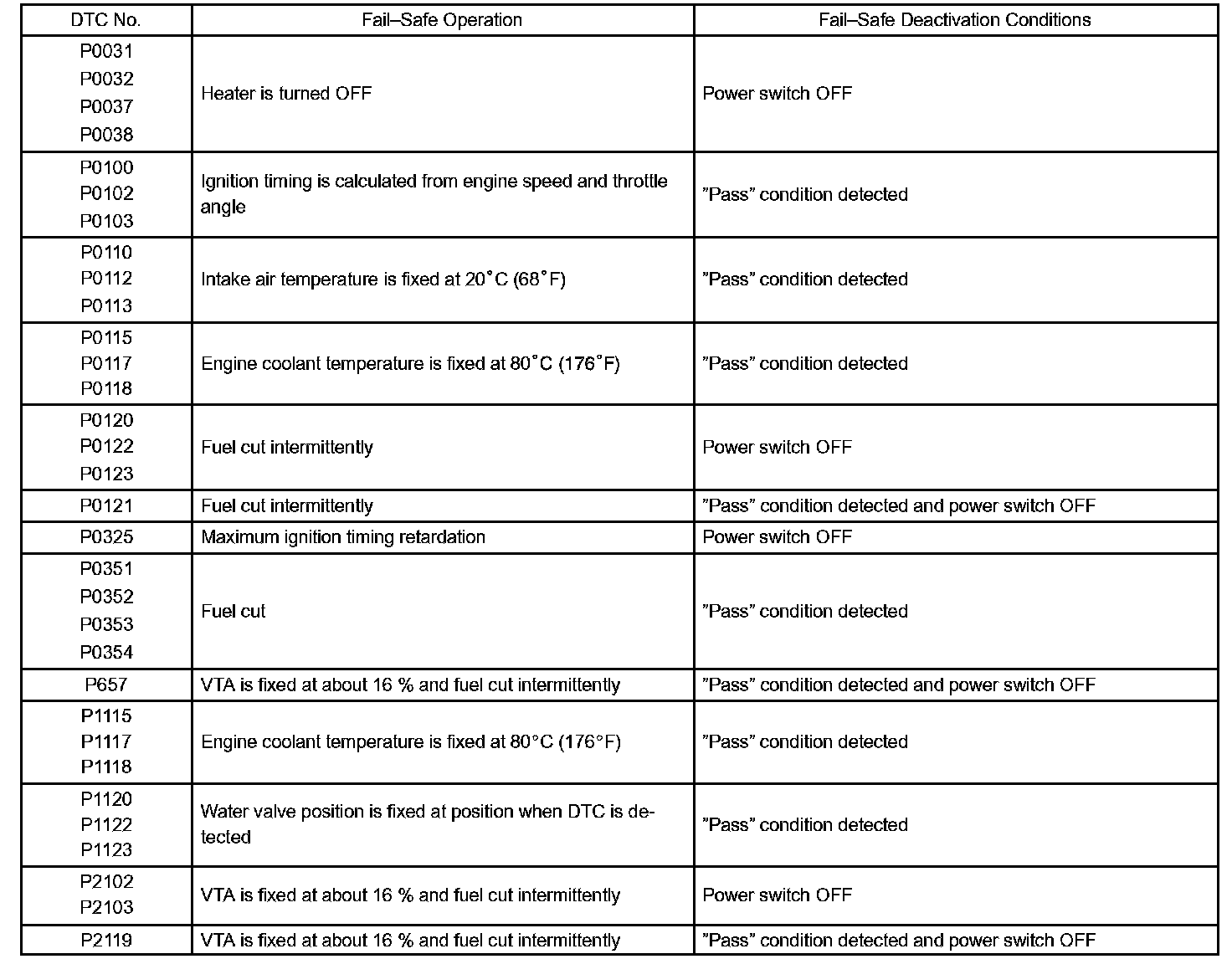

Fail-Safe Chart:
If any of the given codes are recorded, the ECM enters fail-safe mode.
