Initial Inspection and Diagnostic Overview
>>

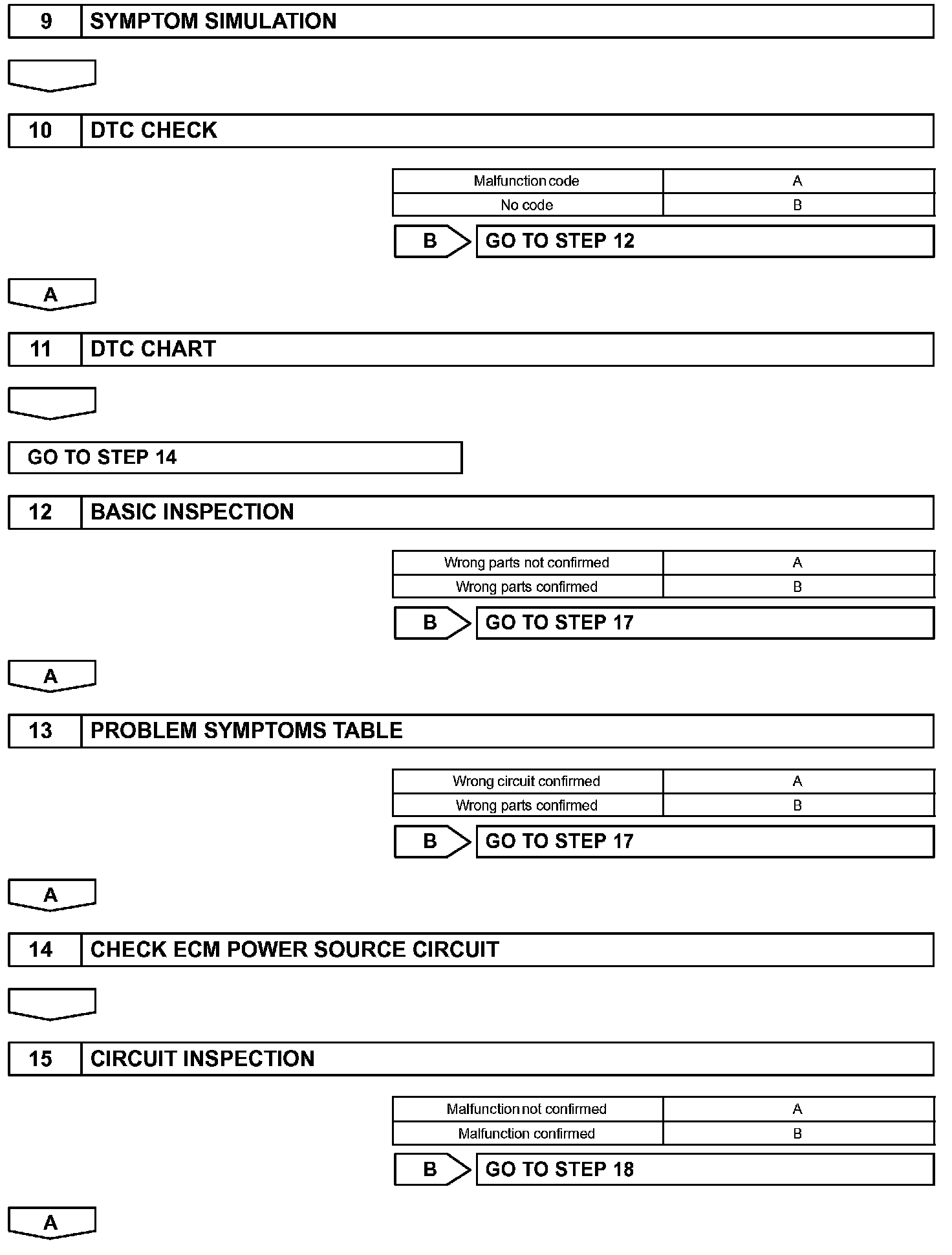

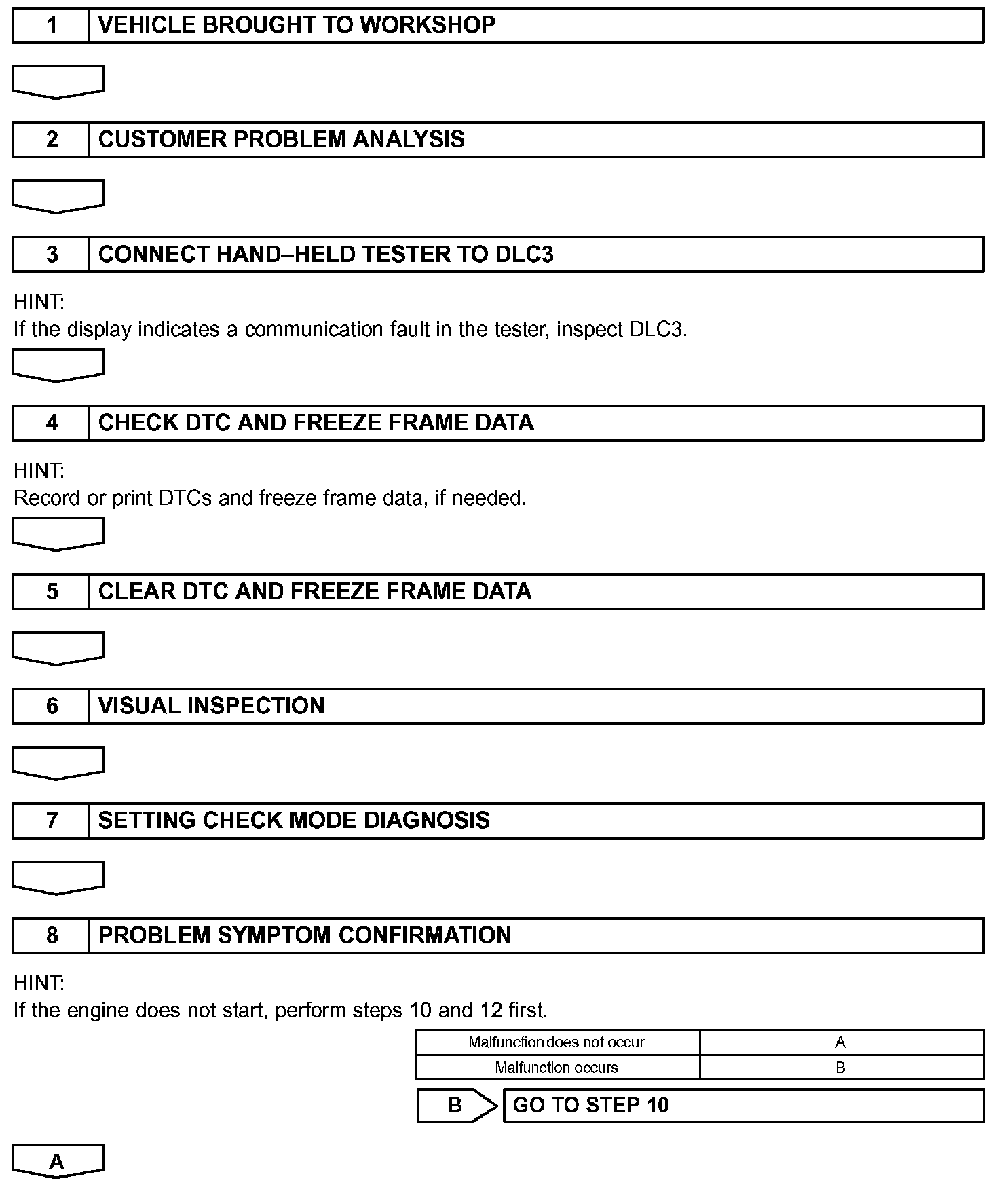

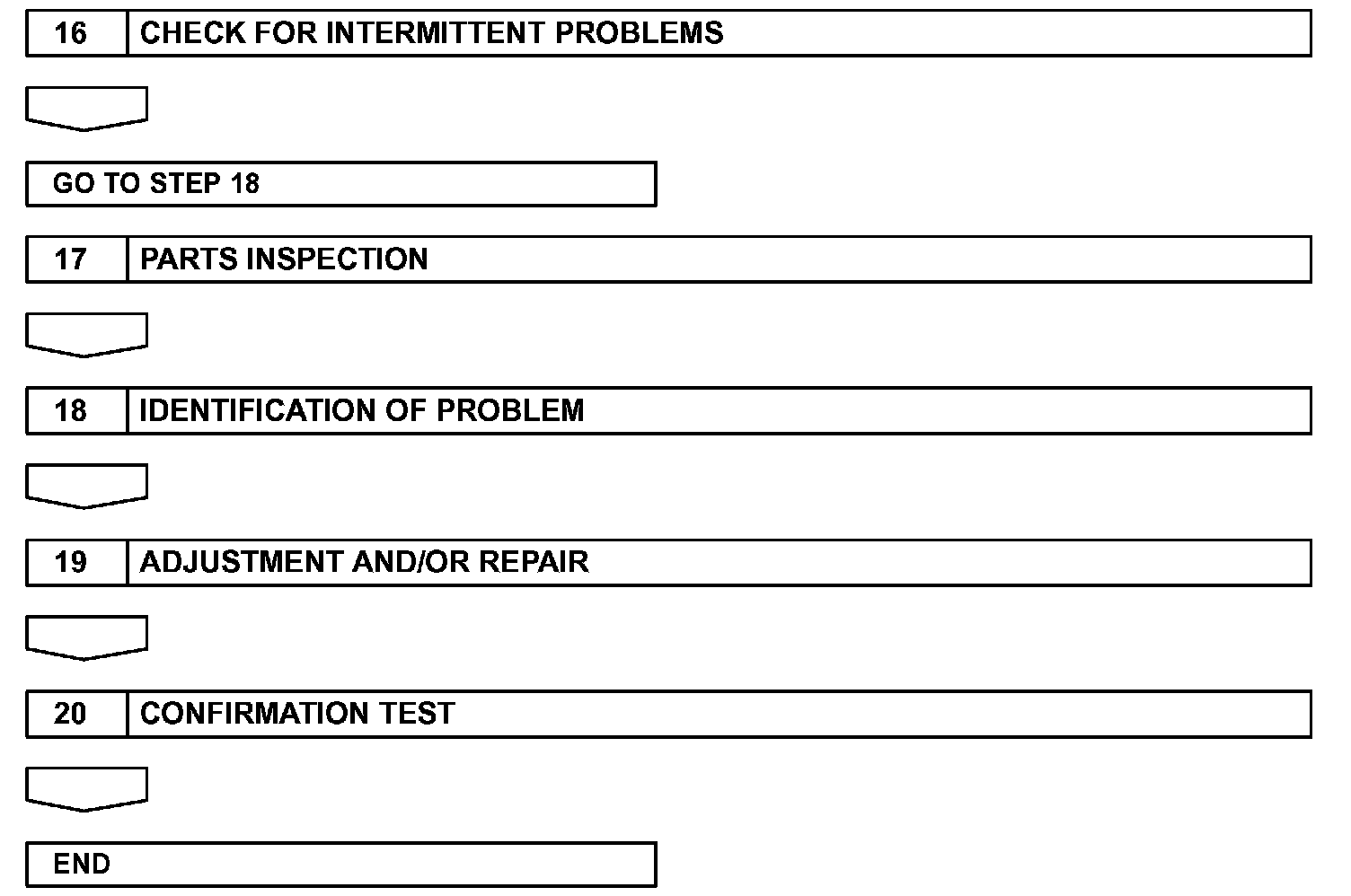

How to Proceed with Troubleshooting
How to Proceed with Troubleshooting
