Initial Inspection and Diagnostic Overview
>>
Part and System Name List
Part and System Name List

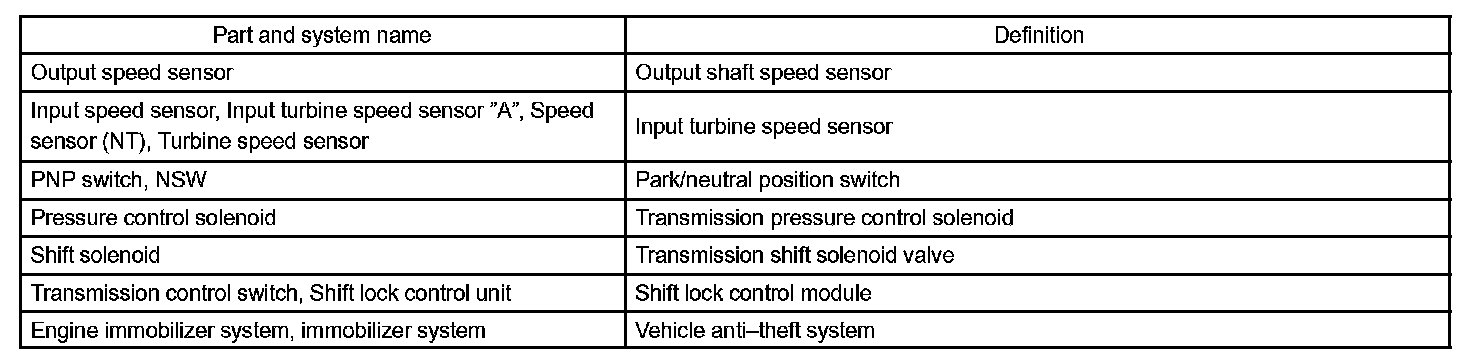

Part 1:

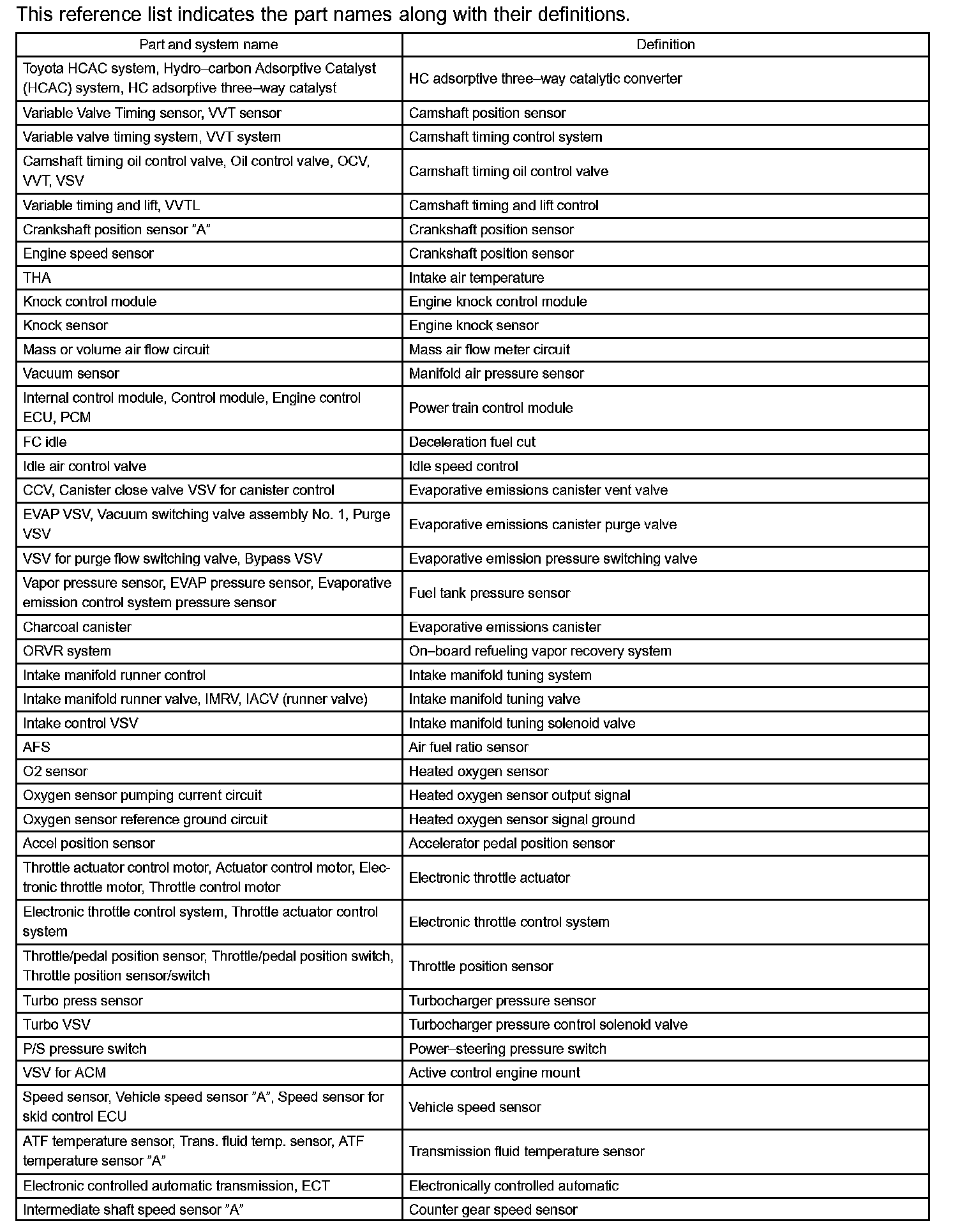

Part 2:
