List of Disable A Monitor

LIST OF DISABLE A MONITOR

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:

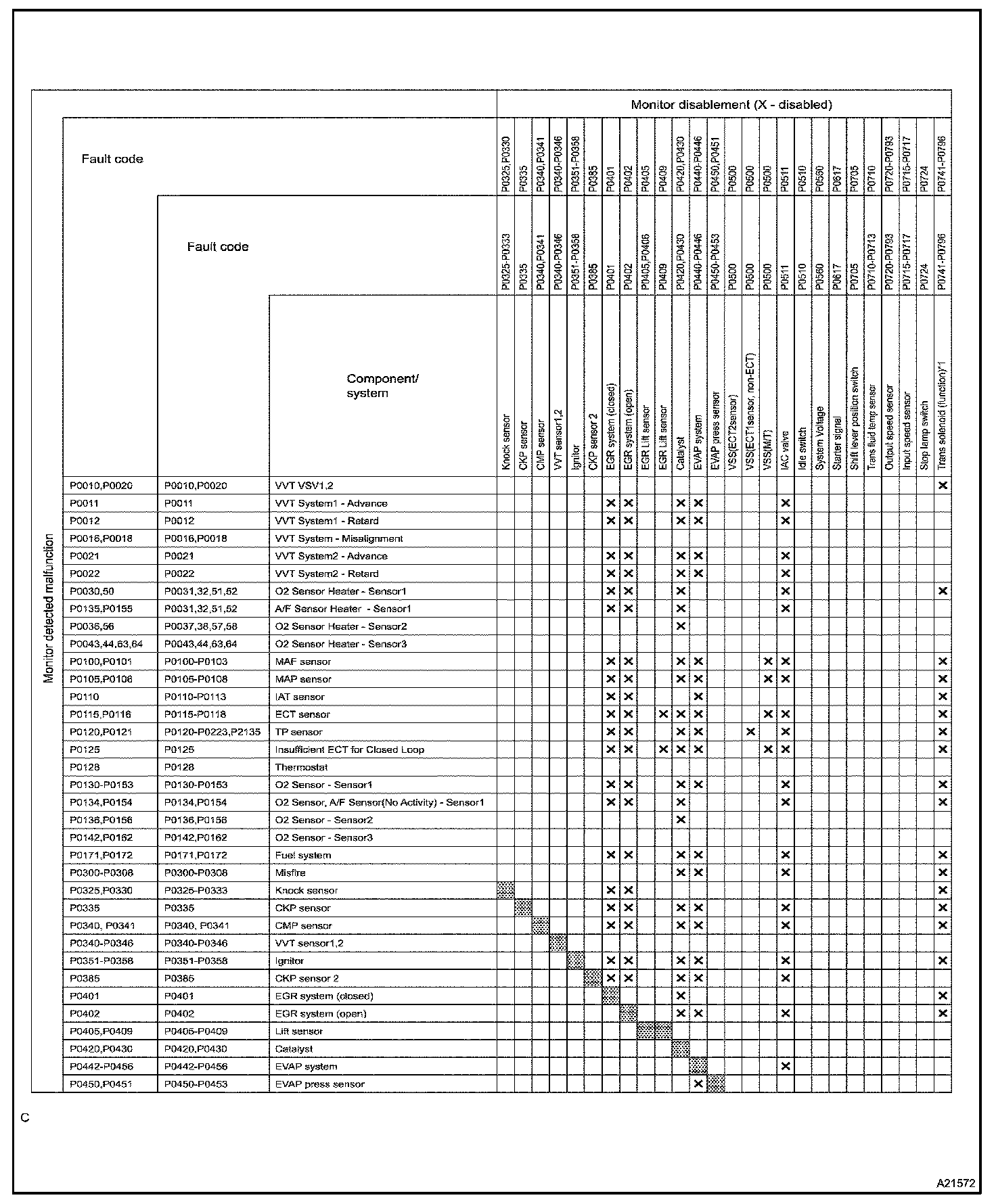

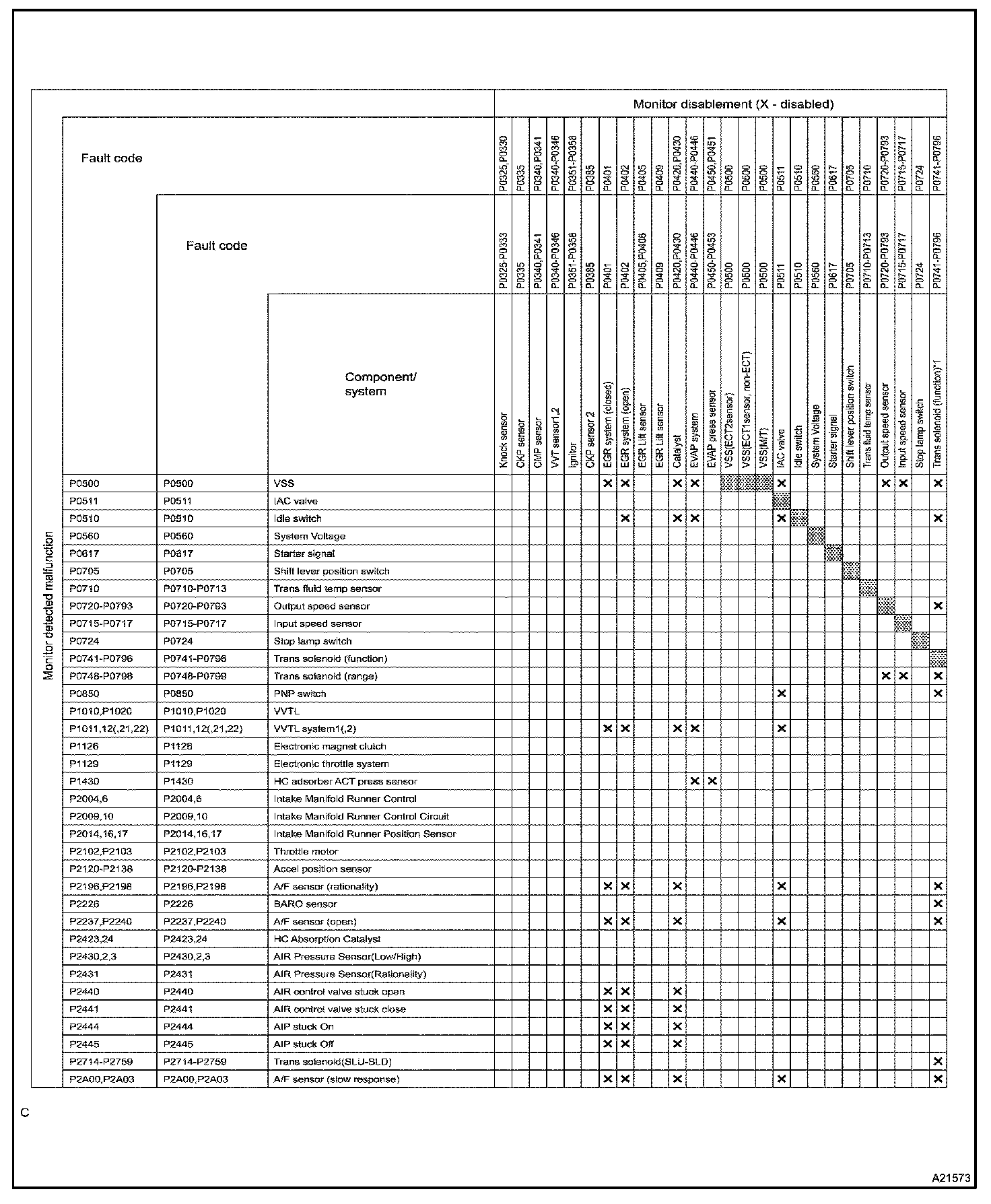

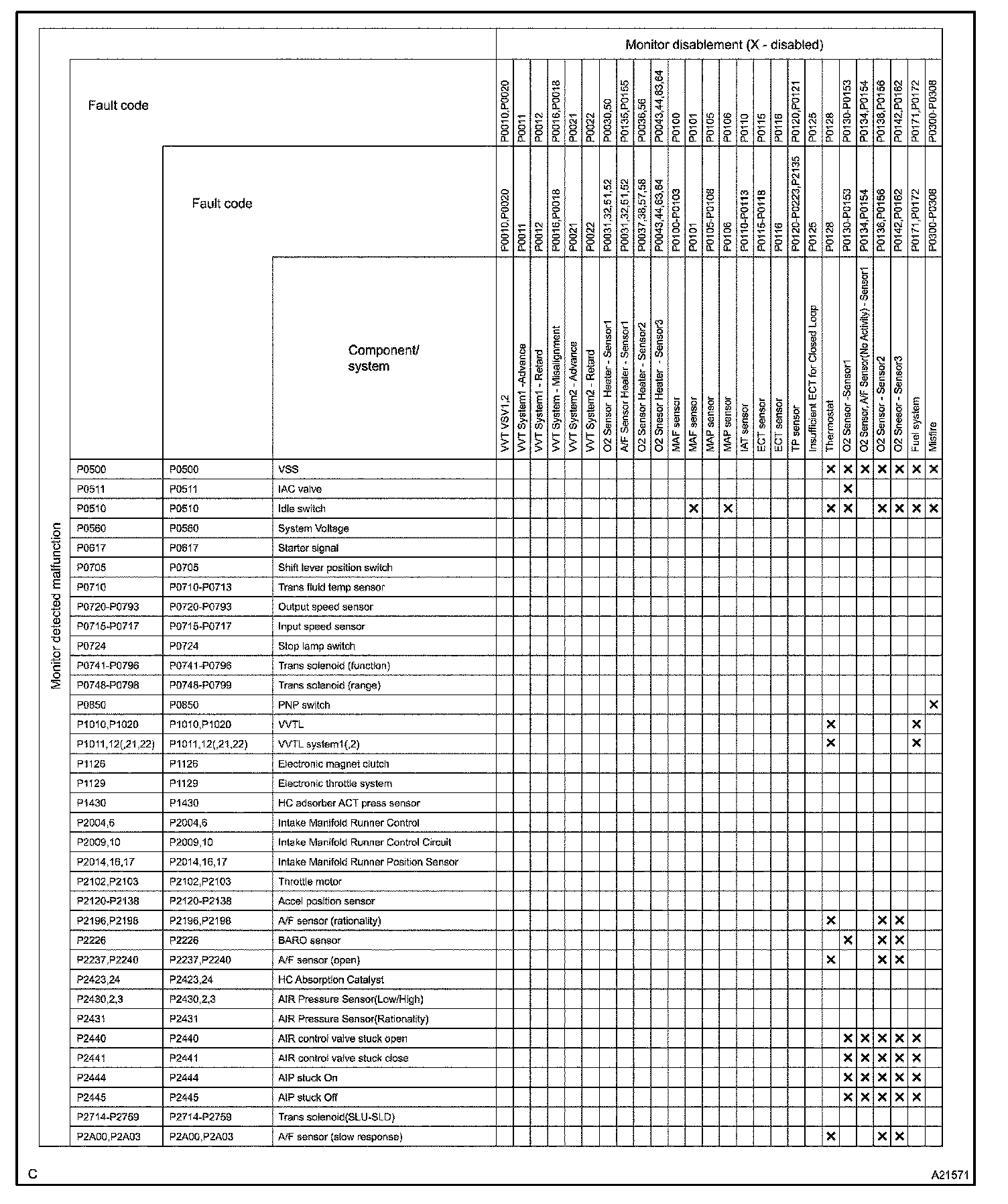

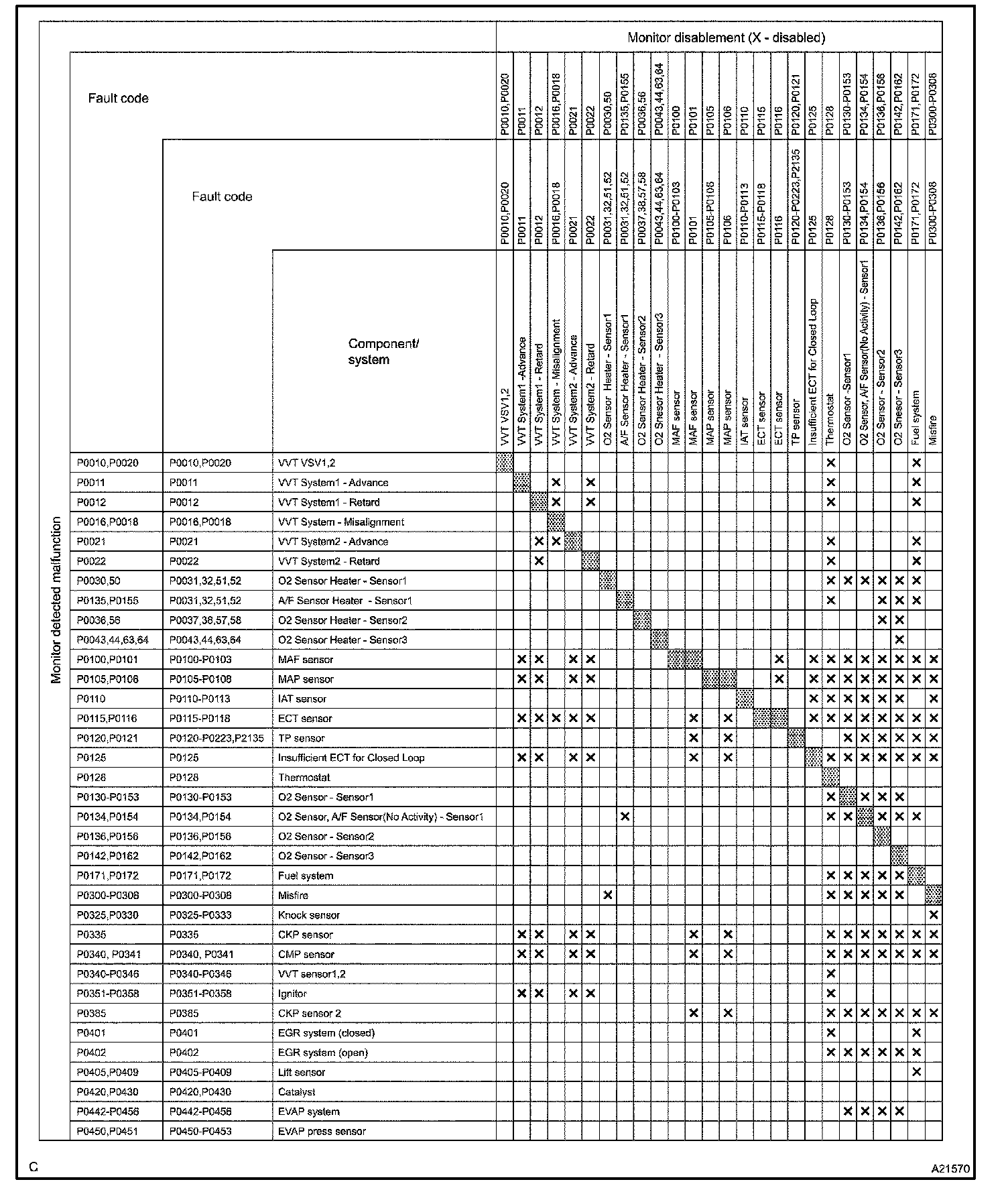

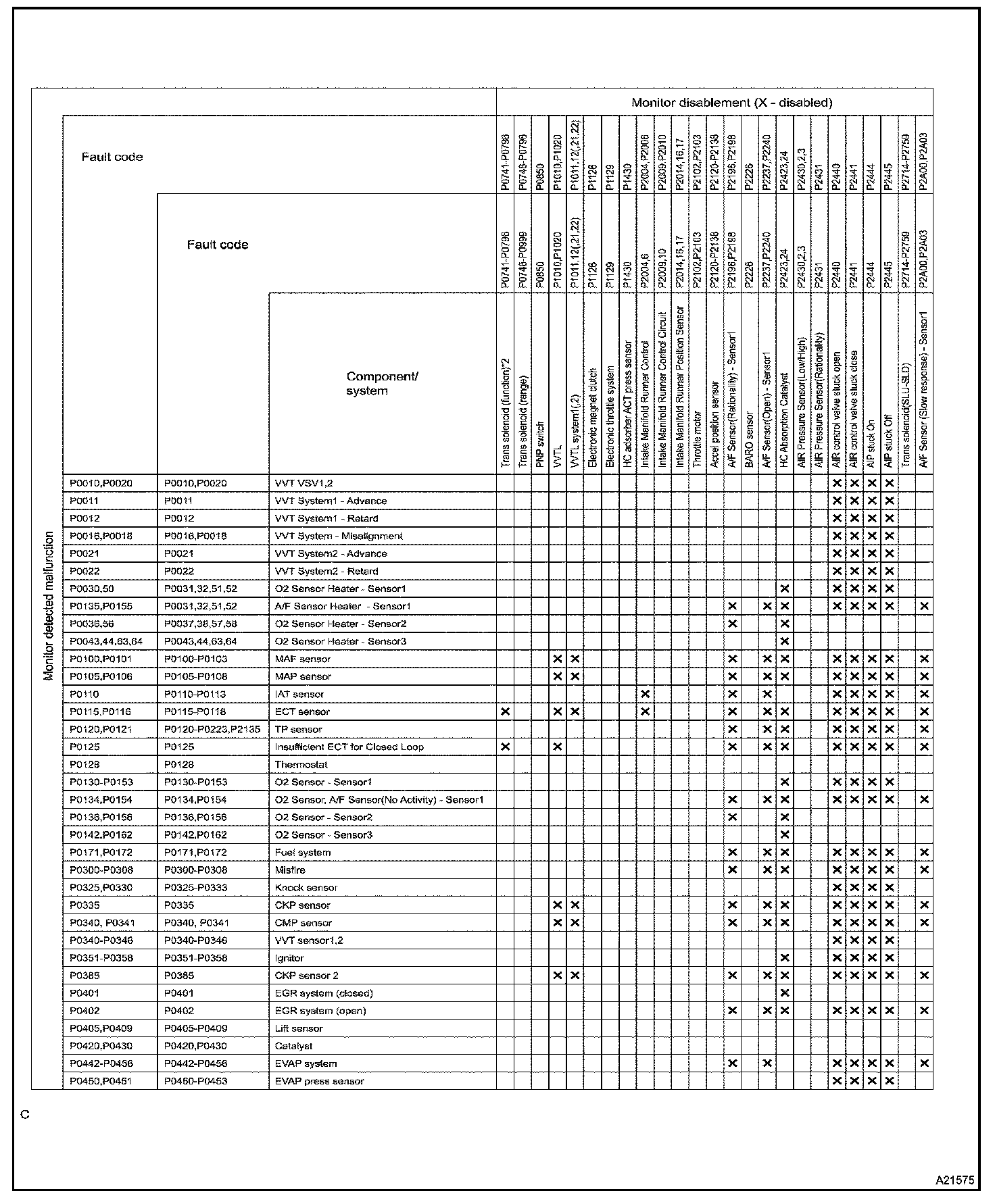

HINT: The table shows the ECM monitoring status for the components listed in the top of the table when the DTCs on the left of the table are set. As for the "X" mark, when the DTC on the left is stored, detection of the DTC in the upper column is not performed.
