Data List

DATA LIST

HINT: Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

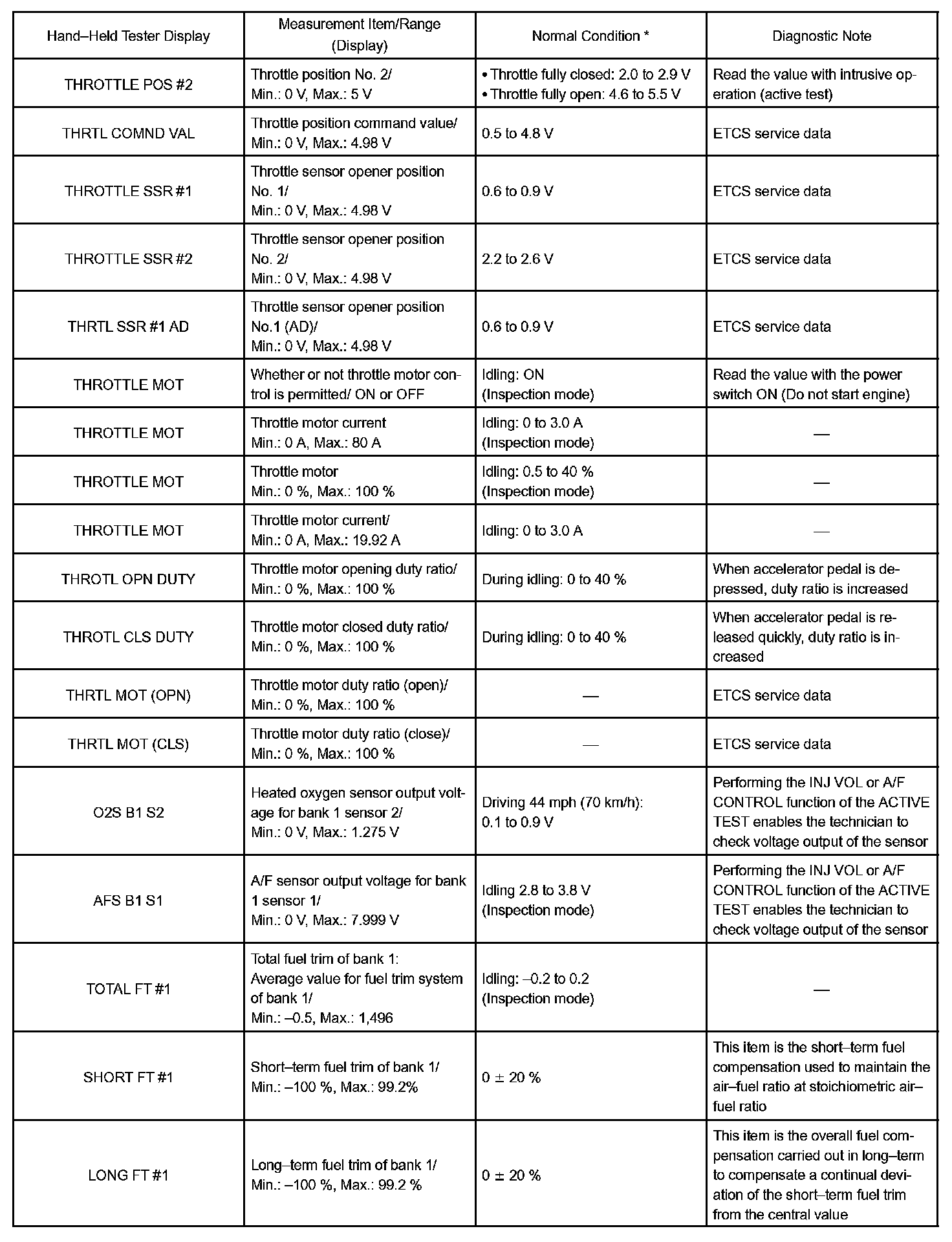

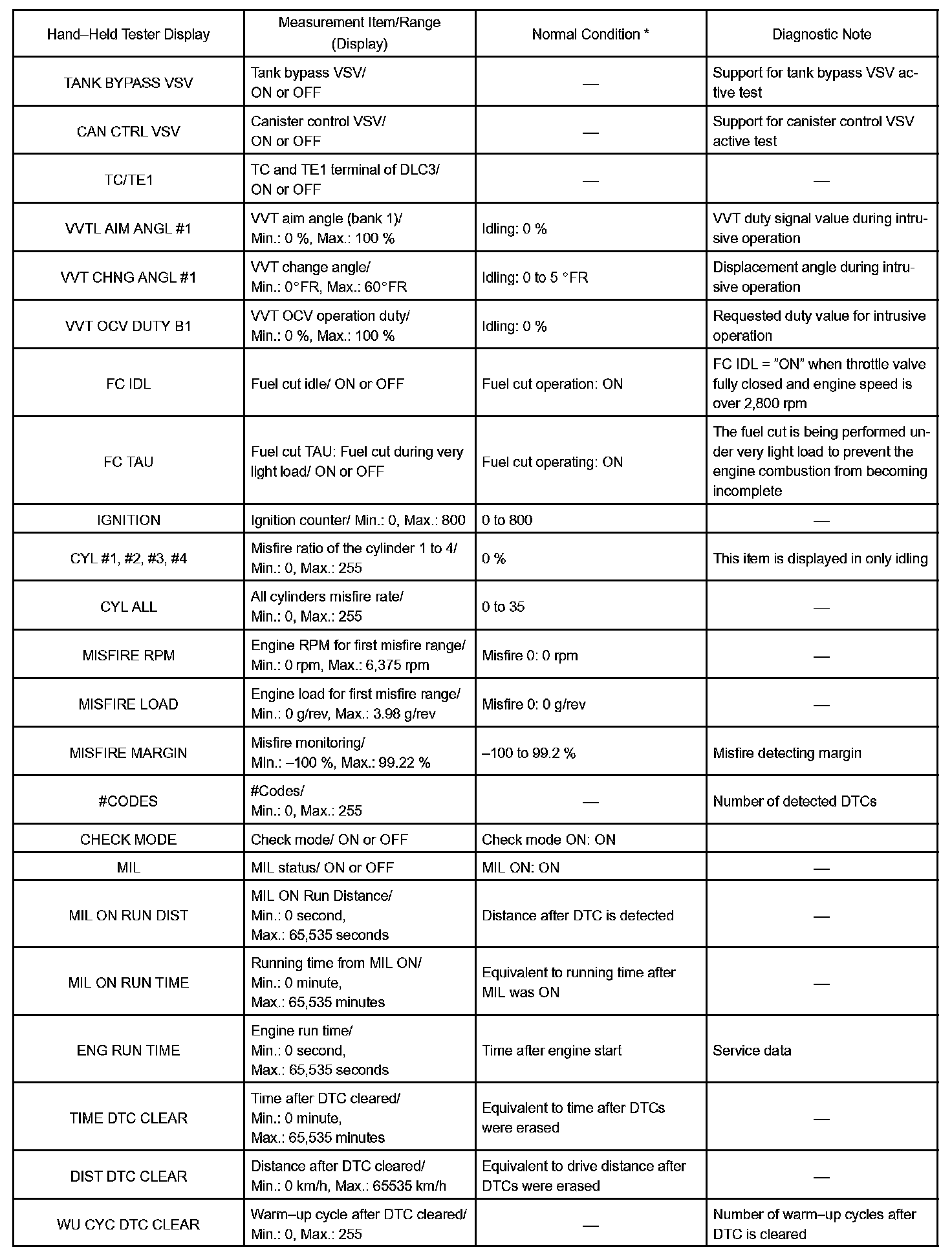

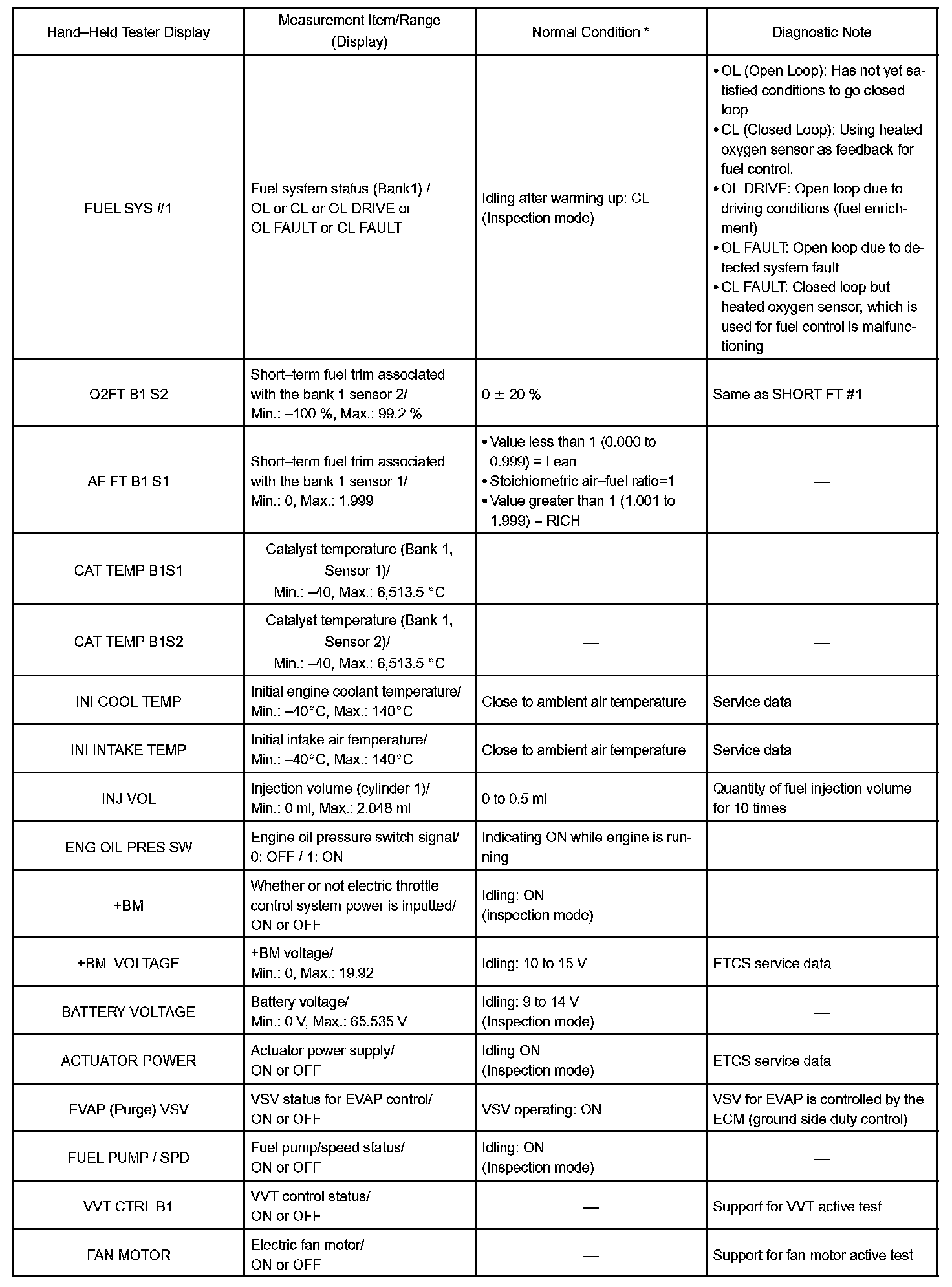

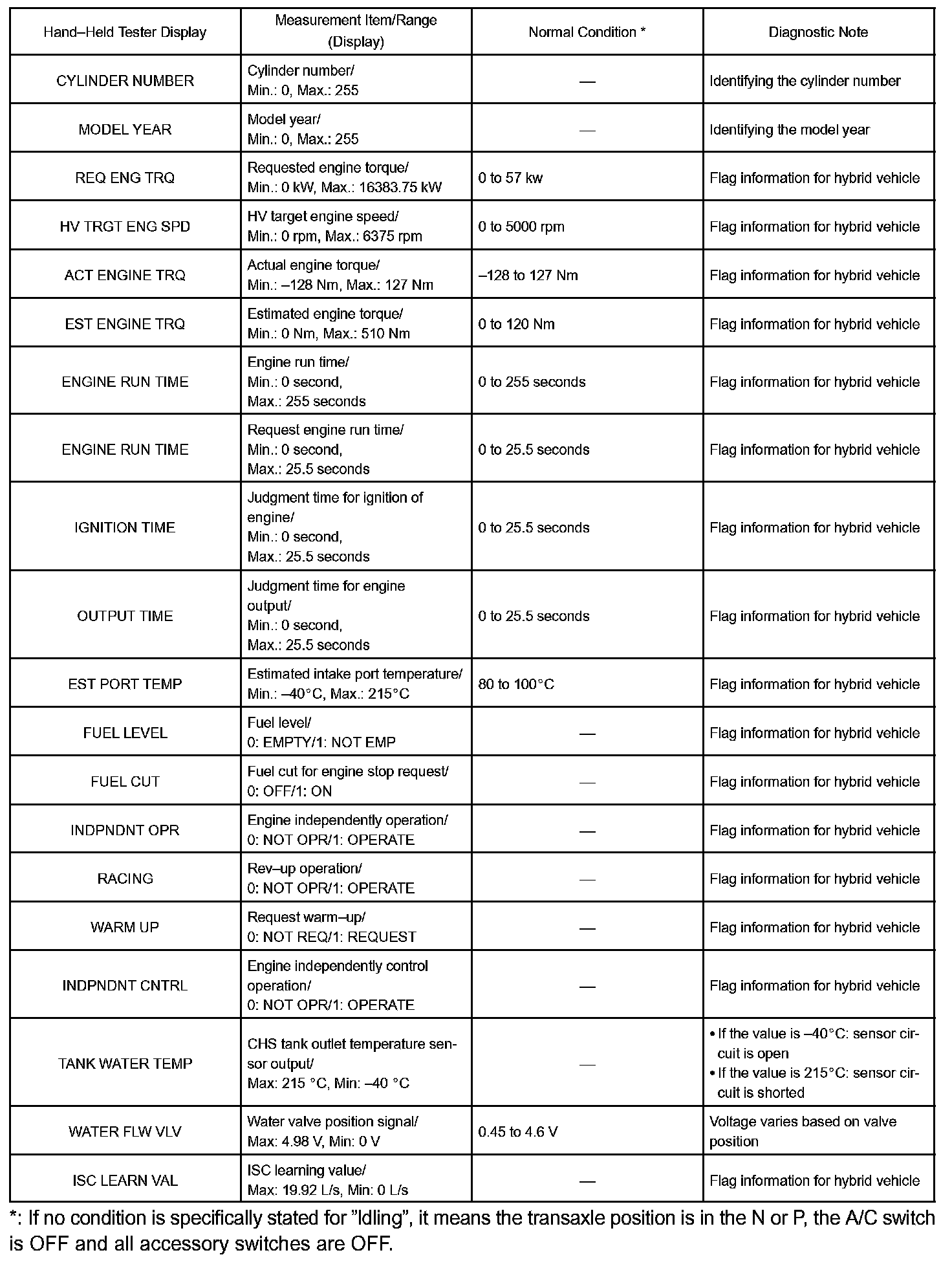

NOTE: In the table, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.



















a. Turn the power switch ON (READY) and warm up the engine.
b. Turn the power switch OFF.
c. Connect the hand-held tester to the DLC3.
d. Turn the power switch ON (IG).
e. Turn the hand-held tester ON.
f. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST.
g. According to the display on the tester, read items in DATA LIST.
