Throttle Body: Locations

Engine Control System - Throttle W/Motor Body Assy:

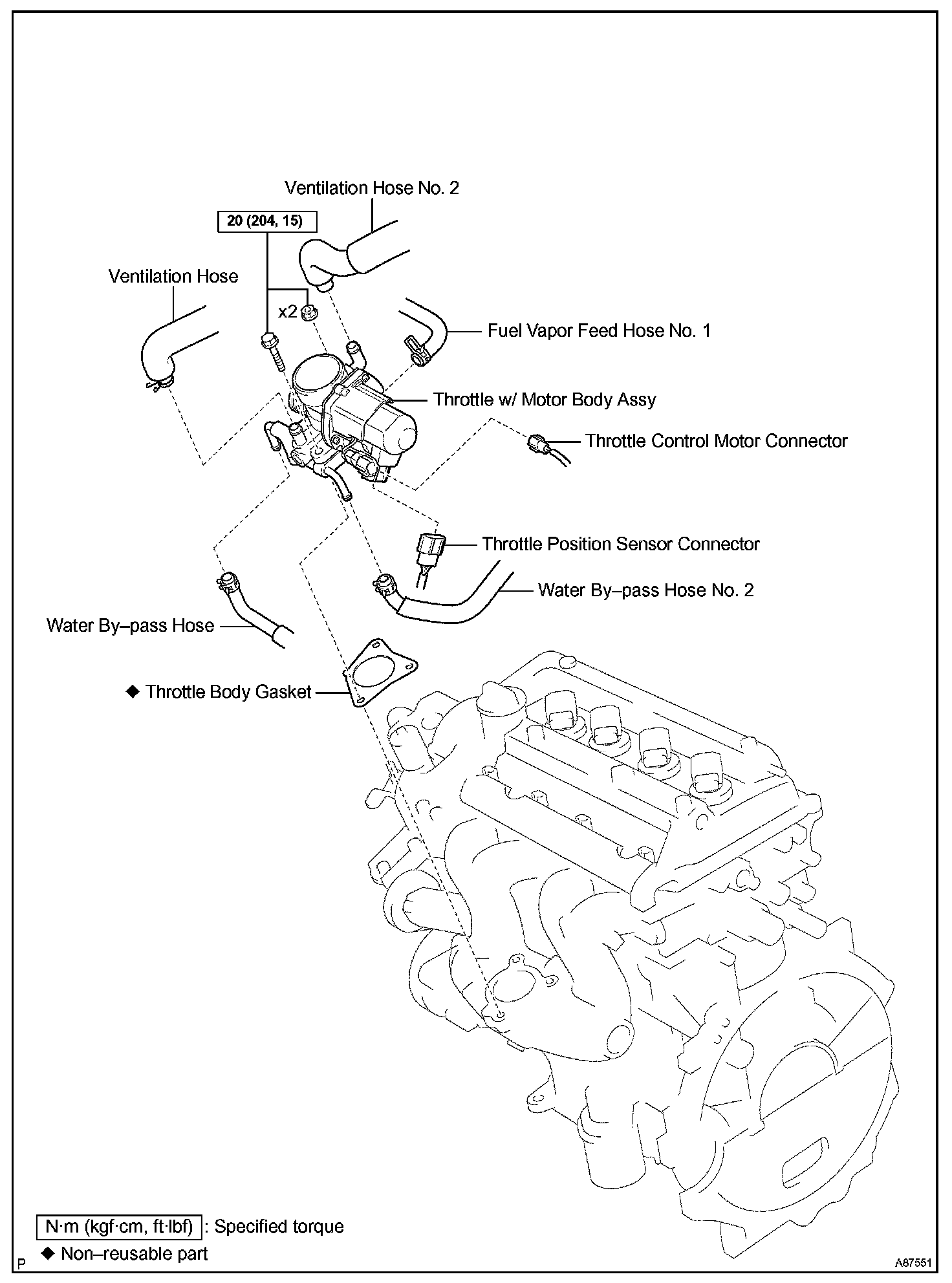

Engine Control System - Throttle W/Motor Body Assy:
