Ignition Coil: Service and Repair
IGNITION COIL NO.1REPLACEMENT
1. REMOVE REAR FLOOR BOARD NO.2
2. REMOVE DECK FLOOR BOX REAR
3. REMOVE REAR FLOOR BOARD NO.3
4. DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
5. REMOVE IGNITION COIL NO.1

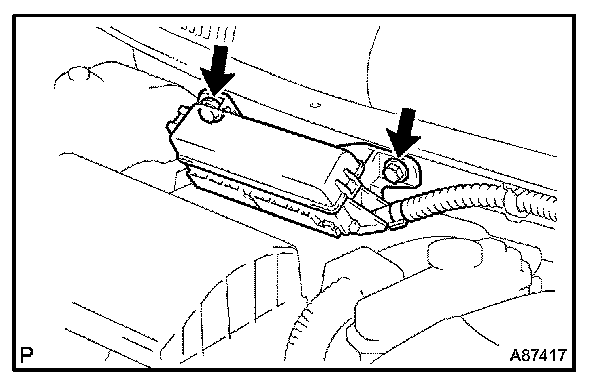

a. Remove the 2 bolts, then remove the engine room relay block No. 2.

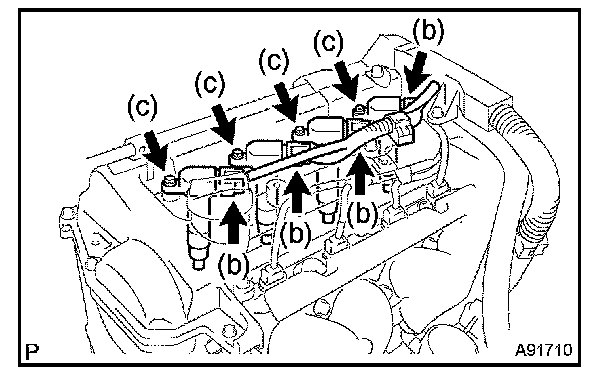

b. Disconnect the 4 ignition coil connectors.
c. Remove the 4 bolts, then remove the 4 ignition coils.
HINT: Each ignition coil is installed with 1 bolt.
6. INSTALL IGNITION COIL NO.1
a. Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 Nm (92 kgf.cm, 82 in.lbf)
HINT: Each ignition coil is installed with 1 bolt.
b. Connect the 4 ignition coil connectors.
c. Install the engine room relay block No. 2 with the 2 bolts.
Torque: 8.4 Nm (86 kgf.cm, 74 in.lbf)
7. CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
8. INSTALL REAR FLOOR BOARD NO.3
9. INSTALL DECK FLOOR BOX REAR
10. INSTALL REAR FLOOR BOARD NO.2
11. POWER WINDOW CONTROL SYSTEM INITIALIZE
