Knock Sensor: Service and Repair
REPLACEMENT1. REMOVE RADIATOR SUPPORT OPENING COVER
2. REMOVE ENGINE UNDER COVER LH
3. DRAIN ENGINE COOLANT
4. REMOVE REAR FLOOR BOARD NO.2
5. REMOVE DECK FLOOR BOX REAR
6. REMOVE REAR FLOOR BOARD NO.3
7. DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
8. REMOVE AIR CLEANER ASSY

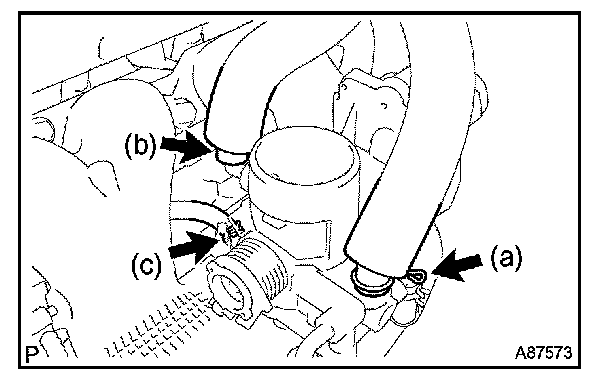

9. REMOVE OIL LEVEL GAUGE GUIDE

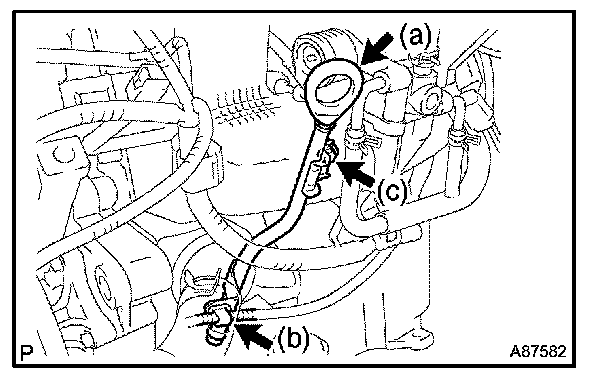

a. Remove the oil level gauge from the oil level gauge guide.
b. Remove the wire harness clamp.
c. Remove the bolt, then pull out the oil level gauge guide.
10. REMOVE INTAKE MANIFOLD
a. Disconnect the ventilation hose from the throttle with motor body.
b. Disconnect the ventilation hose No. 2 from the throttle with motor body.
c. Disconnect the fuel vapor feed hose No. 1 from throttle with motor body.

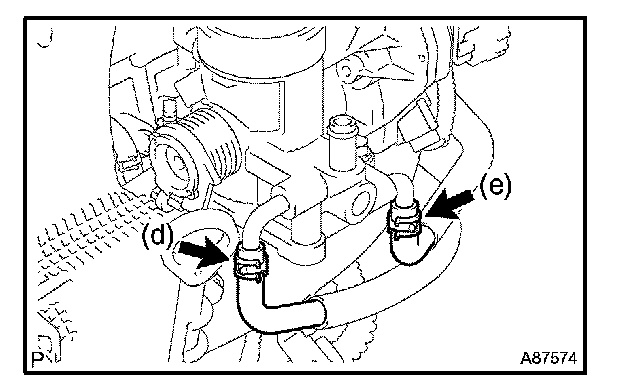

d. Disconnect the water by pass hose from the throttle motor body.
e. Disconnect the water by pass hose No. 2 from throttle with motor body.

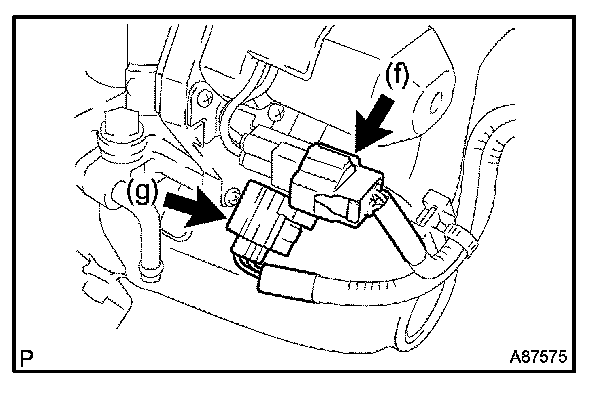

f. Disconnect the throttle control motor connector.
g. Disconnect the throttle position sensor connector.

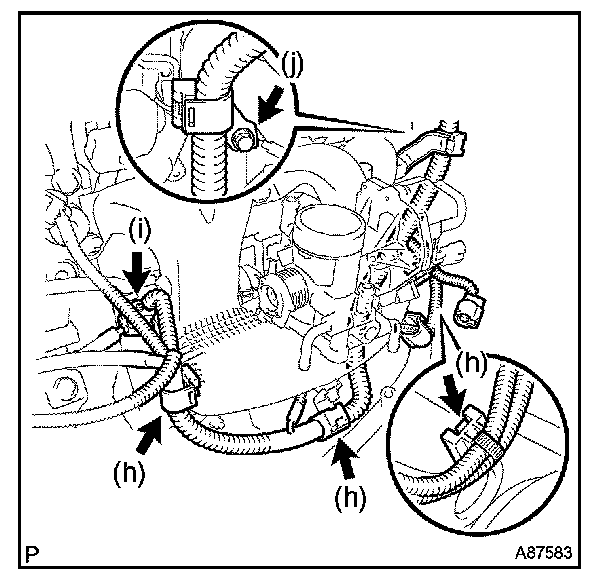

h. Remove the 3 wire harness clamps.
i. Remove the connector clamp.
j. Remove the bolt, then remove the harness clamp bracket.

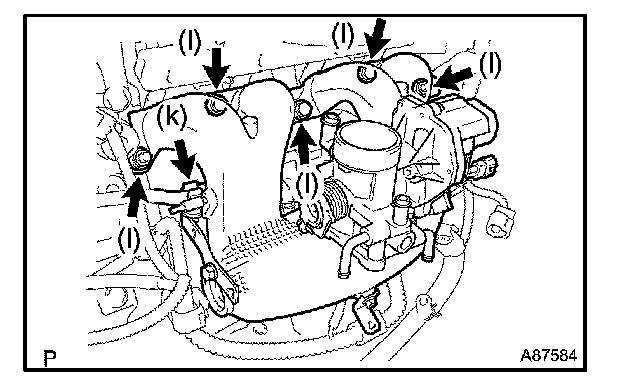

k. Remove the fuel vapor feed hose No. 1 from the hose clamp.
l. Remove the 3 bolts and 2 nuts, then remove the intake manifold.

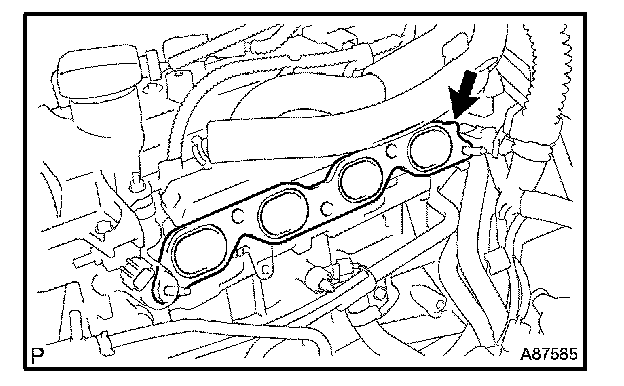

m. Remove the gasket from the cylinder head.
11. REMOVE KNOCK SENSOR

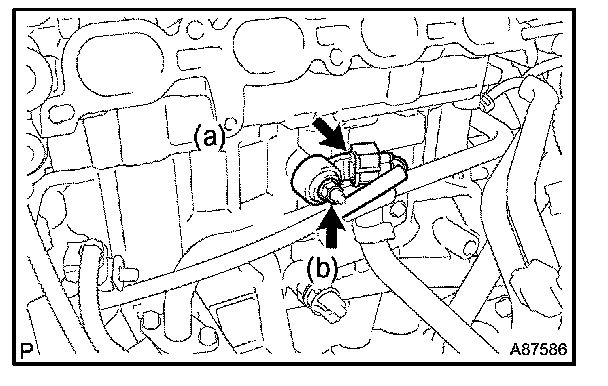

a. Disconnect the knock sensor connector.
b. Remove the nut, then remove the knock sensor.
12. INSTALL KNOCK SENSOR
a. Install the knock sensor with the nut.
Torque: 20 Nm (204 kgf.cm, 15 ft.lbf)

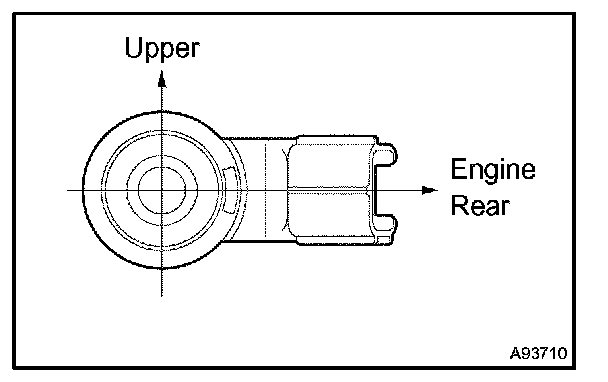

NOTE: Be careful to install the knock sensor in the correct direction.
b. Connect the knock sensor connector.
13. INSTALL INTAKE MANIFOLD
a. Install a new gasket to the cylinder head.
b. Install the intake manifold with the 3 bolts and 2 nuts.
Torque: 20 Nm (204 kgf.cm, 15 ft.lbf)
c. Install the fuel vapor feed hose No. 1 to the hose clamp.
d. Install the harness clamp bracket with the bolt.
Torque: 9.0 Nm (92 kgf.cm, 80 in.lbf)
e. Install the connector clamp.
f. Install the 3 wire harness clamps.
g. Connect the throttle position sensor connector.
h. Connect the throttle control motor connector.
i. Connect the water by pass hose No. 2 to the throttle with motor body.
j. Connect the water by pass hose to the throttle with motor body.
k. Connect the fuel vapor feed hose No. 1 to the throttle with motor body.
l. Connect the ventilation hose No. 2 to the throttle with motor body.
m. Connect the ventilation hose to the throttle with motor body.
14. INSTALL OIL LEVEL GAUGE GUIDE

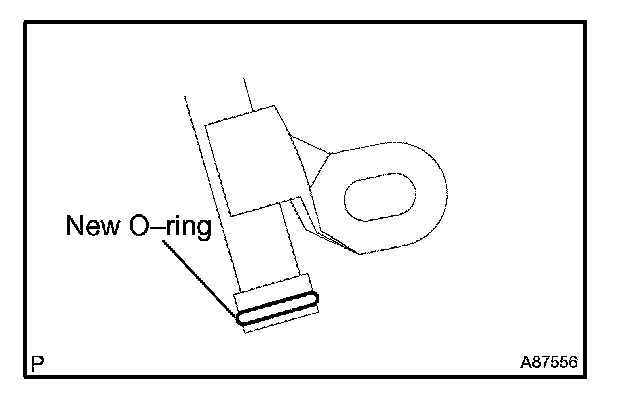

a. Apply a light coat of engine oil to a new O-ring, then install it to the oil level gauge guide.
b. Apply a light coat of engine oil to the O-ring again, then install the oil level gauge guide with the bolt.
Torque: 9.0 Nm (92 kgf.cm, 80 in.lbf)
NOTE: Be careful that the O-ring is not cracked or jammed when installing.
c. Install the wire harness clamp.
d. Install the oil level gauge to the oil level gauge guide.
15. INSTALL AIR CLEANER ASSY
16. CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
17. ADD ENGINE COOLANT
18. CHECK FOR ENGINE COOLANT LEAKS
19. CHECK FOR ENGINE OIL LEAKS
20. INSTALL REAR FLOOR BOARD NO.3
21. INSTALL DECK FLOOR BOX REAR
22. INSTALL REAR FLOOR BOARD NO.2
23. INSTALL ENGINE UNDER COVER LH
24. INSTALL RADIATOR SUPPORT OPENING COVER
25. POWER WINDOW CONTROL SYSTEM INITIALIZE
