Electrical Key Holder Assy

ELECTRICAL KEY HOLDER ASSY

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB ASSY LOWER

3. REMOVE ELECTRICAL KEY HOLDER ASSY
a. Disconnect the connector.
b. Remove the 2 screws and electrical key holder.

4. CONNECT BATTERY NEGATIVE TERMINAL

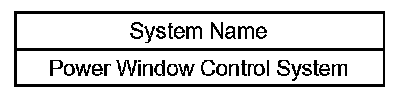

NOTE: When disconnecting the negative (-) battery terminal, initialize the system shown in the table after the terminal is reconnected.




5. SYSTEM INITIALIZE
