Symptom Diagnostic Procedures

P POSITION SWITCH INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The parking lock switch indicator light comes on or goes off to indicate the on/off status of the P position switch and blinks to indicate malfunction conditions of the system.

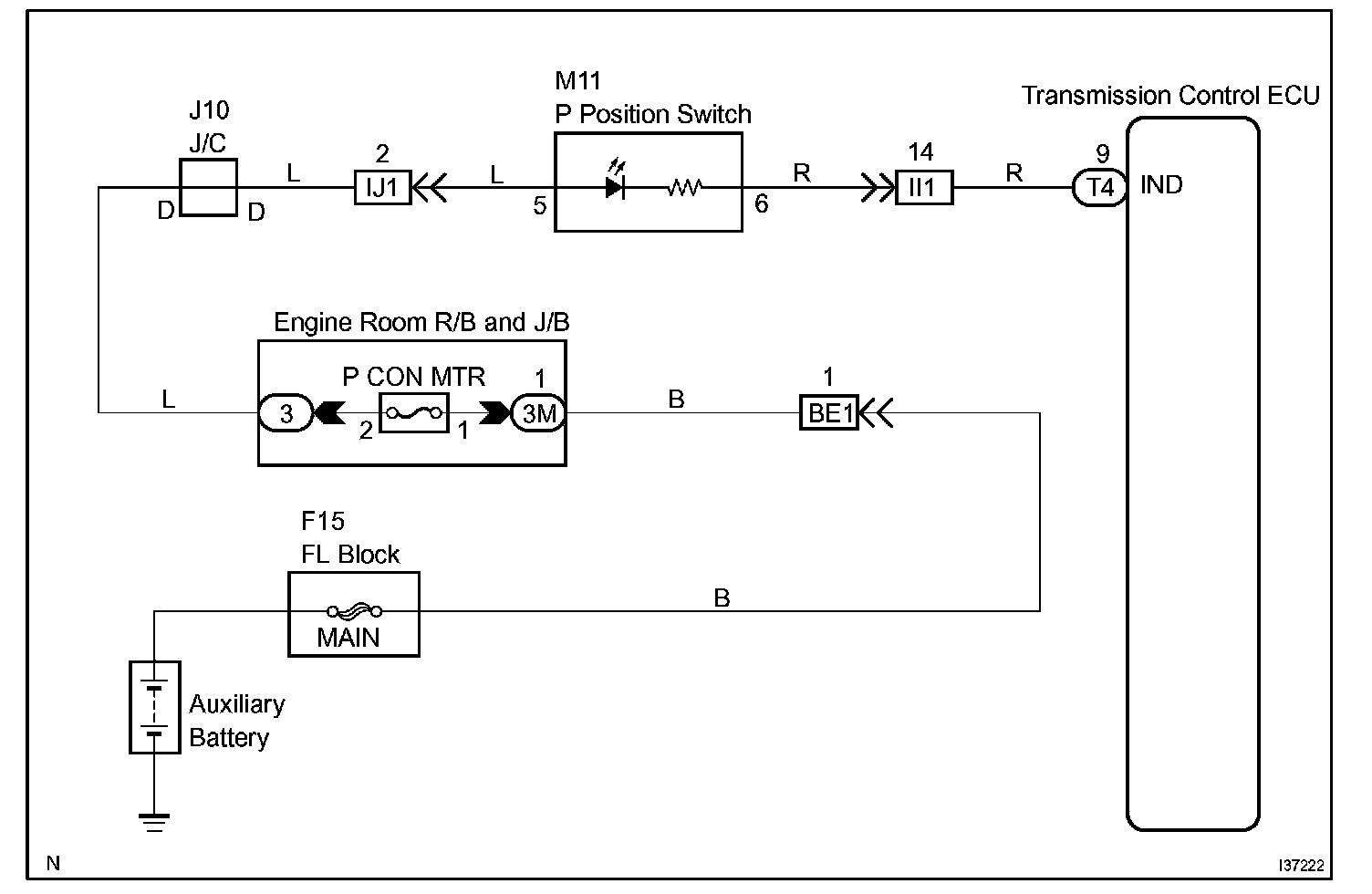

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5 - 6:

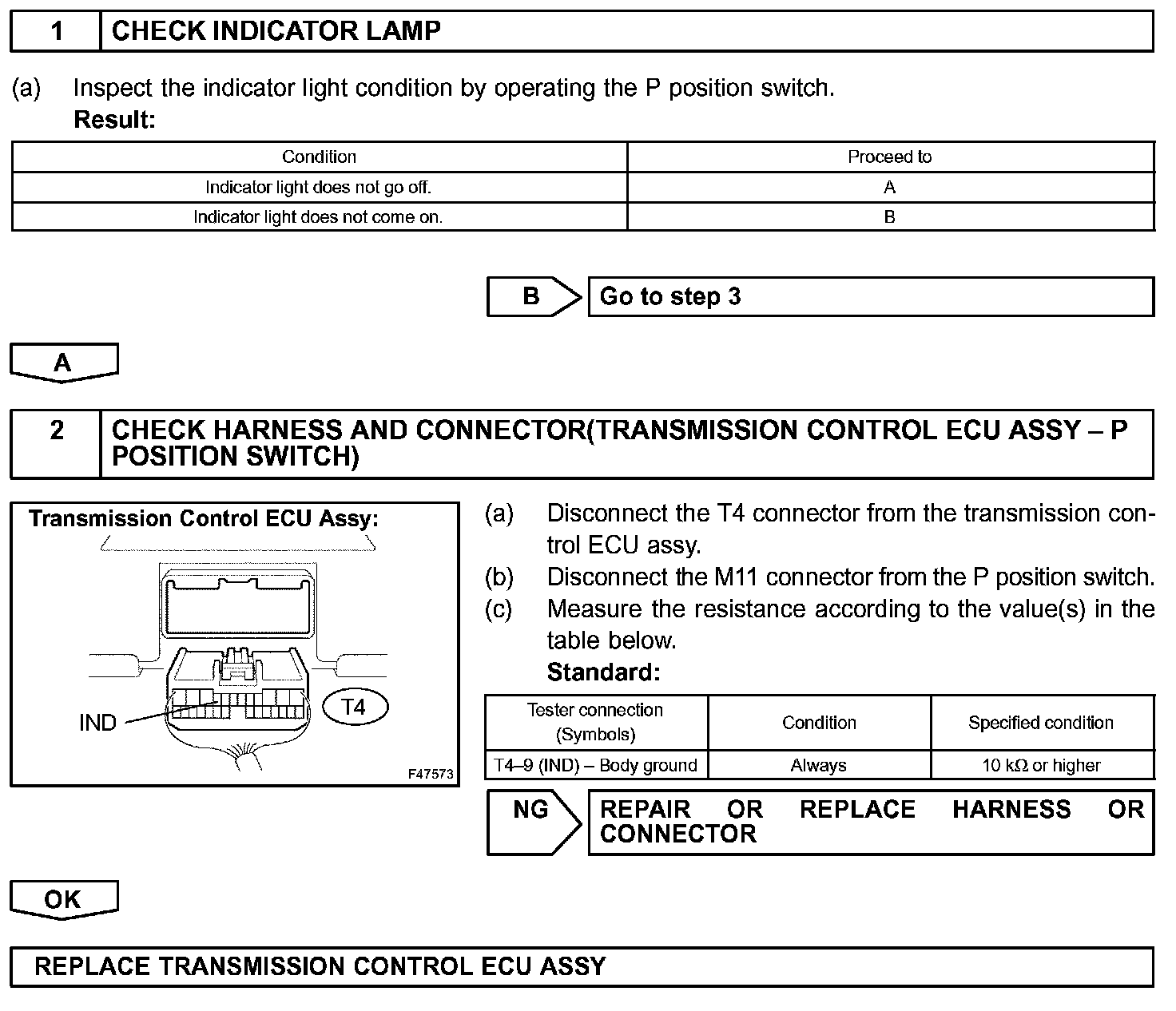

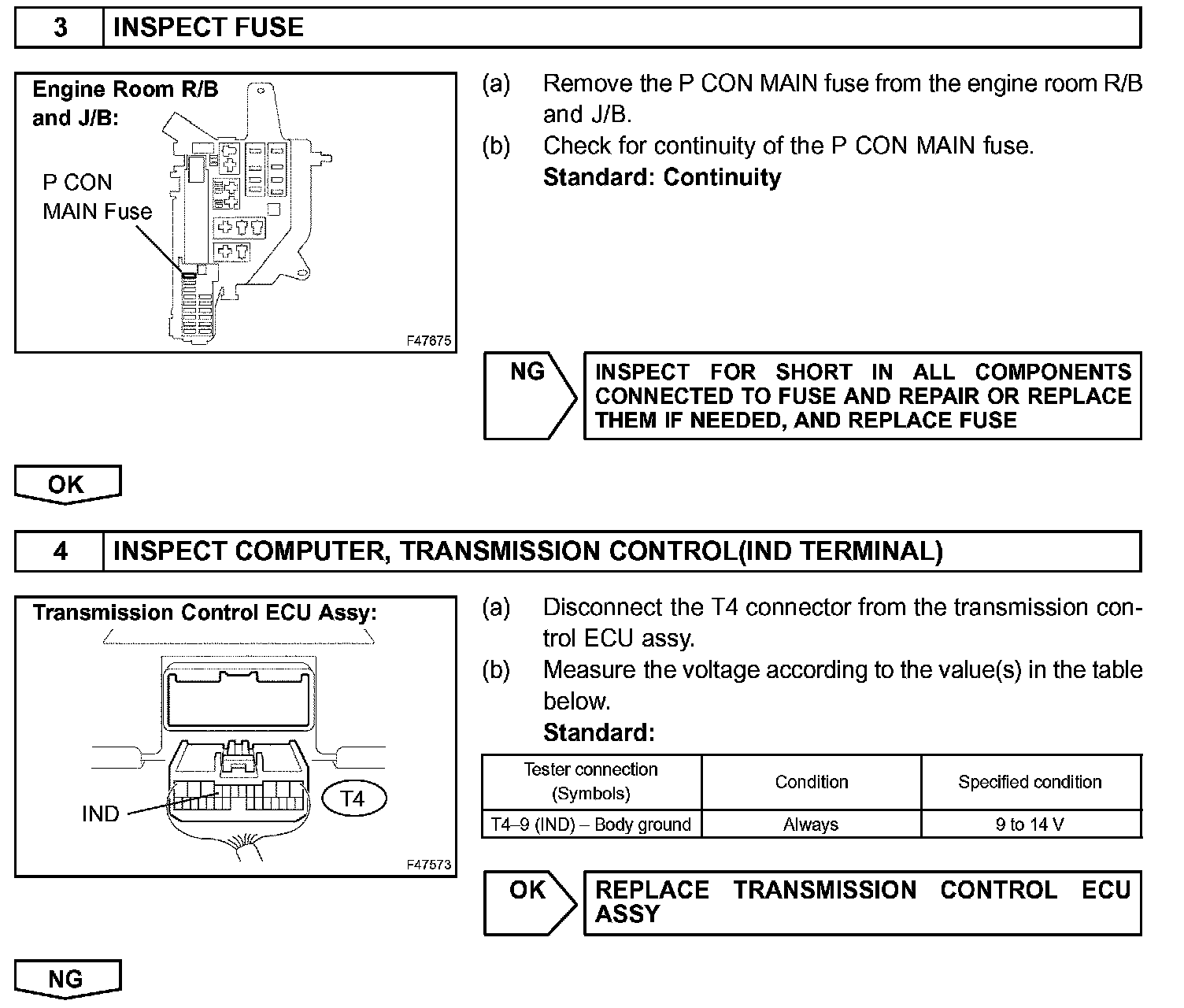

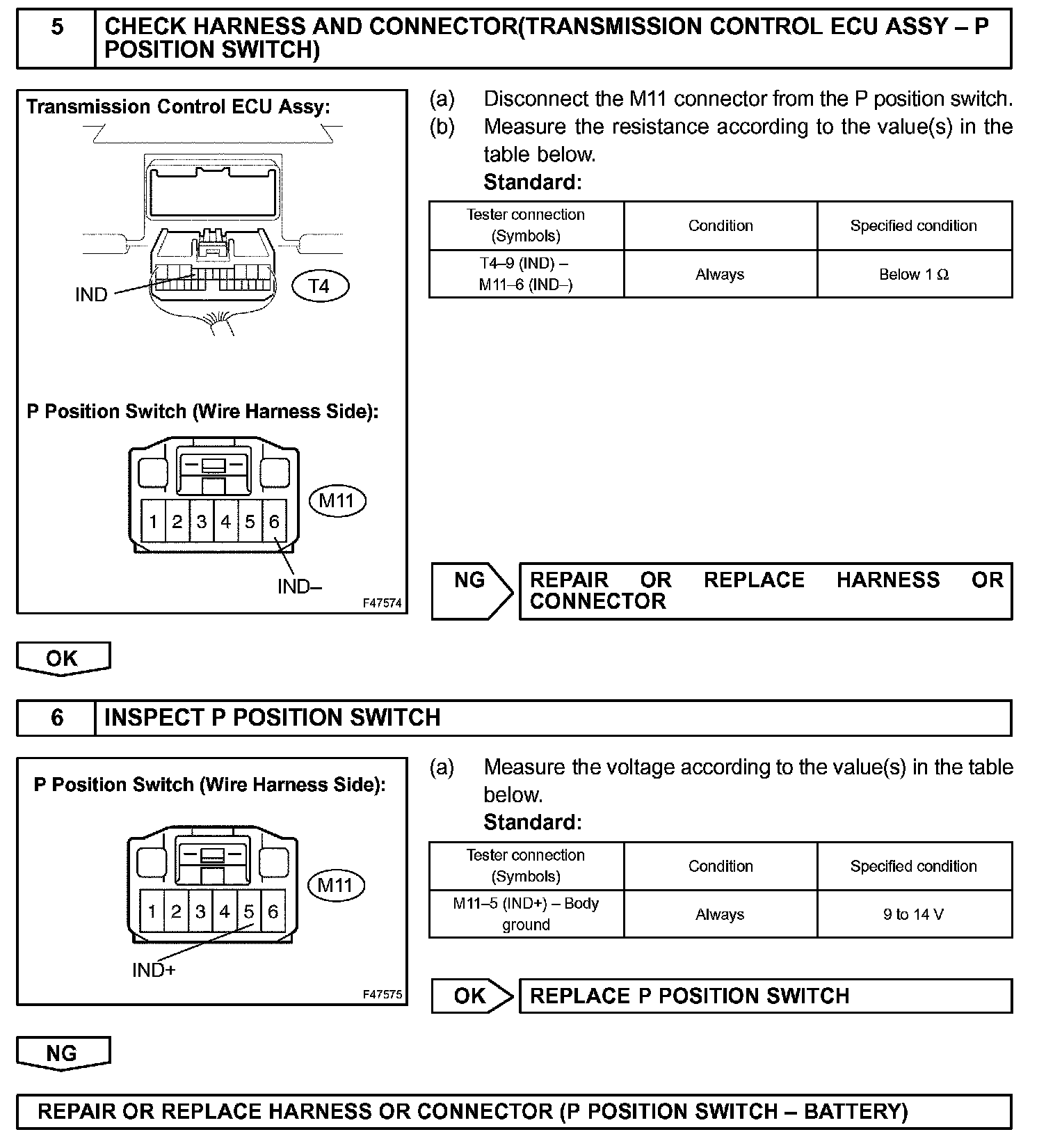

INSPECTION PROCEDURE
