Engine Control Module: Service and Repair

REPLACEMENT

1. REMOVE REAR FLOOR BOARD NO.2
2. REMOVE DECK FLOOR BOX REAR
3. REMOVE REAR FLOOR BOARD NO.3
4. DISCONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
5. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB ASSY LOWER
7. REMOVE INSTRUMENT PANEL FINISH PANEL SUB ASSY UPPER
8. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3
9. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.4
10. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2
11. REMOVE MULTI DISPLAY ASSY
12. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB ASSY
13. REMOVE GLOVE COMPARTMENT DOOR ASSY
14. REMOVE INSTRUMENT PANEL CUSHION
15. REMOVE INSTRUMENT CLUSTER FINISH PANEL END
16. REMOVE INSTRUMENT PANEL HOLE COVER
17. REMOVE GLOVE COMPARTMENT DOOR
18. REMOVE INSTR PANEL SPEAKER PANEL SUB ASSY NO.1 W/CTR SPEAKER (W/ JBL SOUND SYSTEM)
19. REMOVE FRONT PILLAR GARNISH CORNER PIECE LH
20. REMOVE FRONT PILLAR GARNISH CORNER PIECE RH
21. REMOVE FRONT PILLAR GARNISH LH
22. REMOVE FRONT PILLAR GARNISH RH
23. DISCONNECT PASSENGER AIRBAG CONNECTOR
24. REMOVE INSTRUMENT PANEL SUB ASSY W/PASSENGER AIRBAG ASSY
25. REMOVE HEATER TO REGISTER DUCT NO.3
26. REMOVE ECM

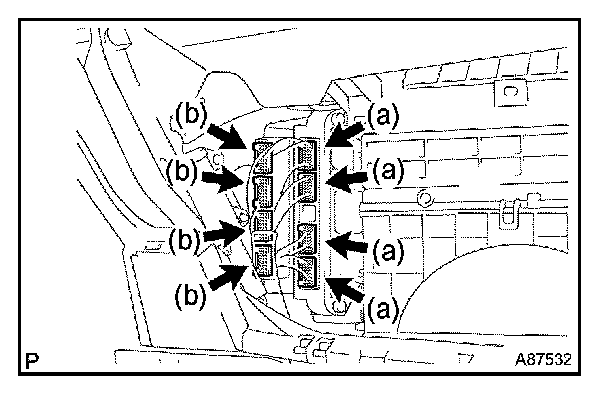

a. Disconnect the 4 ECM connectors.
b. Disconnect the 4 hybrid vehicle control ECU connectors.

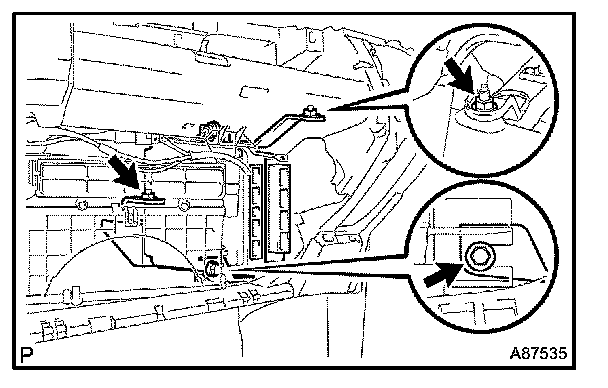

c. Remove the 2 bolts and nut, then remove the ECM.

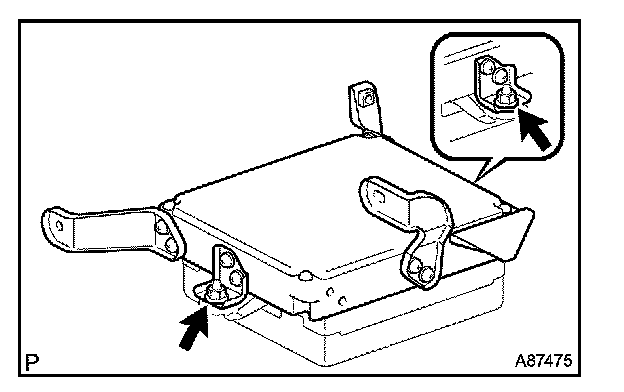

d. Remove the 2 nuts, then remove the ECM.

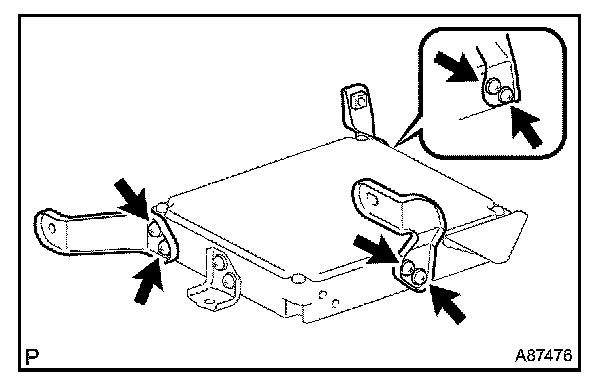

e. Remove the 6 screws, then remove the 3 ECM brackets No. 1.




f. Remove the 4 screws, then remove the 2 ECM brackets No. 2.

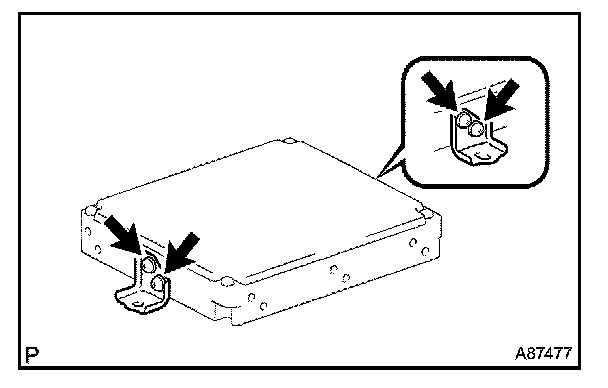

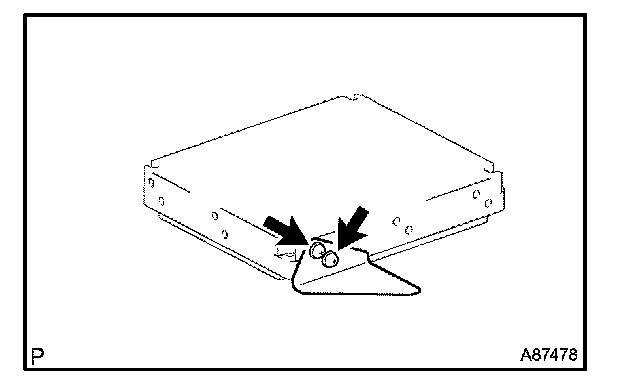

g. Remove the 2 screws, then remove the ECM bracket No. 3.

27. INSTALL ECM

Torque: 3.0 Nm (31 kgf.cm, 27 in.lbf)

28. INSTALL HEATER TO REGISTER DUCT NO.3
29. INSTALL INSTRUMENT PANEL SUB ASSY W/PASSENGER AIRBAG ASSY
30. CONNECT PASSENGER AIRBAG CONNECTOR
31. INSTALL FRONT PILLAR GARNISH RH
32. INSTALL FRONT PILLAR GARNISH LH
33. INSTALL FRONT PILLAR GARNISH CORNER PIECE RH
34. INSTALL FRONT PILLAR GARNISH CORNER PIECE LH
35. INSTALL INSTR PANEL SPEAKER PANEL SUB ASSY NO.1 W/CTR SPEAKER (W/ JBL SOUND SYSTEM)
36. INSTALL GLOVE COMPARTMENT DOOR
37. INSTALL INSTRUMENT PANEL HOLE COVER
38. INSTALL INSTRUMENT CLUSTER FINISH PANEL END
39. INSTALL INSTRUMENT PANEL CUSHION
40. INSTALL GLOVE COMPARTMENT DOOR ASSY
41. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB ASSY
42. INSTALL MULTI DISPLAY ASSY\
43. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.2
44. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.4
45. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.3
46. INSTALL INSTRUMENT PANEL FINISH PANEL SUB ASSY UPPER
47. INSTALL INSTRUMENT PANEL FINISH PANEL SUB ASSY LOWER
48. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.1
49. CONNECT ENGINE WIRE NO.3 (BATTERY NEGATIVE TERMINAL)
50. INSPECT SRS WARNING LIGHT
51. INSTALL REAR FLOOR BOARD NO.3
52. INSTALL DECK FLOOR BOX REAR
53. INSTALL REAR FLOOR BOARD NO.2
54. POWER WINDOW CONTROL SYSTEM INITIALIZE
