Curtain Shield Airbag Assembly

VEHICLE NOT INVOLVED IN COLLISION
a. Perform a diagnostic system check

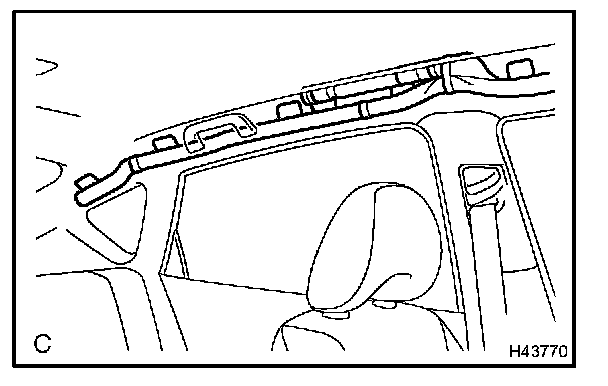

b. With the curtain shield airbag assy installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front pillar garnish or roof headlining assy with a new one:
Cuts, minute cracks or marked discoloration on the front pillar garnish and roof headlining assy around the curtain shield airbag assy.




VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED
a. Perform a diagnostic system check.

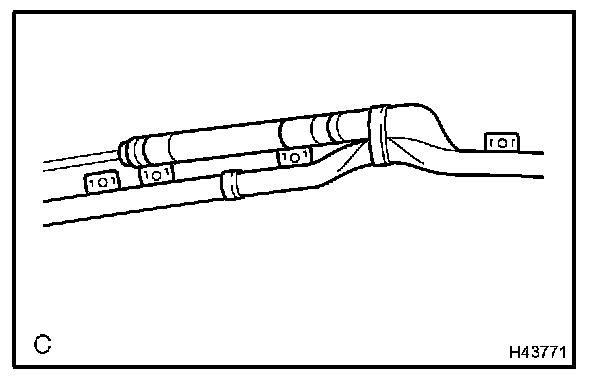

b. With the curtain shield airbag assy removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag assy with a new one:
- Cuts, minute cracks or marked discoloration on the curtain shield airbag assy.
- Cracks or other damage to the connector.

CAUTION: For removal and installation procedures of the curtain shield airbag assy, and be sure to follow the correct procedure.
