Front Seat Airbag Assy

VEHICLE NOT INVOLVED IN COLLISION
a. Perform a diagnostic system check.

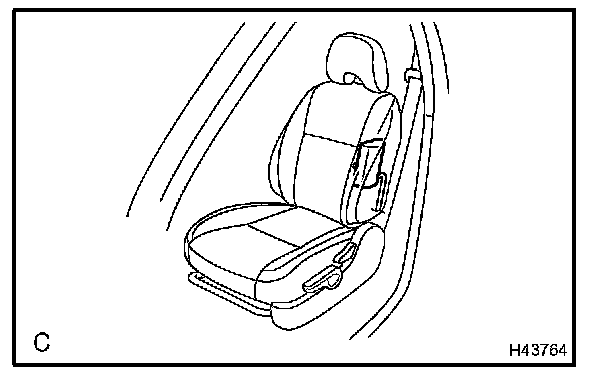

b. With the front seat airbag assy installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat back assy with a new one:
Cuts, minute cracks or marked discoloration on the front seat back assy around the front seat airbag assy.




VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED
a. Perform a diagnostic system check.

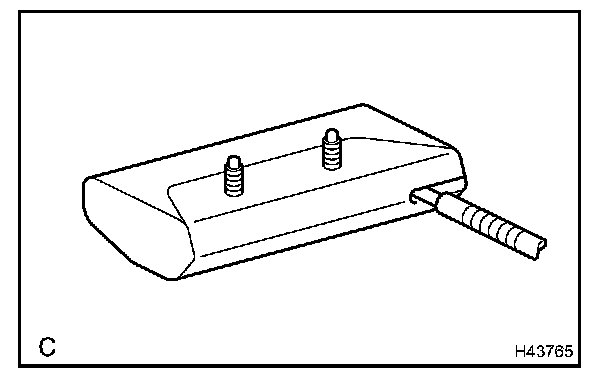

b. With the front seat airbag assy removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat airbag assy with a new one:
- Cuts, minute cracks or marked discoloration on the front seat airbag assy.
- Cracks or other damage to the wire harness or connector.

CAUTION: For removal and installation procedures of the front seat airbag assy, and be sure to follow the correct procedure.
