SRS Warning Light (Always Light Up, When DTC Is Not Output)

SRS WARNING LIGHT CIRCUIT MALFUNCTION (REMAINS ON WHEN DTC IS NOT OUTPUT)

CIRCUIT DESCRIPTION

The SRS warning light is located on the combination meter assy.
When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the power switchis turned from off to on (IG), and then goes off automatically.
If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of a problem.

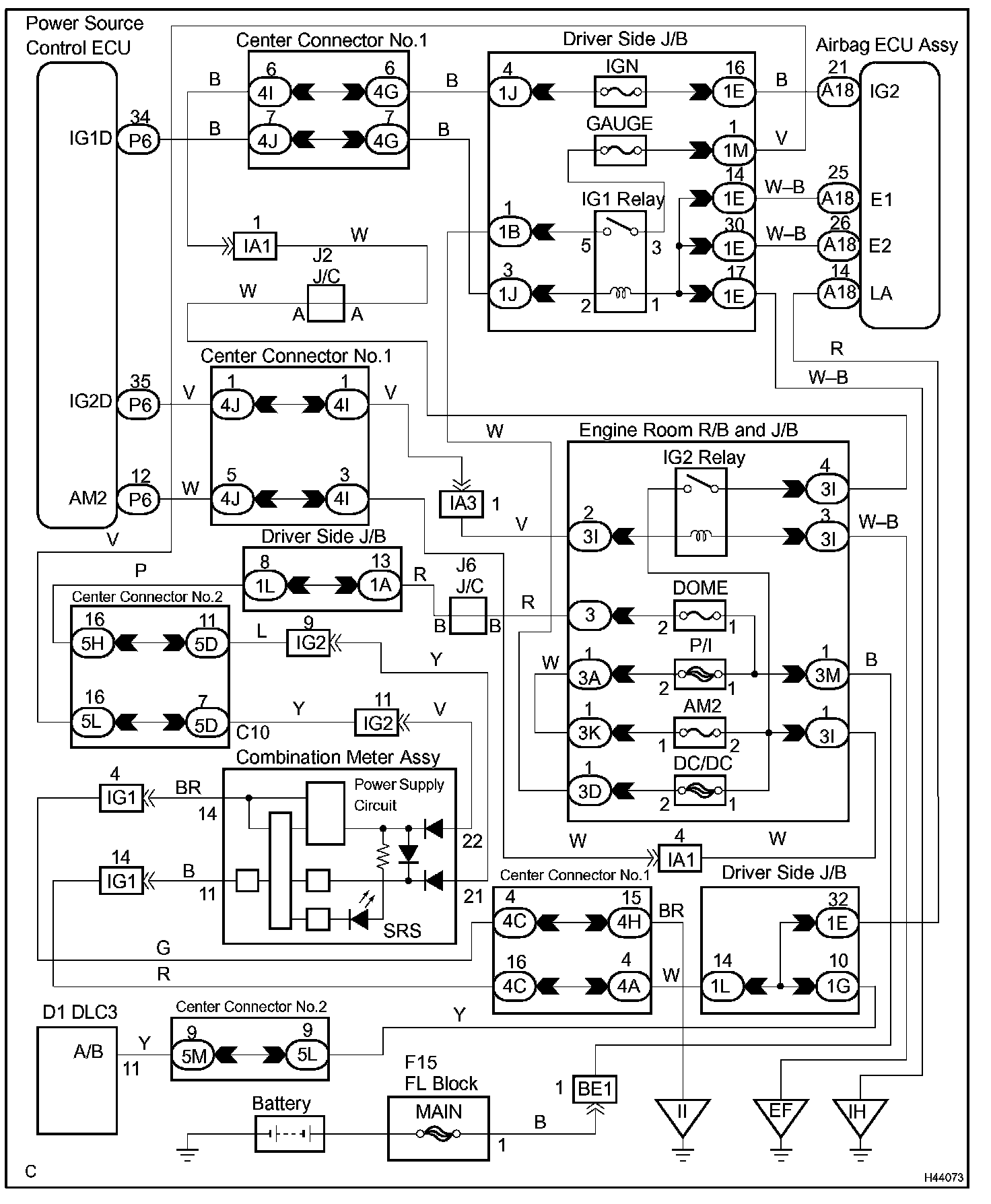

Wiring Diagram:

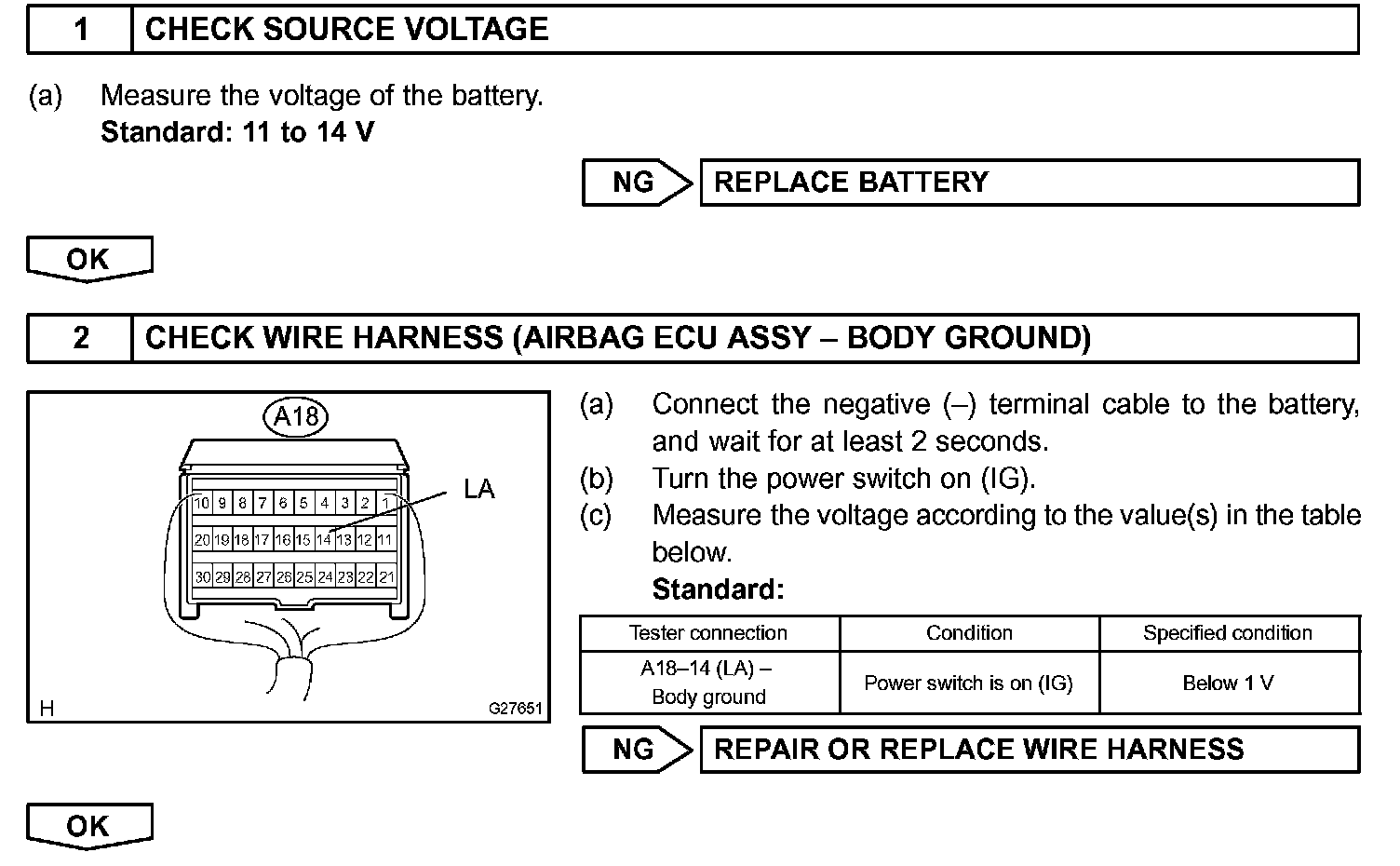

Step 1 - 2:

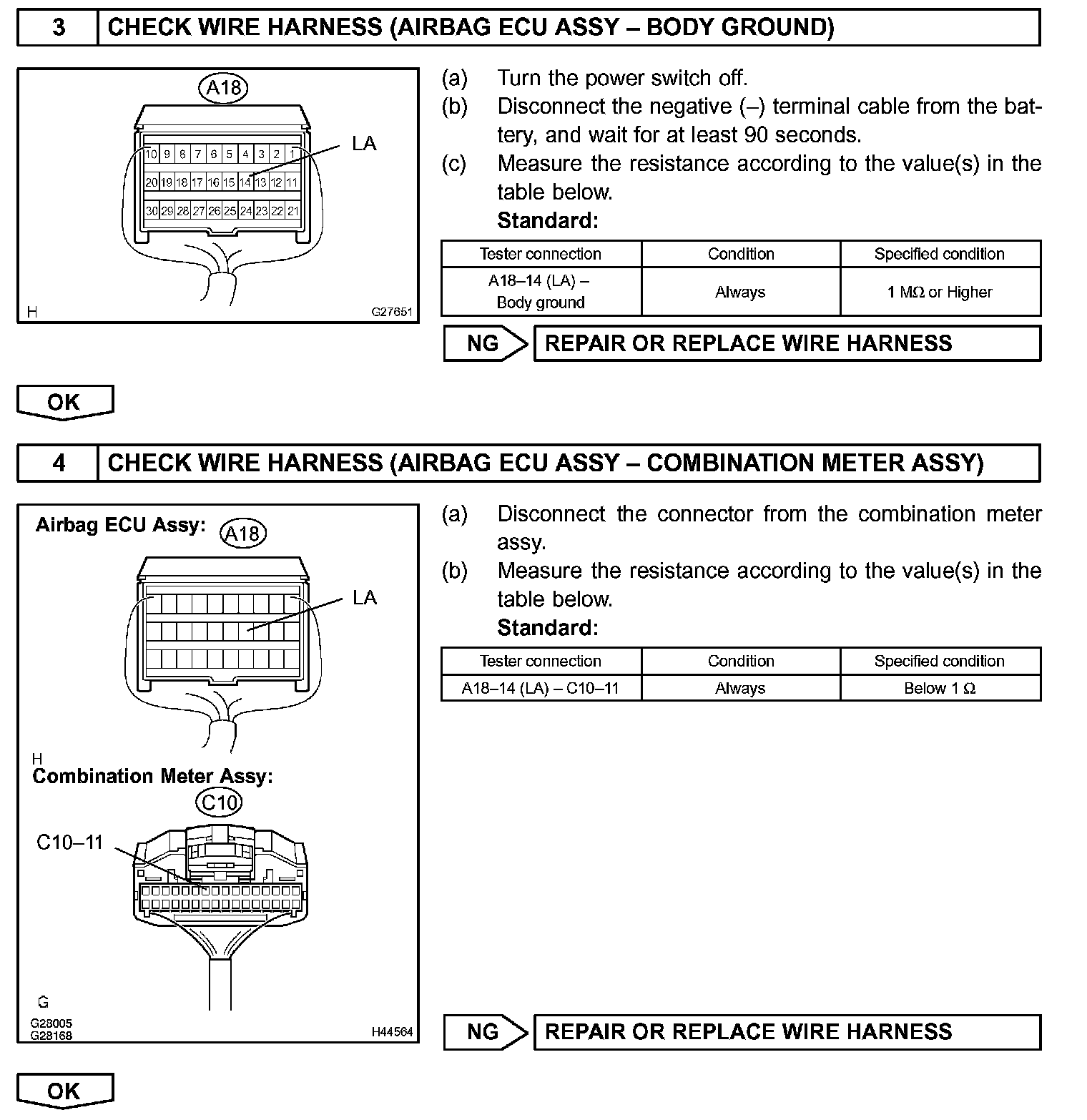

Step 3 - 4:

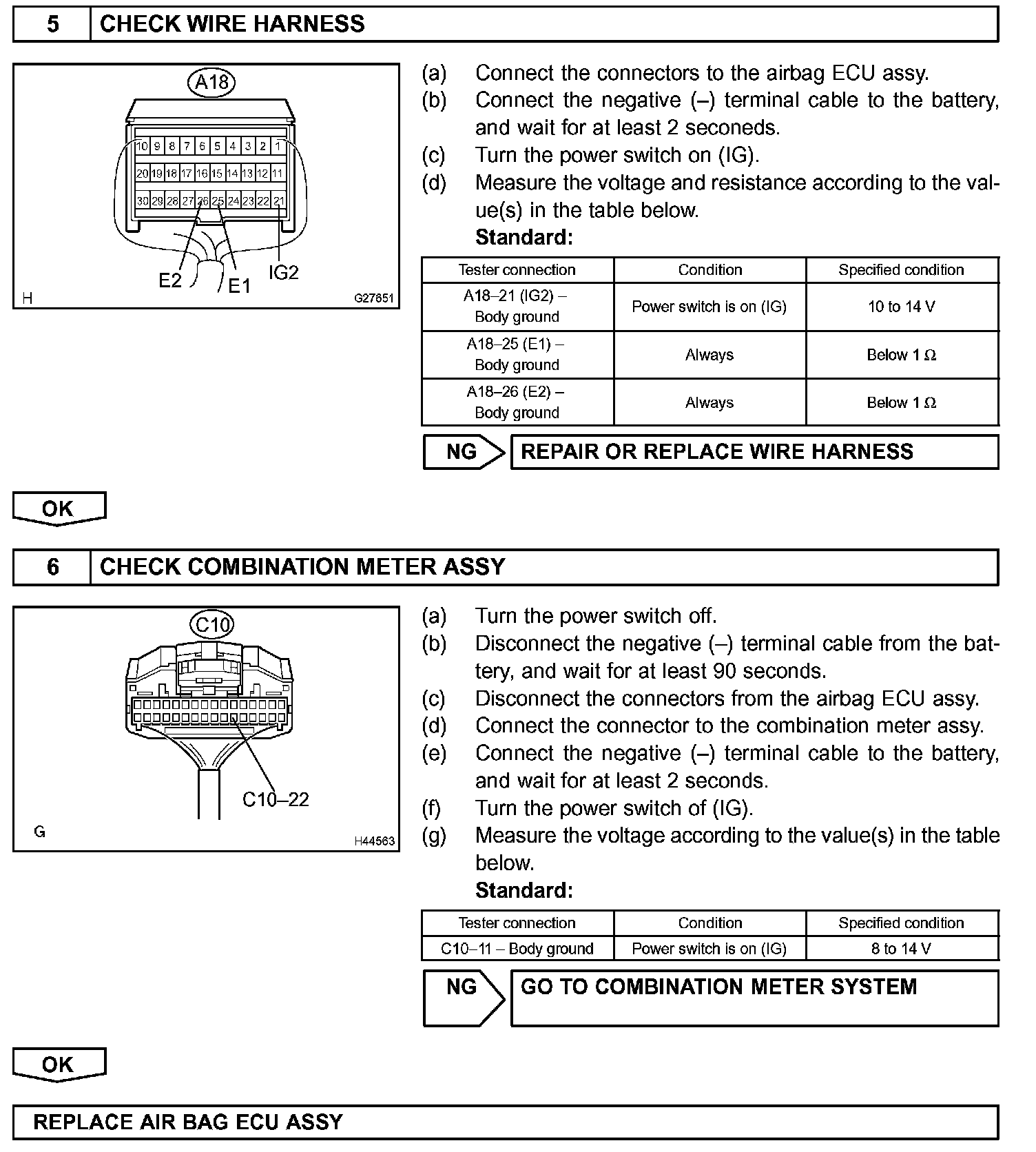

Step 5 - 6:

INSPECTION PROCEDURE

CAUTION: Be sure to perform the following procedures before troubleshooting to avoid unexpected airbag deployment.
a. Turn the power switch off.
b. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
c. Disconnect the connectors from the airbag ECU assy.
d. Disconnect the connectors from the horn button assy.
e. Disconnect the connectors from the front passenger airbag assy.
f. Disconnect the connector from the front seat airbag assy LH.
g. Disconnect the connector from the front seat airbag assy RH.
h. Disconnect the connector from the curtain shield airbag assy LH.
i. Disconnect the connector from the curtain shield airbag assy RH.
j. Disconnect the connector from the front seat outer belt assy LH.
k. Disconnect the connector from the front seat outer belt assy RH.
