SRS Warning Light (Does Not Light Up, Ignition Switch On)

SRS WARNING LIGHT CIRCUIT MALFUNCTION (DOES NOT COME ON WHEN THE POWER SWITCH IS TURNED ON (IG))

CIRCUIT DESCRIPTION

The SRS warning light is located on the combination meter assy.
When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the power switch is turned from off to on (IG), and then goes off automatically.
If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of a problem.

Wiring Diagram:

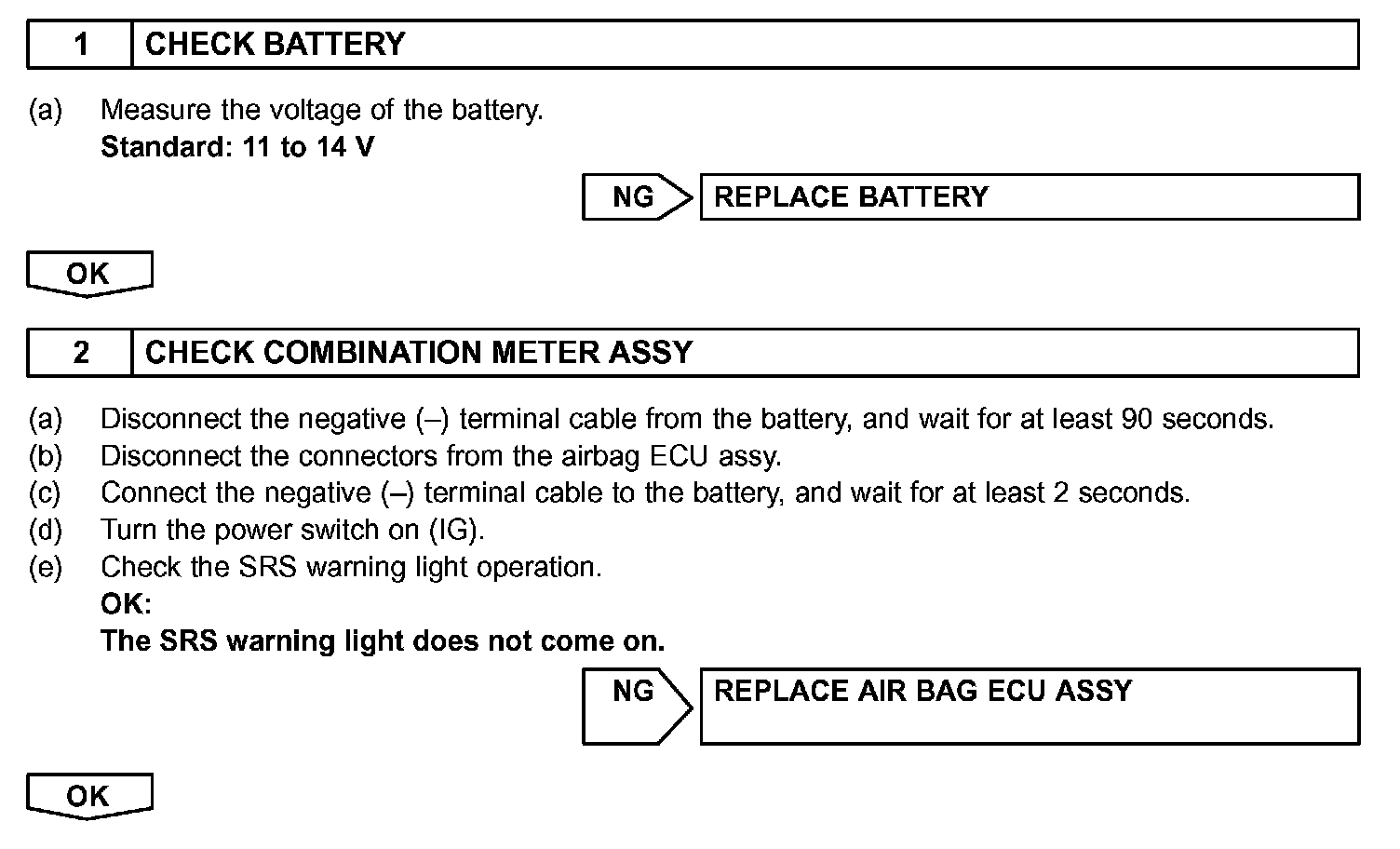

Step 1 - 2:

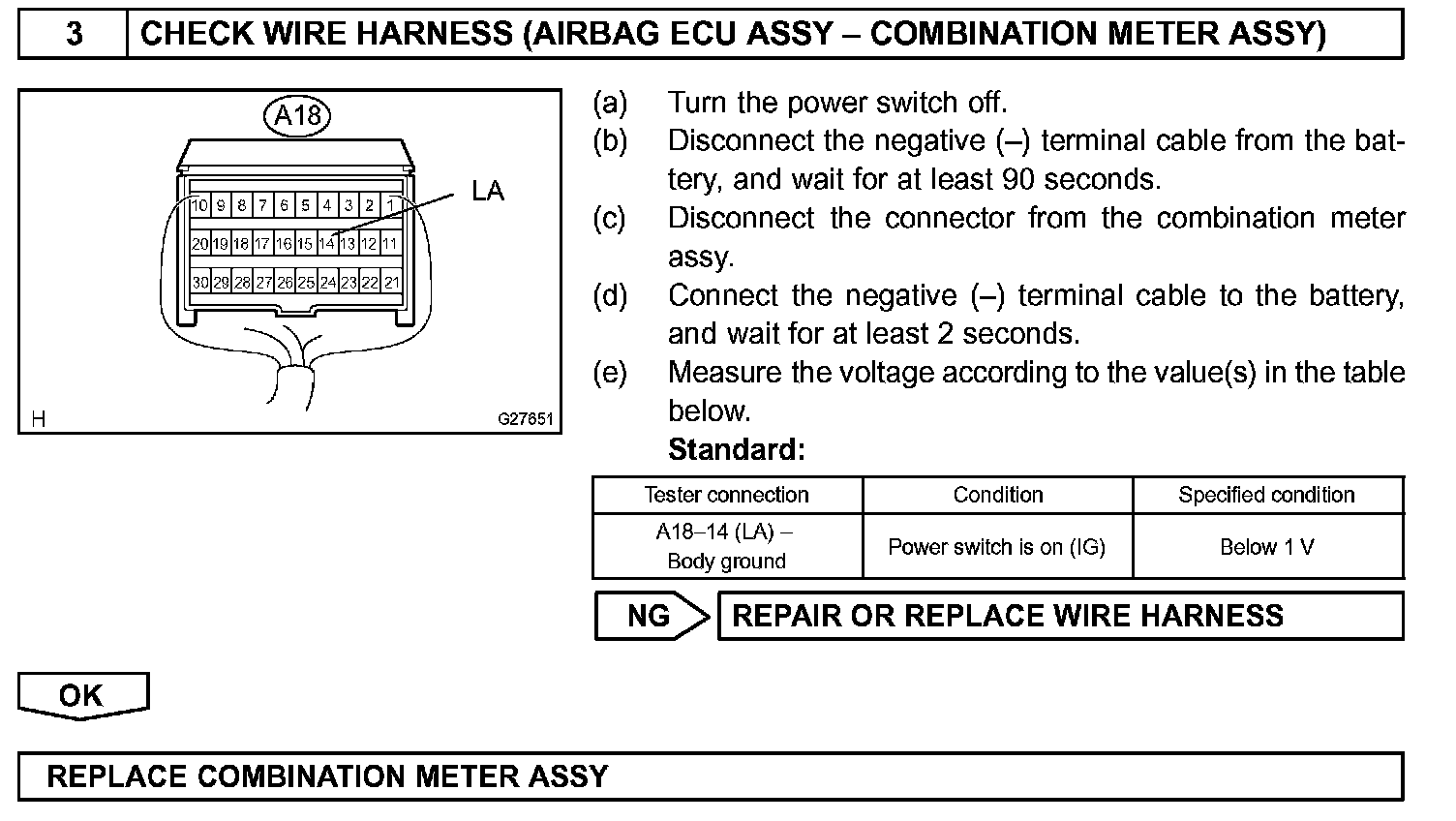

Step 3:

INSPECTION PROCEDURE
