Front Seat Belt

Front Seat Belt:






REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- Use the same procedures for the RH side and LH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE REAR DOOR SCUFF PLATE RH
3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
5. REMOVE CENTER PILLAR GARNISH LOWER RH
6. REMOVE CENTER PILLAR GARNISH RH

7. REMOVE FRONT SEAT OUTER BELT ASSY RH

NOTE:
- Removal of the seat belt pretensioner must be started at least 90 seconds after the power switch's power mode is changed to OFF and the negative (-) terminal cable is disconnected from the battery.
- Carefully read the notices for the pretensioner in the SRS airbag system section and the front seat outer belt section.

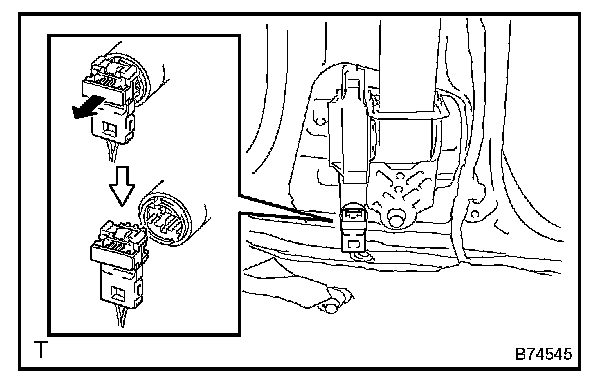

a. Disconnect the pretensioner connector, as shown in the illustration.
b. Remove the 3 bolts and outer belt.

8. REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSY
a. Remove the 2 bolts and anchor adjuster.

9. REMOVE FRONT SEAT INNER BELT ASSY RH
a. Remove the front seat.
b. Remove the bolt and inner belt.

10. INSTALL FRONT SEAT INNER BELT ASSY RH
a. Install the inner belt with the nut.

Torque: 42 Nm (428 kgf.cm, 31 ft.lbf)

11. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSY
a. Install the belt anchor adjuster with the 2 bolts.

Torque: 42 Nm (428 kgf.cm, 31 ft.lbf)




12. INSTALL FRONT SEAT OUTER BELT ASSY RH

NOTE: Do not disassemble the retractor.

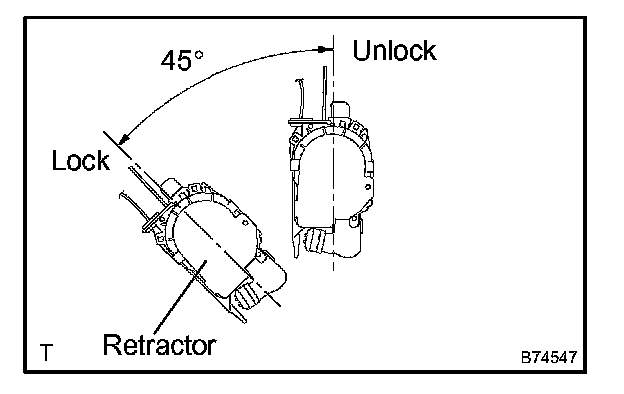

a. Check the amount of inclination required to lock the retractor.
1. When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor.
When the inclination of the retractor is over 45° , check that the belt locks.
If operation is not as specified, replace the outer belt assy

b. Install the outer belt with the 2 bolts.

Torque:
5.0 Nm (51 kgf.cm, 44 in.lbf) for upper bolt
42 Nm (428 kgf.cm, 31 ft.lbf) for lower bolt

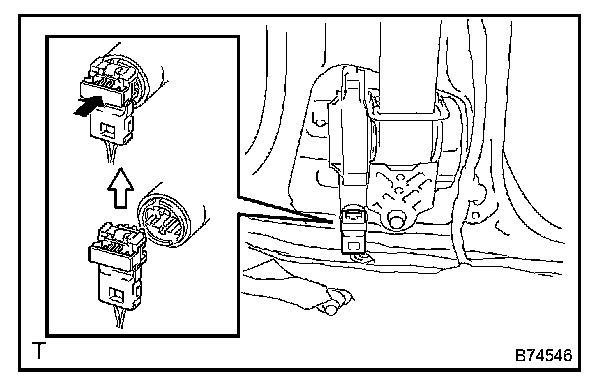

c. Connect the pretensioner connector, as shown in the illustration.
d. Install the floor anchor cover.
e. Install the shoulder belt anchor to the shoulder belt anchor adjuster with the bolt.

Torque: 42 Nm (428 kgf.cm, 31 ft.lbf)

f. Install the front pillar garnish upper.
g. Install the center pillar garnish lower.
h. Install the floor anchor to the floor panel with the nut.

Torque: 42 Nm (428 kgf.cm, 31 ft.lbf)

i. Install the front door scuff plate.
j. Install the rear door scuff plate.
k. Install the front door opening trim weatherstrip.
l. Install the rear door opening trim weatherstrip.
m. Check if the ELR locks.

NOTE: The check should be performed with the outer belt assy installed.

1. With the belt installed, check that the belt locks when it is pulled out quickly.
If operation is not as specified, replace the outer belt assy.

n. Connect the negative battery's terminal.






NOTE: When disconnecting the negative (-) battery terminal, initialize the system shown in the table after the terminal is reconnected.

o. Check the SRS warning lamp.
