Vehicles W/Vehicle Stability Control (Enhanced Vsc) System

FOR VEHICLES EQUIPPED WITH VEHICLE STABILITY CONTROL (Enhanced VSC) SYSTEM




a. NOTICES WHEN USING DRUM TESTER

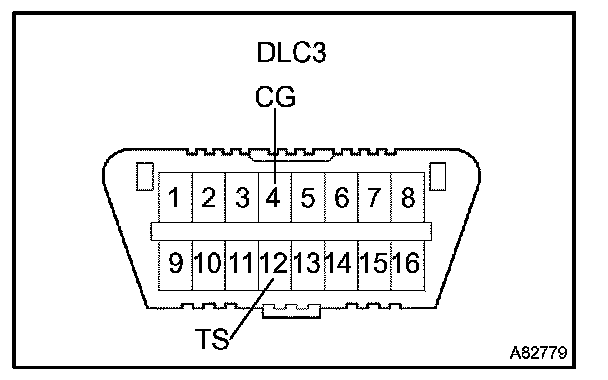

1. Before beginning testing, disable the Vehicle Skid Control (Enhanced VSC) system. To disable the Enhanced VSC, change the power switch's power mode to OFF and connect SST to terminals TS and CG of the DLC3.

SST 09843-18040

NOTE:
- Confirm that the VSC warning lamp is blinking.
- The Enhanced VSC system will be reset when the engine is restarted.
- For safety, secure the vehicle with restraint chains when using a wheel dynamometer.

b. NOTICES OF RELATED OPERATIONS TO Enhanced VSC
1. Do not make unnecessary installations and removals as this may affect the adjustment of Enhanced VSC related parts.
2. Be sure to follow the Enhanced VSC system's instructions for work preparation and final confirmation of proper operation.
