Timing Cover

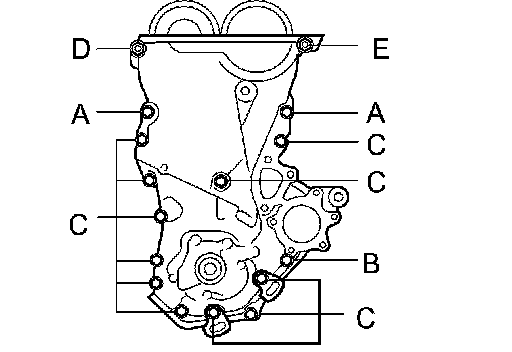

Install the oil pump assembly with the 15 bolts and nut as illustrated.
Torque:
32 Nm (326 kgf-cm, 24 ft. lbs.) for Bolt A
11 Nm (112 kgf-cm, 8.1 ft. lbs.) for Bolt B
11 Nm (112 kgf-cm, 8.1 ft. lbs.) for Bolt C
24 Nm (245 kgf-cm, 18 ft. lbs.) for Nut D
24 Nm (245 kgf-cm, 18 ft. lbs.) for Bolt E
