Multiple Junction Connector: Application and ID

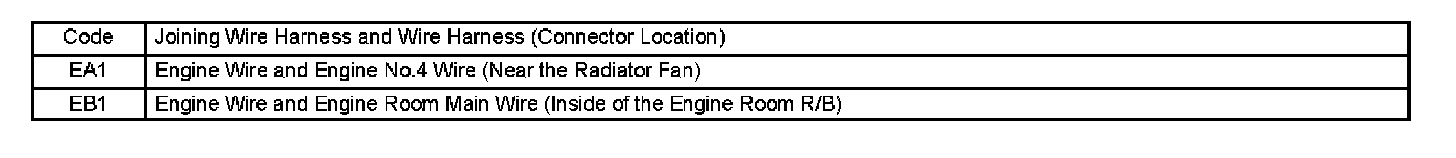

EA1 - EB1:

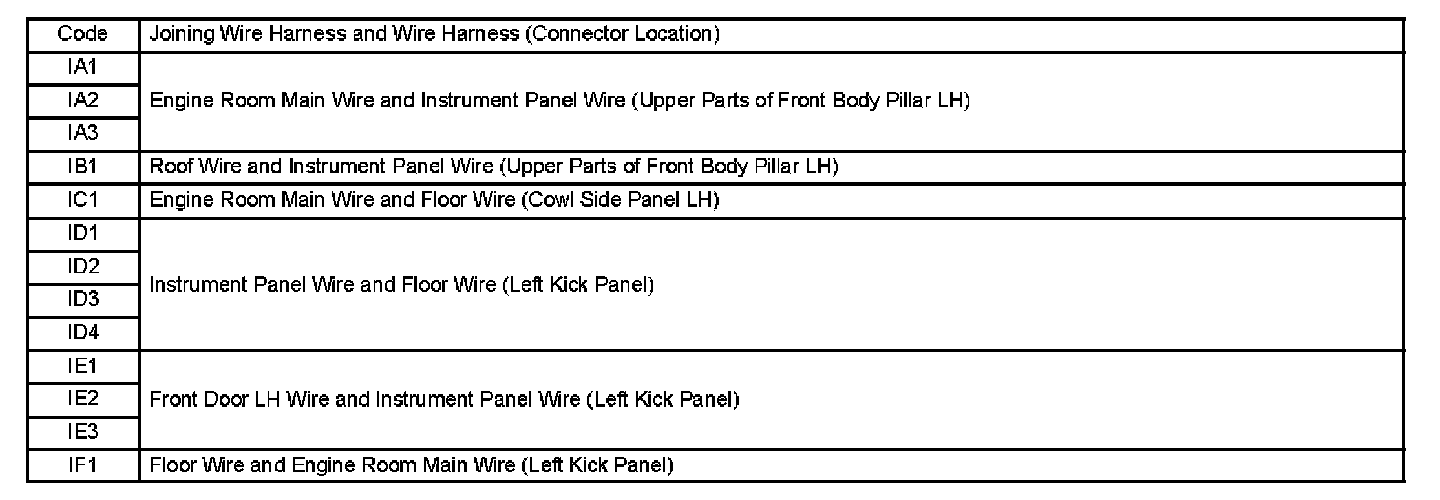

IA1 - IF1:

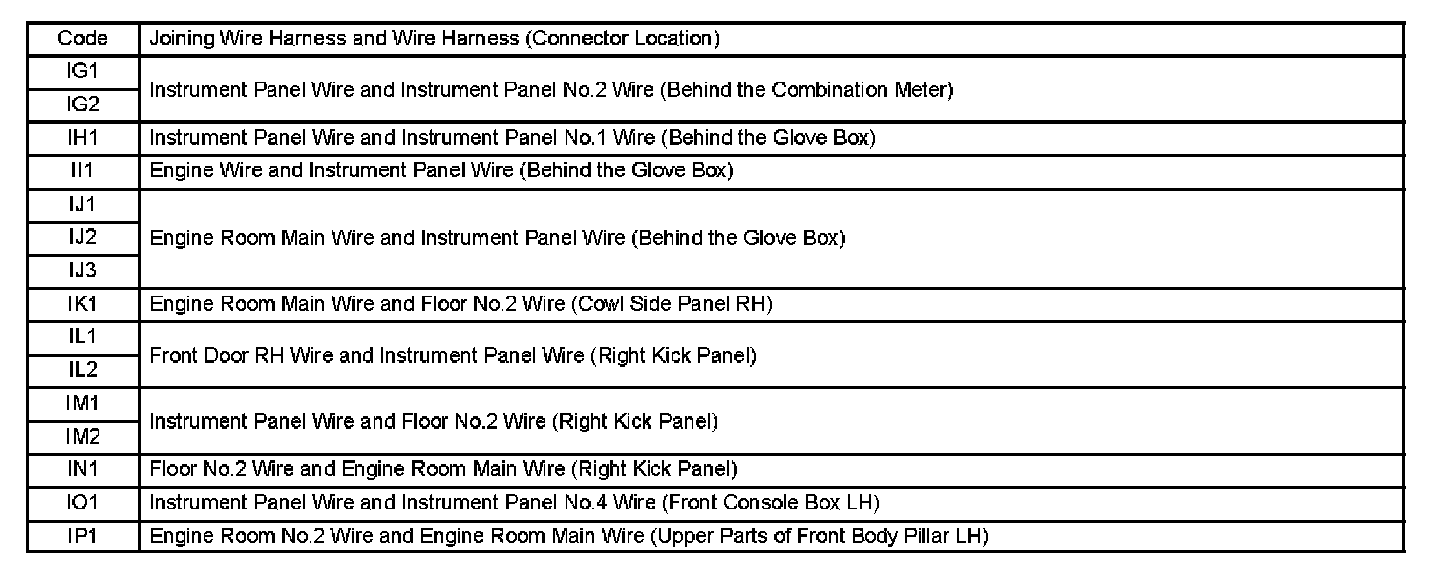

IG1 - IP1:

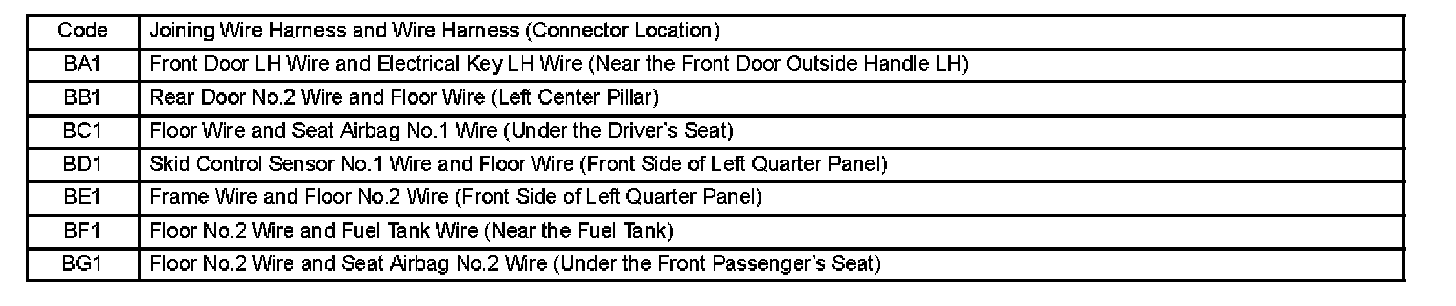

BA1 - BG1:

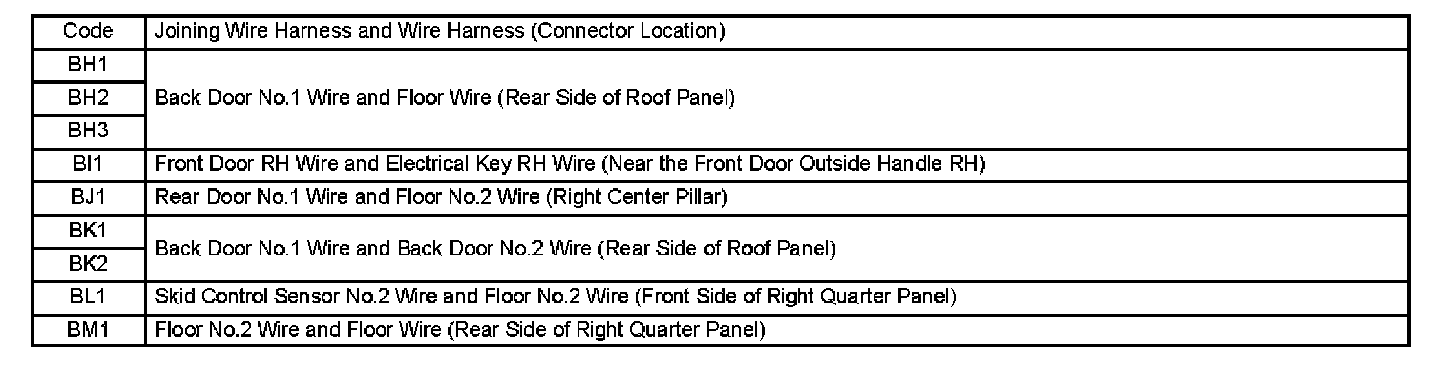

BH1 - BM1:
