Rear Wheel Alignment

NOTICE: For Zero Point Calibration information, please refer to: TSB T-SB-0020-8 (3/25/08).

REAR WHEEL ALIGNMENT
INSPECTION
1. INSPECT TIRE
2. MEASURE VEHICLE HEIGHT

NOTICE: Before inspecting wheel alignment, adjust the vehicle height to the specified value.

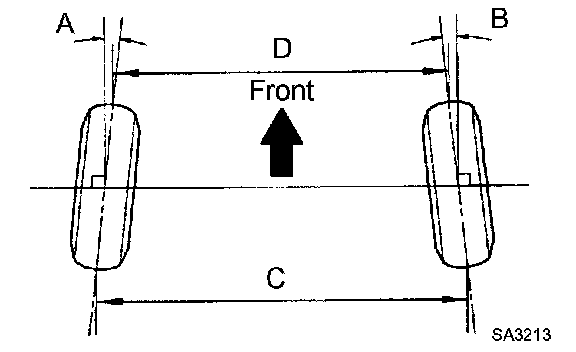

3. INSPECT TOE-IN





HINT:
- Measure "C - D" only when "A + B" cannot be measured.
- If toe-in is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.

4. INSPECT CAMBER
a) Install the camber-caster-kingpin gauge or set the vehicle on the wheel alignment tester.





b) Inspect the camber.

HINT: Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
