Steering Gear: Service and Repair
STEERING GEAR ASSY
OVERHAUL
1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
2. REMOVE COLUMN HOLE COVER SILENCER SHEET
3. SEPARATE STEERING SLIDING YOKE SUB-ASSY

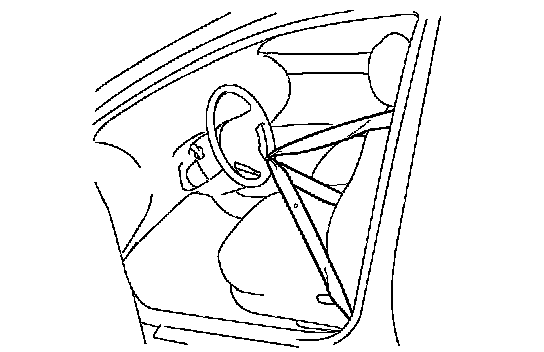

a) Fix the steering wheel assy with the seat belt in order to prevent rotation and damage to the spiral cable.

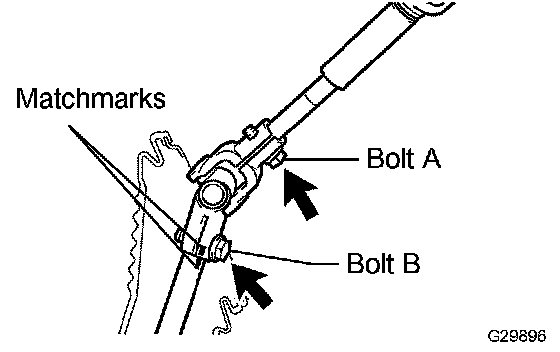

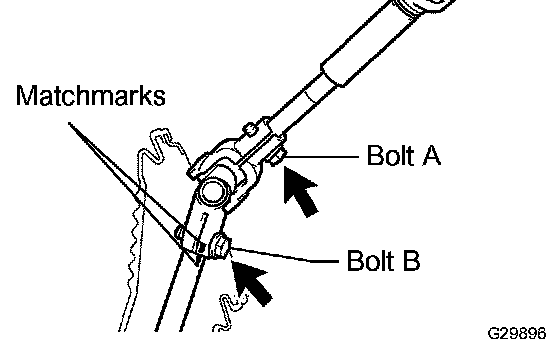

b) Put matchmarks on the sliding yoke sub-assy and the intermediate shaft.
c) Loosen bolt A and remove bolt B to separate the sliding yoke sub-assy.
4. SEPARATE STEERING COLUMN HOLE COVER SUB-ASSY NO.1

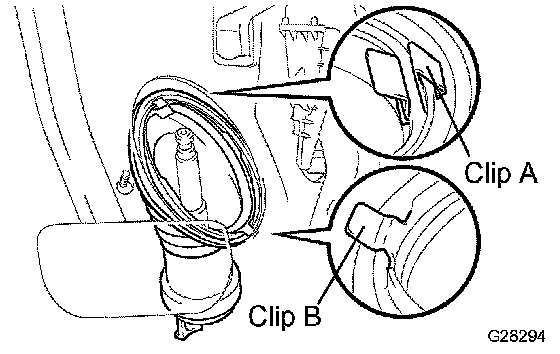

a) Remove clip A and separate the column hole cover No.1 from the body.
NOTICE: Do not damage clip B.
5. REMOVE FRONT WHEELS
6. SEPARATE TIE ROD END SUB-ASSY LH
7. SEPARATE TIE ROD END SUB-ASSY RH
HINT: Perform the same procedure as for the LH.
8. REMOVE FRONT STABILIZER LINK ASSY
HINT: Remove both LH and RH.
9. REMOVE FRONT STABILIZER BRACKET NO.1 LH
10. REMOVE FRONT STABILIZER BRACKET NO.1 RH
HINT: Perform the same procedure as for the LH.
11. REMOVE STEERING INTERMEDIATE SHAFT

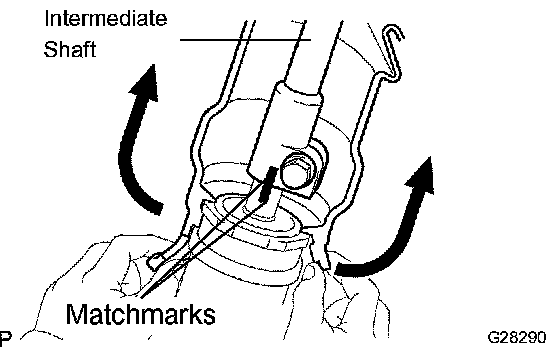

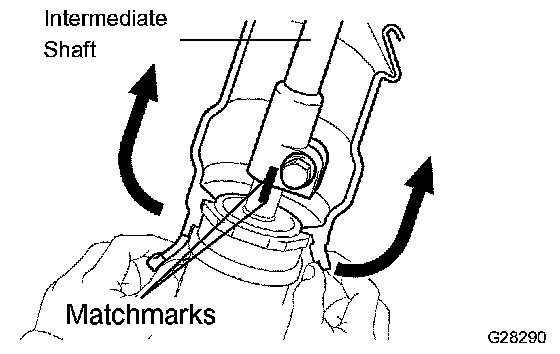

a) Move the column hole cover No.1 to the upper side of the vehicle and put matchmarks on the intermediate shaft and the steering gear assy.
NOTICE: Do not damage the hole cover No.1 when moving it.
b) Remove the bolt and remove the intermediate shaft from the inside of the vehicle.
c) Remove the column hole cover No.1 from the steering gear assy.
NOTICE: Do not damage the hole cover No.1 clip.
12. REMOVE STEERING GEAR ASSY

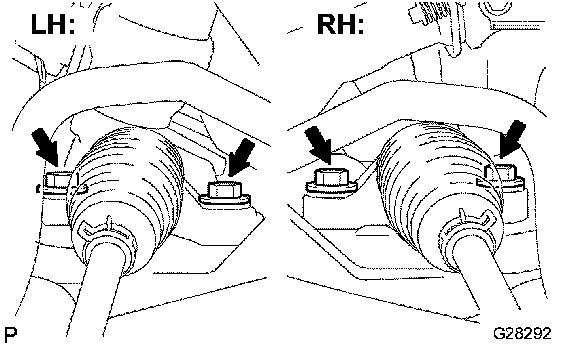

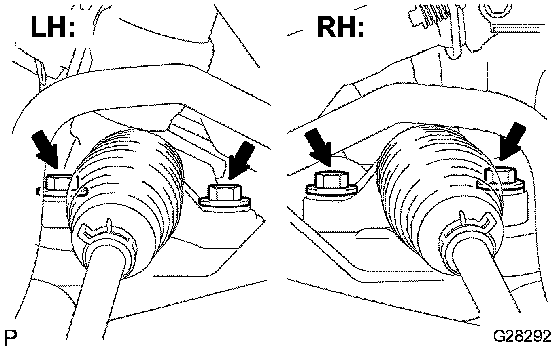

a) Remove the 4 bolts and remove the steering gear assy from the left side of the vehicle.
HINT: Be careful not to hit the stabilizer bar when removing the steering gear assy.
13. FIX STEERING GEAR ASSY

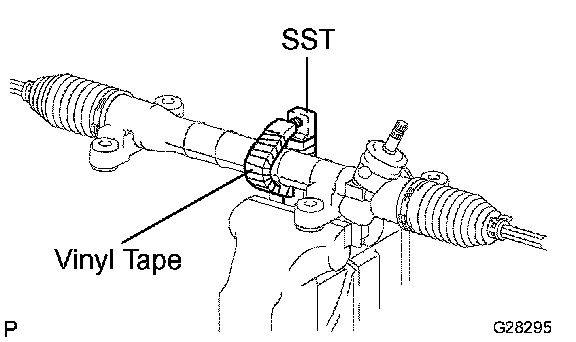

a) Using SST wrapped with protection tape, secure the steering gear assy in a vise.
SST 09612-00012
HINT: Remove and reinstall the SST as needed.
14. REMOVE TIE ROD END SUB-ASSY LH

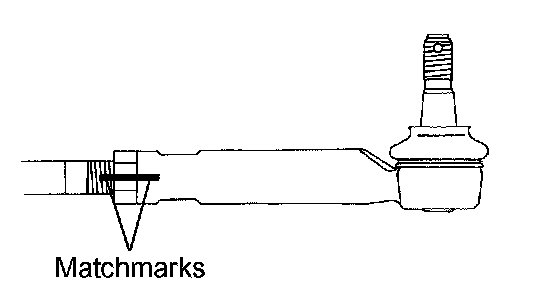

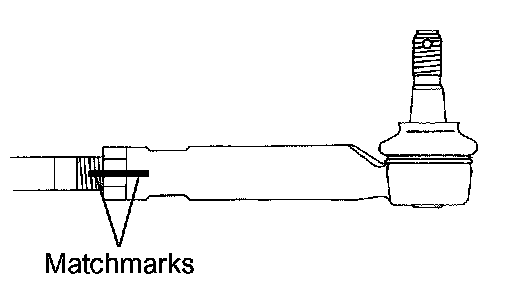

a) Put matchmarks on the tie rod end sub-assy LH and the rack end.
b) Remove the tie rod end sub-assy LH and the lock nut.
15. REMOVE TIE ROD END SUB-ASSY RH
HINT: Perform the same procedure as for the LH.
16. INSPECT TIE ROD END SUB-ASSY LH
a) Secure the tie rod end sub-assy LH boll joint in a vise through aluminum plates.
NOTICE: Do not overtighten the vise.
b) Install the castle nut to the stud bolt.

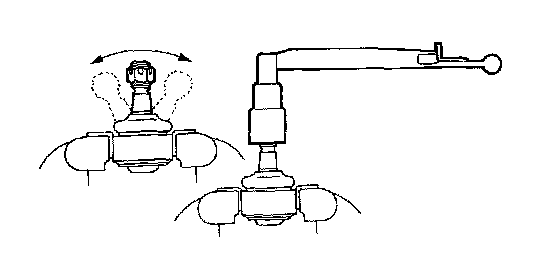

c) Flip the ball joint back and forth 5 times or more.
d) Set a torque wrench to the nut, turn the ball joint continuously at a rate of 3 to 5 seconds per turn, and check the turning torque on the 5th turn.
Turning torque: 2.0 Nm (20.4 kgf-cm, 18 inch lbs.) or less
If turning torque is out of specifications, replace the tie rod end sub-assy LH with a new one.
17. INSPECT TIE ROD END SUB-ASSY RH
HINT: Perform the same procedure as for the LH.
18. REMOVE STEERING RACK BOOT CLIP
a) Using pliers, remove the 2 rack boot clips (RH and LH).
19. REMOVE STEERING RACK BOOT NO.2 CLAMP

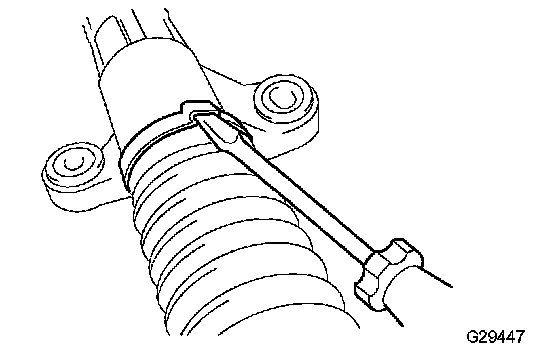

a) Using a screwdriver, unstake and remove the rack boot clamp No.2.
NOTICE: Do not damage the rack boot No.2.
20. REMOVE STEERING RACK BOOT NO.1 CLAMP
HINT: Perform the same procedure as for the rack boot clamp No.2.
21. REMOVE STEERING RACK BOOT NO.2
22. REMOVE STEERING RACK BOOT NO.1
23. REMOVE STEERING RACK END SUB-ASSY

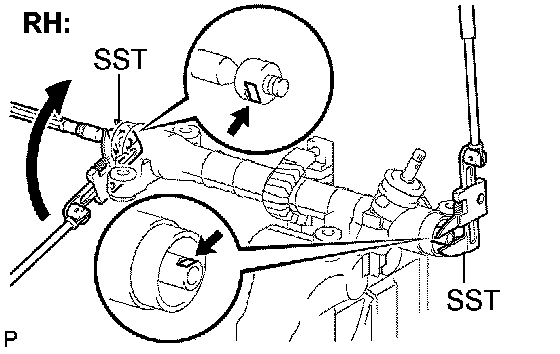

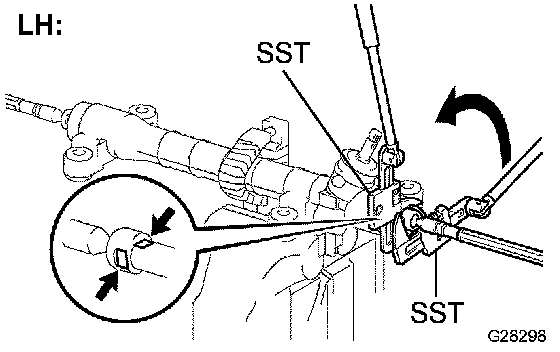

a) Using 2 SST, remove the rack end sub-assy (LH side).
SST 09922-10010
NOTICE:
^ Use the SST in the correct direction as shown in the illustration.
^ Securely hold the steering rack.
b) Using 2 SST, hold the steering rack LH side and remove the rack end sub-assy (RH side).
SST 09922-10010
NOTICE:
^ Use the SST in the correct direction as shown in the illustration.
^ Securely hold the steering rack.
24. INSPECT TOTAL PRELOAD

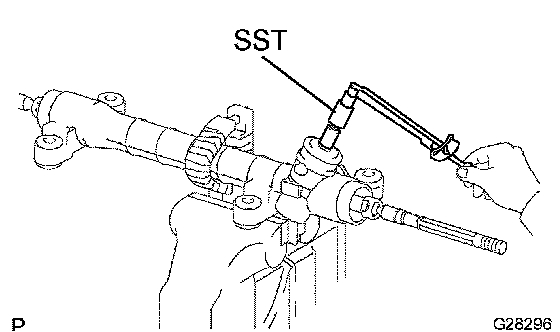

a) Using SST, inspect total preload.
SST 09616-00011
Preload (turning): 0.6 to 1.2 Nm (6.1 to 12.2 kgf-cm, 5 to 11 inch lbs.)
NOTICE: Inspect around the steering rack center position.
If total preload is out of specifications, replace the steering gear assy with a new one.
25. INSTALL STEERING RACK END SUB-ASSY

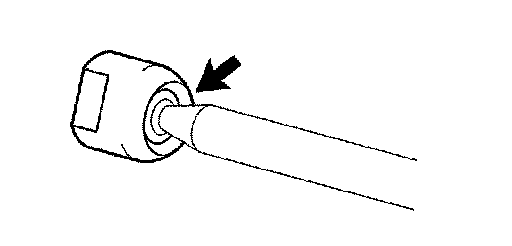

a) Fill up the ball joints of the RH and LH rack ends with molybdenum disulfide lithium base grease.

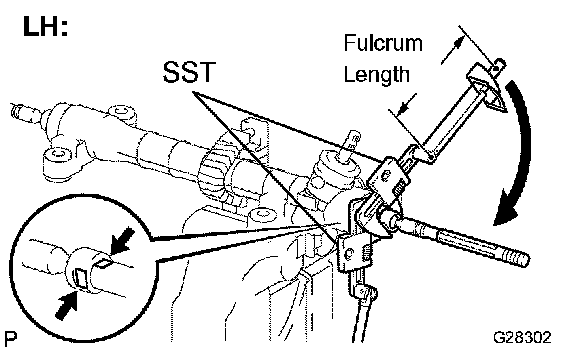

b) Using 2 SST, hold the steering rack LH side and install the rack end sub-assy (RH side).
SST 09922-10010
Torque: 60 Nm (612 kgf-cm, 44 ft. lbs.)
NOTICE:

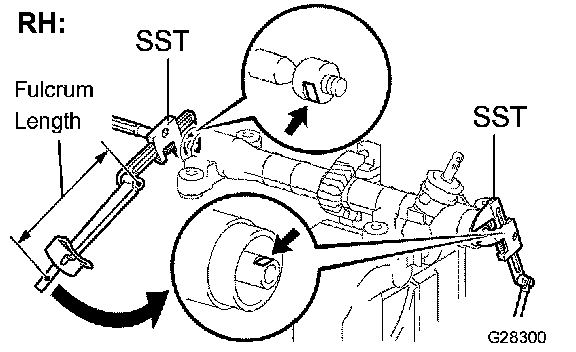

^ Use a torque wrench with a fulcrum length of 345 mm (13.58 inch).
^ Use the SST in the correct direction as shown in the illustration.
^ Securely hold the steering rack.
c) Using 2 SST, install the rack end sub-assy (LH side).
SST 09922-10010
Torque: 60 Nm (612 kgf-cm, 44 ft. lbs.)
NOTICE:
^ Use a torque wrench with a fulcrum length of 345 mm (13.58 inch).
^ Use the SST in the correct direction as shown in the illustration.
^ Securely hold the steering rack.
26. INSTALL STEERING RACK BOOT NO.2

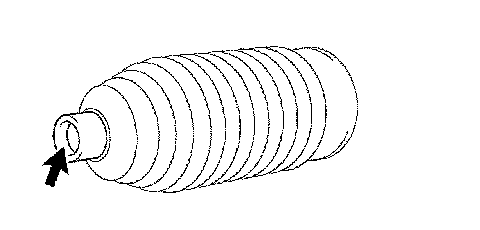

a) Apply silicon grease to the inside of the small opening of the rack boot No.2.
b) Install the rack boot No.2 in the groove on the rack housing.
NOTICE: Make sure that the rack boot No.2 is not twisted.
27. INSTALL STEERING RACK BOOT NO.1
HINT: Perform the same procedure as for the rack boot No.2.
28. INSTALL STEERING RACK BOOT NO.2 CLAMP
a) Install a new rack boot clamp No.2 to the rack boot No.2.
NOTICE: Do not damage the rack boot No.2.

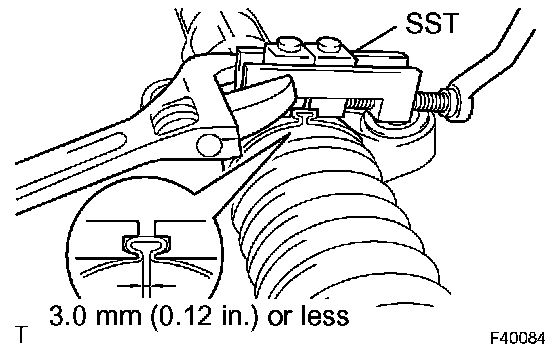

b) While pushing SST to the rack housing, pinch the rack boot clamp No.2 so that clearance is within specifications.
SST 09521-24010
Clearance: 3.0 mm (0.12 inch) or less
NOTICE: Make sure that the rack boot No.2 is not twisted.
29. INSTALL STEERING RACK BOOT NO.1 CLAMP
SST 09521-24010
HINT: Perform the same procedure as for the rack boot clamp No.2.
30. INSTALL STEERING RACK BOOT CLIP
a) Using pliers, install the 2 rack boot clips to the RH and LH rack boots.
31. INSPECT STEERING GEAR ASSY

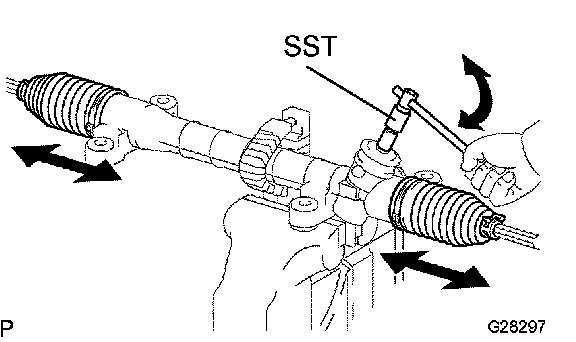

a) Using SST, turn the pinion shaft and check that the RH and LH rack boots expand and contract smoothly.
SST 09616-00011
If the rack boot does not expand and contract smoothly, reinstall it with a new rack boot clamp.
32. INSTALL TIE ROD END SUB-ASSY LH
a) Screw the lock nut and the tie rod end sub-assy LH on the rack end sub-assy until the matchmarks are aligned and temporarily tighten the lock nut.
HINT: Fully tighten the lock nut after adjusting toe-in.
33. INSTALL TIE ROD END SUB-ASSY RH
HINT: Perform the same procedure as for the LH.
34. INSTALL STEERING GEAR ASSY
a) Install the steering gear assy from the left side of the vehicle.
HINT: Be careful not to hit the stabilizer bar when installing the steering gear assy.
b) Install the column hole cover No.1 to the steering gear assy.
c) Install the steering gear assy to the crossmember with the 4 bolts.
Torque: 58 Nm (591 kgf-cm, 43 ft. lbs.)
35. INSTALL STEERING INTERMEDIATE SHAFT
a) Move the column hole cover No.1 to the upper side of the vehicle, align the matchmarks, and install the intermediate shaft from the inside of the vehicle.
NOTICE: Do not damage the hole cover No.1 when moving it.
b) Install the bolt.
Torque: 35 Nm (360 kgf-cm, 26 ft. lbs.)
c) Fit the recessed part on the column hole cover No.1 to the steering gear assy.
NOTICE: Make sure that the hole cover No.1 is securely installed.
36. INSTALL FRONT STABILIZER BRACKET NO.1 LH
37. INSTALL FRONT STABILIZER BRACKET NO.1 RH
HINT: Perform the same procedure as for the LH.
38. INSTALL FRONT STABILIZER LINK ASSY
39. INSTALL TIE ROD END SUB-ASSY LH
40. INSTALL TIE ROD END SUB-ASSY RH
HINT: Perform the same procedure as for the LH.
41. INSTALL FRONT WHEELS
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
42. INSTALL STEERING COLUMN HOLE COVER SUB-ASSY NO.1

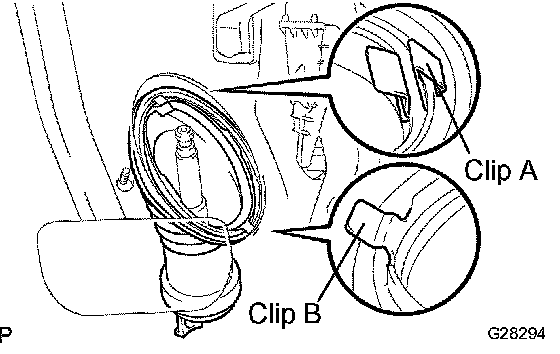

a) Install clip B to the vehicle body and install the column hole cover No.1 to the vehicle body with clip A.
NOTICE: Make sure that the hole cover No.1 lip fits on the dash panel correctly.
43. INSTALL STEERING SLIDING YOKE SUB-ASSY
a) Align the matchmarks and install the sliding yoke sub-assy to the intermediate shaft with bolt B.
Torque: 35 Nm (360 kgf-cm, 26 ft. lbs.)
b) Tighten bolt A.
Torque: 35 Nm (360 kgf-cm, 26 ft. lbs.)
44. INSTALL COLUMN HOLE COVER SILENCER SHEET
45. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
46. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
47. PERFORM STEERING ANGLE SENSOR ZERO POINT CALIBRATION
