Steering Pad Switch LH

Audio & Visual System:

STEERING PAD SWITCH LH

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSY




6. REMOVE STEERING PAD SWITCH LH

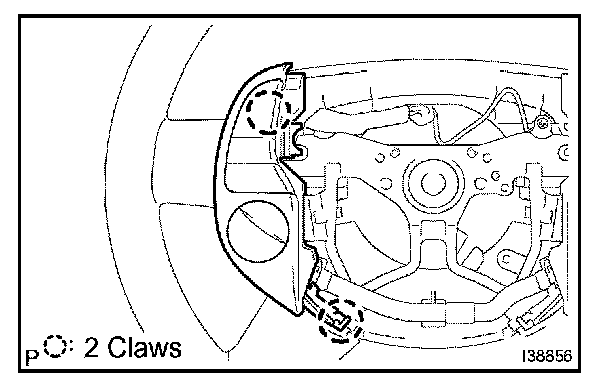

a. Disengage the 2 claws and pull out the steering pad switch LH.
b. Disconnect each connector and remove the steering pad switch LH.

7. INSTALL HORN BUTTON ASSY
8. CONNECT BATTERY NEGATIVE TERMINAL
9. PERFORM INITIALIZATION
10. INSPECT HORN BUTTON ASSY
11. INSPECT SRS WARNING LIGHT
