Steering Pad Switch RH

Audio & Visual System:

STEERING PAD SWITCH RH

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. PRECAUTION
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSY




6. REMOVE STEERING PAD SWITCH RH

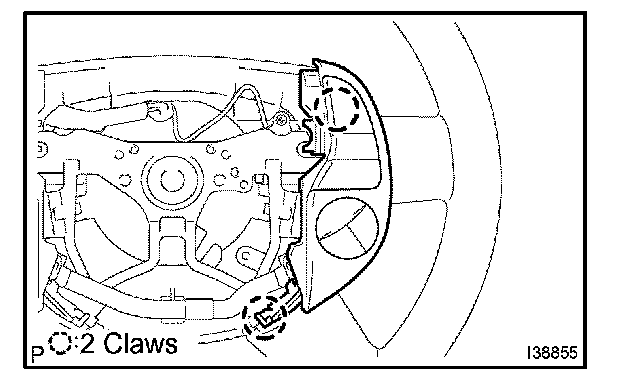

a. Disengage the 2 claws and pull out the steering pad switch RH.
b. Disconnect each connector and remove the steering pad switch RH.

7. INSTALL HORN BUTTON ASSY
8. CONNECT BATTERY NEGATIVE TERMINAL
9. PERFORM INITIALIZATION
10. INSPECT HORN BUTTON ASSY
11. INSPECT SRS WARNING LIGHT
