Diesel Data: Automotive Repair

With Manufacturer's Scan Tool

CHECK FOR DTCs

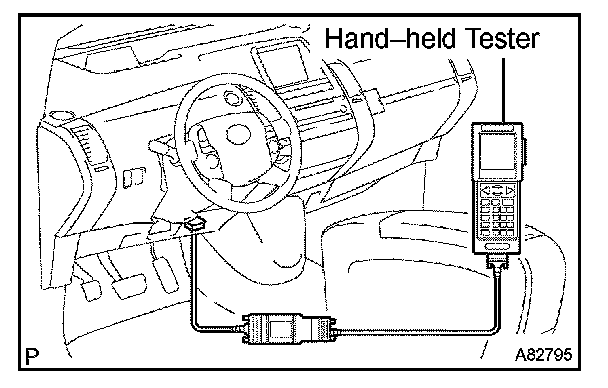

1. Connect the hand-held tester to the DLC3.
2. Turn the power switch on (IG).
3. Read the DTCs by following the display on the hand-held tester.

HINT: Refer to the hand-held tester operator's manual for further details.
