Freeze Frame Data

FREEZE FRAME DATA


NOTE:
- It is difficult to show the specified values (judgement values) clearly because freeze frame data values significantly change due to differences in measurement conditions, surroundings or vehicle conditions. Because of this reason, there may be a problem even when the values are within specifications.
- Turn the power switch on (IG) and park the vehicle on level ground to check the freeze frame data by using the hand-held tester.

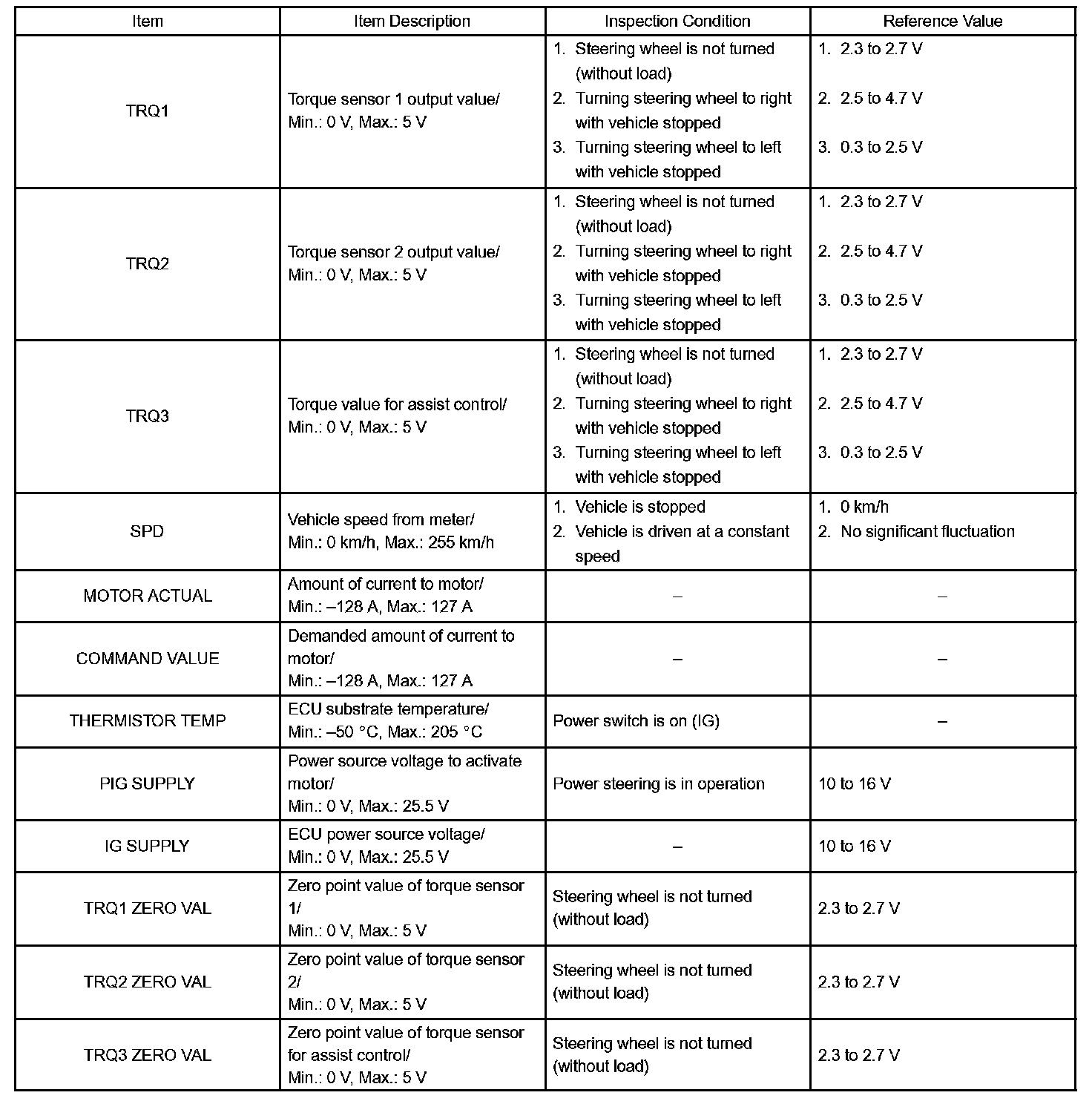

Freeze Frame Data Part 1:

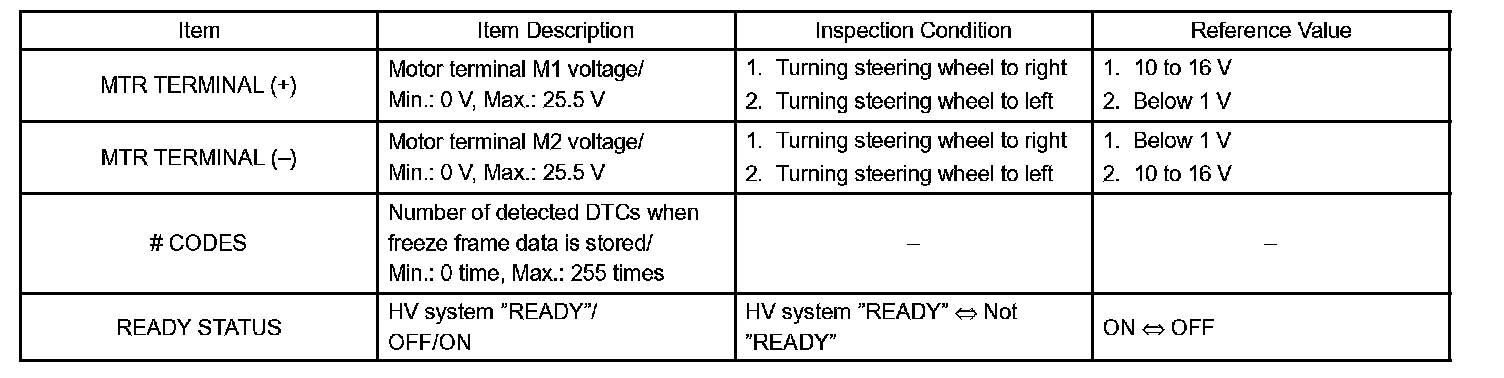

Freeze Frame Data Part 2:




a. Connect the hand-held tester to the DLC3.
b. Turn the power switch on (IG) and check the freeze frame data by following the prompts on the display on the hand-held tester.
