Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview
FRONT
SUSPENSION
SYSTEM

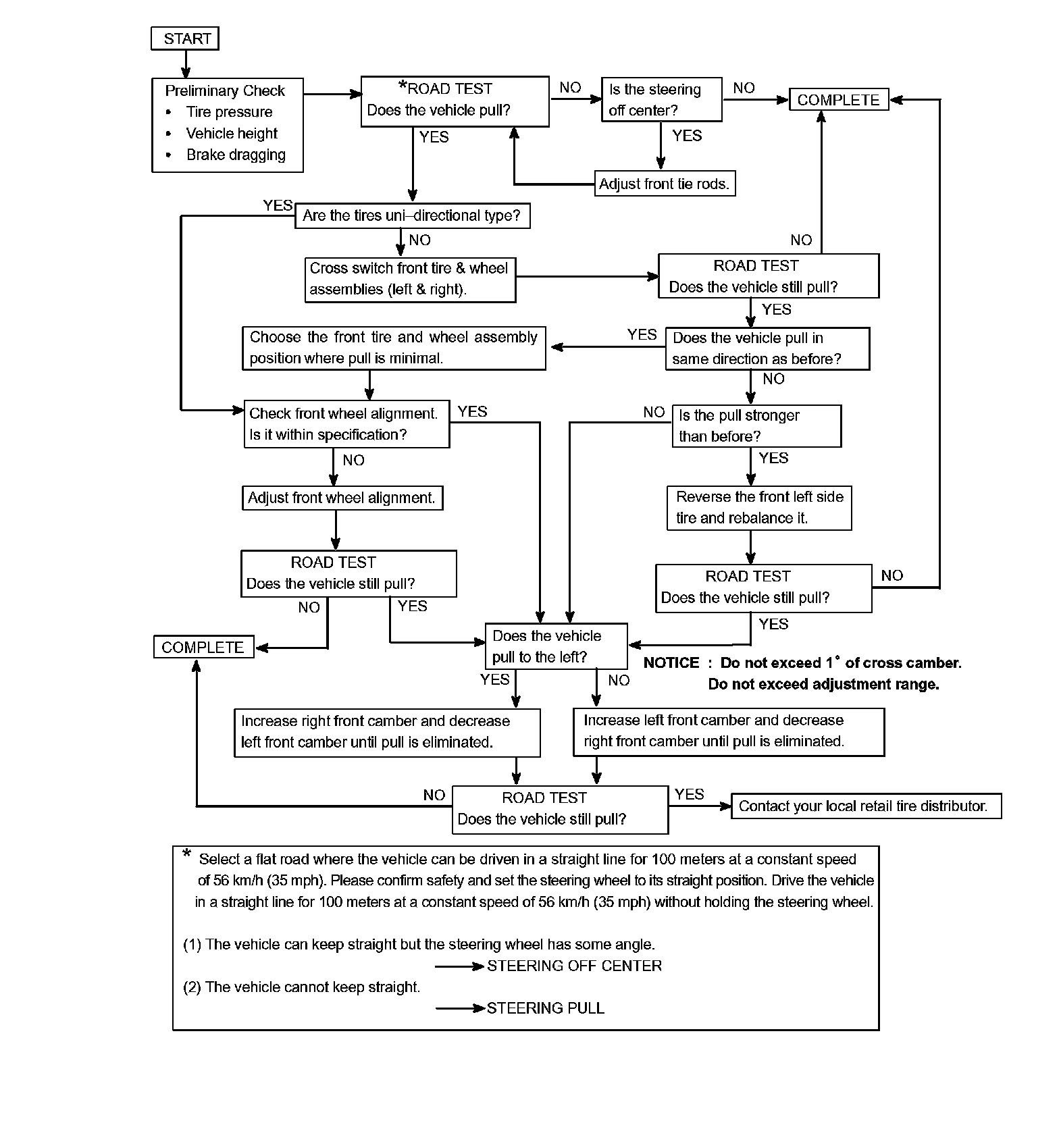

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
This is the repair procedure for vehicle pull.
