Rear Axle LH Hub Bolt

REAR AXLE LH HUB BOLT
REPLACEMENT

HINT: Refer to components. Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSY

HINT: Put matchmarks on the rear brake drum and rear axle hub.





3. REMOVE REAR AXLE LH HUB BOLT

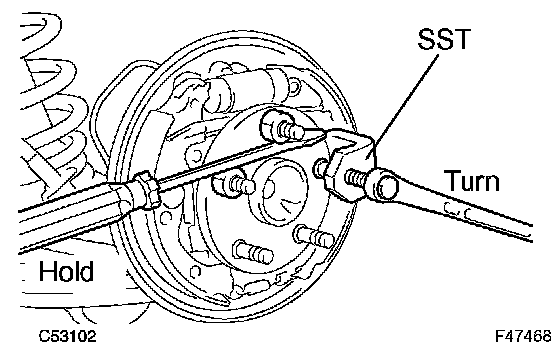

a. Using SST, remove the rear axle hub bolt LH.
SST 09628-10011





4. INSTALL REAR AXLE LH HUB BOLT

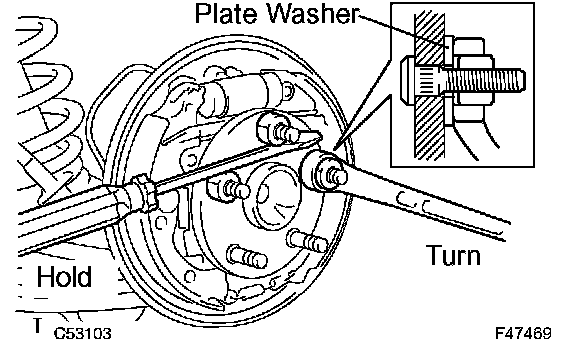

a. Pass the plate washer as shown in the illustration through the rear axle hub nut LH and install the rear axle hub bolt LH while tightening the nut (M12 x P1.5 mm).

HINT: A plate washer of 5 mm or more in thickness is preferable.

5. INSTALL REAR BRAKE DRUM SUB-ASSY

HINT: Align the matchmarks of the rear brake drum and rear axle hub before installing them.

6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
