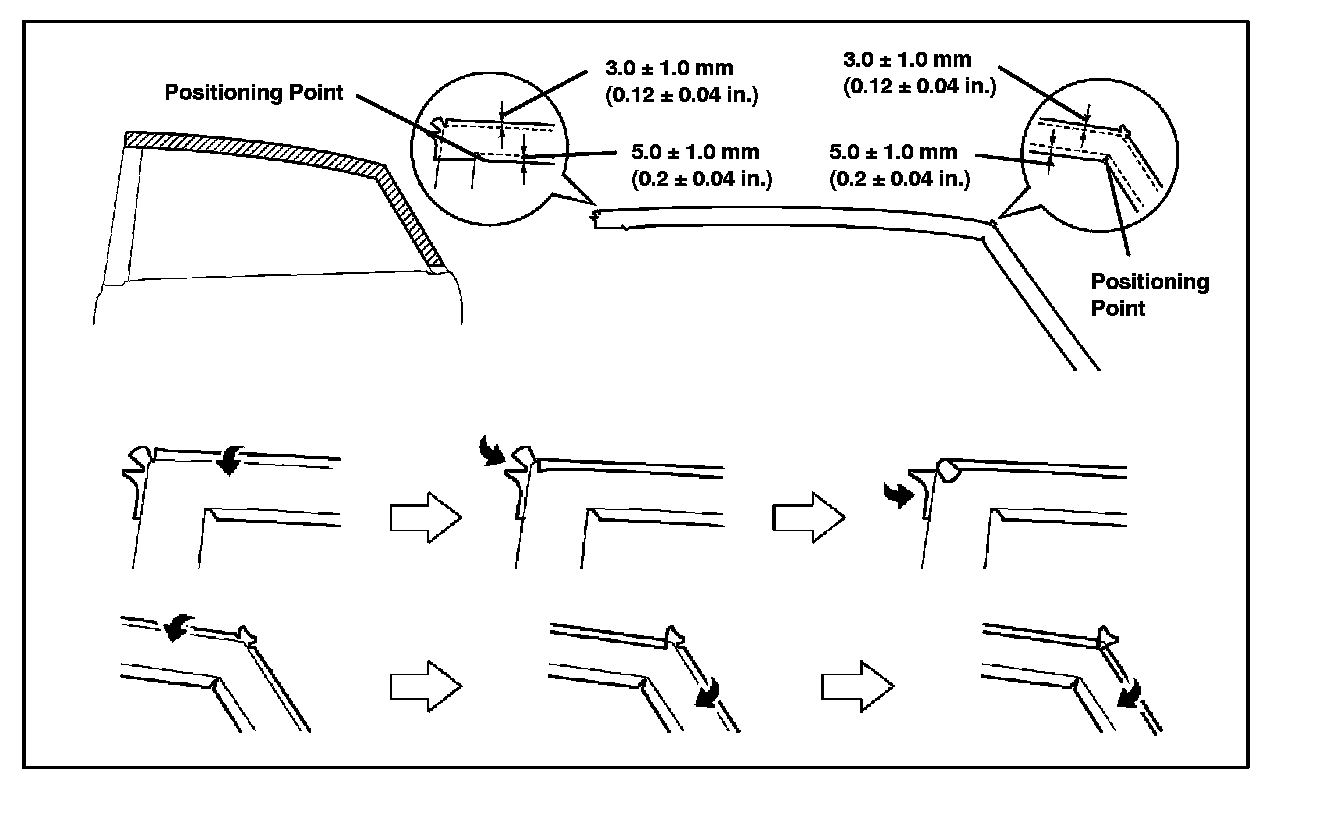

Blackout Tape Application Area

This is the location to apply blackout tape.

1. Apply Blackout Tape No. 2.

A. Cut off the tape and the peeling paper at the perforations, and fit it to the attaching position.

B. Position it so that each fold matches the specified width, and hold in place with a clip or magnetic plate.

C. Remove the remaining peeling paper, and apply pressure to the whole area twice.

D. Apply pressure to the first part of the fold with the squeegee, then attach the hemming folded part. Attach the sash corner part only after the surrounding folded parts have been attached.

E. Check the whole area.
