Canada - A/T - MIL ON/DTC's P0AA5/P3009 Set

Bulletin
2558R

Issue Date
August 02, 2006

Market
Canada

Title:
M.I.L. "ON" DTC P0AA6 OR P3009, INFORMATION CODES 526 & 613

Component
ENGINE MECHANICAL

Models
'04 - '08 Prius

TSB REVISION NOTICE:
- November 26, 2008: 2008 model year has been added to Applicable Vehicles. The VINs in the Production Change Information table have been updated.
- June 7, 2007: 2007 model year has been added to Applicable Vehicles. The VINs in the Production Change Information table have been updated. The Applicable Warranty section in Warranty Information table have been updated.
Previous versions of this TSB should be discarded.

INTRODUCTION:
Some customers with 2004 to 2008 model year Prius vehicles may experience a M.I.L. "ON" condition with DTC P0AA6 or P3009 with information codes 526 and 613. The transaxle assembly has been improved to prevent this condition.

NOTE:
This TSB applies ONLY if BOTH information codes 526 and 613 are present.

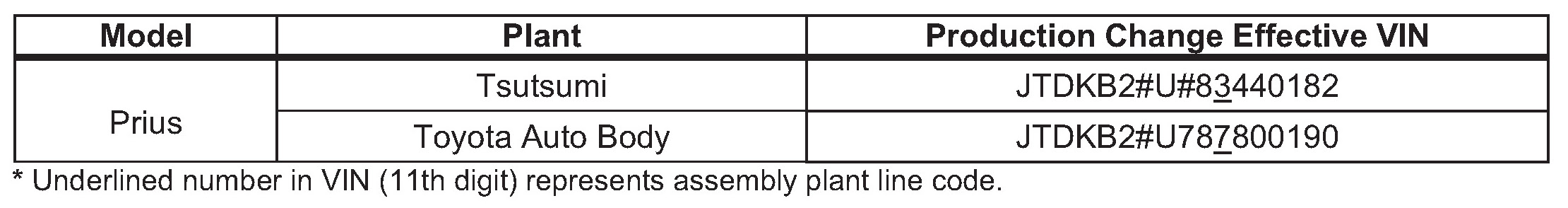

PRODUCTION CHANGE INFORMATION:







This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

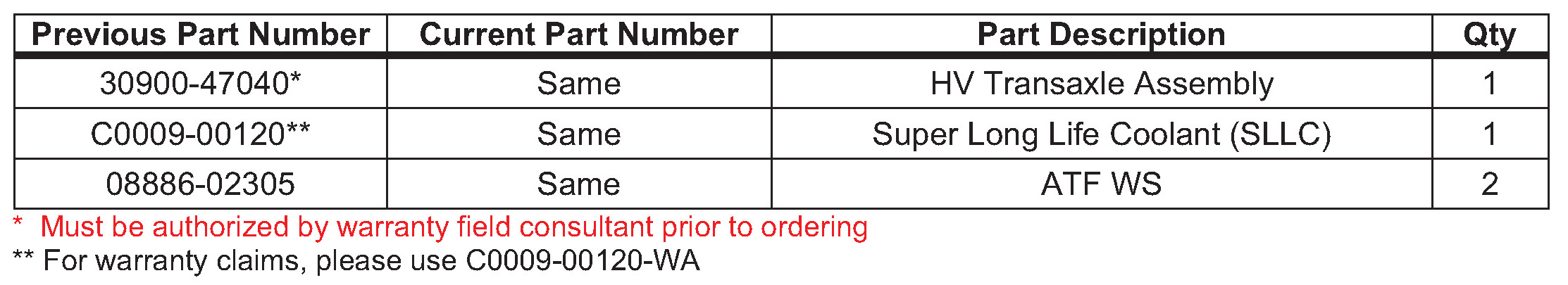

PARTS INFORMATION:

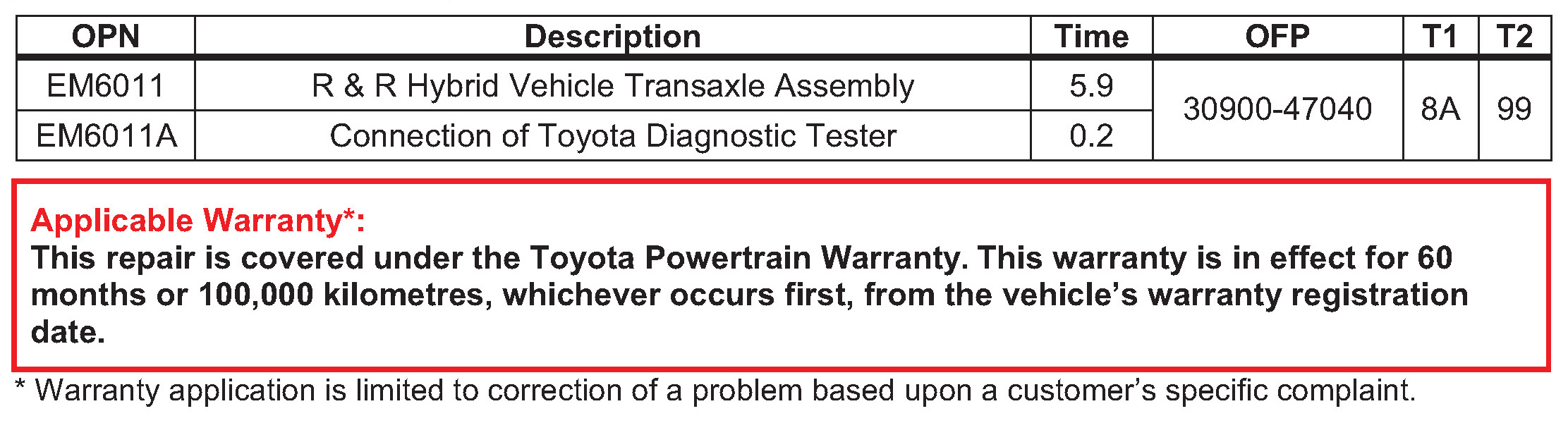

WARRANTY INFORMATION:

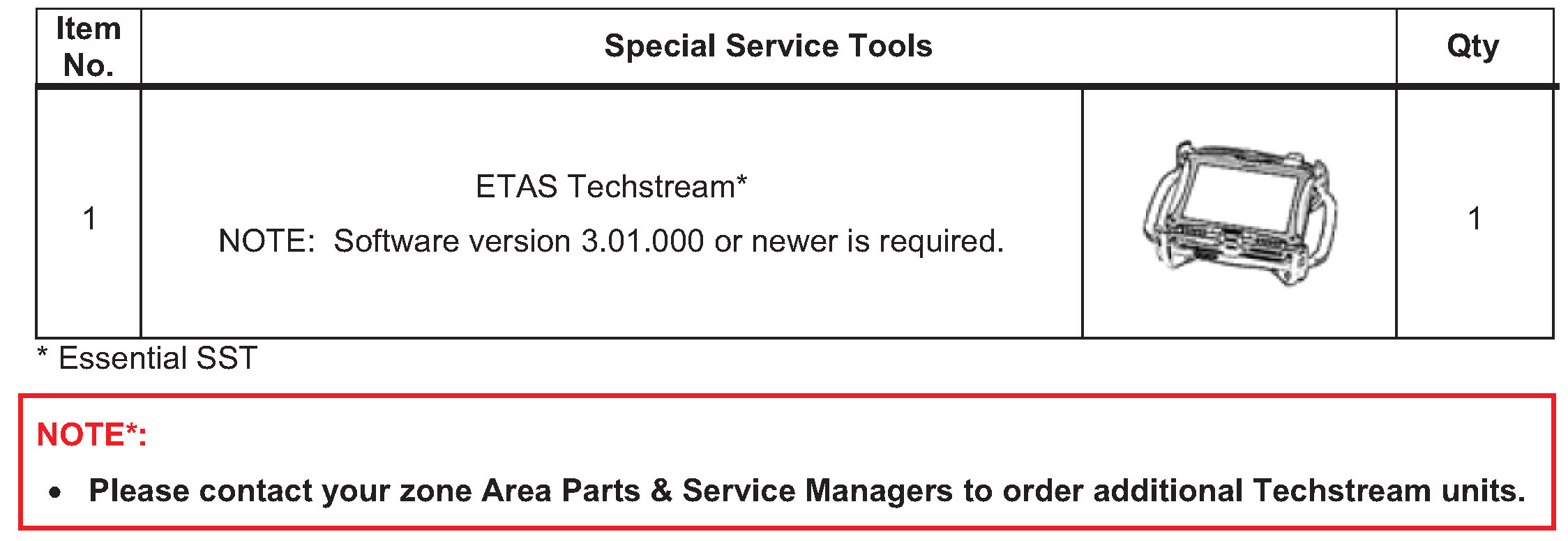

REQUIRED SSTs:

REPAIR PROCEDURE:
Remove and replace the hybrid vehicle transaxle assembly. Refer to ETAS:
- 2004 or 2005 model year Prius Repair Manual: Hybrid Transaxle: Hybrid Vehicle Transaxle Assy: Replacement
- 2006 / 2007 /2008 model year Prius Repair Manual: Hybrid Transmission / Transaxle: Hybrid Vehicle Transaxle Assembly Removal and Installation
