Canada - Engine - Engine Oil Specifications

Bulletin
TSB2164R

Issue Date
December 21, 2004

Market
Canada


Title
ENGINE OIL SPECIFICATIONS

Component
ENGINE MECHANICAL

Models
'01 - '07 Prius

TSB REVISION NOTICE:
- April 19, 2007: 2007 model year has been added to Applicable Vehicles.
- January 13, 2006: 2006 model year has been added to Applicable Vehicles. "ILSAC GF-4" engine oil has been added as an option in the Information section.
Previous versions of this TSB should be discarded.

INTRODUCTION:

The correct engine oil viscosity and fill level are critical for the proper performance of the 1NZ-FXE engine installed in 2001 - 2007 model year Prius vehicles. Incorrect engine oil viscosity or improper fill level may result in a M.I.L. "ON" condition (most common Diagnostic Trouble Code P3191 "Engine Does Not Start").

APPLICABLE VEHICLES:
- 2001 - 2007 model year Prius vehicles.

INFORMATION:

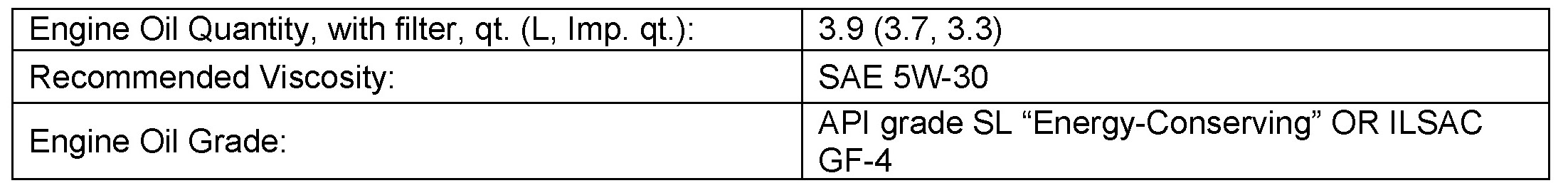

Ensure that the correct engine oil viscosity is used in the engine with the correct fill level quantity as described in the Owner's Manual:

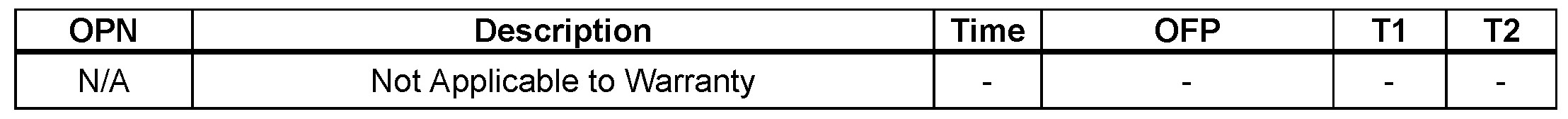

WARRANTY INFORMATION:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
