Hybrid System - MIL ON/DTC's P0AA6 or P3009 Set
ENGINEEG017-05
REVISED
April 20, 2005
Title:
M.I.L. "ON" DTC P0AA6 OR P3009, INFORMATION CODES 526 & 614
Models:
'04 - '05 Prius
TSB REVISION NOTICE:
^ June 7, 2006: The Introduction has been updated, and a note has been added to the Introduction.
^ December 16, 2005: DTC P0AA6 has been added to the TSB. Diagnostic Tester software has been updated to the latest version in Required SSTs section. Previous versions of this TSB should be discarded.
Introduction
Some customers with 2004 or 2005 model year Prius vehicles may experience a M.I.L. "ON" condition with DTC P0AA6 or P3009 with information codes 526 and 614 (inverter/converter assembly). The inverter/converter assembly has been improved to prevent this condition.
NOTE:
This TSB applies ONLY if BOTH information codes 526 AND 614 are present.
Applicable Vehicles:
^ 2004 model year Prius vehicles.
^ 2005 model year Prius vehicles produced BEFORE the Production Change Effective VINs shown below.

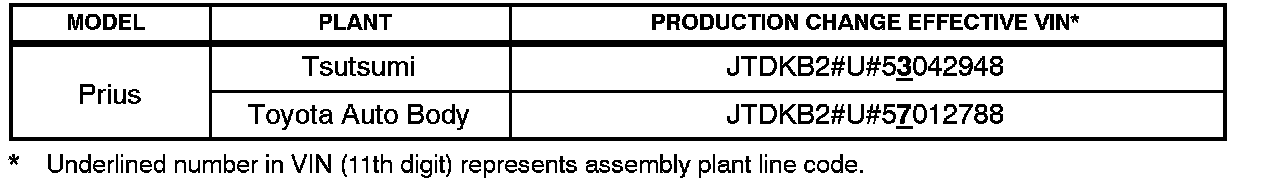

Production Change Information

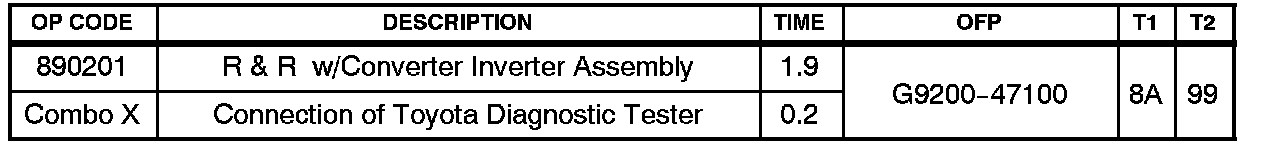

Warranty Information
Applicable Warranty:
This repair is covered under the Toyota Hybrid Vehicle System Component Warranty.
This warranty is in effect for 96 months or 100,000 miles, whichever occurs first, from the vehicle's in-service date.
Warranty application is limited to correction of a problem based upon a customer's specific complaint.

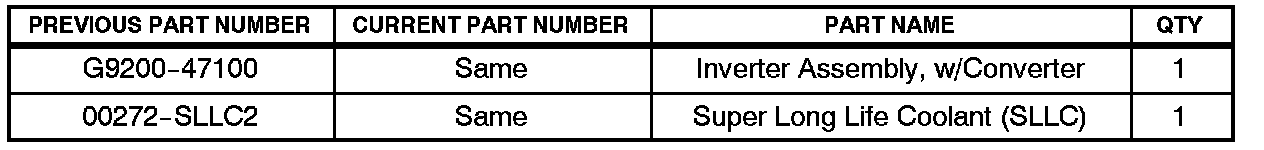

Parts Information

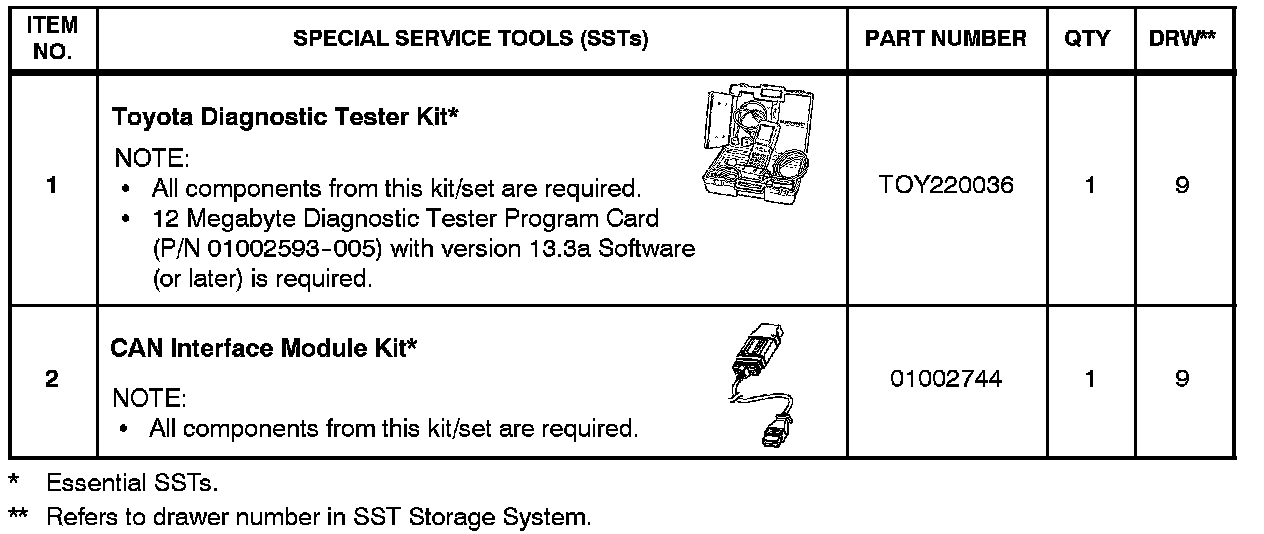

Required SSTs
NOTE:
Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards, or other SSTs may be ordered by calling SPX-OTC at 1-800-933-8335.
Repair Procedure
Remove and replace the inverter/converter assembly.
Refer to the Technical Information System (TIS), 2004 or 2005 model year Prius Repair Manual: Hybrid Control System: W/converter Inverter Assy: Replacement.
