Home >> Toyota >> 2004 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> Recall - Steering Shaft Replacement >> Technical Instructions >> VI. Work Procedure >> B. Intermediate (Extension) Shaft No. 1 Inspection

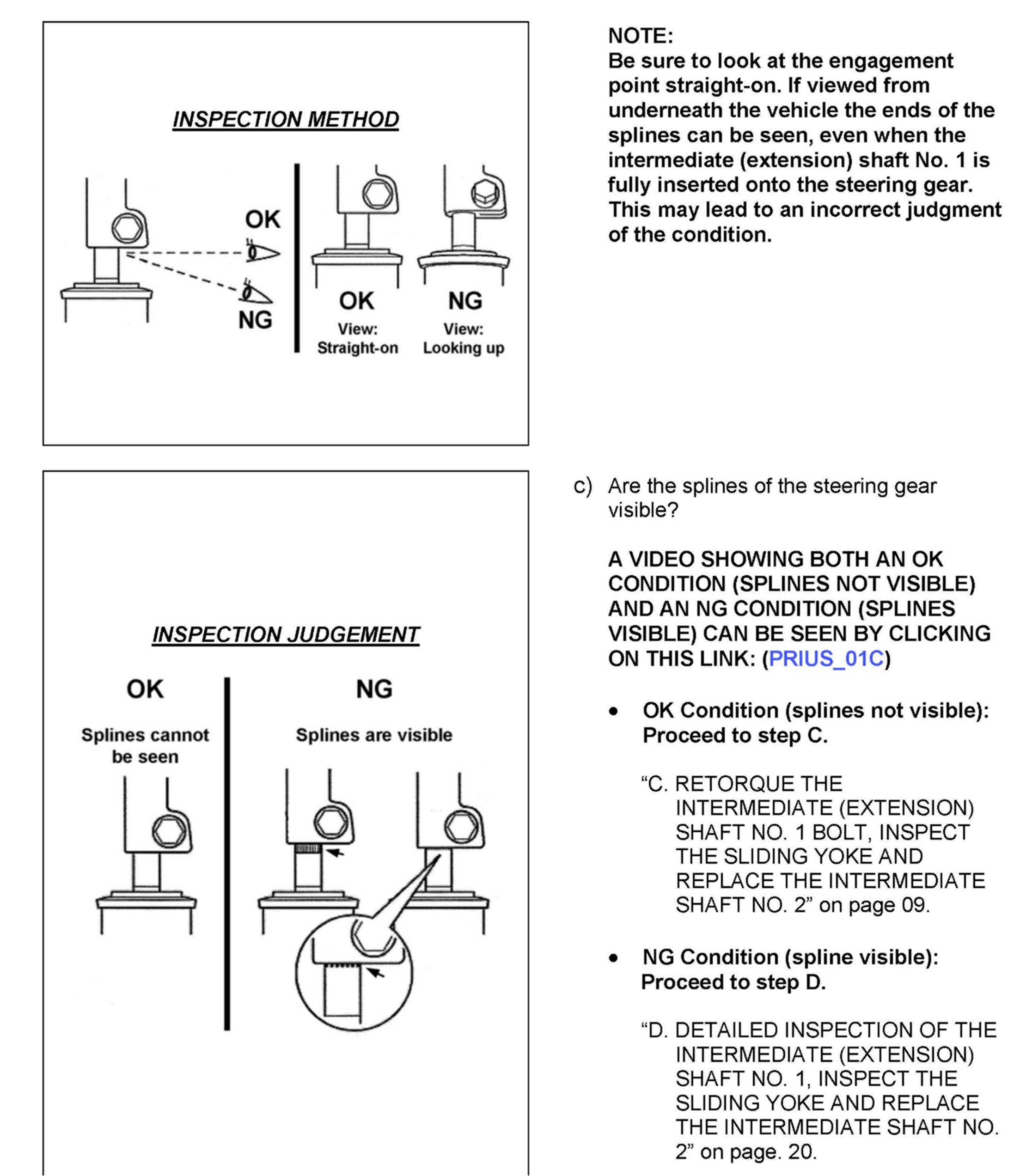

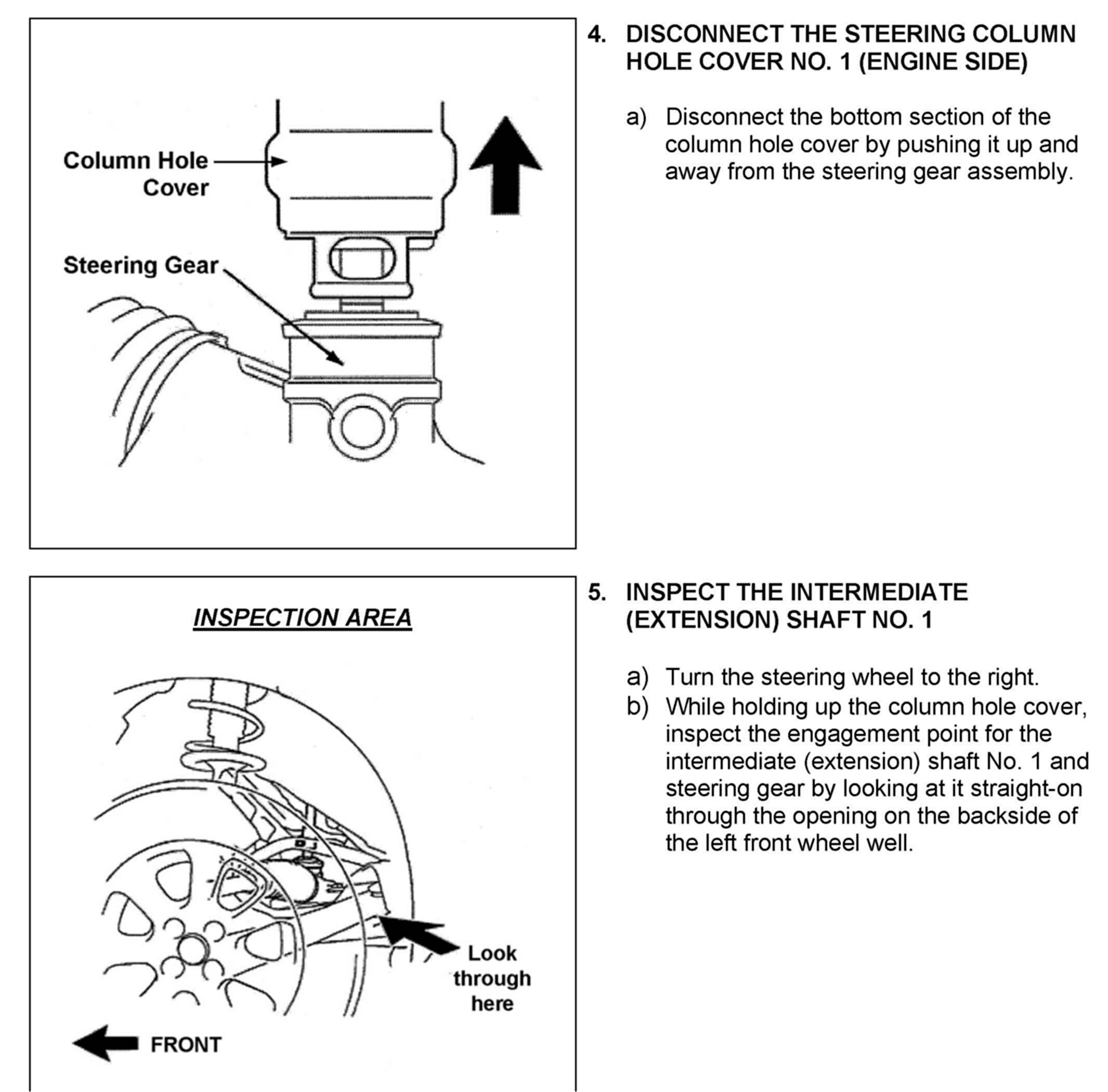

B. Intermediate (Extension) Shaft No. 1 Inspection
