Brakes - Parking Brake Lamp ON After Releasing Brake

BRAKES
BR002-07

Title:
PARKING BRAKE WARNING LIGHT
STAYS ILLUMINATED AFTER PARKING
BRAKE IS RELEASED

June 13, 2007

Introduction

Some 2004 - 2007 model year Prius vehicle customers may complain that the Parking Brake Warning Light stays illuminated after the parking brake pedal is released. The parking brake assembly, which includes the parking brake switch, has been modified to correct this condition. Use the following repair procedure to remove and replace the parking brake pedal assembly.

Applicable Vehicles

^ 2004 - 2007 model year Prius vehicles produced BEFORE the Production Change Effective VINs shown below.

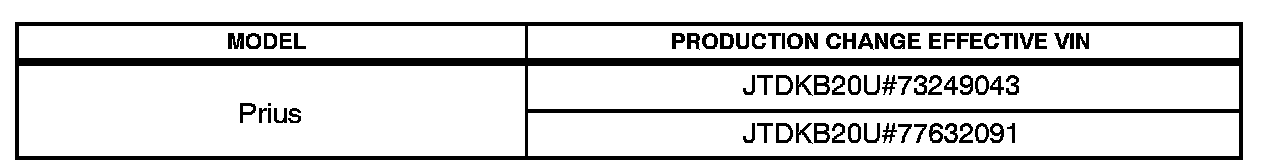

Production Change Information

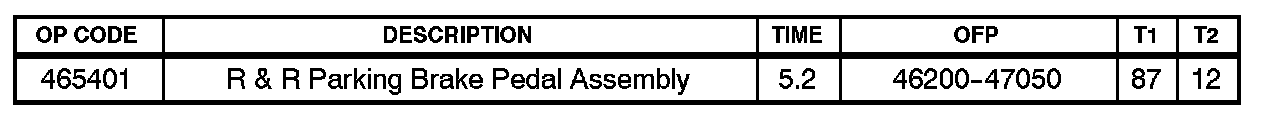

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

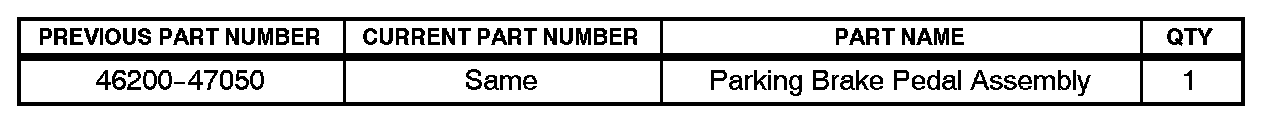

Parts Information

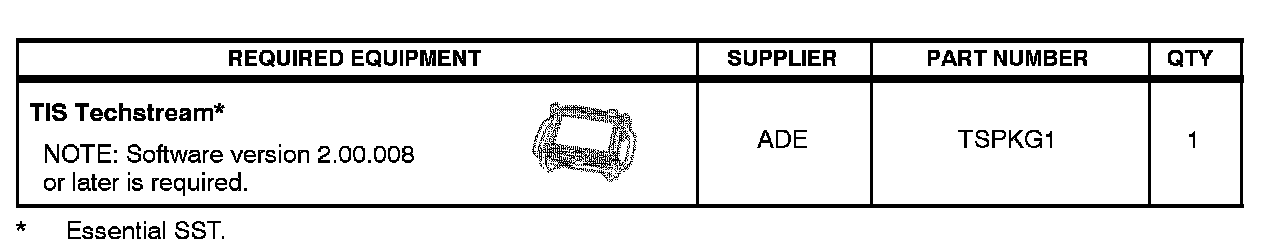

Required Tools & Equipment

NOTE:
^ Additional Techstream units may be ordered by calling Approved Dealer Equipment (ADE).

^ The Toyota Diagnostic Tester and CAN Interface Module may also be used to perform the service procedures listed in this bulletin.

Repair Procedure

1. Confirm the customer's complaint that the Parking Brake Warning Light stays illuminated after the parking brake pedal is released.

2. Check to see if the parking brake switch is loose and/or the plastic guide pin for the parking brake switch is broken. This can cause the switch to swivel out of position and NO longer make contact with the parking lever to engage the parking brake switch and open the circuit.

3. Replace the parking brake pedal assembly if the condition in step 2 is found. Refer to the Technical Information System (TIS):

^ 2004 or 2005 model year Prius Repair Manual, Brake - Parking Brake - "Parking Brake Control Pedal Assy: Overhaul"

^ 2006 or 2007 model year Prius Repair Manual:

^ Brake - Parking Brake - "Parking Brake: Parking Brake Pedal: Removal"

^ Brake - Parking Brake - "Parking Brake: Parking Brake Pedal: Installation"

4. Test drive the vehicle to confirm the condition is corrected.
