Canada - Brakes - Parking Brake Lamp ON After Releasing Brake

Bulletin
TSB2773

Issue Date
June 1, 2007

Market
Canada

Title
PARKING BRAKE WARNING LIGHT STAYS ILLUMINATED AFTER PARKING BRAKE IS RELEASED

Component
BODY ELECTRICAL

Models
'04 - '07 Prius

INTRODUCTION:

Some 2004 - 2007 model year Prius vehicle customers may complain that the Parking Brake Warning Light stays illuminated after the parking brake pedal is released. The parking brake assembly, which includes the parking brake switch, has been modified to correct this condition. Use the following repair procedure to remove and replace the parking brake pedal assembly.

APPLICABLE VEHICLES:
- 2004 - 2007 model year Prius vehicles produced BEFORE the Production Change Effective VINs shown below.

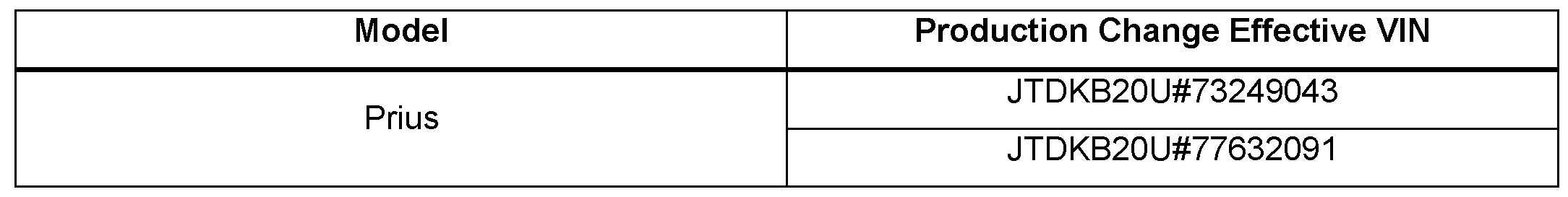

PRODUCTION CHANGE INFORMATION:

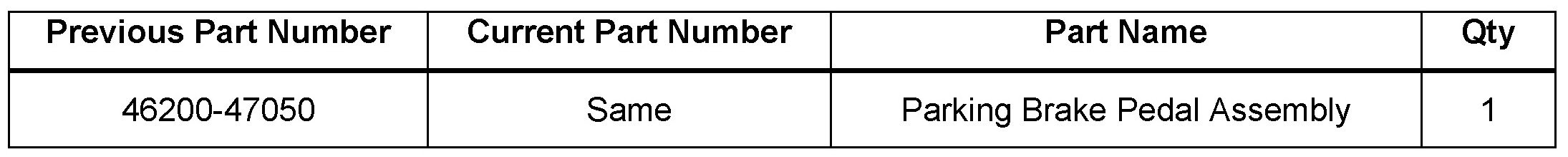

PARTS INFORMATION:

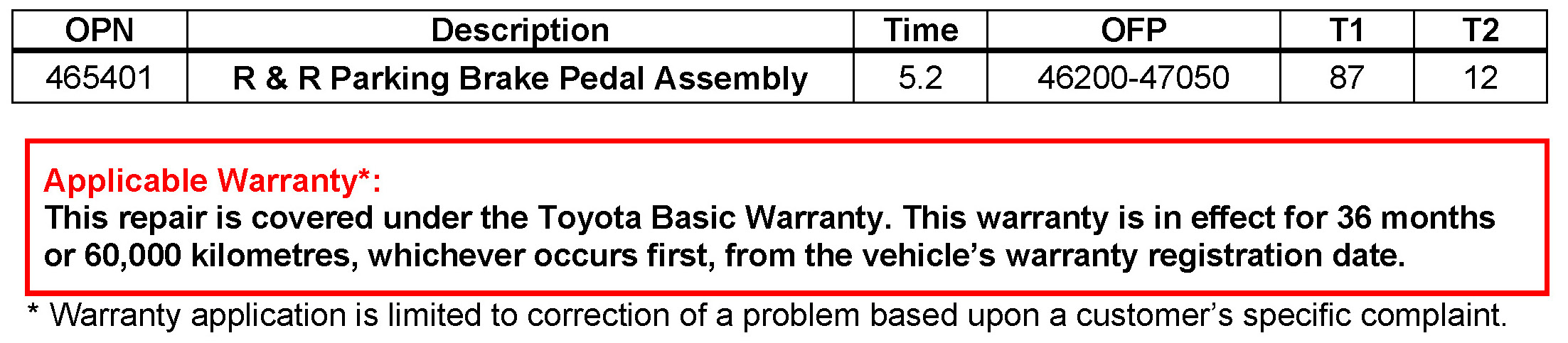

WARRANTY INFORMATION:

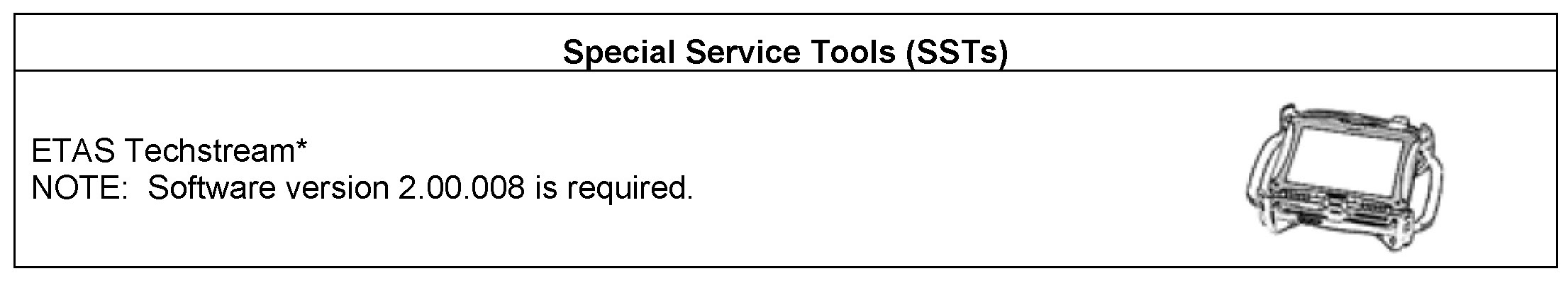

REQUIRED SSTs:

NOTE:
- Please contact your zone Area Parts & Service Managers to order additional Techstream units.
- The Toyota Diagnostic Tester (TDT) and CAN Interface Module may also be used to perform the service procedures listed in this bulletin.

REPAIR PROCEDURE:

1. Confirm the customer's complaint that the Brake Warning Light stays illuminated after the parking brake pedal is released.
2. Check to see if the parking brake switch is loose and/or the plastic guide pin for the parking brake switch is broken. This can cause the switch to swivel out of position and NO longer make contact with the parking lever to engage the parking brake switch and open the circuit.
3. Replace the parking brake pedal assembly if the condition in step 2 was found.
Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Prius
- Year: 2004 or 2005
- Service Category: Brake
- Section: Parking Brake
- Keyword: Parking Brake Control Pedal Assy: Overhaul

- Division: Toyota
- Model: Prius
- Year: 2006 or 2007
- Service Category: Brake
- Section: Parking Brake
- Keyword: Parking Brake Pedal: Removal
- Keyword: Parking Brake Pedal: Installation

4. Test drive the vehicle to confirm the condition is corrected.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
