Canada - Hybrid System - MIL ON/DTC P0A93 / Info Code 346

Bulletin
TSB2710R

Issue Date
January 30, 2007

Market
Canada

Title
M.I.L. "ON" DTC P0A93, INFORMATION CODE 346

Component
ENGINE

Models
'04 - '06 Prius

TSB REVISION NOTICE:
- August 24, 2007: The current part number in the Parts Information table has been updated.
Previous versions of TSB should be discarded.

INTRODUCTION:

Some customers with 2004 -- 2006 model year Prius vehicles may experience a M.I.L. "ON" condition with DTC P0A93 with information code 346 (Inverter Cooling System Performance). The HV coolant pump assembly has been improved to address this condition.

NOTE:
BEFORE applying this TSB, confirm basic system operation per the Repair Manual. If no other HV cooling system problems exist, proceed with TSB repair instructions. Do NOT replace the Inverter w/Converter assembly.

APPLICABLE VEHICLES:
- 2004 -2005 model year Prius vehicles.
- 2006 model year Prius vehicles produced BEFORE the Production Change Effective VINs shown below.

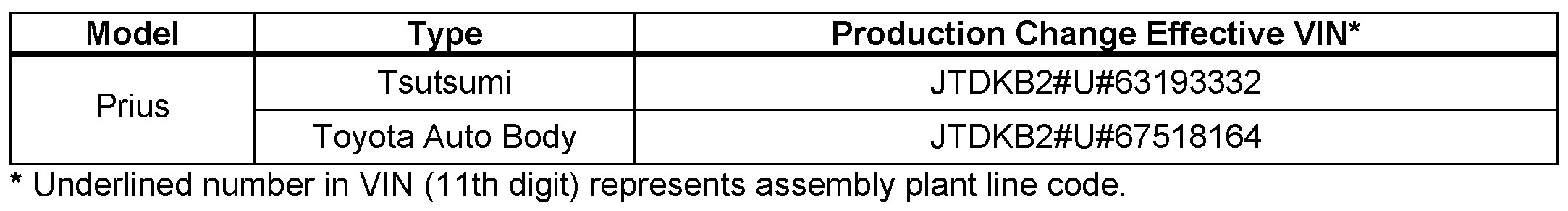

PRODUCTION CHANGE INFORMATION:

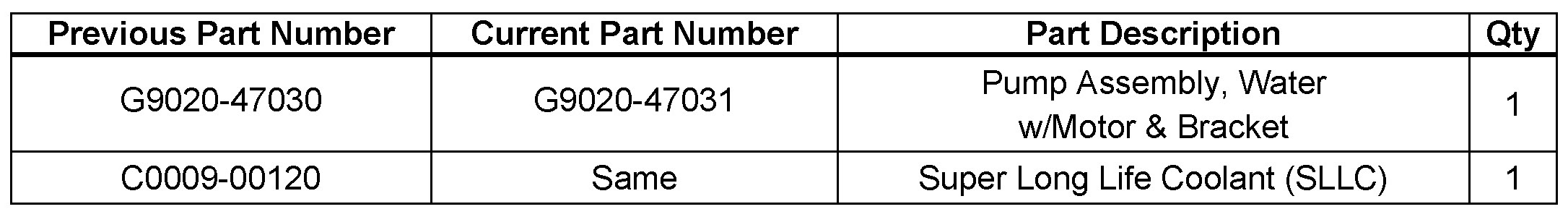

PARTS INFORMATION:

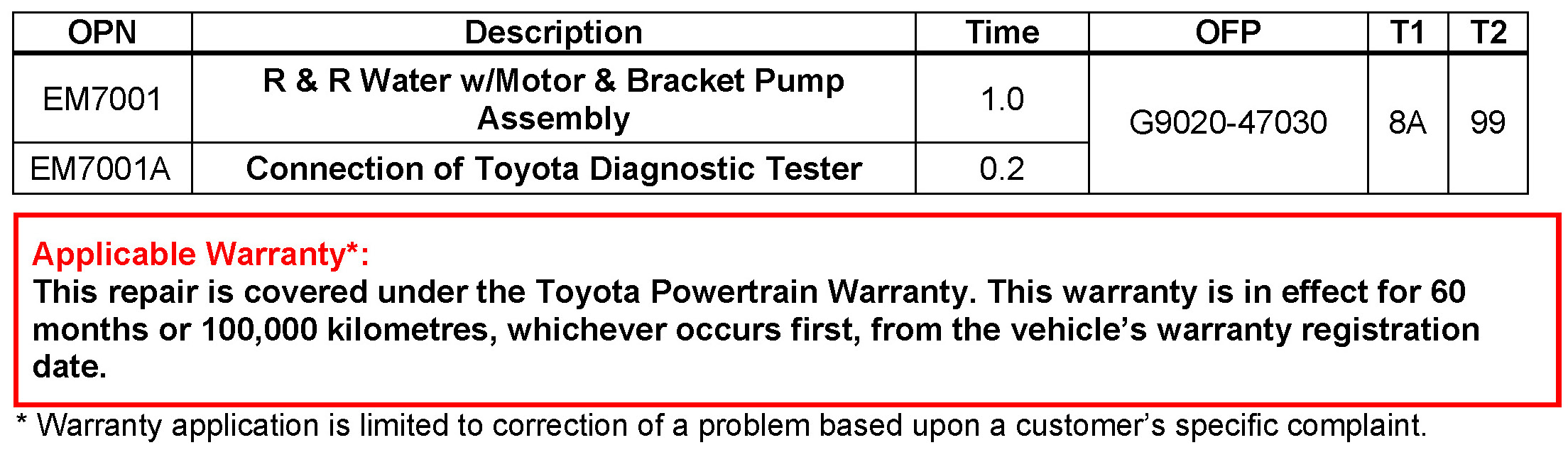

WARRANTY INFORMATION:






REQUIRED SSTs:

NOTE:
Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards, or other SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

REPAIR PROCEDURE:

Remove and replace the HV coolant pump assembly (water w/motor & bracket pump assembly).

Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Prius
- Year: 2004 or 2005
- Service Category: Engine/Hybrid System
- Section: Cooling
- Keyword: 1NZ-FXE: Water w/Motor & Bracket Pump Assy: Replacement OR water pump

Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Prius
- Year: 2006
- Service Category: Engine/Hybrid System
- Section: Hybrid/Battery Control System
- Keyword: > P112 Hybrid Vehicle Control: Water Pump with Motor: Removal
> P112 Hybrid Vehicle Control: Water Pump with Motor: Installation

NOTE:
- An improperly bled coolant system can cause a reoccurrence of DTC P0A93.
- Refer to TIS for proper bleed procedure, 2004 -- 2006 model year Prius Repair Manual, Drivetrain - Hybrid Transmission/Transaxle - "Coolant: Replacement".

Road test the vehicle to confirm the condition is NO longer present.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
